Today's Hours 8am - 11pm estMRCOOL 48,000 BTU DIY 5th Gen 21.8 SEER2 5 Zone Wall Mount Mini Split Heat Pump System R454B | 230V 6 + 12 + 12 + 12 + 12
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI6-48HP / DIY-06-HP-WMAH-230 / DIY-12-HP-WMAH-230-4
ID
206772
Was $7,085.10
Your Low Price $6,441.00
Product Features
- 48,000 BTU Comfort For 1500 Sq Ft
- Designed For Spaces Up To 1500 Sq Ft
- Energy-Efficient Comfort With 21.8 SEER2
- Great For Remodels And Retrofits
- Reliable Year-Round Comfort
- Reliable Cooling Up To 122°F

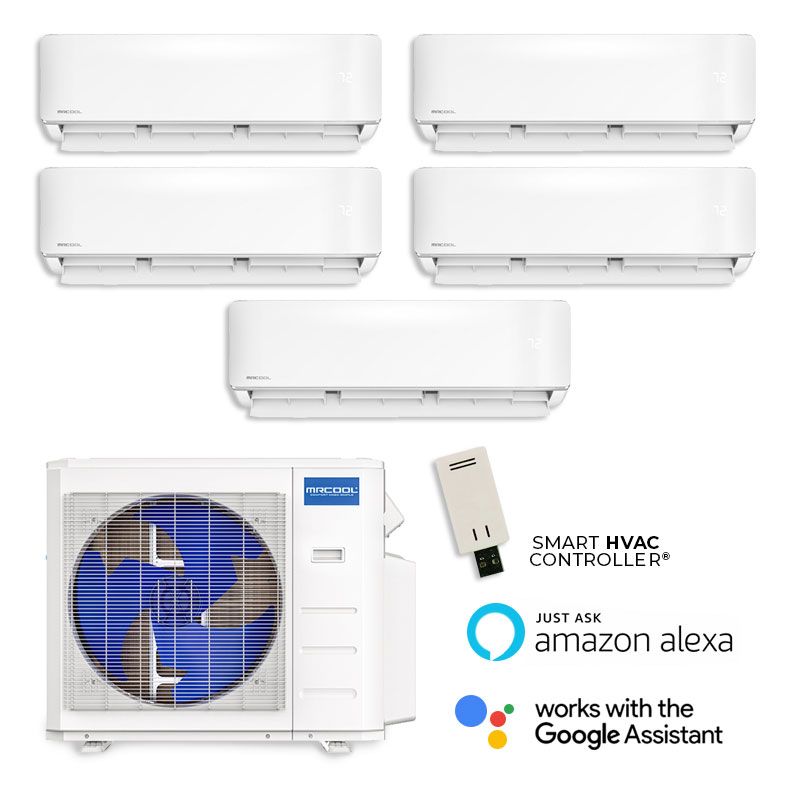

MRCOOL DIY 5th Gen 48,000 BTU 21.8 SEER2 Ductless Heat Pump Split System “ Five Zone (6,000 + 12,000 + 12,000 + 12,000 + 12,000 BTU)
The MRCOOL DIY 5th Gen 48,000 BTU Five Zone Ductless Mini Split Heat Pump System provides exceptional climate control for homes with a variety of room sizes. This configuration includes one 6,000 BTU unit for smaller rooms and four 12,000 BTU units ideal for larger living areas, bedrooms, or shared spaces. With high energy efficiency, whisper-quiet operation, and a fully DIY installation process, this system is built to deliver comfort, savings, and smart functionality”all without requiring professional installation.
System Features
- Five-Zone Flexibility: One 6,000 BTU indoor unit is perfect for compact spaces, while four 12,000 BTU units deliver robust performance for larger zones.
- 48,000 BTU Outdoor Condenser: Inverter technology ensures reliable and quiet multi-zone operation while maintaining high energy efficiency.
- Smart Control Ready: Use the MRCOOL SmartHVAC app or voice commands via Amazon Alexa and Google Assistant for remote operation and zone customization.
- 21.8 SEER2 Efficiency: Variable-speed compressor optimizes performance and reduces energy consumption across all five zones.
- Quiet Performance: Indoor and outdoor units are engineered for low noise, making this system suitable for bedrooms, offices, and quiet areas.
- Eco-Friendly Operation: Uses R-454B refrigerant with a lower global warming potential for a more environmentally conscious footprint.
- Corrosion Protection: Gold Fin coating on the outdoor unit resists rust and degradation, especially in coastal or humid environments.
- Leak Detection: Built-in sensors monitor refrigerant levels and provide alerts for early leak detection and efficient system maintenance.
All-Season Performance
This system provides dependable comfort all year long, with cooling capabilities in outdoor temperatures as low as 5 F and heating performance down to -13 F. Each indoor unit operates independently, allowing precise temperature control in every zone and reducing energy use in unoccupied spaces.
Whats Included
- One 48,000 BTU Outdoor Condenser
- One 6,000 BTU Wall-Mounted Indoor Unit
- Four 12,000 BTU Wall-Mounted Indoor Units
- Five Wireless Remote Controls
- Smart Controller Module
Why Choose the MRCOOL 5th Gen 6K + 12K + 12K + 12K + 12K Five Zone System?
- Efficient Coverage for Multiple Rooms: Ideal for homes with one small space and several larger areas requiring separate climate zones.
- Do-It-Yourself Simplicity: Homeowners can install the system without specialized tools or professional help.
- Smart and Convenient: Adjust comfort in each zone from anywhere using app or voice control.
- Reliable, Year-Round Comfort: Designed to perform in extreme weather while providing lasting energy savings and durability.
The MRCOOL DIY 5th Gen Five Zone System with one 6,000 BTU and four 12,000 BTU indoor units delivers powerful, efficient, and customizable comfort for a wide range of room sizes. With easy installation, smart functionality, and high SEER2 performance, it's the ideal multi-zone HVAC solution for modern homeowners seeking professional-grade climate control without the professional cost. These bundles require the purchase of a Pre-Charged Line Set, these are not included.
48,000 BTU MRCOOL 6 Zone Condenser - R454B
MRCOOL 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
The MRCOOL® DIY-MULTI6-48HP230D-O is the most powerful model in the 5th Generation DIY® Multi-Zone series, delivering high-capacity climate control for up to six individual zones. With 48,000 BTUs of heating and cooling performance, this unit is engineered for large homes and spaces needing efficient, customized comfort without the hassle of professional installation.
Key Features
- 6-Zone Capability: Supports up to six indoor air handlers of various BTU capacities for tailored temperature control across multiple rooms or zones.
- Energy Efficiency: High SEER2 and HSPF2 ratings ensure long-term energy savings and reduced operational costs.
- Smart Control: Wi-Fi enabled and compatible with the SmartHVAC app, Amazon Alexa, and Google Assistant for remote access and voice control.
- Weather Resistant: Features a corrosion-resistant Gold Fin coating to withstand harsh outdoor elements and promote durability.
Performance Specifications
- Model: DIY-MULTI6-48HP230D-O
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 48,000 BTU
- Heating Capacity: 48,000 BTU
- SEER2: Up to 21.8
- HSPF2: Up to 8.5
Additional Features
- Low Ambient Operation: Provides cooling down to 5°F and heating down to -13°F outdoor temperatures
- Auto Restart: Automatically resumes operation after a power interruption
- Quiet Operation: Designed for minimal noise output to enhance indoor comfort
- Multiple Fan Settings: Allows for adjustable airflow and personalized comfort in every zone
The MRCOOL 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser is a premium solution for large-scale residential climate control. With robust performance, smart technology, and the convenience of DIY installation, it’s the perfect choice for those looking to upgrade comfort across multiple zones without professional costs or complexity.
6,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL® 6k DIY 5th Generation Mini-Split Air Handler 230v
The MRCOOL® 6k DIY 5th Generation Mini-Split Air Handler is a compact, energy-efficient solution designed for single-zone comfort. Ideal for smaller spaces, this 230-volt unit delivers reliable heating and cooling performance while supporting the full functionality of the MRCOOL® DIY series. With a focus on flexibility and user-friendly installation, it's perfect for homeowners looking for a cost-effective and convenient HVAC upgrade.
Key Features:
- Energy Efficiency: High SEER2 ratings ensure lower energy consumption and long-term cost savings.
- DIY Installation: Designed to be installed without the need for professional HVAC labor, thanks to the pre-charged line sets and easy-to-follow setup.
- Quiet Operation: Operates at low sound levels to maintain a peaceful indoor environment.
- Compact Design: Small footprint makes it ideal for rooms with limited wall space while still delivering efficient comfort.
- Auto Restart and Timer Functions: Built-in convenience features enhance usability and system responsiveness.
- Multi-Speed Fan: Offers adjustable airflow settings to suit your comfort needs year-round.
Specifications:
- Model Number: DIY-06-HP-WMAH-230D25-O
- Voltage: 230V
- Cooling Capacity: 6,000 BTU
- Refrigerant Type: R-454B
- Mounting Type: Wall-mounted
This air handler is part of the MRCOOL® 5th Generation DIY system, offering high efficiency, ease of use, and superior performance. Whether you're outfitting a new room or replacing an older unit, the 6k Mini-Split Air Handler brings reliable, modern climate control within reach of any homeowner.
12,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler 230v
The MRCOOL® 12k DIY 5th Generation Mini-Split Air Handler is an efficient, user-friendly solution for heating and cooling medium-sized spaces. With a capacity of 12,000 BTU and a 230-volt configuration, this air handler is part of the innovative MRCOOL® DIY series, designed for fast installation without specialized HVAC tools or training. Ideal for homeowners looking to upgrade their comfort without added labor costs, it combines smart technology with dependable performance.
Key Features:
- DIY-Friendly Installation
- Efficient Performance: High SEER2 efficiency helps reduce energy bills while maintaining reliable comfort all year long.
- Smart Controls: Compatible with the MRCOOL® SmartHVAC app, as well as Alexa and Google Assistant, for remote operation and scheduling.
- Low Noise Operation: Engineered for quiet performance, making it perfect for bedrooms, offices, and other quiet zones.
- Versatile Functionality: Supports cooling, heating, fan-only, and dehumidification modes to suit any seasonal need.
- Auto Restart and Sleep Mode: Automatically resumes with previous settings after power outages and adjusts temperatures overnight for energy savings.
- Wall-Mounted Design: Sleek and compact unit fits easily into most interior layouts without taking up valuable floor space.
Specifications:
- Model Number: DIY-12-HP-WMAH-230D25-O
- Voltage: 230V
- Cooling/Heating Capacity: 12,000 BTU
- Refrigerant: R-454B
- Mounting Style: Wall-mounted
The MRCOOL® 12k DIY Air Handler delivers the performance and features you need to efficiently control your home’s climate without the complexity of traditional HVAC systems. Ideal for bedrooms, living rooms, and other medium-sized spaces, this unit blends technology, convenience, and cost-saving efficiency into one smart package.
16ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY16-1412-O 16ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL DIY16-1412-O is a 16-foot pre-charged lineset designed for MRCOOL® DIY 18K indoor units using R-454B refrigerant. This lineset offers an easy-to-install, reliable solution that eliminates the need for vacuum pumps or refrigerant charging.
Featuring Quick Connect fittings, it allows for quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing provide excellent thermal performance and long-lasting durability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended service life
This lineset is an ideal choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing an efficient and hassle-free installation.
16ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY16-1438-O is a pre-charged 16-foot line set designed specifically for MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. It is engineered to simplify installation for homeowners and HVAC professionals alike, while maintaining efficiency and refrigerant integrity without the need for vacuuming or charging.
This lineset offers a flexible, durable, and easy-to-connect solution that supports the revolutionary MRCOOL DIY ductless mini-split systems. The Quick Connect® fittings provide a secure and tight seal, ensuring a hassle-free installation and long-term reliability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with environmentally friendly R-454B
- Compatibility: Designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for fast, tool-free installation
- Insulation: High-quality insulation for efficient thermal performance and reduced energy loss
- Corrosion Resistance: Durable construction resists environmental wear and corrosion
This lineset is ideal for both first-time installations and replacements, ensuring optimal performance and easy integration with compatible MRCOOL® systems. With a 100% DIY approach, this component allows users to complete professional-level installations without special tools or equipment.
25ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY25-1412-O 25ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL® DIY25-1412-O is a 25-foot pre-charged lineset designed for MRCOOL DIY 18K indoor units using R-454B refrigerant. This lineset offers a convenient and reliable solution that eliminates the need for vacuum pumps or refrigerant charging during installation.
Featuring Quick Connect fittings, it enables quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing ensure optimal thermal efficiency and long-lasting performance.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for easy installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended lifespan
This lineset is an excellent choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing hassle-free installation and dependable operation.
25ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY25-1438-O 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY25-1438-O is a 25-foot pre-charged line set engineered for easy installation with MRCOOL DIY 6K, 9K, and 12K indoor units that utilize R-454B refrigerant. This lineset offers an efficient, mess-free solution for both homeowners and professionals who want a clean and secure HVAC connection without the need for vacuum pumps or refrigerant handling.
Equipped with Quick Connect fittings, this lineset simplifies the installation process by providing a tight, reliable seal—eliminating the need for special tools. The pre-charged refrigerant lines and durable insulation deliver excellent performance and energy efficiency in a wide range of settings.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Works with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation for optimized thermal performance and protection
- Construction: Built with corrosion-resistant materials for long-term durability
Perfect for extending the installation distance or replacing an existing lineset, the DIY25-1438-O provides a flexible and user-friendly option for MRCOOL® mini-split systems. Its DIY design ensures users can achieve a professional-grade setup with minimal effort and maximum confidence.
35ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY35-1438C-O 35ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY35-1438C-O is a 35-foot pre-charged lineset with an integrated DIY Pro Cable, engineered for compatibility with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This advanced installation component simplifies setup while delivering excellent durability, refrigerant integrity, and safety.
Equipped with patented Quick Connect fittings, this lineset allows for a hassle-free, tool-free connection between indoor and outdoor units. The added DIY Pro Cable enhances reliability and safety during installation, offering pre-attached wiring in a single bundled solution. It's the ideal choice for extended installations requiring both performance and convenience.
Key Features:
- Length: 35 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with R-454B refrigerant for environmentally responsible performance
- Compatibility: Designed for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy and secure installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and increased safety
- Insulation: High-quality insulation ensures efficiency and protection from condensation
- Durability: Built with corrosion-resistant materials for long-term use
The DIY35-1438C-O is the perfect solution for users seeking an extended lineset with built-in power and communication cabling. Its all-in-one design streamlines setup and supports reliable performance in MRCOOL® DIY mini-split systems.
50ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY50-1438C-O 50ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY50-1438C-O is a 50-foot pre-charged lineset with an integrated DIY Pro Cable, designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This extended-length lineset offers a convenient, all-in-one solution for efficient and reliable HVAC installations.
Featuring patented Quick Connect fittings, this lineset enables a quick and secure connection between indoor and outdoor units without specialized tools. The integrated DIY Pro Cable streamlines wiring and enhances installation safety, making it ideal for professional-quality DIY projects.
Key Features:
- Length: 50 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Suitable for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy, tool-free installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
- Insulation: High-quality insulation to improve energy efficiency and prevent condensation
- Durability: Constructed with corrosion-resistant materials for lasting performance
This 50-foot lineset with integrated Pro Cable is perfect for installations requiring longer reach and professional-grade convenience. It ensures reliable operation and an efficient setup for MRCOOL® DIY mini-split systems.
