Today's Hours 8am - 11pm estMRCOOL 48,000 BTU DIY 5th Gen 21.8 SEER2 5 Zone Wall Mount Mini Split Heat Pump System R454B | 230V 6 + 6 + 6 + 6 + 9
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI6-48HP / DIY-06-HP-WMAH-230-4 / DIY-09-HP-WMAH-230
ID
206794
Was $6,146.80
Your Low Price $5,588.00
In Stock - Ready to Ship
Free Shipping
Product Features
- 48,000 BTU For Up To 1500 Sq Ft
- Comfort Coverage Up To 1500 Sq Ft
- Efficient Comfort Rated 21.8 SEER2
- Built For Long-Term Performance
- Comfort Designed For Everyday Use
- Cooling Performance Up To 122°F
MRCOOL DIY 5th Gen 48,000 BTU 21.8 SEER2 Ductless Heat Pump Split System “ Five Zone (6,000 + 6,000 + 6,000 + 6,000 + 9,000 BTU)
The MRCOOL DIY 5th Gen 48,000 BTU Five Zone Ductless Mini Split Heat Pump System provides efficient and customizable comfort across five independently controlled zones. With four 6,000 BTU indoor units for smaller rooms and one 9,000 BTU unit for a medium-sized space, this system is perfect for homes with a mix of compact bedrooms, offices, and dens. Designed for DIY installation, it includes everything needed for setup and features smart controls, ultra-quiet performance, and reliable year-round operation using eco-friendly R-454B refrigerant.
System Features
- Five-Zone Precision: Four 6,000 BTU units deliver focused comfort in small spaces, while one 9,000 BTU unit handles a larger area with ease.
- 48,000 BTU Outdoor Condenser: Equipped with inverter technology for efficient, quiet, and stable operation across all five zones.
- Smart Controls: Manage temperatures remotely via the MRCOOL SmartHVAC app or use voice commands with Amazon Alexa or Google Assistant.
- 21.8 SEER2 Efficiency: High energy efficiency rating helps reduce utility costs while maintaining consistent indoor comfort.
- Whisper-Quiet Operation: Low sound levels from both indoor and outdoor units make it suitable for bedrooms, studies, and other quiet areas.
- Eco-Friendly Refrigerant: Utilizes R-454B, a low-GWP refrigerant that supports a smaller environmental footprint.
- Corrosion Protection: Gold Fin coating on the condenser provides durability against weather and salt air, ideal for coastal or humid regions.
- Leak Detection: Built-in sensors alert you early to any refrigerant leaks, ensuring system protection and optimal performance.
Year-Round Performance
This system delivers dependable heating and cooling performance in all seasons, operating efficiently in outdoor temperatures as low as 5 F for cooling and -13 F for heating. Each zone functions independently, allowing for customized temperature settings and energy-saving control.
Whats Included
- One 48,000 BTU Outdoor Condenser
- Four 6,000 BTU Wall-Mounted Indoor Units
- One 9,000 BTU Wall-Mounted Indoor Unit
- Five Wireless Remote Controls
- Smart Controller Module
Why Choose the MRCOOL 5th Gen 6K + 6K + 6K + 6K + 9K Five Zone System?
- Perfect for Mixed Room Sizes: Balances comfort between small and medium rooms with zoned temperature control.
- Truly DIY: Designed for fast, tool-free installation”no HVAC license or vacuum tools needed.
- Smart and Efficient: Remote control, scheduling, and voice command integration make managing comfort easy and energy-efficient.
- Built to Last: Corrosion-resistant components and eco-conscious refrigerant ensure long-term performance and sustainability.
The MRCOOL DIY 5th Gen Five Zone System with four 6,000 BTU and one 9,000 BTU indoor units is a flexible, high-efficiency solution for managing comfort across multiple small and medium-sized rooms. With DIY installation, smart features, and dependable all-season operation, it offers professional-level performance without the cost or complexity. These bundles require the purchase of a Pre-Charged Line Set, these are not included.

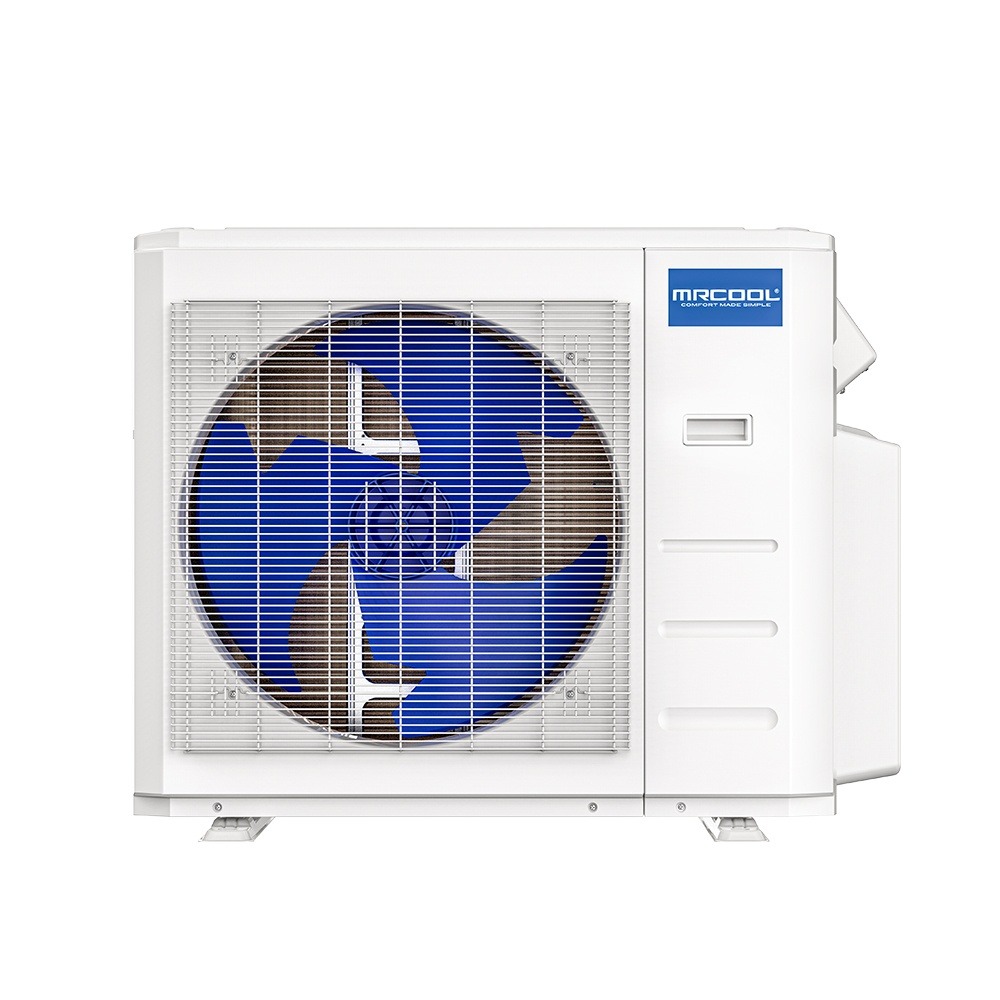

48,000 BTU MRCOOL 6 Zone Condenser - R454B
MRCOOL 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
The MRCOOL® DIY-MULTI6-48HP230D-O is the most powerful model in the 5th Generation DIY® Multi-Zone series, delivering high-capacity climate control for up to six individual zones. With 48,000 BTUs of heating and cooling performance, this unit is engineered for large homes and spaces needing efficient, customized comfort without the hassle of professional installation.
Key Features
- 6-Zone Capability: Supports up to six indoor air handlers of various BTU capacities for tailored temperature control across multiple rooms or zones.
- Energy Efficiency: High SEER2 and HSPF2 ratings ensure long-term energy savings and reduced operational costs.
- Smart Control: Wi-Fi enabled and compatible with the SmartHVAC app, Amazon Alexa, and Google Assistant for remote access and voice control.
- Weather Resistant: Features a corrosion-resistant Gold Fin coating to withstand harsh outdoor elements and promote durability.
Performance Specifications
- Model: DIY-MULTI6-48HP230D-O
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 48,000 BTU
- Heating Capacity: 48,000 BTU
- SEER2: Up to 21.8
- HSPF2: Up to 8.5
Additional Features
- Low Ambient Operation: Provides cooling down to 5°F and heating down to -13°F outdoor temperatures
- Auto Restart: Automatically resumes operation after a power interruption
- Quiet Operation: Designed for minimal noise output to enhance indoor comfort
- Multiple Fan Settings: Allows for adjustable airflow and personalized comfort in every zone
The MRCOOL 48k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser is a premium solution for large-scale residential climate control. With robust performance, smart technology, and the convenience of DIY installation, it’s the perfect choice for those looking to upgrade comfort across multiple zones without professional costs or complexity.
6,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL® 6k DIY 5th Generation Mini-Split Air Handler 230v
The MRCOOL® 6k DIY 5th Generation Mini-Split Air Handler is a compact, energy-efficient solution designed for single-zone comfort. Ideal for smaller spaces, this 230-volt unit delivers reliable heating and cooling performance while supporting the full functionality of the MRCOOL® DIY series. With a focus on flexibility and user-friendly installation, it's perfect for homeowners looking for a cost-effective and convenient HVAC upgrade.
Key Features:
- Energy Efficiency: High SEER2 ratings ensure lower energy consumption and long-term cost savings.
- DIY Installation: Designed to be installed without the need for professional HVAC labor, thanks to the pre-charged line sets and easy-to-follow setup.
- Quiet Operation: Operates at low sound levels to maintain a peaceful indoor environment.
- Compact Design: Small footprint makes it ideal for rooms with limited wall space while still delivering efficient comfort.
- Auto Restart and Timer Functions: Built-in convenience features enhance usability and system responsiveness.
- Multi-Speed Fan: Offers adjustable airflow settings to suit your comfort needs year-round.
Specifications:
- Model Number: DIY-06-HP-WMAH-230D25-O
- Voltage: 230V
- Cooling Capacity: 6,000 BTU
- Refrigerant Type: R-454B
- Mounting Type: Wall-mounted
This air handler is part of the MRCOOL® 5th Generation DIY system, offering high efficiency, ease of use, and superior performance. Whether you're outfitting a new room or replacing an older unit, the 6k Mini-Split Air Handler brings reliable, modern climate control within reach of any homeowner.
9,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler 230v
The MRCOOL® 9k DIY 5th Generation Mini-Split Air Handler offers powerful, energy-efficient heating and cooling for small to mid-sized spaces. Engineered with the do-it-yourself homeowner in mind, this 230-volt unit combines superior performance with simplified installation and smart home compatibility. It is part of the advanced 5th Generation MRCOOL® DIY lineup, bringing comfort, control, and convenience to your fingertips.
Key Features:
- High Efficiency: Delivers a strong balance of comfort and energy savings with high SEER2 performance ratings.
- Easy DIY Installation
- Smart Home Ready: Works with the MRCOOL® SmartHVAC app and is compatible with Amazon Alexa and Google Assistant.
- Quiet Operation: Minimizes indoor noise for enhanced comfort and relaxation.
- Auto Restart: Automatically resumes operation after a power outage with previous settings restored.
- Multiple Modes: Offers heating, cooling, dehumidification, and fan-only modes to adapt to varying climate needs.
- Compact Wall-Mount Design: Saves space while delivering effective room-wide air circulation.
Specifications:
- Model Number: DIY-09-HP-WMAH-230D25-O
- Voltage: 230V
- Cooling/Heating Capacity: 9,000 BTU
- Refrigerant Type: R-454B
- Mounting: Wall-mounted
Whether you're upgrading your comfort system or outfitting a new area, the MRCOOL 9k DIY Mini-Split Air Handler provides reliable performance, energy efficiency, and easy installation. It’s the perfect choice for those looking for comfort without the hassle of traditional HVAC setups.

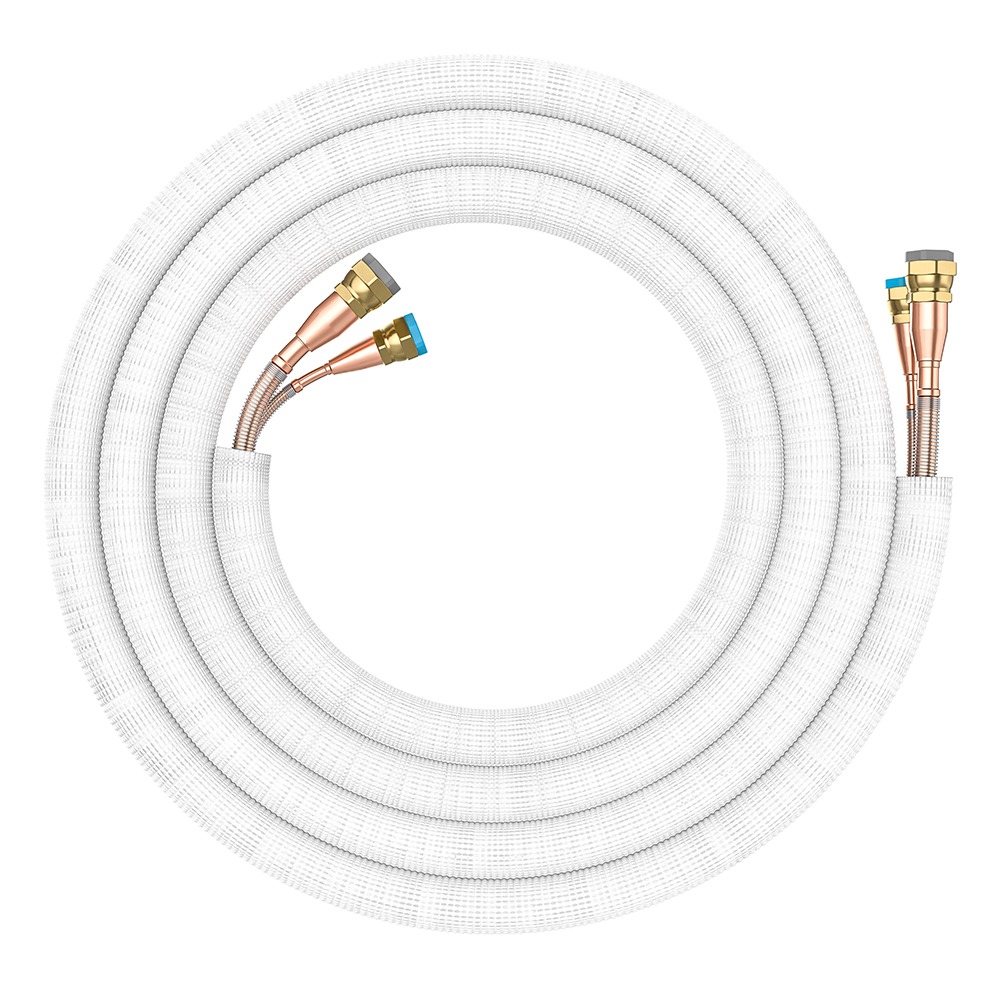

16ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY16-1412-O 16ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL DIY16-1412-O is a 16-foot pre-charged lineset designed for MRCOOL® DIY 18K indoor units using R-454B refrigerant. This lineset offers an easy-to-install, reliable solution that eliminates the need for vacuum pumps or refrigerant charging.
Featuring Quick Connect fittings, it allows for quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing provide excellent thermal performance and long-lasting durability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended service life
This lineset is an ideal choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing an efficient and hassle-free installation.
16ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY16-1438-O 16ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY16-1438-O is a pre-charged 16-foot line set designed specifically for MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. It is engineered to simplify installation for homeowners and HVAC professionals alike, while maintaining efficiency and refrigerant integrity without the need for vacuuming or charging.
This lineset offers a flexible, durable, and easy-to-connect solution that supports the revolutionary MRCOOL DIY ductless mini-split systems. The Quick Connect® fittings provide a secure and tight seal, ensuring a hassle-free installation and long-term reliability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with environmentally friendly R-454B
- Compatibility: Designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for fast, tool-free installation
- Insulation: High-quality insulation for efficient thermal performance and reduced energy loss
- Corrosion Resistance: Durable construction resists environmental wear and corrosion
This lineset is ideal for both first-time installations and replacements, ensuring optimal performance and easy integration with compatible MRCOOL® systems. With a 100% DIY approach, this component allows users to complete professional-level installations without special tools or equipment.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
25ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY25-1412-O 25ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL® DIY25-1412-O is a 25-foot pre-charged lineset designed for MRCOOL DIY 18K indoor units using R-454B refrigerant. This lineset offers a convenient and reliable solution that eliminates the need for vacuum pumps or refrigerant charging during installation.
Featuring Quick Connect fittings, it enables quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing ensure optimal thermal efficiency and long-lasting performance.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for easy installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended lifespan
This lineset is an excellent choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing hassle-free installation and dependable operation.
25ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor - R454B
DIY25-1438-O 25ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor - R454B
The MRCOOL DIY25-1438-O is a 25-foot pre-charged line set engineered for easy installation with MRCOOL DIY 6K, 9K, and 12K indoor units that utilize R-454B refrigerant. This lineset offers an efficient, mess-free solution for both homeowners and professionals who want a clean and secure HVAC connection without the need for vacuum pumps or refrigerant handling.
Equipped with Quick Connect fittings, this lineset simplifies the installation process by providing a tight, reliable seal—eliminating the need for special tools. The pre-charged refrigerant lines and durable insulation deliver excellent performance and energy efficiency in a wide range of settings.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Works with MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation for optimized thermal performance and protection
- Construction: Built with corrosion-resistant materials for long-term durability
Perfect for extending the installation distance or replacing an existing lineset, the DIY25-1438-O provides a flexible and user-friendly option for MRCOOL® mini-split systems. Its DIY design ensures users can achieve a professional-grade setup with minimal effort and maximum confidence.
35ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY35-1438C-O 35ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY35-1438C-O is a 35-foot pre-charged lineset with an integrated DIY Pro Cable, engineered for compatibility with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This advanced installation component simplifies setup while delivering excellent durability, refrigerant integrity, and safety.
Equipped with patented Quick Connect fittings, this lineset allows for a hassle-free, tool-free connection between indoor and outdoor units. The added DIY Pro Cable enhances reliability and safety during installation, offering pre-attached wiring in a single bundled solution. It's the ideal choice for extended installations requiring both performance and convenience.
Key Features:
- Length: 35 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with R-454B refrigerant for environmentally responsible performance
- Compatibility: Designed for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy and secure installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and increased safety
- Insulation: High-quality insulation ensures efficiency and protection from condensation
- Durability: Built with corrosion-resistant materials for long-term use
The DIY35-1438C-O is the perfect solution for users seeking an extended lineset with built-in power and communication cabling. Its all-in-one design streamlines setup and supports reliable performance in MRCOOL® DIY mini-split systems.
50ft 1/4 x 3/8 Line Set for DIY 6K, 9K & 12K Indoor w/ DIY Pro Cable - R454B
DIY50-1438C-O 50ft 1/4 x 3/8 Lineset for DIY 6K, 9K & 12K Indoor with DIY Pro Cable - R454B
The MRCOOL® DIY50-1438C-O is a 50-foot pre-charged lineset with an integrated DIY Pro Cable, designed for use with MRCOOL DIY 6K, 9K, and 12K indoor units using R-454B refrigerant. This extended-length lineset offers a convenient, all-in-one solution for efficient and reliable HVAC installations.
Featuring patented Quick Connect fittings, this lineset enables a quick and secure connection between indoor and outdoor units without specialized tools. The integrated DIY Pro Cable streamlines wiring and enhances installation safety, making it ideal for professional-quality DIY projects.
Key Features:
- Length: 50 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 3/8 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Suitable for MRCOOL DIY 6K, 9K, and 12K indoor units
- Connection Type: Quick Connect fittings for easy, tool-free installation
- Pro Cable: Integrated DIY Pro Cable for simplified wiring and enhanced safety
- Insulation: High-quality insulation to improve energy efficiency and prevent condensation
- Durability: Constructed with corrosion-resistant materials for lasting performance
This 50-foot lineset with integrated Pro Cable is perfect for installations requiring longer reach and professional-grade convenience. It ensures reliable operation and an efficient setup for MRCOOL® DIY mini-split systems.
