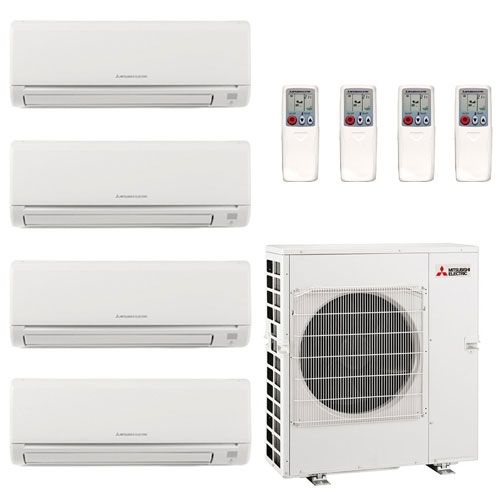

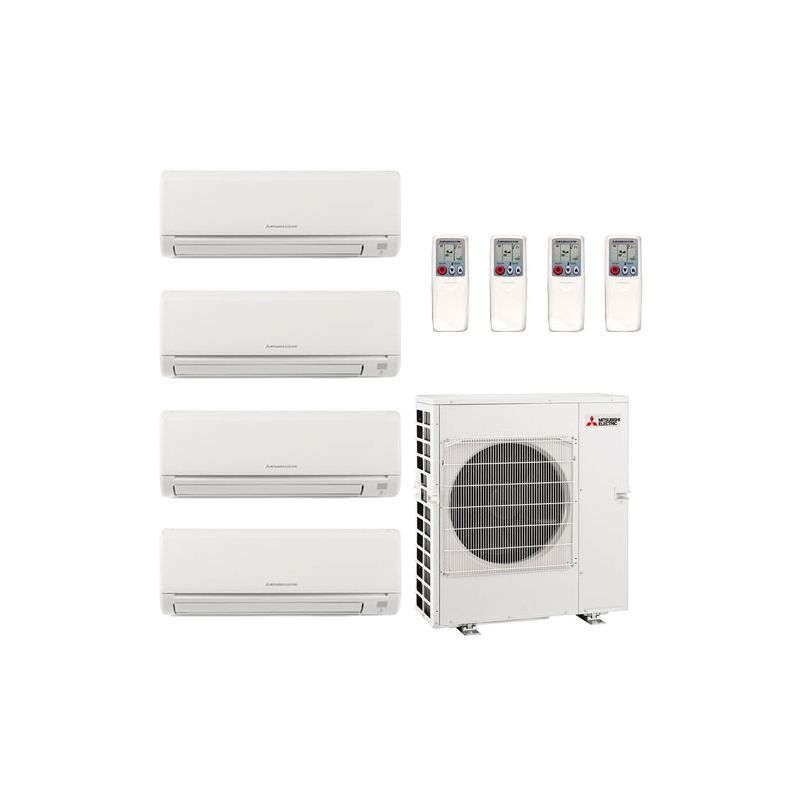

48,000 BTU Mitsubishi FX-Series 21.5 SEER2 Four Zone Wall Mounted Mini Split Hyper Heat Pump System - R454B |6 + 9 + 15 + 18
Required Fields *
By
Mitsubishi
In stock
Model
MXZ-SM48NLHZ / MSZ-FX06NL / MSZ-FX09NL / MSZ-FX15NL / MSZ-FX18NL
ID
200710
ONLY 9 LEFT!
Was $13,850.38
Your Low Price $11,080.30
Â
Free Shipping
- days
- Hours
- Minutes
- Seconds
48,000 BTU Mitsubishi FX-Series 21.5 SEER2 Four Zone Wall Mounted Mini Split Hyper Heat Pump System - R454B | 6 + 9 + 15 + 18
With 6,000 + 9,000 + 15,000 + 18,000 BTU units, this system offers a balanced solution for homes or offices with varying room sizes, providing powerful and efficient climate control across multiple zones.
- Total Capacity: 48,000 BTU
- SEER2 Rating: 21.5
- System Type: Four Zone Wall Mounted Heat Pump
- Indoor Unit Sizes: 6,000 + 9,000 + 15,000 + 18,000 BTU
- Refrigerant: R454B - Environmentally friendly refrigerant
- Best For: Homes or offices with varying room sizes, offering flexible temperature control
This system ensures energy-efficient cooling and heating across rooms of different sizes, maintaining comfort in every zone.
6,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B
MSZ-FX06NL Air Handler Overview
The MSZ-FX06NL is a compact, reliable indoor air handler designed for use in smaller residential and light commercial spaces. Built for quiet operation, sleek design, and enhanced air quality, it provides consistent comfort when paired with the MUZ-FX06NLHZ outdoor condenser. With its user-friendly controls and low-maintenance design, this air handler is a smart choice for efficient year-round climate control.
Key Features
- Quiet Operation: Engineered for low sound levels, making it ideal for bedrooms, offices, and other spaces where a peaceful indoor environment is important.
- Compact and Stylish Design: Sleek and space-saving, the MSZ-FX06NL blends seamlessly into modern interiors without taking up valuable room.
- Advanced Filtration: Equipped with filtration that captures dust, allergens, and other airborne particles to promote a cleaner and healthier indoor atmosphere.
- Durability: Designed with high-quality materials and a corrosion-resistant coating for reliable performance and a long lifespan, even in humid or challenging environments.
Specifications
- Cooling Capacity: 6,000 BTU/h
- Heating Capacity: 7,000 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 33-7/16" (W) x 11-5/8" (H) x 25-1/4" (D)
- Weight: 24 lbs
Convenience Features
- Remote Control: Comes with a user-friendly remote to adjust temperature, fan speed, and operation modes with ease.
- Auto Restart: Automatically resumes operation with previous settings after a power outage for uninterrupted comfort.
- Self-Diagnosis: Displays error codes for easier troubleshooting and service support.
- Washable Filters: Easy-to-clean filters help maintain airflow, efficiency, and indoor air quality over time.
Installation and Maintenance
- Flexible Installation: Compact size and versatile mounting options make it simple to install in a wide range of spaces.
- Low Maintenance: Designed with washable filters and durable construction to minimize upkeep and ensure long-term reliability.
Applications
- Residential: Ideal for bedrooms, small living areas, or home offices that require quiet, efficient comfort.
- Light Commercial: Suitable for small offices, retail shops, or server rooms where consistent airflow and dependable operation are essential.
The MSZ-FX06NL air handler is a practical and efficient solution for small residential and light commercial applications. With quiet operation, advanced filtration, and a modern design, it enhances indoor comfort while being easy to install and maintain. When paired with a compatible outdoor unit, it ensures dependable, year-round climate control.
9,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B
MSZ-FX09NL Air Handler Overview
The MSZ-FX09NL air handler provides efficient and reliable heating and cooling for residential and light commercial spaces. With quiet operation, advanced filtration, and a compact design, it delivers year-round comfort while maintaining energy-efficient performance.
Key Features
- Energy-Efficient Operation: Optimizes energy use while maintaining consistent indoor temperatures, helping reduce electricity costs.
- Quiet Performance: Low sound operation ensures a peaceful indoor environment, ideal for bedrooms, offices, or small commercial spaces.
- Compact and Sleek Design: Modern, space-saving design fits seamlessly into various interiors, making it suitable for tight spaces.
- Enhanced Air Quality: High-performance filtration reduces dust, allergens, and other airborne particles for a healthier indoor environment.
- Durable Construction: Corrosion-resistant materials ensure long-lasting reliability even in humid or challenging conditions.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,900 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 33-7/16" (W) x 11-5/8" (H) x 25-1/4" (D)
- Weight: 24 lbs
Advanced Features and Benefits
- Inverter Technology: Adjusts compressor speed to match cooling or heating demand, improving energy efficiency and maintaining consistent indoor temperatures.
- Remote Control: Allows easy adjustment of temperature, fan speed, and operating modes from anywhere in the room for convenient climate management.
- Auto Restart Function: Restores previous settings after a power outage, ensuring uninterrupted comfort without manual intervention.
- Self-Diagnosis System: Detects issues and provides error codes for easy troubleshooting, minimizing downtime and service needs.
- Washable Filters: Easily cleaned for improved airflow and air quality, reducing maintenance costs and extending the system's lifespan.
Installation and Maintenance
- Flexible Installation: Compact design allows installation in a variety of spaces, making it suitable for residential and light commercial environments.
- Low Maintenance: Washable filters and simple servicing procedures ensure optimal performance and longevity with minimal upkeep.
Applications
- Residential Use: Ideal for small to medium-sized homes and apartments, offering efficient climate control in bedrooms, living rooms, or home offices.
- Light Commercial Use: Suitable for small offices, retail spaces, or server rooms, providing reliable temperature control without taking up excessive space.
In summary, the MSZ-FX09NL air handler is a compact, energy-efficient, and reliable solution for residential and light commercial applications. With quiet operation, advanced filtration, and user-friendly controls, it ensures consistent indoor comfort while minimizing energy costs and maintenance requirements.
15,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B
MSZ-FX15NL Air Handler Overview
The MSZ-FX15NL air handler delivers efficient and reliable heating and cooling for residential and light commercial spaces. Designed for consistent indoor comfort, it provides quiet operation, improved air quality, and user-friendly controls. Its compact and durable design allows for flexible installation in a variety of environments.
Key Features
- Energy-Efficient Operation: The MSZ-FX15NL optimizes energy use while maintaining consistent indoor temperatures, helping reduce electricity costs.
- Quiet Performance: Low sound operation ensures a peaceful environment, suitable for bedrooms, living rooms, offices, and small commercial spaces.
- Compact and Modern Design: Sleek, space-saving design allows the unit to blend seamlessly into various interior settings, maximizing usable space without compromising performance.
- Enhanced Air Quality: Equipped with a high-performance filtration system that reduces dust, allergens, and other airborne particles, promoting a healthier indoor environment.
- Durable Construction: Constructed with corrosion-resistant materials, the air handler ensures long-lasting reliability even in humid or challenging conditions.
Specifications
- Cooling Capacity: 15,000 BTU/h
- Heating Capacity: 17,000 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 33-7/16" (W) x 11-5/8" (H) x 25-1/4" (D)
- Weight: 27 lbs
Advanced Features and Benefits
- Remote Control: Easily adjust temperature, fan speed, and operating modes from anywhere in the room using the included remote.
- Auto Restart Function: After a power interruption, the air handler restores previous settings automatically, ensuring uninterrupted comfort.
- Self-Diagnosis System: Detects faults and displays error codes for simple troubleshooting, reducing downtime and service needs.
- Washable Filters: Filters can be easily removed and cleaned to maintain efficient airflow, optimal performance, and improved air quality.
Installation and Maintenance
- Flexible Installation: Compact design allows for versatile placement in homes, apartments, and light commercial spaces, even in tight or hard-to-reach areas.
- Low Maintenance: Regular cleaning of washable filters ensures consistent performance and reduces the need for professional servicing.
Applications
- Residential Use: Ideal for small to medium-sized homes, apartments, or individual rooms, offering quiet and efficient climate control.
- Light Commercial Use: Suitable for offices, retail spaces, and server rooms where reliable and energy-efficient climate control is essential.
In summary, the MSZ-FX15NL air handler provides quiet, energy-efficient operation with enhanced air quality and durable construction. Its compact design, ease of installation, and low maintenance requirements make it an excellent choice for residential and light commercial HVAC applications.
18,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B
MSZ-FX18NL Indoor Unit Description
The MSZ-FX18NL is a high-performance wall-mounted indoor unit designed for comfort and efficiency. It features advanced technologies that ensure effective climate control and energy-saving performance. Below are the key features and specifications:
- 3D i-see Sensor®: Scans each room to produce a complete thermal profile, adjusting temperature and airflow based on occupancy.
- Dual Barrier Coating: Reduces the accumulation of contaminants like dust, fibers, and smoke, ensuring optimal airflow and easier maintenance.
- Dual Vane System: Independently controls two vanes to deliver airflow across wide areas or to specific zones in the room.
- Econo Cool: Automatically adjusts airflow and temperature slightly to save energy while maintaining comfort.
- Smart Dry +: Offers precise humidity control with minimal over-cooling, improving comfort.
- Quiet Operation: Designed for minimal noise during operation, ensuring a peaceful indoor environment.
- Wi-Fi Enabled: Compatible with the Comfort app for remote control over temperature, fan speeds, and modes.
- Triple Action Filtration: Includes Microparticle, Electrostatic Enzyme, and optional Carbon-based filters to remove dust, smoke, and neutralize odors.
- Multiple Fan Speeds: Choose from Low, Medium, High, Powerful, and Auto settings to adjust airflow as needed.
- Energy Star® Certified: This unit is certified for energy efficiency, helping reduce electricity consumption while maintaining high performance.
Specifications
- Cooling Capacity: Rated at 17,200 Btu/h with a maximum capacity of 21,500 Btu/h.
- Heating Capacity: Rated at 17,000 Btu/h, capable of providing heating down to -22°F outdoor temperatures.
- Energy Efficiency: SEER of 25.5 and HSPF of 11.1, ensuring high energy savings.
- Voltage: Compatible with 208/230V AC, 1 phase, 60Hz electrical supply.
- Dimensions: Indoor unit measures 39-9/32 x 9-3/4 x 12 inches (998 x 247 x 305 mm).
- Sound Levels: Operates quietly with sound pressure levels of 27-45 dB(A) during cooling and 26-46 dB(A) during heating.
48,000 BTU Mitsubishi M-Series H2i Multi Zone Mini Split Hyper Heat Pump Condenser - R454B - MXZ-SM48NLHZ
MXZ-SM48NLHZ - SMART MULTI Hyper-Heating Heat Pump Outdoor Unit
The MXZ-SM48NLHZ is a high-performance outdoor heat pump unit from Mitsubishi Electric's SMART MULTI series, designed for multi-zone applications. Capable of connecting up to eight indoor units with a branch box, or up to twelve without, it offers flexible heating and cooling solutions for both residential and light commercial settings, ensuring year-round comfort. Below are the key features and specifications of this model:
Key Features:
- Variable Speed INVERTER-Driven Compressor: Adjusts compressor speed to match heating or cooling demand, optimizing energy efficiency and maintaining consistent indoor temperatures.
- Quiet Operation: Operates at sound pressure levels as low as 51 dB(A) during cooling and 54 dB(A) during heating, minimizing noise disturbances in your environment.
- Seacoast Protection: Features a heat exchanger and base panel rated for 2,000 hours of protection in accordance with ASTM B117 testing, enhancing durability in coastal regions.
- Comprehensive Protections: Equipped with compressor overcurrent detection, thermal protection, high-pressure protection, and fan motor overheating/voltage protection for enhanced safety and reliability.
- Hyper-Heating Performance: Delivers 100% heating capacity at 5°F and 75% heating capacity at -13°F, ensuring consistent warmth even in extreme cold conditions.
- ENERGY STAR® Certified: Meets ENERGY STAR® standards in non-ducted configurations, promoting energy efficiency and potential cost savings.
Specifications:
- Cooling Capacity at 95°F:
- Maximum Capacity: 48,000 BTU/h
- Rated Capacity: 48,000 BTU/h (Non-Ducted), 48,000 BTU/h (Mixed), 48,000 BTU/h (Ducted)
- Minimum Capacity: 15,000 BTU/h (Non-Ducted), 15,000 BTU/h (Mixed), 15,000 BTU/h (Ducted)
- Heating Capacity at 47°F:
- Maximum Capacity: 54,000 BTU/h
- Rated Capacity: 54,000 BTU/h (Non-Ducted), 54,000 BTU/h (Mixed), 54,000 BTU/h (Ducted)
- Minimum Capacity: 13,000 BTU/h (Non-Ducted), 13,000 BTU/h (Mixed), 13,000 BTU/h (Ducted)
- Heating Capacity at 17°F:
- Rated Capacity: 38,000 BTU/h (Non-Ducted), 38,000 BTU/h (Mixed), 38,000 BTU/h (Ducted)
- Heating Capacity at 5°F:
- Maximum Capacity: 54,000 BTU/h
- Heating Capacity at -13°F:
- Maximum Capacity: 54,000 BTU/h
- Efficiency Ratings:
- SEER2: 23.0 (Non-Ducted), 20.5 (Mixed), 18.0 (Ducted)
- EER2: 13.1 (Non-Ducted), 11.55 (Mixed), 10.0 (Ducted)
- HSPF2 (IV): 11.5 (Non-Ducted), 10.75 (Mixed), 10.0 (Ducted)
- COP at 47°F: 4.0 (Non-Ducted), 3.6 (Mixed), 3.2 (Ducted)
- COP at 17°F (Maximum Capacity): 2.0 (Non-Ducted), 1.88 (Mixed), 1.76 (Ducted)
- COP at 5°F (Maximum Capacity): 2.0 (Non-Ducted), 1.9 (Mixed), 1.8 (Ducted)
- Electrical Requirements:
- Power Supply: 208/230 V AC, Single-phase, 60 Hz
- Guaranteed Voltage Range: 198 - 253 V AC
- Voltage (Indoor to Outdoor, S1-S2): 230 V AC
- Short-circuit Current Rating (SCCR): 5 kA
- Recommended Fuse/Breaker Size if Branch Box Powered by Outdoor Unit: 45 A
- Recommended Fuse/Breaker Size without Branch Box or Branch Box Powered Separate: 40 A
- Minimum Circuit Ampacity (MCA) if Branch Box Powered by Outdoor Unit: 51 A
- Maximum Overcurrent Protection (MOCP) if Branch Box Powered by Outdoor Unit: 86 A
- Minimum Circuit Ampacity (MCA) without Branch Box or Branch Box Powered Separate: 45 A
- Maximum Overcurrent Protection (MOCP) without Branch Box or Branch Box Powered Separate: 80 A
- Outdoor Unit Dimensions:
- Width: 41-11/32 inches
- Depth: 13 inches
- Height: 52-11/16 inches
- Weight: 278 lbs
The MXZ-SM48NLHZ is ideal for applications requiring efficient heating and cooling performance across multiple zones. Its advanced features ensure reliable operation and enhanced comfort throughout the year.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Mitsubishi M-Series - 5 Ports - Branch Box
Mitsubishi Electric PAC-LMA50BC Branch Box Overview
The Mitsubishi Electric PAC-LMA50BC Branch Box is a key component in multi-zone HVAC systems, designed to efficiently distribute refrigerant and optimize the performance of connected indoor units. Supporting up to five indoor units, this branch box is ideal for both residential and commercial applications where reliable and balanced operation is required.
Key Features
- Supports Multiple Indoor Units: Connects up to five indoor units, allowing flexible system configurations for a variety of spaces.
- Balanced Refrigerant Flow: Ensures consistent refrigerant distribution to each connected indoor unit, enhancing overall system efficiency and performance.
- Durable Construction: Made with galvanized steel, the PAC-LMA50BC offers long-lasting durability and resistance to environmental factors.
- Compact, Space-Saving Design: Its small footprint allows installation in areas with limited space, making it suitable for tight mechanical rooms or ceilings.
- Low Power Usage: Operates efficiently with minimal energy consumption, reducing operating costs.
Technical Specifications
- Power Supply: Single-phase, 208/230V, 60Hz
- Input Power: 0.003 kW
- Running Current: 0.15A
- Dimensions:
- Width: 17-3/4 inches (450 mm)
- Depth: 11-1/16 inches (280 mm)
- Height: 6-3/4 inches (170 mm)
- Weight: 16.0 lbs (7.4 kg)
Piping Connections
- Indoor Unit Connections:
- Liquid Line: 1/4" (6.35 mm) x 5 [A, B, C, D, E]
- Gas Line: 3/8" (9.52 mm) x 4 [A, B, C, D], 1/2" (12.7 mm) x 1 [E]
- Outdoor Unit Connections:
- Liquid Line: 3/8" (9.52 mm)
- Gas Line: 5/8" (15.88 mm)
Optional Accessories
- Branch Box Enclosure (BBE-1): Provides extra protection for the branch box in exposed or demanding installations.
- Port Adapters: Facilitate connection to various pipe diameters, including:
- ADP3812: 3/8" to 1/2"
- PAC-SK88RJ-E: 1/2" to 3/8"
- PAC-SK89RJ-E: 1/2" to 5/8"
- PAC-493PI: 1/4" to 3/8"
- PAC-SK90RJ-E: 3/8" to 5/8"
- ADP5834: 5/8" to 3/4"
Applications
- Residential Multi-Zone Systems: Ideal for homes requiring multiple indoor units, ensuring consistent performance and comfort throughout the space.
- Light Commercial Use: Suitable for offices, retail shops, or small commercial buildings where multiple indoor units are connected to a single outdoor unit.
Overall, the PAC-LMA50BC Branch Box is a reliable and versatile component that simplifies multi-zone HVAC installations. Its durable construction, compact design, and efficient refrigerant distribution make it an essential part of residential and commercial HVAC systems.
| 6,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B | |
|---|---|
| SKU | MSZ-FX06NL |
| Weight (in lbs) | 29.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MSZ-FS06NA-U1 |
| HSPF2 | 13 |
| Decibel Level (dBA) | 20-42 |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 12-11/16" |
| Width | 36-7/16" |
| Depth | 9-3/16" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B | |
| SKU | MSZ-FX09NL |
| Weight (in lbs) | 29.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MSZ-FS09NA-U1 |
| HSPF2 | 13.3 |
| Decibel Level (dBA) | 20-42 |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 12-11/16" |
| Width | 36-7/16" |
| Depth | 9-3/16" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 15,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B | |
| SKU | MSZ-FX15NL |
| Weight (in lbs) | 29.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MSZ-FS15NA-U1 |
| HSPF2 | 11 |
| Decibel Level (dBA) | 25-46 |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 12-11/16" |
| Width | 36-7/16" |
| Depth | 9-3/16" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Mitsubishi FX-Series Single or Multi Zone Wall Mounted Mini Split Air Handler - R454B | |
| SKU | MSZ-FX18NL |
| Weight (in lbs) | 29.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MSZ-FS18NA-U1 |
| HSPF2 | 11.1 |
| Decibel Level (dBA) | 25-47 |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 12-11/16" |
| Width | 36-7/16" |
| Depth | 9-3/16" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 48,000 BTU Mitsubishi M-Series H2i Multi Zone Mini Split Hyper Heat Pump Condenser - R454B - MXZ-SM48NLHZ | |
| SKU | MXZ-SM48NLHZ |
| Weight (in lbs) | 283.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | MXZ-SM48NAMHZ2-U1 |
| Cooling BTU | 48000 |
| Heating BTU | 48,000 BTU |
| Decibel Level (dBA) | 54 |
| Refrigerant | R454B |
| SEER2 (Efficiency) | 23 |
| Compressor Type | Twin Rotary |
| Liquid Valve Size | 3/8 |
| Suction Valve Size | 5/8 |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 86 |
| Min. Breaker Size | 51 |
| BTU/Tonnage | 48,000 BTU/4 Ton |
| Zone Compatibility | Multi Zone |
| Height | 52.16" |
| Width | 41.43" |
| Depth | 13" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet | |
| SKU | 366402 |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet | |
| SKU | 366401 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet | |
| SKU | 216741 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet | |
| SKU | 366400 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet | |
| SKU | 201814 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet | |
| SKU | 366396 |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet | |
| SKU | 366395 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 35' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet | |
| SKU | 216740 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet | |
| SKU | 366390 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet | |
| SKU | 201813 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi M-Series - 5 Ports - Branch Box | |
| SKU | PAC-LMA50BC |
| Weight (in lbs) | 16.000000 |
| Brand/Manufacturer | Mitsubishi |
| Replaces | PAC-MKA52BC & PAC-MKA53BC |
| Refrigerant | R454B |
| Height | 6-3/4" |
| Width | 17-3/4" |
| Depth | 11-1/16" |
| Warranty | 10 Years with Online Registration |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
