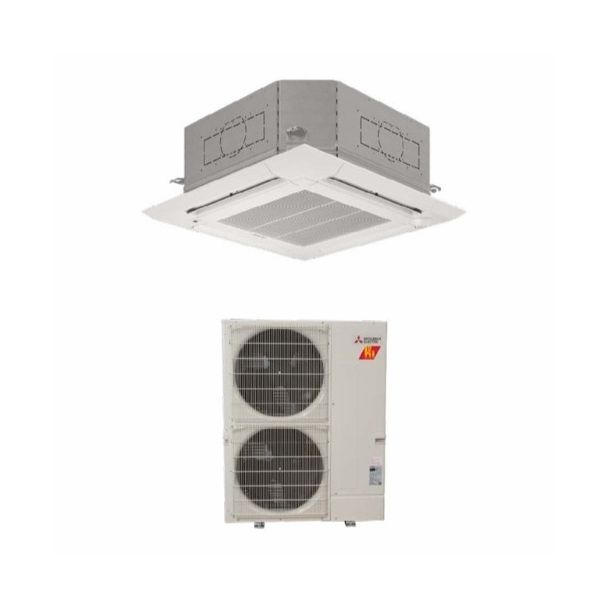

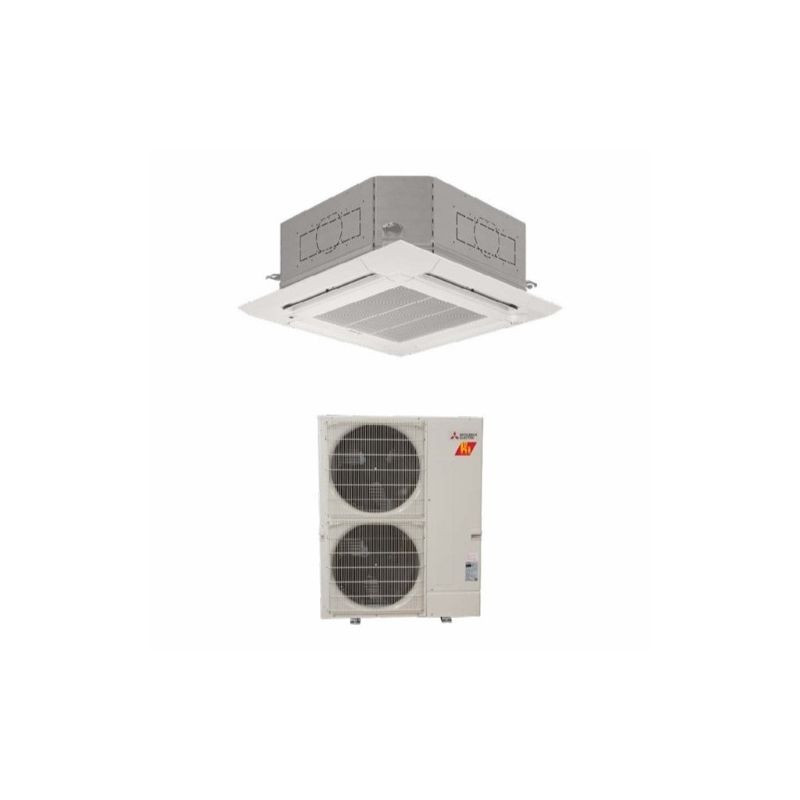

48,000 BTU Mitsubishi P-Series 20.1 SEER2 Single Ceiling Cassette Mini Split Hyper Heat Pump System - R454B | PUZ-AK48NLHZ / PLA-AE48NL

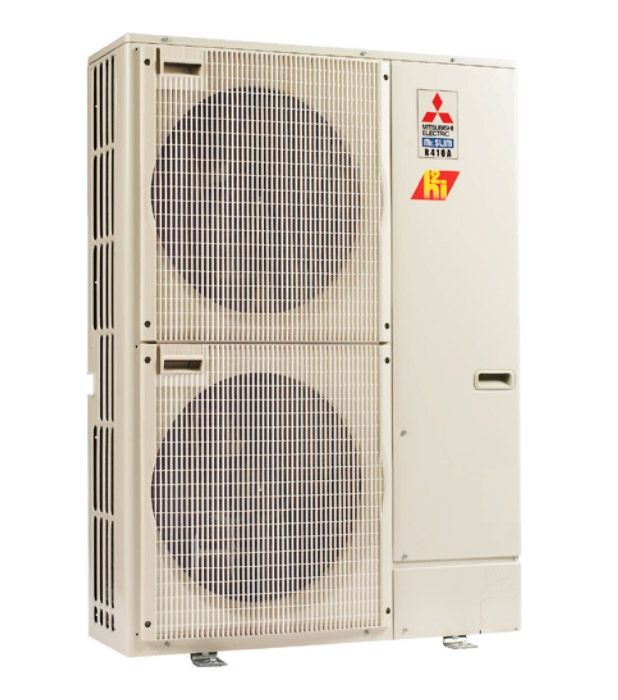

PUZ-AK48NLHZ - Outdoor Unit for Ceiling Cassette Heat Pump System

The PUZ-AK48NLHZ is a high-efficiency outdoor unit designed to pair with the PLA-AE48NL ceiling cassette indoor unit, delivering efficient heating and cooling suitable for commercial applications such as retail shops, classrooms, office spaces, conference centers, and building lobbies. Below are the key features and specifications of this outdoor unit:

Key Features:

• Hyper-Heating INVERTER®: Features a variable speed INVERTER-driven compressor that enhances heating performance, providing efficient heating even in colder temperatures.
• Wide Heating Range: Maintains heating performance down to -13°F, ensuring consistent comfort in various climates.
• High-Speed Heating Start-Up: Reduces heating start-up time by approximately half compared to standard models, quickly achieving desired indoor temperatures.
• Built-In Base Pan Heater: Equipped with a base pan heater to prevent ice buildup, ensuring reliable operation in colder conditions.
• Pre-Charged Refrigerant: Comes pre-charged with refrigerant suitable for piping lengths up to 100 feet, simplifying installation and reducing setup time.
• Pressure and Temperature Protection: Includes safeguards to protect the system from pressure and temperature anomalies, ensuring reliable performance and safe operation.
• ENERGY STAR® Certified: Achieved SEER2 and EER2 ratings of 20.1 and 10.5, respectively, indicating exceptional energy efficiency and potential cost savings. :contentReference[oaicite:0]{index=0}

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 49,000 BTU/h
  • Rated Capacity: 48,000 BTU/h
  • Minimum Capacity: 16,800 BTU/h
• Heating Capacity at 47°F:
  • Maximum Capacity: 60,000 BTU/h
  • Rated Capacity: 60,000 BTU/h
  • Minimum Capacity: 16,000 BTU/h
• Heating Capacity at 17°F:
  • Rated Capacity: 36,600 BTU/h
• Heating Capacity at 5°F:
  • Maximum Capacity: 52,000 BTU/h
• Heating Capacity at -13°F:
  • Maximum Capacity: 39,600 BTU/h
• Power Consumption:
  • Maximum Power Input: 5,328 W
  • Rated Power Input: 5,328 W
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 253 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Indoor-Outdoor Voltage (S2-S3): 12-24 V DC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 40 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 41-1/2 x 14-1/8 x 41 inches (1,052 x 358 x 1,041 mm)
• Outdoor Unit Weight: 198 lbs (90 kg)

The PUZ-AK48NLHZ outdoor unit, when paired with the PLA-AE48NL indoor unit, offers a comprehensive heating and cooling solution suitable for various commercial settings. For detailed installation guidelines and comprehensive information, please refer to the official Mitsubishi Electric documentation.

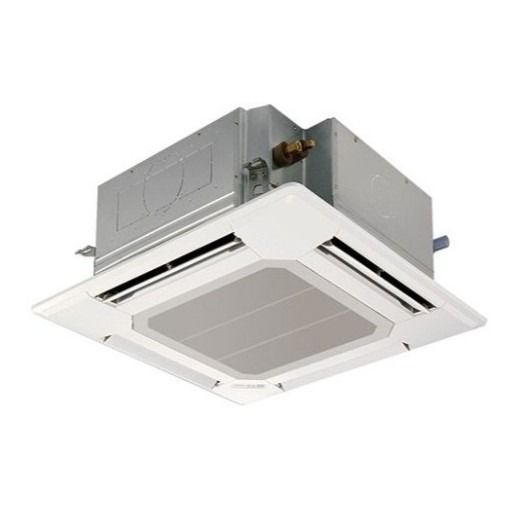

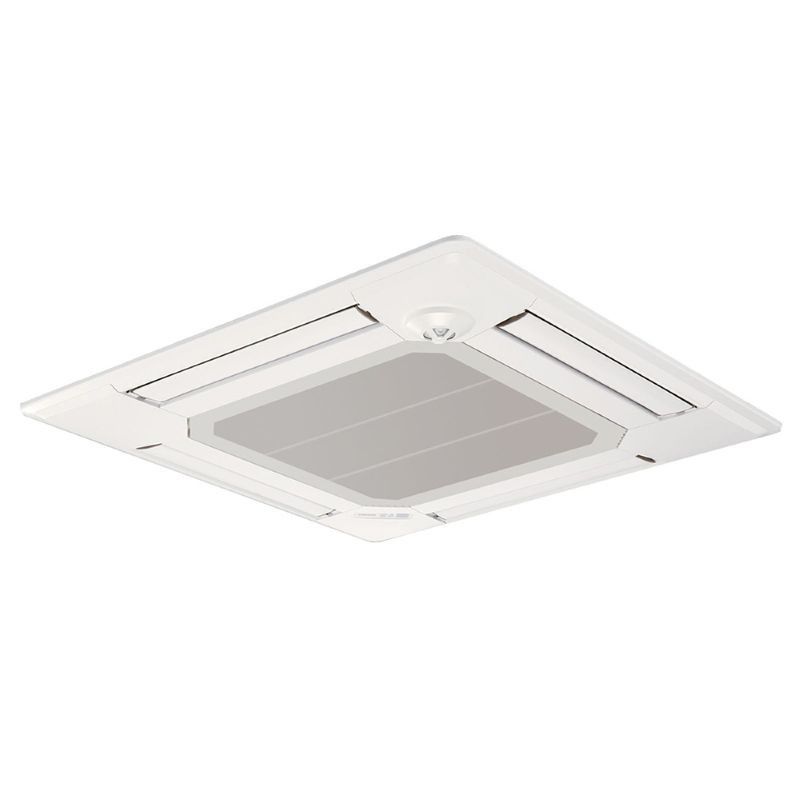

PLA-AE48NL Air Handler Overview

The PLA-AE48NL air handler, when paired with the PUY-AK48NL outdoor unit, offers an advanced solution for residential and commercial spaces requiring effective and reliable climate control. This high-efficiency air handler is designed to provide superior cooling and heating performance while maintaining a low environmental impact. Utilizing inverter technology and eco-friendly refrigerants, it delivers comfort and energy savings throughout the year.

Key Features

• Inverter Technology: The PLA-AE48NL uses advanced inverter-driven technology that allows the unit to continuously adjust its compressor speed, ensuring efficient operation based on real-time demand for cooling or heating.
• Quiet Operation: The design of the air handler minimizes noise levels, making it an ideal choice for spaces where a quiet environment is essential, such as offices, bedrooms, and living rooms.
• Energy Efficiency: With its inverter technology and optimized system components, the PLA-AE48NL maximizes energy efficiency, reducing overall energy consumption and operating costs.
• Environmentally Friendly Refrigerant: The unit uses R410A refrigerant, known for its improved energy efficiency and lower environmental impact compared to older refrigerants.
• Compact and Modern Design: The sleek and compact design allows for easier installation in various spaces, even in limited areas, without compromising on performance or efficiency.

Specifications

• Cooling Capacity: 48,000 BTU/h
• Heating Capacity: 48,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 34-1/8" x 11-7/8" x 22-1/8”
• Weight: 57 lbs
• Refrigerant: R410A
• Airflow: 1,600 CFM

Benefits

• Precise Temperature Control: With the inverter compressor, the air handler can adjust its capacity to maintain a consistent and comfortable temperature, ensuring efficiency and reducing fluctuations.
• Energy Savings: By using inverter technology and a high-efficiency design, this air handler reduces energy consumption compared to conventional systems, making it an eco-friendly and cost-effective choice.
• Low Noise Levels: Designed for quiet operation, the PLA-AE48NL is suitable for noise-sensitive areas such as bedrooms, small offices, or other quiet spaces.
• Durability: Built with high-quality materials and components, this air handler offers long-lasting performance, requiring minimal maintenance to keep it running at peak efficiency.
• Eco-Friendly: Using R410A refrigerant not only improves energy efficiency but also ensures that the system is compliant with environmental regulations for a greener, more sustainable operation.

Applications

• Residential Spaces: Perfect for homes and apartments, the PLA-AE48NL air handler provides reliable and energy-efficient heating and cooling for larger residential applications.
• Light Commercial Spaces: Suitable for offices, retail environments, and small commercial buildings, offering efficient climate control in a variety of commercial applications.

Maintenance

• Minimal Maintenance: This unit is designed to be low-maintenance, requiring only occasional filter cleaning and professional servicing to ensure continued performance.
• Long-Term Durability: The PLA-AE48NL is constructed with durable components that extend the lifespan of the system, providing reliable performance for many years when properly maintained.

The PLA-AE48NL air handler is a high-performance, energy-efficient solution designed for both residential and light commercial use. Its advanced inverter technology, quiet operation, and environmentally friendly refrigerant make it an ideal choice for those looking to enhance indoor comfort while reducing energy costs. This air handler, when paired with the PUY-AK48NL outdoor unit, provides a reliable and durable solution for year-round comfort and efficiency.
