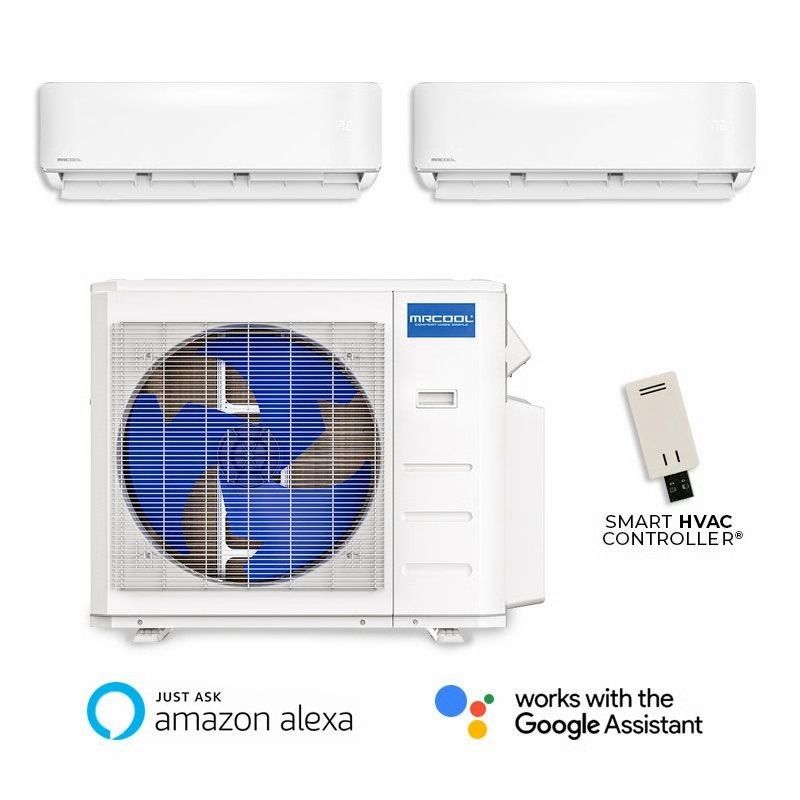

Today's Hours 8am - 11pm estMRCOOL 48,000 BTU 5th Gen DIY 21.8 SEER2 2 Zone Wall Mount Mini Split Heat Pump System R454B | 230V - 18 + 36
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI6-48HP230D / DIY-18-WM / DIY-36-WM
ID
211001
Your Low Price $5,440.00
Product Features
- Sized At 48,000 BTU For 1500 Sq Ft
- Designed For Spaces Up To 1500 Sq Ft
- Energy-Efficient Comfort With 21.8 SEER2
- Adjust Temperature From Anywhere (WiFi)
- Quick-Connect Installation Design
- High-Ambient Cooling Up To 122°F
High-efficiency multi-zone ductless system featuring convenient wall-mounted air handlers designed for easy installation, energy savings, and personalized comfort in two separate rooms.
Enjoy year-round comfort with the MRCOOL DIY 5th Generation Multi-Zone Series Mini Split. This 48,000 BTU multi-zone system pairs a high-capacity outdoor condenser with one 18,000 BTU wall-mounted indoor air handler designed to condition up to 1,000 sq. ft. and one 36,000 BTU wall-mounted indoor air handler designed to condition up to 2,000 sq. ft.. Perfect for expansive open-concept areas, large commercial-style residential spaces, great rooms, and massive living zones, this system delivers independent temperature control with a clean, low-profile wall installation that complements any room decor.
Why Customers Choose the MRCOOL 2 Zone
- Easy DIY Installation — Install it yourself using MRCOOL's Quick Connect technology. Pre-charged line sets and straightforward connections eliminate the need for specialized HVAC tools, saving you time and professional installation costs.
- Independent Multi-Zone Comfort — The 48,000 BTU outdoor condenser works in tandem with an 18,000 BTU and a 36,000 BTU wall-mounted air handler, allowing each room to maintain its own unique temperature setting. The 18,000 BTU unit conditions spaces up to 1,000 sq. ft., while the 36,000 BTU unit handles massive areas up to 2,000 sq. ft. for tailored climate control.
- Sleek Low-Profile Design — Wall-mounted air handlers feature a modern, compact profile that mounts neatly on the wall without requiring bulky ductwork, providing an unobtrusive look that blends directly into your home.
- Energy-Efficient Comfort — Advanced DC inverter technology automatically adjusts compressor output to match your exact comfort needs, optimizing energy usage and keeping monthly utility bills low.
- Convenient Maintenance — Equipped with easy-access washable air filters and user-friendly controls, making routine maintenance simple and effortless.
Control Your Comfort from Anywhere
Built-in Wi-Fi lets you control your mini split system from virtually anywhere using the MRCOOL Smart HVAC app on your compatible smartphone or tablet. Adjust temperatures, modify operating modes, set custom routines, and monitor your system whether you're relaxing at home or away.
Reliable Heating During Cooler Weather
Engineered for all-season performance, this heat pump provides dependable heating during chilly weather and is capable of operating in heating mode at outdoor temperatures as low as -13°F.
What’s Included
- MRCOOL DIY 5th Generation 48,000 BTU Ductless Mini Split Outdoor Condenser (DIY-MULTI6-48HP230D)
- MRCOOL DIY 5th Generation 18,000 BTU Wall-Mounted Indoor Air Handler (DIY-18-WM)
- MRCOOL DIY 5th Generation 36,000 BTU Wall-Mounted Indoor Air Handler (DIY-36-WM)
- Quick Connect Line Sets and Installation Components
- Drain Hoses
- Washable Air Filters
- Wireless Remote Controls
- Owner's Manuals, Installation Guides, and Documentation
Recommended Accessories
- 30" Wall Mount Bracket for Mini Split Systems
- Cielo Breeze Max Mini Split Thermostat with WiFi, SKU: BM101WA
- Installation Kit • 3/4" x 6' Electrical Whip – SKU: 84138 • 60A Non-Fused Disconnect – SKU: 83335 • Surge Protector – SKU: ICM517 • CPS Charging Adapter – SKU: 87-AD87 • Telescoping Wall Sleeve – SKU: NFP-75
- Additional line set options with a coupler
Zone 1
• Coupler - DIYCOUPLER-1412K75C • 16 ft – DIY16-1412-O • 25 ft – DIY25-1412-O • 35 ft – DIY35-1412C-O • 50 ft – DIY50-1412C-OZone 2
• Coupler - DIYCOUPLER-3858K75C • 16 ft – DIY16-3858-O • 25 ft – DIY25-3858-O • 35 ft – DIY35-3858C-O • 50 ft – DIY50-3858C-OWarranty
MRCOOL offers a 7-Year Compressor / 5-Year Parts limited warranty when installed according to manufacturer guidelines.
18,000 BTU MRCOOL DIY 5th Gen Wall Mount Air Handler - R454B
Reliable Year-Round Comfort With Easy DIY Installation
Enjoy reliable year-round comfort with the MRCOOL DIY 5th Generation 18,000 BTU Single Zone Wall Mount Mini Split Air Handler. Designed for use with a compatible outdoor condenser, this indoor unit delivers 18,000 BTU of heating and cooling for spaces up to 1,000 square feet. With R454B refrigerant, Wi-Fi and smartphone app capabilities, an included remote controller, and a DIY-friendly design, it provides convenient temperature control and simplified installation for your space.
Key Features
- 18,000 BTU Heating and Cooling — Provides dependable year-round comfort for spaces up to 1,000 square feet.
- Easy DIY Installation — Designed for straightforward installation as part of the MRCOOL DIY 5th Generation system.
- Smart Temperature Control — Wi-Fi and smartphone app capabilities provide convenient control of comfort settings.
- Powerful Airflow — Delivers up to 706 CFM in Turbo mode, with multiple fan speeds for flexible air circulation.
- Quiet Indoor Operation — Sound levels range from 19.0 to 54.5 dBA, helping provide comfortable heating and cooling with adjustable operating performance.
Warranty
MRCOOL offers a limited warranty of 2-Year Compressor / 1-Year Parts Warranty* when installed according to manufacturer guidelines.
36,000 BTU MRCOOL DIY 5th Generation Wall Mount Air Handler – R454B
MRCOOL 36k DIY 5th Generation Mini-Split Air Handler 230V
The MRCOOL DIY 36k BTU 5th Generation Mini-Split Air Handler offers exceptional climate control for large spaces, combining powerful performance with simple, DIY-friendly installation. Engineered for spaces up to 1,500 square feet, this 230V unit provides energy-efficient heating and cooling year-round.
Using MRCOOL’s revolutionary DIY Quick Connect pre-charged lineset, this system eliminates the need for special tools or HVAC certifications. Alongside smart functionality and whisper-quiet operation, the DIY-36-HP-WMAH-230D25-O brings professional-grade comfort directly to your home.
Key Features
- DIY Quick Connect Installation: Pre-charged line sets allow fast and easy installation without professional tools or vacuuming.
- 36,000 BTU Capacity: Effectively conditions large areas up to 1,500 sq. ft. with efficient, reliable climate control.
- Smart HVAC Control: Compatible with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant for remote operation and voice control.
- Leakage Detection: Detects refrigerant leaks to help prevent damage and ensure safety.
- Auto Restart Function: Automatically restores previous settings after a power outage for uninterrupted comfort.
- Low Ambient Cooling: Cools efficiently even when outdoor temperatures drop to 5°F.
- Quiet Operation: Delivers high-performance heating and cooling with low noise output for a peaceful indoor environment.
- Customizable Timer and Sleep Mode: Enhances comfort while maximizing energy savings overnight or during low-use hours.
Technical Highlights
- Model: DIY-36-HP-WMAH-230D25-O
- Power Supply: 208/230V, 60Hz, 1 Phase
- Air Flow (H/M/L): 1,176 / 1,059 / 941 CFM
- Sound Levels (H/M/L): 53 / 49 / 45 dB(A)
- Mounting Type: Wall Mounted
- Coverage Area: Up to 1,500 sq. ft.
The MRCOOL DIY 5th Gen 36k Air Handler is the ultimate solution for large-scale residential comfort. With smart controls, superior performance, and true DIY capability, it’s an ideal choice for those looking to take full control of their indoor climate with ease.
48,000 BTU MRCOOL 6 Zone Condenser - R454B
Powerful Multi-Zone Comfort With Easy DIY Installation
Bring customizable year-round comfort to multiple areas of your home with the MRCOOL DIY 5th Generation 48,000 BTU 6-Zone Multi-Zone Mini Split Heat Pump Condenser. Designed to support up to six compatible indoor air handlers, this outdoor unit can provide heating and cooling for spaces up to 2,500 square feet. With up to 21.8 SEER2 efficiency, R454B refrigerant, smart connectivity, and Quick Connect technology, it delivers flexible comfort with a simplified DIY installation experience.
Key Features
- Flexible 6-Zone Comfort — Supports up to six compatible indoor air handlers, allowing customized temperature control across multiple rooms and living areas.
- High-Efficiency Performance — With up to 21.8 SEER2 efficiency, the system is designed to deliver dependable year-round comfort while helping manage energy use.
- DIY-Friendly Installation — Pre-charged Quick Connect line sets with R454B refrigerant help simplify installation by eliminating the need for a vacuum pump during setup.
- Smart, Connected Control — Smartphone app capabilities provide convenient temperature management, with Amazon Alexa and Google Assistant compatibility for added flexibility.
Warranty
MRCOOL offers a limited warranty of 2-Year Compressor / 1-Year Parts Warranty* when installed according to manufacturer guidelines.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers with 3/4" Whip
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
MRCOOL DIY 75' Line Set Couplers - 1/4" x 1/2"
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIYCOUPLER-1412K50 as a means of coupling two of MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. To prevent the need of extending the control wire included with the air handler, the coupler also includes 50' of control wire to replace what comes with MRCOOL DIY air handlers. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation. Please note that this line set will only function with MRCOOL's DIY multi zone line of products and will not function with any other brand or system series.
MRCOOL DIY 75' Line Set Couplers - 3/8" x 5/8"
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIYCOUPLER-3858K75 as a means of coupling two of MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. To prevent the need of extending the control wire included with the air handler, the coupler also includes 75' of control wire to replace what comes with MRCOOL DIY air handlers. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation. Please note that this line set will only function with MRCOOL's DIY multi zone line of products and will not function with any other brand or system series.
Please note the 50' version know as (DIYCOUPLER-3858K50) is out-of-stock and has been discontinued.
16ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY16-1412-O 16ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL DIY16-1412-O is a 16-foot pre-charged lineset designed for MRCOOL® DIY 18K indoor units using R-454B refrigerant. This lineset offers an easy-to-install, reliable solution that eliminates the need for vacuum pumps or refrigerant charging.
Featuring Quick Connect fittings, it allows for quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing provide excellent thermal performance and long-lasting durability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended service life
This lineset is an ideal choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing an efficient and hassle-free installation.
16ft 3/8 x 5/8 Line Set for DIY 24K & 36K Indoor - R454B
DIY16-3858-O 16ft 3/8 x 5/8 Lineset for DIY 24K & 36K Indoor - R454B
The MRCOOL® DIY16-3858-O is a 16-foot pre-charged lineset designed specifically for MRCOOL® DIY 24K and 36K indoor units using R-454B refrigerant. This lineset simplifies installation by eliminating the need for vacuum pumps or refrigerant charging, making it perfect for both DIY enthusiasts and professionals.
Featuring Quick Connect® fittings, this lineset allows for quick, secure, and tool-free connections between indoor and outdoor units. The high-quality insulation and durable copper tubing ensure optimal thermal performance and long-lasting reliability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 3/8 inch liquid line and 5/8 inch suction line
- Refrigerant: Pre-charged with environmentally friendly R-454B
- Compatibility: Designed for MRCOOL® DIY 24K and 36K indoor units
- Connection Type: Quick Connect® fittings for easy installation
- Insulation: Superior insulation to reduce energy loss and prevent condensation
- Durability: Corrosion-resistant construction for extended service life
This lineset offers a reliable and efficient solution for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, ensuring hassle-free installation and optimal system performance.
25ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY25-1412-O 25ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL® DIY25-1412-O is a 25-foot pre-charged lineset designed for MRCOOL DIY 18K indoor units using R-454B refrigerant. This lineset offers a convenient and reliable solution that eliminates the need for vacuum pumps or refrigerant charging during installation.
Featuring Quick Connect fittings, it enables quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing ensure optimal thermal efficiency and long-lasting performance.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for easy installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended lifespan
This lineset is an excellent choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing hassle-free installation and dependable operation.
25ft 3/8 x 5/8 Line Set for DIY 24K & 36K Indoor - R454B
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY25-3858 as a means of coupling two of MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation. Please note that this line set will only function with MRCOOL's DIY multi zone line of products and will not function with any other brand or system series.
Write Your Own Review
Customer Questions
Why Choose MRCOOL?
MRCOOL mini split systems combine innovative design with advanced manufacturing to deliver efficient, reliable comfort wherever you need it. Built with cutting-edge technology, these systems ensure optimal performance and flexibility for any space.
