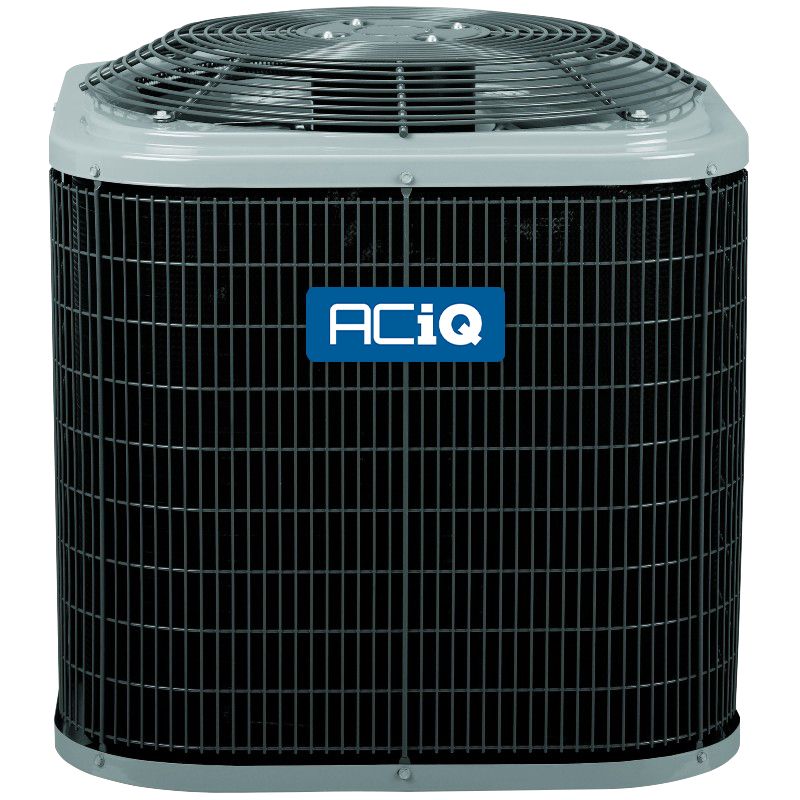

ACiQ 5 Ton 13 SEER Commercia Air Conditioner Condenser - 460v 3 Phase

ACiQ 5 Ton 13 SEER Commercia Air Conditioner Condenser - 460v 3 Phase
By

ACiQ

Out of stock
Model

N4A360GLC

ID

173962

OVERVIEW

Keep the heat out during the warm months with our durable ACiQ N4A360GLC air conditioner featuring a single-stage scroll compressor. It's designed for performance at a budget-friendly price.

FEATURES

  • 5 Ton, 13 SEER air conditioner
  • 60,000 BTU Cooling Capacity
  • Vertical airflow
  • R-410A refrigerant
  • 460V 3-Phase 60Hz
  • Efficient, single-stage scroll compressor
  • Single-stage compressor operation
  • Durable, protective inlet grille panels allow easy coil cleaning
  • Baked-on powder coat finish over galvanized steel
  • Durably built to withstand bad weather and debris

Refrigeration Circuit

  • Copeland compressors on all models
  • Filter-Drier supplied with every unit for field installation
  • Copper tube / aluminum fin coil

Easy to Install and Service

  • Easy Access service valves on all models
  • External high and low refrigerant service ports
  • Only two screws to access control panel
  • Factory charged with R-410A refrigerant

Built to Last

  • Easy Access service valves on all models
  • External high and low refrigerant service ports
  • Only two screws to access control panel
  • Factory charged with R-410A refrigerant

Warranty

  • 5 year compressor limited warranty
  • 1 year coil and parts limited warranty

Quiet ComfortQuiet Comfort

Quiet Comfort

Leave fossil fuels behind with an ACiQ heat pump system. Every ACiQ heat pump condenser uses a scroll compressor to give exceptional cooling
performance and highly efficient, all-electric heat. WiFi-capable communicating condensers are also available.


High Efficiency

ACiQ heat pumps come in a range of efficiency options to fit your budget's needs and your local weather conditions. Save up to 63% on energy costs with a newer model.

High Efficient Heat PumpHigh Efficient Heat Pump

ACiQ - Better QualityACiQ - Better Quality

Longer life, longer warranty

ACiQ heat pump condensers are 100% run-tested at the factory. Protective coatings on the fins and baked-on galvanized finishes mean long life even in harsh conditions. ACiQ’s extended warranty with online registration provides 10 year protection.

More Information
ACiQ 5 Ton 13 SEER Commercia Air Conditioner Condenser - 460v 3 Phase
FeatureSpec
SKUN4A360GLC
Weight (in lbs)224
Brand/ManufacturerACiQ
Cooling BTU60,000
Blower MotorSingle Speed - PSC
Maximum CFM3,365
Decibel Level (dBA)79
Motor RPM1,100
Horsepower0.25 HP
Energy StarYes
RefrigerantR410A
Capacity5 Ton
SEER1 (Efficiency)13
EER11
Condenser StagesSingle Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line7/8"
Electrical460v 3 Phase 60 Hz
PhaseThree Phase
Max Breaker Size30 Amps
Min. Breaker Size21.4 Amps
Tonnage5 Ton
Height25 1/2"
Width31 3/16"
Depth31 3/16"
Warranty5 year compressor limited warranty, 1 year coil and parts limited warranty
