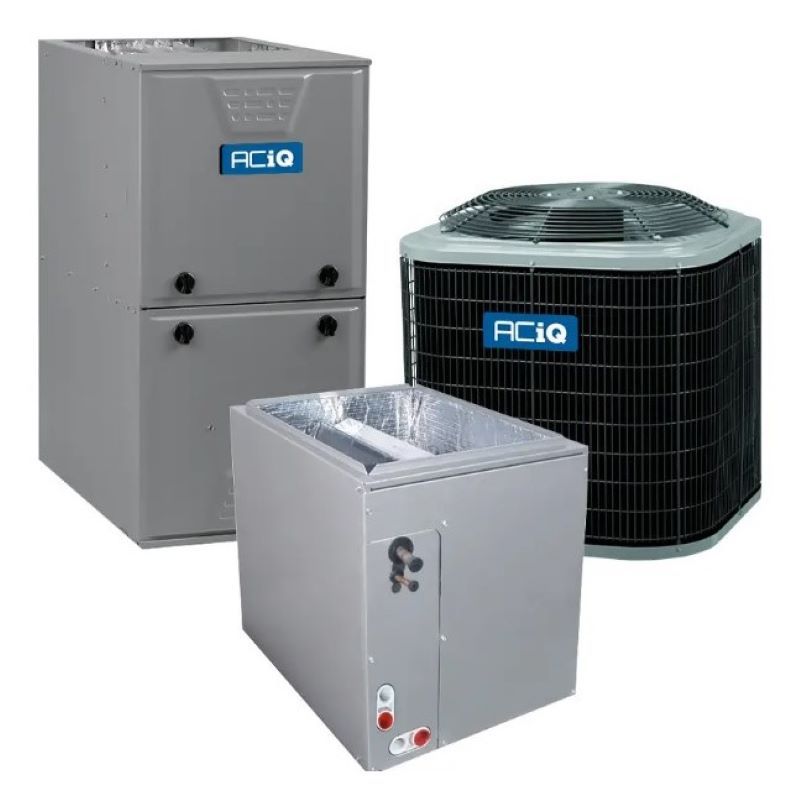

5 Ton 14.3 SEER2 96% AFUE 100,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

SAVE $0.00
5 Ton 14.3 SEER2 96% AFUE 100,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional
5 Ton 14.3 SEER2 96% AFUE 100,000 BTU ACiQ Gas Furnace and Heat Pump System - Multi-Positional

Required Fields *

Customer reviews
Rating:
4.9 out of 5
Out of stock
By

ACiQ

Out of stock

Model

R4H5S60AKAAA / EAM4X61L21A / N96MSN1002120A

ID

157396

An ACiQ combination system is a great choice to keep your home comfortable all season long. With tons of features and a great price, an ACiQ dual fuel system is a perfect choice for all of your heating and cooling needs.

More Information
ACiQ 96% 100,000 BTU Single Stage Gas Furnace - 21" Width - Multi-Positional
FeatureSpec
SKUN96MSN1002120A-1
Weight (in lbs)164
AHRI Certificate Number213148762
Brand/ManufacturerACiQ
UPC689526876490
Equivalent

Carrier Equivalent: 59SC5B100E21--20

Tempstar Equivalent: TN95ESN1002120A

Bryant Equivalent: 915SB60100E21

Furnace Efficiency / AFUE 96%
Heating BTU100,000
Blower MotorECM
Maximum CFM2125
ConfigurationUpflow/Downflow/Horizontal
Energy StarYes
Burner StagesSingle
Fuel TypePropane, Natural Gas
Height35"
Width21"
Depth29 1/2"
Warranty20 Year Heat Exchanger / 10 Year Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.

PROPOSITION 65 WARNING
ACiQ 5 Ton 21" Width Multi-Positional Evaporator Cased Coil-R410A
FeatureSpec
SKUEAM4X61L21A
Weight (in lbs)96
Brand/ManufacturerACiQ
EquivalentCarrier Equivalent: CAPMP6121ACA
ConfigurationMulti-Positional
RefrigerantR410A
Liquid Valve Size3/8
Suction Valve Size7/8
Tonnage5 Ton
StyleA-Coil
Height35"
Width21"
Depth20 5/8"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ 5 Ton 14.3 SEER2 Heat Pump Condenser - R410A Single Stage
FeatureSpec
SKUR4H5S60AKAAA
Refrigerant Charge15'
Weight (in lbs)253
Brand/ManufacturerACiQ
ReplacesR4H460GKC
UPC634707405761
Cooling BTU60,000
Heating BTU60,000
Decibel Level (dBA)76
Horsepower0.25 HP
RefrigerantR410A
SEER2 (Efficiency)14.3
Liquid Valve Size3/8"
Suction Valve Size7/8"
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50 Amps
Min. Breaker Size33.2 Amps
Tonnage5 Ton
Height38 7/8"
Width35"
Depth35"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
