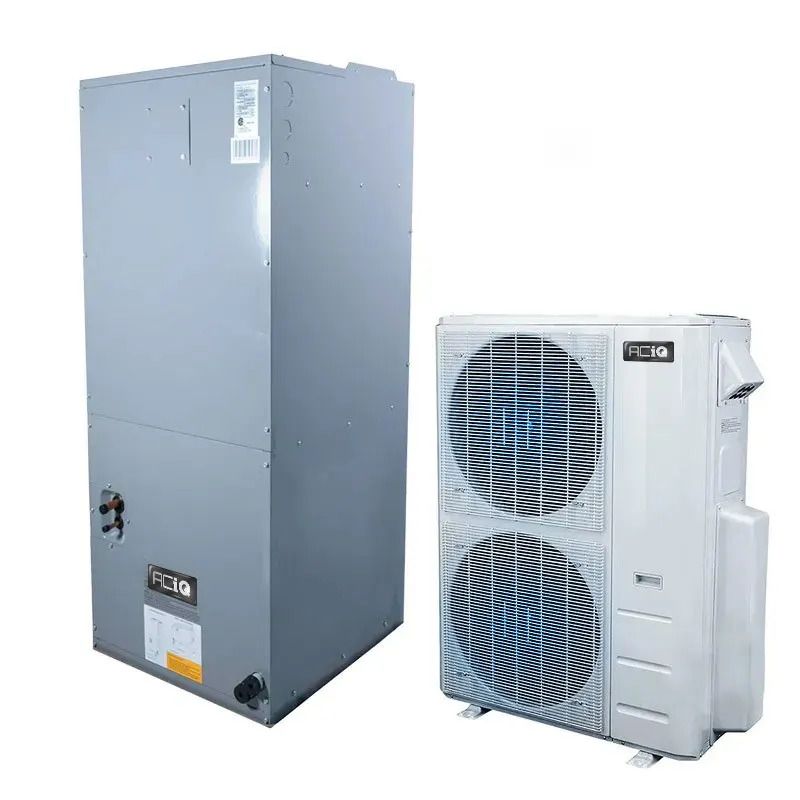

ACiQ 5 Ton 15.3 SEER2 High Efficiency Heat Pump Split System - R410A Inverter - Multi-Positional

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

Ensure optimal refrigerant flow and HVAC system efficiency with this 30-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and thermal protection for reliable performance.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) ensure efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation reduces energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Standard 30-Foot Length: Ideal for a variety of residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and efficiency.

OVERVIEW

The Santa Fe Ultra70 was the first compact whole house ventilating dehumidifier built for tight, low-clearance installs. It removes up to 70 pints of moisture per day and covers homes up to 1,800 square feet, which makes it a strong match for smaller houses, condos, and apartments.

Ducted into your HVAC system, the Ultra70 controls humidity everywhere at once instead of one room at a time. That means no musty basement smell, no clammy upstairs bedrooms, and no conditions that let mold and wood rot get started.

The cabinet measures 12" W x 12" H x 28" L and converts between horizontal and vertical airflow discharge, so it works in mechanical rooms, closets, attics, basements, and crawl spaces alike. Now running R454B refrigerant, it exceeds Department of Energy efficiency standards and is built at Santa Fe's headquarters in Madison, Wisconsin.

Key Features:

• 70 Pints Per Day – Whole-home moisture control for spaces up to 1,800 sq. ft.
• Optional Fresh Air Ventilation – Duct outdoor air in to dilute indoor pollutants
• MERV-13 Filtration – Standard filter captures fine airborne particles
• Convertible Discharge – Rotate the panel for horizontal or vertical airflow
• Compact 12" x 12" x 28" Cabinet – Fits where standard units can't
• R454B Refrigerant – Exceeds DOE efficiency standards
• 115V / 5.4 Amps – Plugs into a standard grounded outlet
• Made in Madison, Wisconsin – Heavy-duty steel construction

Customized Installation and Operation

The Ultra70 gives you three ways to install it. Tie it into your existing HVAC system with a dedicated 8" return and a supply connection with backdraft damper. Run it on its own separate ductwork. Or set it freestanding in a basement or crawl space when ducting isn't practical.

Both the return air inlet and supply air outlet use 8" duct collars. The back panel comes configured for horizontal flow through and rotates for vertical flow through with a T20 torx bit, which is what lets the same unit work in an attic, a closet, or under a floor.

Fresh air ventilation is optional and simple to add. A "T" into the inlet duct brings outdoor air into the system to dilute pollutants and maintain normal oxygen levels indoors, and the volume is adjustable with a range of dampers and controls.

• HVAC Integration – Dedicated return plus ducted supply to the air handler
• Dedicated Ducting – Runs on its own duct system independent of HVAC
• Freestanding Operation – Works standalone in basements and crawl spaces
• Optional Outdoor Air – Ventilation duct T's into the inlet, regulated by dampers and controls
• Continuous Drain – Gravity drainage, no manual emptying

Warranty Information

Santa Fe warrants the Ultra70 Dehumidifier to be free from defects in materials and workmanship. The unit includes a 5-year limited warranty, with extended coverage on select components. Warranty coverage may vary based on installation, application, and registration requirements. Refer to the manufacturer’s documentation for complete warranty details.

The EAH-05B is a 5kW heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ unitary ducted heat pump systems. With a supported output of 16,200 BTU, this heater coil can generally cover a small house in ideal climates.

Compatible Air Handlers:

• ACiQ-24-AH
• ACiQ-36-AH
• ACiQ-48-AH

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.
