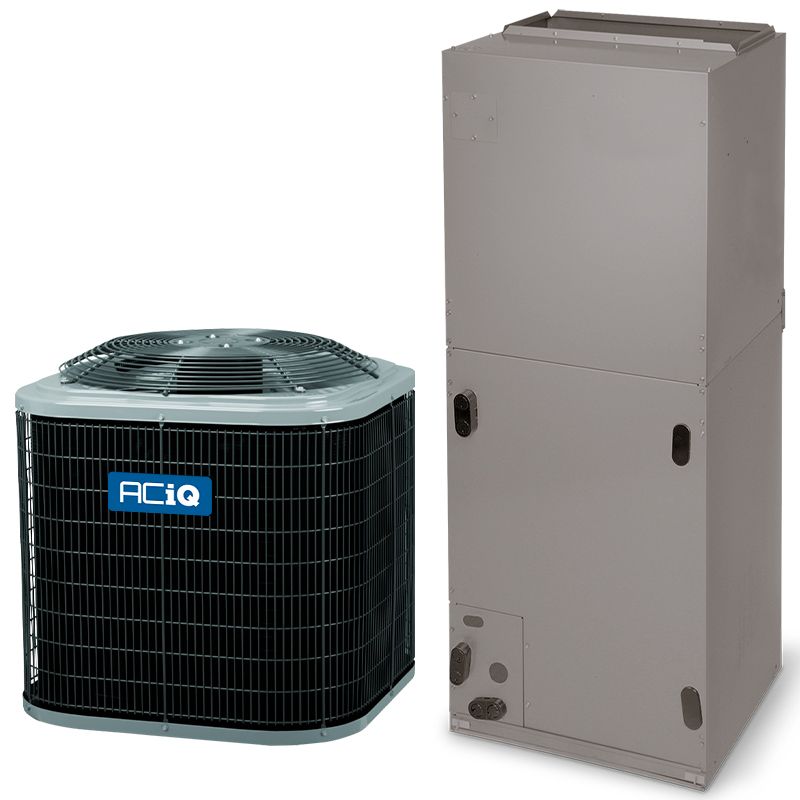

5 Ton 15.2 SEER2 ACiQ Air Conditioner Split System - Multi-Positional

OVERVIEW

The ACiQ R4A5S60AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.

QUICK FACTS

• Factory pre-charged with enough refrigerant for a 15-foot line set, ensuring proper performance and efficiency right out of the box.
• 5 ton, 13.8 SEER2 AC-only condenser
• Can cool up to a large house in average conditions
• Single stage compressor
• Pre-charged with R-410A refrigerant
• Filter drier included to be field-installed

5 Tons

The ACiQ R4A5S60AKAWA air conditioner condenser has an output of 5 tons, generally enough to cool up to a large house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.

13.8 SEER2

The ACiQ R4A5S60AKAWA air conditioner condenser is rated at 13.8 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.

Warranty

ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.

Durability

The cabinet of ACiQ units are extremely durable. On the R4A5S60AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.

All ACiQ condensers come pre-charged with enough refrigerant for a 15-foot line set, making installation faster and more convenient. This pre-charged design saves installers time and reduces labor costs by eliminating the need for manual refrigerant charging. It also helps ensure the system starts with the correct amount of refrigerant, minimizing the risk of improper charging that could impact performance and efficiency. If a longer line set is required, your installer will need to add additional refrigerant to maintain optimal operation.

---

Quiet Comfort

ACiQ has the power to keep things cool when temperatures rise. Every ACiQ condenser uses a scroll compressor for long life and efficiency operation. From entry level to high efficient, single stage, two stage and communicating models, every ACiQ Condenser keeps you cool year after year.

---

High Efficiency

ACIQ saves you money up front, but also over time by reducing energy bills. Models ranging from standard efficiency to high efficient models can provide you savings from 21% to 63% over older, 10 SEER condensers. Coil construction is either all aluminum or copper/aluminum (depending on model) for max efficiency.

---

Longer life, longer warranty

ACiQ condensers are 100% run-tested at the factory. Protective coatings on the fins mean long life even in harsh conditions. A filter drier is included to keep the system healthy. ACiQ’s extended warranty with online registration provides 10 year protection.

OVERVIEW

With its efficient 5-speed ECM blower motor and factory-installed TXV kit, the ACiQ FJMA4X60L0DB is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

QUICK FACTS

• 5 ton air handler
• Multi-Tap 5-Speed ECM blower motor
• Multi-positional - can be installed in the upflow, downflow, and horizontal configurations
• Factory-installed TXV kit for enhanced energy optimization
• Compatible with both AC-only and heat pump condensers
• Sturdy, fully insulated cabinet
• Compact size - can be installed in most manufactured housing applications

5 Tons

The ACiQ FJMA4X60L0DB air handler is rated for an output of 5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.

Warranty

ACiQ offers a 5 year no hassle replacement warranty, as well as a 10 year parts warranty on this unit. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer. After your purchase, a representative will reach out to you to retrieve installation information so we can register the product for you.

Installation and Durability

To make a more versatile unit, ACiQ designed the FJMA4X60L0DB to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, the FJMA4X60L0DB air handler is designed with an extremely strong, one-piece outer casing to protect the unit, and the coil is designed with corrosion-resistant aluminum.

Intelligent Comfort

The FJMA4X60L0DB air handler has an efficient 5-speed ECM blower motor, providing a more stable temperature in your home, making you more comfortable. The control board will automatically communicate with your thermostat to adjust the output of the blower to suit your needs. With this intelligent comfort and efficiency, the FJMA4X60L0DB meets ACiQ's superior standards.
