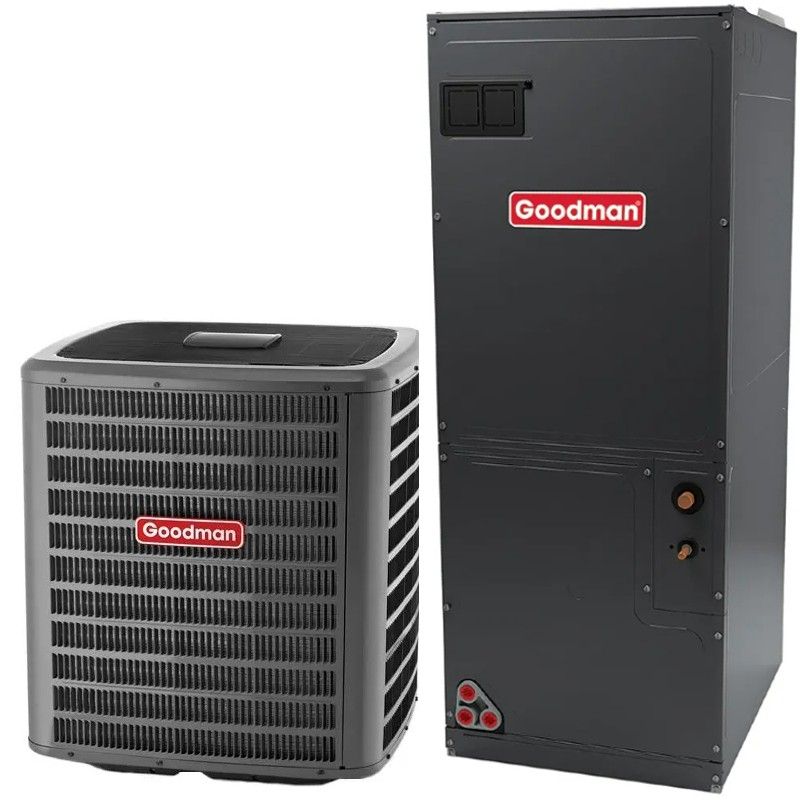

Goodman 5 Ton 15.2 SEER2 Heat Pump Split System - R410A Two Stage - Multi-Positional

Goodman 5 Ton 15.2 SEER2 Heat Pump Split System - R410A Two Stage - Multi-Positional

Required Fields *

By

Goodman

Out of stock

Model

GSZH506010 / AMVT60DP1400

ID

165972

A Goodman heat pump split system provides heating and cooling solutions with variable speed technology for energy efficiency and precise temperature control. With tons of extra features, flexibility in installation, and a great price, a Goodman heat pump split system is the perfect choice for all your heating and cooling needs.

More Information
Goodman 5 Ton 15.2 SEER2 High Efficiency Heat Pump Condenser - R410A Inverter
FeatureSpec
SKUGSZH506010
Weight (in lbs)329
Brand/ManufacturerGoodman
ReplacesGSZ160601
UPC663051631830
Cooling BTU60,000
Heating BTU60,000
Blower MotorSingle Speed Motor
Decibel Level (dBA)76
Horsepower0.2 HP
RefrigerantR410A
SEER2 (Efficiency)15.2
Condenser StagesTwo Stage
Compressor TypeScroll
Liquid Line3/8"
Suction Line1 1/8"
Electrical208/230v 1 Phase 60Hz
Max Breaker Size50 Amps
Min. Breaker Size33.0 Amps
Tonnage5 Ton
ConnectionSweat
Height41 5/8"
Width35 1/2"
Depth35 1/2"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Ton Multi-Positional Variable Speed Goodman Air Handler
FeatureSpec
SKUAMVT60DP1400
Weight (in lbs)172
Brand/ManufacturerGoodman
UPC663051676961
Blower MotorMulti-Speed Direct Drive ECM Motor
Maximum CFM2,000
Horsepower1 HP
Electric Backup Heat Capabilities (Optional)15 Kilowatts
ConfigurationMulti-Positional
RefrigerantR410A
Liquid Valve Size3/8"
Suction Valve Size3/4"
Electrical208 / 240v 1 Phase 60Hz
Max Breaker Size15 Amps
Min. Breaker Size8.6 Amps
Tonnage5 Ton
Connection3/4" FPT
Height58"
Width24 1/2"
Depth21"
Warranty10 Years Parts with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING ,
