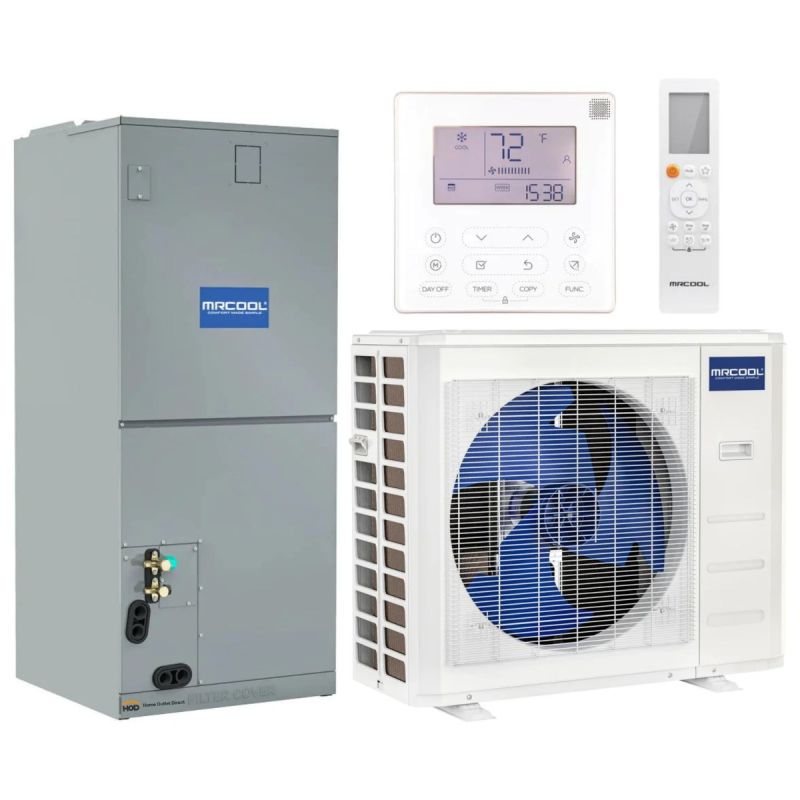

MRCOOL Hyper Heat 5 Ton 15.3 SEER Central Ducted Heat Pump Split System

By

MRCOOL

In stock

Model

CENTRAL-60-HP-230A00

ID

142053

Rating:
98% of 100
ONLY 3 LEFT!
MRCOOL

Authorized MRCOOL Dealer

Your Low Price $4,086.00

Free Shipping

Required Fields *

Customize MRCOOL Hyper Heat 5 Ton 15.3 SEER Central Ducted Heat Pump Split System
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-60-HP-C-230A00
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-60-HP-C-230A00
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-60-HP-C-230A00   + $2,716.00
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-60-HP-MUAH230A00
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-60-HP-MUAH230A00
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-60-HP-MUAH230A00   + $1,370.00
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet
Installation Kit for Condensers
Wall Mount Bracket for Condensers 30"
5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
CENTRAL-60-HP-230A00

$4,086.00

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:

Description

Overview

The 5 Ton 15.3 SEER MRCOOL Central Ducted Hyper Heat Split System (CENTRAL-60-HP-MUAH230A00 / CENTRAL-60-HP-C-230A00) is a high-capacity and efficient solution for cooling and heating large spaces. With a cooling capacity of 5 tons and a SEER rating of 15.3, it provides powerful cooling performance while maintaining energy efficiency. The hyper heat technology ensures reliable heating even in extremely cold weather conditions. This split system consists of the air handler (CENTRAL-60-HP-MUAH230A00) and the heat pump condenser (CENTRAL-60-HP-C-230A00), working together to distribute conditioned air throughout your ducted system. Upgrade to the CENTRAL-60-HP-MUAH230A00 / CENTRAL-60-HP-C-230A00 for exceptional comfort and energy-saving benefits in your residential or commercial environment.

Product Features

  • Up to 17.4 SEER2 and 10 HSPF2
  • Variable Speed
  • Enhanced Heating Capacity
  • R-410A Refrigerant
  • Painted Galvanized Steel
  • Quiet Operation
  • Compact, Side Discharge Design
  • Multi-Position Installation
  • Slide-Out Blower
  • Wired Thermostat Included
  • Follow Me Function
  • Easy-Access Removable Filter
  • Modular Design
  • Self-Diagnostics
  • Easy Maintenance

Product Specifications

More Information
MRCOOL Hyper Heat 5 Ton 15.3 SEER Central Ducted Heat Pump Split System
SKUCENTRAL-60-HP-230A00
Refrigerant Charge25'
AHRI Certificate Number210279124
ManufacturerMRCOOL
Product FeaturesHigh Efficiency, Inverter, Low Ambient Heating, Quick Connect, Variable Speed Condenser
HSPF9.4
HSPF27.6
Cooling BTU55000
Heating BTU59000
Maximum CFM4500
Decibel Level (dBA)51
SEER215.3
EER8.8
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size60
Min. Breaker Size44
Tonnage Bundle5 Ton
BTU/Tonnage60,000 BTU/5 Ton
HeightIndoor 52.99 | Outdoor: 52.48
WidthIndoor 21.02 | Outdoor: 37.48
DepthIndoor 24.49 | Outdoor: 16.34
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-60-HP-C-230A00
SKUCENTRAL-60-HP-C-230A00
Weight272.000000
ManufacturerMRCOOL
Product FeaturesHigh Efficiency, Low Ambient Heating, Quick Connect, Variable Speed Condenser
HSPF29.4
Cooling BTU55,000 BTU
Heating BTU59,000 BTU
Maximum CFM4500
RefrigerantR410A
SEER215.3
Liquid Line3/8"
Suction Line7/8"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size60
BTU/Tonnage60,000 BTU/5 Ton
Height57.48"
Width 43.11"
Depth19.49"
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL 60K BTU 15.3 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-60-HP-MUAH230A00
SKUCENTRAL-60-HP-MUAH230A00
Weight190.000000
ManufacturerMRCOOL
Product FeaturesLow Profile
Cooling BTU55,000 BTU
Heating BTU59,000 BTU
RefrigerantR410A
Liquid Line3/8"
Suction Line7/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15
Height56.60"
Width27.76"
Depth27.36"
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet
SKUNV15-3834
Refrigerant Charge1.94 oz
Weight10.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length15'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 25 feet
SKUNV25-3834
Refrigerant Charge3.17 oz
Weight15.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length25'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 35 feet
SKUNV35-3834
Refrigerant Charge9.77 oz
Weight20.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length35'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 50 feet
SKUNV50-3834
Refrigerant Charge19.44 oz
Weight54.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length50'
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK05
Weight11.000000
ManufacturerMRCOOL
Electric Heat5 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size25/30
Min. Breaker Size23/27
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK08
Weight13.000000
ManufacturerMRCOOL
Electric Heat8 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size40/45
Min. Breaker Size37/42
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK10
Weight13.000000
ManufacturerMRCOOL
Electric Heat10 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50/60
Min. Breaker Size46/53
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK15
Weight15.000000
ManufacturerMRCOOL
Electric Heat15 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size25/30
Min. Breaker Size23/27
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
20 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK20
Weight16.000000
ManufacturerMRCOOL
Electric Heat20 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50/60
Min. Breaker Size46/53
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
