Carrier WeatherMaker 5 Ton 150,000 BTU 14 SEER2 Commercial Gas Packaged Unit | 460V 3 Phase - R410A - Single Stage

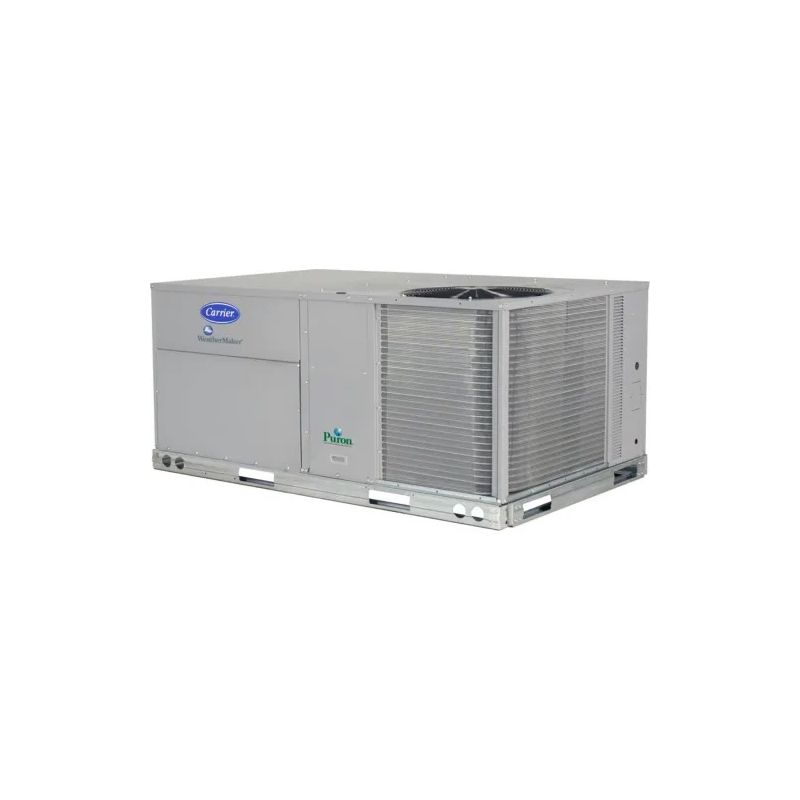

Carrier WeatherMaker 3 Ton 208/230V 1 Phase Rooftop Gas Heat & Electric Cool Unit - 48FCEC04A2A3-0A0A0
Carrier WeatherMaker 5 Ton 150,000 BTU 14 SEER2 Commercial Gas Packaged Unit | 460V 3 Phase - R410A - Single Stage
Be the first to review this product
Out of stock
By

Carrier

Out of stock
Model

48FCFA06A2A6-0A0A0

ID

161878

The latest Carrier WeatherMaker rooftop units (RTU) featuring EcoBlue Technology have been developed with direct input from customers, resulting in an integration of cutting-edge technology to deliver unprecedented benefits not previously seen in similar equipment.

Features:

  • Optional Humidi-MiZer® dehumidification system
  • 460 Volt
  • 150 000 BTU
  • 14 Seer
  • 5 Tonnage
  • Puron® refrigerant (R-410A)
  • Single-point gas/electrical connections
  • Optional SystemVuâ„¢ controls integration
  • RTU Open controller: BACnet, LonWorks, Modbus, Johnson Controls N2
  • Optional insulated cabinet with foil insulation
  • Scroll compressors with internal overload protection

Warranty

3-year limited part warranty.

Packaged Unit Buyers Guide

  • How packaged units work for residential and commercial use
  • The different types of packaged units
  • Figuring out the right size unit for your needs
  • The importance of a custom curb adapter
  • And much more!
More Information
Carrier WeatherMaker 5 Ton 150,000 BTU 14 SEER2 Commercial Gas Packaged Unit | 460V 3 Phase - R410A - Single Stage
FeatureSpec
SKU48FCFA06A2A6-0A0A0
Weight (in lbs)565
Brand/ManufacturerCarrier
UPC704674156871
Drive TypeDirect
Decibel Level (dBA)79 decibels
Motor RPM239-1100 rpm
Horsepower1/4 HP
RefrigerantR410A
SEER2 (Efficiency)14
EER11.0
Condenser StagesSingle Stage
Compressor TypeScroll
Electrical 460V 60Hz
PhaseThree Phase
Amperage Requirement15.4 Amps
Tonnage5 Ton
Fuel TypeNatural Gas
CertificationAHRI
Height33 3/8"
Width46 5/8"
Depth74 3/8"
Warranty3-year limited part warranty.
