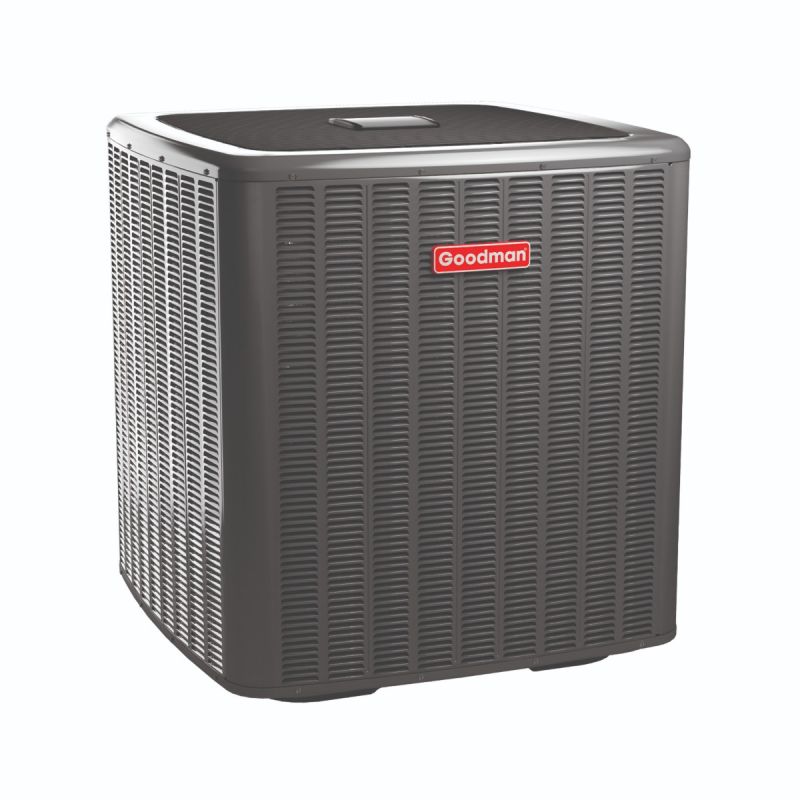

Goodman 5 Ton 20 SEER High Efficiency Heat Pump Condenser - R410A Inverter

Revolutionary ComfortBridge technology is factory-installed into select Goodman brand gas furnaces and air handlers to ensure that the entire system operates at peak, energy-efficient performance. Simply put, communications technology that is typically located in a thermostat was moved from the wall and securely placed into the HVAC equipment!

Features

• Variable-speed swing compressors
• High-density compressor sound blanket
• Integrated communicating ComfortBridge™ Technology • Commissioning and diagnostics via indoor board Bluetooth with the CoolCloud™ phone and tablet application.
• Goodman control algorithmic logic
• In communicating mode, only two low voltage wires to outdoor unit required
• Diagnostic indicator lights, seven-segment LED display, and fault code storage
• Field-selectable boost mode increases compressor speed during unusually high loads
• Quiet DC outdoor fan motor
• Fully charged for 15’ of tubing length
• Field-installed bi-flow filter drier
• Coil and ambient temperature sensors
• Suction pressure transducer (in cooling mode)
• Sweat connection service valves with easy access to gauge ports
• AHRI Certified; ETL Listed

At Goodman, they believe in American dependability. Units are designed, engineered and assembled in the U.S.A.

• OVERVIEW

The Goodman GSZ140361 heat pump condenser is a standard efficiency, low-cost solution for an all-electric home when paired with a suitable heat pump coil or air handler. Just like all of Goodman’s equipment, the GSZ140361 is manufactured with high-quality materials to provide a superior comfort in your home.

• QUICK FACTS
  • 3 ton, 14 SEER heat pump condenser
  • Ideal size to cover a medium-sized house in ideal climates
  • Fully charged for up to 15’ of line set
  • Low sound output
  • Factory-installed bi-flow filter drier
  • 3 ton

  The Goodman GSZ140361 heat pump has a capacity of 3 tons. In an ideal climate, this tonnage will normally cover up to a medium-sized house. In some bundles, the air handler or coil associated with this condenser may be intentionally larger in tonnage to maintain the unit’s overall efficiency. Please note that an indoor air handler or coil that is compatible with heat pumps is required for this unit to function.

  • 14 SEER

  At 14 SEER, the GSZ140361 heat pump condenser has the industry-standard minimum, allowing the unit to remain inexpensive upfront in comparison to higher SEER ratings. If you are replacing an existing heat pump, in most cases this SEER rating will still be higher than your old unit, allowing it to still save you money over time in energy bills.

  • Comfort in Mind

  With its sound control top insulation and SmartShift technology for quiet and reliable defrost cycles, the GSZ140361 heat pump has some of the lowest sound outputs on a single stage unit on the market today.

  • Durability and Reliability

  The Goodman GSZ140361 heat pump condenser is manufactured with a durable cabinet with paint that is approved for 500 hours of salt spray, making it compliant with the 2010 Florida building code unit integrity requirements for hurricane-like weather when properly anchored to your local codes. The built-in bi-flow liquids line filter drier protects the unit from impurities in the refrigerant and other general wear and tear, increasing the reliability of the unit.

  • Installation and Maintenance

  The Goodman GSZ140361 has easily accessible gauge ports and service valves with sweat connections, allowing for a faster and easier installation process. There are factory-installed features such as a filter drier, compressor crankcase heater, pressure switches, and a high-capacity muffler so your installer doesn’t have to, further providing ease to the installation process. Moreover, the cabinet of the unit is fit with two maintenance access panels: one on the top and one on the side. All of these features lower your installation and maintenance costs, keeping more money in your pocket to spend on the things you care about most.

  • Warranty

  The GSZ140361 condenser comes with Goodman’s standard 10 year parts warranty with online registration through the manufacturer. An installation that follows your state and local codes is required for the warranty to be upheld.
