Today's Hours 8am - 11pm estMRCOOL 55,000 BTU 5th Gen DIY 22 SEER2 3 Zone Wall Mount Mini Split Heat Pump System R454B | 230V - 18 + 18 + 18
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI6-55HP230D / DIY-18-WM-3
ID
211091
Was $7,262.20
Your Low Price $6,602.00
Product Features
- Sized At 55,000 BTU For 1500 Sq Ft
- Sized For Up To 1500 Sq Ft
- Efficient Home Comfort With 22 SEER2
- Adjust Temperature From Anywhere (WiFi)
- Quick-Connect Installation Design
- High-Ambient Cooling Up To 122°F

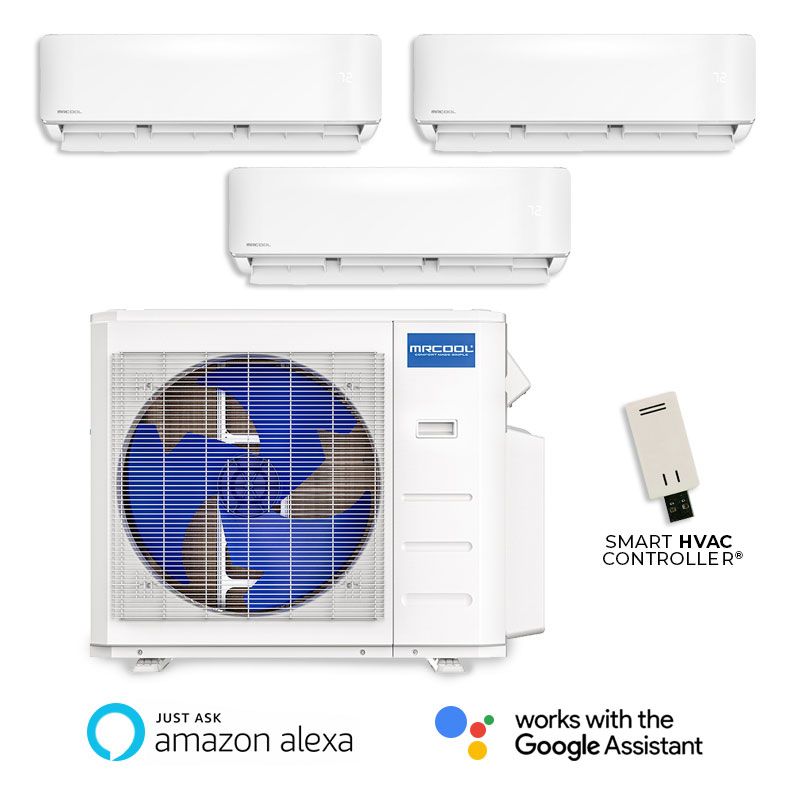

55,000 MRCOOL 5th Gen DIY 22 SEER2 Three Zone Wall Mounted Mini Split Heat Pump System - R-454B
The MRCOOL 5th Generation DIY Mini Split Heat Pump System offers advanced heating and cooling efficiency with a total capacity of 55,000 BTU. This three-zone system is designed to provide customizable comfort with three wall-mounted indoor units, each rated at 18,000 BTU.
This system features the environmentally friendly R-454B refrigerant and an impressive 22 SEER2 rating for energy efficiency, helping reduce energy consumption and lower utility bills.
Key Features:
- System Capacity: 55,000 BTU total output
- Zones: Three-zone configuration with wall-mounted indoor units
- Indoor Unit Sizes: 18,000 BTU each (18 + 18 + 18)
- Refrigerant: R-454B – eco-friendly and efficient
- Energy Efficiency: High 22 SEER2 rating for reduced energy use
- Quiet Operation: Low noise levels ensure comfort without disturbance
- Smart Controls: Compatible with smart thermostats and WiFi control options
Benefits:
- Customizable comfort for multiple rooms or zones
- Lower energy bills thanks to high SEER2 efficiency
- Environmentally responsible refrigerant reduces environmental impact
- Easy installation for homeowners and professionals
- Reliable performance in both heating and cooling seasons
The MRCOOL 5th Gen DIY Three Zone Mini Split Heat Pump System is perfect for homeowners seeking efficient, multi-zone climate control without the complexity of traditional HVAC systems. These bundles require the purchase of a Pre-Charged Line Set, these are not included.
18,000 BTU MRCOOL DIY 5th Gen Wall Mount Air Handler - R454B
MRCOOL 18k DIY 5th Generation Mini-Split Air Handler 230V
The MRCOOL DIY 18k BTU 5th Generation Air Handler is part of an advanced ductless mini-split system that delivers powerful and energy-efficient climate control for any space. Designed for easy installation by homeowners, this unit combines performance, convenience, and smart features to redefine home comfort.
This 230V air handler is compatible with MRCOOL DIY Quick Connect line sets, allowing for fast, tool-free installation without the need for specialized HVAC skills or certifications. With its sleek, modern design and enhanced technology, it’s ideal for spaces up to 750 square feet.
Key Features
- DIY Quick Connect Installation
- 18,000 BTU Capacity: Effectively heats and cools medium to large rooms with consistent comfort and efficiency.
- Smart HVAC Features: Includes compatibility with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant for convenient voice or app control.
- Auto Restart & Leakage Detection: Automatically restarts after power outages and alerts for refrigerant leaks to protect your system.
- Low Ambient Cooling: Operates efficiently in cooling mode down to 5°F outdoor temperatures, making it suitable year-round.
- Quiet Operation: Minimizes indoor noise levels for a more comfortable and peaceful environment.
- Sleep Mode & Timer Function: Improves nighttime comfort and allows programmable operation tailored to your schedule.
Technical Highlights
- Model: DIY-18-HP-WMAH-230D25-O
- Power Supply: 208/230V, 60Hz, 1 Phase
- Air Flow (H/M/L): 706/618/530 CFM
- Sound Levels (H/M/L): 47/43/38 dB(A)
- Mounting Type: Wall Mounted
- Coverage Area: Up to 750 sq. ft.
With the MRCOOL DIY 5th Gen 18k Air Handler, homeowners can enjoy professional-grade performance and high-efficiency comfort without the cost and complexity of traditional installation. This unit is an ideal upgrade for those looking to enhance their space with reliable, smart, and user-friendly climate control.
55,000 BTU MRCOOL 6 Zone Condenser - R454B
MRCOOL 55k DIY 5th Generation 6 Zone Multi-Zone Mini-Split Condenser 230v
The MRCOOL® DIY-MULTI6-55HP230D-O is the largest capacity unit in the MRCOOL 5th Generation DIY Multi-Zone series, designed to efficiently manage heating and cooling for up to six separate zones. With an impressive 55,000 BTU output, this unit provides robust performance, energy efficiency, and the convenience of DIY installation for large residential or light commercial spaces.
Key Features
- 6-Zone Coverage: Supports six indoor air handlers of various capacities for individualized temperature control throughout the building.
- Smart Home Ready: Integrates with the SmartHVAC app, Amazon Alexa, and Google Assistant for wireless and voice control.
- Energy Efficient: High SEER2 and HSPF2 ratings help reduce long-term energy costs while maintaining year-round comfort.
- Weather Resistant: Built with a corrosion-resistant Gold Fin coating to extend durability in harsh outdoor environments.
Performance Specifications
- Model: DIY-MULTI6-55HP230D-O
- Power Supply: 208/230V, 60Hz, 1Ph
- Cooling Capacity: 55,000 BTU
- Heating Capacity: 55,000 BTU
- SEER2: Up to 22
- HSPF2: Up to 8.5
Additional Features
- Low Ambient Heating & Cooling: Delivers reliable performance down to -13°F in heating mode and 5°F in cooling mode
- Quiet Operation: Minimizes sound disruption for indoor and outdoor comfort
- Auto Restart: Automatically restores system settings after power interruptions
- Flexible Fan Settings: Allows customized airflow control for every connected zone
The MRCOOL 55k DIY 5th Generation Multi-Zone Condenser is a high-performance solution for those needing wide-reaching, efficient climate control. Its easy installation, advanced features, and smart integration make it the ultimate choice for large homes or light commercial spaces seeking personalized comfort and reliable operation.
16ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY16-1412-O 16ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL DIY16-1412-O is a 16-foot pre-charged lineset designed for MRCOOL® DIY 18K indoor units using R-454B refrigerant. This lineset offers an easy-to-install, reliable solution that eliminates the need for vacuum pumps or refrigerant charging.
Featuring Quick Connect fittings, it allows for quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing provide excellent thermal performance and long-lasting durability.
Key Features:
- Length: 16 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for tool-free installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended service life
This lineset is an ideal choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing an efficient and hassle-free installation.
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
25ft 1/4 x 1/2 Line Set for DIY 18K Indoor - R454B
DIY25-1412-O 25ft 1/4 x 1/2 Lineset for DIY 18K Indoor - R454B
The MRCOOL® DIY25-1412-O is a 25-foot pre-charged lineset designed for MRCOOL DIY 18K indoor units using R-454B refrigerant. This lineset offers a convenient and reliable solution that eliminates the need for vacuum pumps or refrigerant charging during installation.
Featuring Quick Connect fittings, it enables quick, tool-free connections between indoor and outdoor units. The durable insulation and corrosion-resistant copper tubing ensure optimal thermal efficiency and long-lasting performance.
Key Features:
- Length: 25 feet of pre-charged copper tubing
- Line Sizes: 1/4 inch liquid line and 1/2 inch suction line
- Refrigerant: Pre-charged with eco-friendly R-454B refrigerant
- Compatibility: Compatible with MRCOOL DIY 18K indoor units
- Connection Type: Quick Connect fittings for easy installation
- Insulation: High-quality insulation to prevent condensation and improve energy efficiency
- Durability: Built with corrosion-resistant materials for extended lifespan
This lineset is an excellent choice for extending or replacing refrigerant lines in MRCOOL® DIY mini-split systems, providing hassle-free installation and dependable operation.
