5 Ton 18.5 SEER2 Gree Flexx Ultra High Efficiency Central Heat Pump Split System | Inverter - R32

OVERVIEW

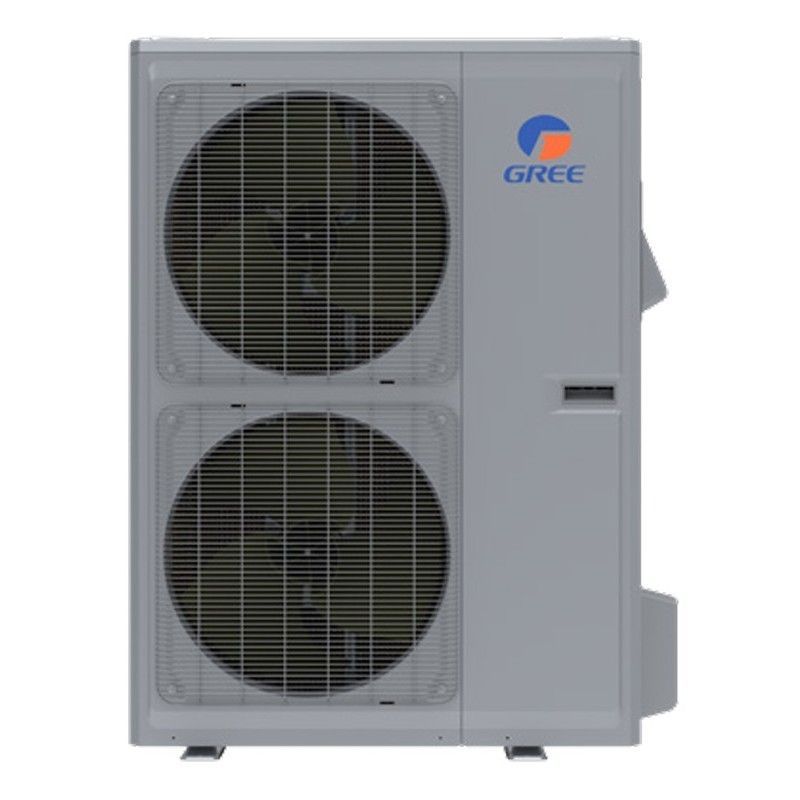

The 5 Ton 18.5 SEER2 Gree Flexx Ultra High Efficiency Central Heat Pump Condenser delivers top performance in even the most challenging environments. This side discharge condenser utilizes eco-friendly R32 refrigerant, which reduces environmental impact all while providing superior heating and cooling capabilities. With a high SEER2 efficiency rating and a wide operating temperature range of -22°F to 129°F, this heat pump condenser ensures optimal performance across every climate.

QUICK FACTS

• 5 Ton 18.5 SEER2 inverter heat pump condenser
• Pre-charged with R32 refrigerant
• Can heat and cool a large house in average conditions
• Efficient heating at temperatures from -22°F to 75°F
• Efficient cooling at temperatures from 5°F to 129°F
• Energy Star certified
• Quiet operation, even under high workloads

5 Ton, 18.5 SEER2

The Gree Flexx Ultra heat pump condenser has an output of 5 tons, which is generally enough to heat and cool a large house in ideal climates. When paired with the corresponding Gree Flexx Ultra air handler (FXU60HP230V1R32AH), the heat pump condenser performs at a 18.5 SEER2 rating, allowing you to save tons on your energy bill compared to traditional heat pump and air conditioner condensers with lower ratings.

High Efficiency Inverter Technology

All Gree Flexx Ultra heat pump condensers feature a DC inverter compressor and fan motor, enabling variable speed control. This allows for ultra-precise control of the full system, leading to improved energy efficiency, quiet operation, and more consistent temperature control.

Durability and Installation

The Gree Flexx Ultra condensers are built with cooper tubing and aluminum fin coils for efficient heat transfer and improved corrosion resistance. Each one boasts a compact, horizontal discharge design, which is ideal for tight space, new construction, and retrofit installations. Plus, each condenser can support a line length of up to 164 feet, adding even more flexibility and versatility to its install options.

Warranty

Gree stands behind their Flexx Ultra series with a 5-year parts and 7-year compressor warranty with online registration. This warranty covers both residential and commercial installations of Flexx Ultra systems.

Compatibility

The FXU60HP230V1R32AO is the outdoor unit (condenser) only. It requires the FXU60HP230V1R32AH indoor unit (air handler) to function as a complete cooling and heating system at the listed ratings. Installation of both units should be performed by a qualified HVAC technician to ensure proper setup, safety, and optimal performance. FXU60HP230V1R32AO is designed for use with R32 refrigerant systems and is not compatible with R410A refrigerant equipment.

OVERVIEW

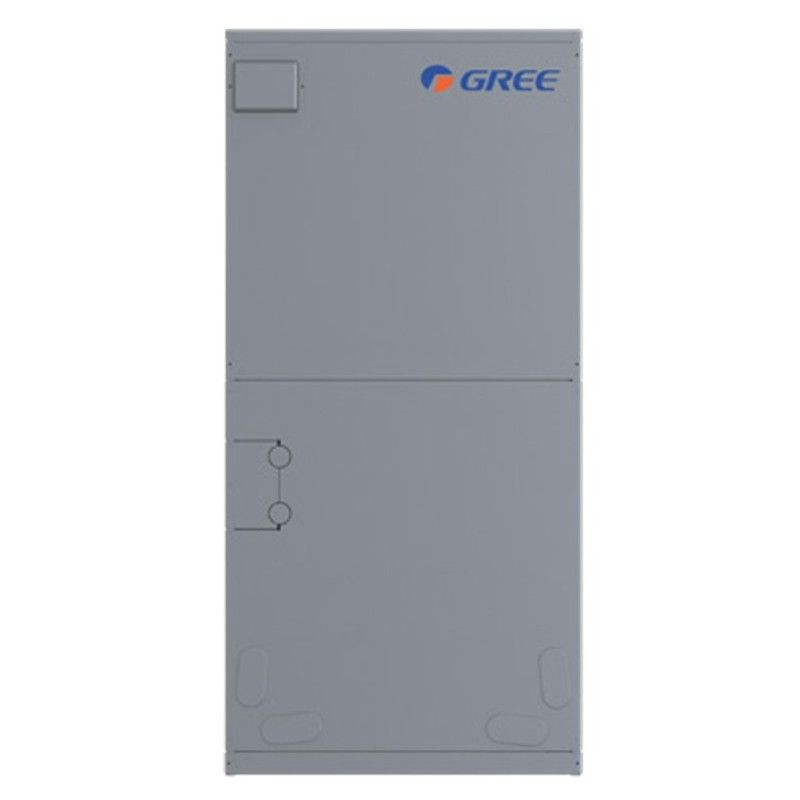

The 5 Ton Gree Flexx Ultra Central Ducted Air Handler is a multi-positional air handler made to be paired Gree's Flexx Ultra R32 inverter heat pump condensers. Compatible with your preferred 24v thermostat, this air handler communicates with the outside condenser, allowing for ultra-precise temperature control over the full system. The air handler also seamlessly attaches to you existing ductwork, making it a great option for any new construction or retrofit installations.

QUICK FACTS

• 5 ton variable speed central ducted air handler
• Multi-positional - Can be installed in upflow, downflow, horizontal-left, and horizontal-right positions
• Compatible with any 24v thermostat
• Factory-installed TXV control
• Includes basepan with electric basepan heater
• Optional supplemental electric heat add-on available
• For use with R32 refrigerant only

5 Ton

The Gree Flexx Ultra air handler is rated for an output of 5 tons. Please note that in order for this unit to work, an outdoor condenser is required for it to function, ideally Gree's Flexx Ultra R32 heat pump condenser (FXU60HP230V1R32AO). The air handler can support additional electric heat as a backup to the heat pump, available at an additional cost for field-installation.

Advanced Functionality

All Gree Flexx Ultra air handlers include features that enhance the overall performance of a complete Flexx Ultra system. These features include an Auto Clean setting, I-Feel technology, dehumidification mode, intelligent coil defrosting/preheating, and system self-diagnosis to improve the overall performance and longevity of your system.

Warranty

Gree stands behind their Flexx Ultra series with a 5-year parts and 7-year compressor warranty with online registration. This warranty covers both residential and commercial installations of Flexx Ultra systems.

Compatibility

The FXU60HP230V1R32AH is the indoor unit (air handler) only. It requires the FXU60HP230V1R32AO outdoor unit (condenser) to function as a complete cooling and heating system at the condenser's listed ratings. Installation of both units should be performed by a qualified HVAC technician to ensure proper setup, safety, and optimal performance. FXU60HP230V1R32AH is designed for use with R32 refrigerant systems and is not compatible with R410A refrigerant equipment.

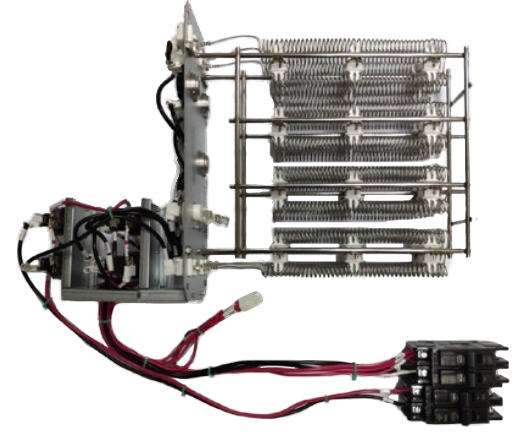

The FLEXA2LHTR06KW is a 6kW heater coil to act as a backup heat source for Gree Flexx Ultra R32 systems. The FLEXA2LHTR06KW is compatible with the following air handlers:

• FXU24HP230V1R32AH
• FXU36HP230V1R32AH
• FXU48HP230V1R32AH
• FXU60HP230V1R32AH

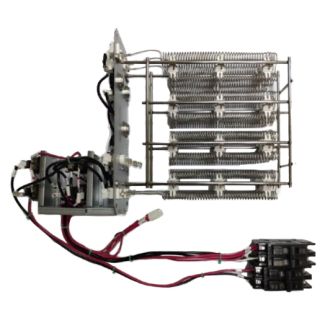

The FLEXA2LHTR09KW is a 6kW heater coil to act as a backup heat source for Gree Flexx Ultra R32 systems. The FLEXA2LHTR09KW is compatible with the following air handlers:

• FXU36HP230V1R32AH
• FXU48HP230V1R32AH
• FXU60HP230V1R32AH

The FLEXA2LHTR09KW is a 6kW heater coil to act as a backup heat source for Gree Flexx Ultra R32 systems. The FLEXA2LHTR09KW is compatible with the following air handlers:

• FXU36HP230V1R32AH
• FXU48HP230V1R32AH
• FXU60HP230V1R32AH
