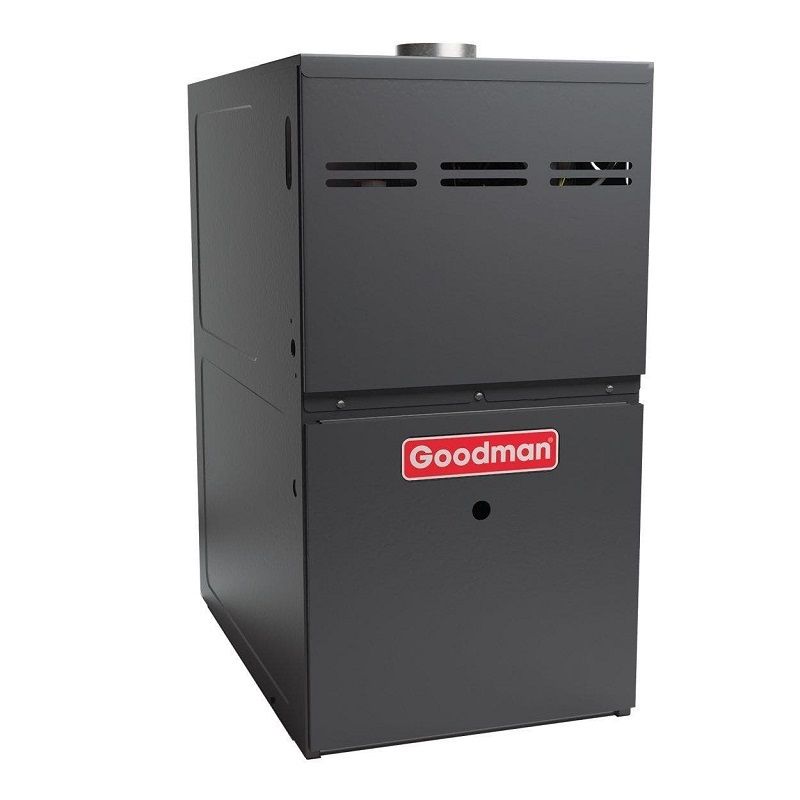

60,000 BTU 80% Two-Stage Variable-Speed ECM Gas Furnace Low NOx - Downflow/Horizontal

By

Goodman

Out of stock
Model

GCVC800603BX

ID

111722

Availability: Ships in 5-7 Business Days
Goodman

Authorized Goodman Dealer

AHRI Certified

AHRI Number:204633295

Description

OVERVIEW

The GCVC800603BX gas furnace is from one of the top-of-the-line series by Goodman. Considered one of the best of the best, this furnace has a two stage burner and a variable speed blower motor. With the best durability and reliability that Goodman 80% efficient furnaces have to offer, and a lower emissions output to match the low NOx compliance regulations in California, we are proud to offer you the Goodman GCVC800603BX gas furnace.

QUICK FACTS

  • This furnace is ideal to heat a medium-size house (in average climate conditions)
  • 60,000 BTU 80% AFUE two stage variable speed natural gas furnace
  • Low NOx Compliant
  • Requires metal flue venting
  • Can be used in the downflow or horizontal orientation
  • Can be converted to propane with an LP conversion kit (sold separately)
  • Innovative design for electrical efficiency, safety, and lower sound output

Low NOx Compliant

In California, many counties have a lower NOx emission requirement than the rest of the United States. The GCVC800603BX Goodman gas furnace is California Low NOx compliant. With a built-in low emission filter, this Goodman gas furnace produces less nitrogen oxides to be released into the atmosphere, lowering the overall amount of toxic greenhouse gases output of the average California home. Please note that this furnace cannot be installed in the following counties in California: Fresno, Joaquin, Kern, Kings, Los Angeles, Madera, Merced, Orange, Riverside, San Bernardino, San Stanislaus, and Tulare. In these counties you are required to purchase an Ultra Low NOx furnace. If you have any questions, please contact us.

60,000 BTU

At an input of 60,000 BTU’s, the GCVC800603BX Goodman gas furnace is suitable for up to a medium-size house in an average climate. The output of this furnace is 48,000 BTU’s, which is calculated by the input times the 80% efficiency rating.

80% Efficiency Rating

With the industry standard efficiency of 80% AFUE, the GCVC800603BX Goodman gas furnace uses 80% of the fuel going into the furnace to heat your home and the remaining 20% of the fuel going into it is used up in normal furnace operations and is lost out of the flue venting. The GMVC80603BX requires metal flue venting like any 80% efficient furnace, while anything 90% and above would require plastic or PVC venting.

Two Stage Variable Speed Furnace

The GCVC800603BX is equipped with two stages, allowing for an adjusted heat output to better suit your home’s comfort needs. The integrated variable speed blower on the furnace allows for an exact airflow output based on the requirements for your home as calculated by the control board and thermostat, keeping your home at a more constant temperature and increasing efficiency overall.

Goodman Furnace Warranty

Goodman’s 10 year parts, 10 year unit replacement, and it's phenomenal lifetime heat exchange warranties.

Durability and Reliability

The tubular heat exchanger on the GCVC800603BX is heavy-duty for constant use in the winter. Made of aluminized steel, Goodman heat exchangers provide fast and efficient heat transfer rates, all the while increasing the furnace’s dependability and reliability. The heavy-duty exterior of the unit protects all of the unit’s internal mechanisms and the secure cabinet lowers air leakage and sound output in comparison to its competitors, all providing enhanced comfort that lasts a long time.

Installation

The GCVC800603BX furnace runs natively on natural gas. When you use Goodman’s associated LP conversion kit (found here at an additional cost), this furnace can use propane instead when the installation calls for it. This Goodman furnace is also able to be installed in the downflow or horizontal positions, allowing for a broader application potential.

Product Specifications

More Information
60,000 BTU 80% Two-Stage Variable-Speed ECM Gas Furnace Low NOx - Downflow/Horizontal
SKUGCVC800603BX
Weight (in lbs)105.000000
AHRI Certificate Number204633295
Airflow DirectionDownflow/Horizontal
Exhaust Flue RequirementMetal
Brand/ManufacturerGoodman
Product FeaturesLow NOx
Furnace Efficiency / AFUE 80%
Heating BTU60,000
Blower MotorVariable Speed
Maximum CFM1200
ConfigurationDownflow/Horizontal
Electrical 115 VAC, 60 Hz
Low NOxLow NOx
Burner StagesTwo
Fuel TypePropane, Natural Gas
CertificationAHRI Certified; ETL Listed
Height33 3/8"
Width17.5"
Depth28"
WarrantyLifetime Heat Exchanger, 10 Years Parts, and 10 Years Unit Replacement Warranty with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF Documents
Safety Information
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
