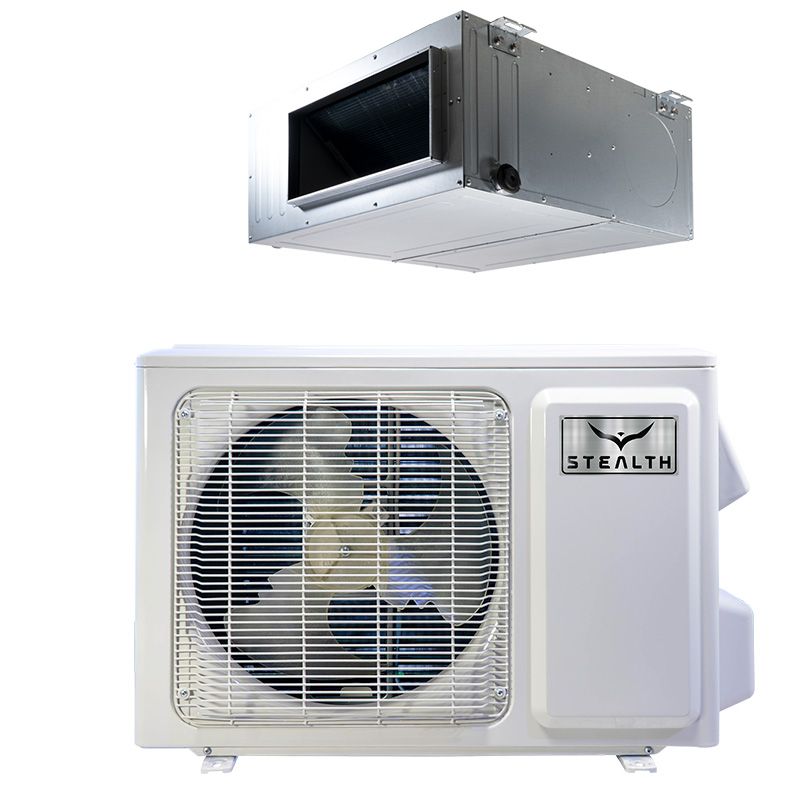

The Stealth Emerald Series Single Zone mini split systems provide precise temperature control, near silent operation, and maximum efficiency at a competitive price. Stealth Emerald systems complement your space, with attention to detail in design, and state-of-the-art manufacturing. Get a system that blends with your environment to create seamless comfort. Get Stealth.
9,000 BTU ACiQ Extreme Series Single Zone Condenser - R410A
OVERVIEW
The ACiQ Single Zone SC-09ZGLD-HP230 heat pump condenser has a Gen 3 variable inverter compressor for even, predictable cooling and heating without temperature swings, or noisy on and off cycling. The condenser ships with a pre-charge of eco-friendly R410a refrigerant.
QUICK FACTS
Superior engineering for maximum comfort with minimum noise
9,000 BTU of heating and cooling
Rugged construction with acrylic resin fin coating for durability
Intelligent defrost means more heat time and lower energy use
I-Feel function allows you to control temp sensing location
Sleep mode and Energy Saving mode give you more ways to save
Extreme Heat technology provides efficient heating all the way down to -22 F temperatures
9,000 BTU, 25.5 SEER
A system this size is suitable for rooms up to 250 square feet depending on climate in your area. The SEER rating of 25.5 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. ACiQ means elite performance at affordable prices.
12 Year Warranty
ACiQ Mini Splits feature a 12 Year Compressor, 7 year parts warranty with online registration. The standard warranty on the SC-09ZGLD-HP231 is a 7-year limited compressor, 5-year parts warranty.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every ACiQ mini split, resulting in powerful performance across a punishing range of conditions. This SC-09ZGLD-HP230 provides continuous heat even with outside temperatures down to -22 degrees Fahrenheit.
Smart Home Compatibility
The Stealth Emerald Series has native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the Apple Store or Google Play. You can also sync your system with Google Home or Alexa. See instructions for set-up.
 14 Year Warranty
The Stealth Emerald Series features a 14 warranty. The standard warranty is a 5-year part and a 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
Quiet Operations
The Stealth Emerald Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.
Stealth Emerald Series Specifications
Effective cooling from as low as 0°F to 115°F outdoor temperatures
Effective heating from as low as -4° to 75°F outdoor temperatures
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Emerald provides continuous heat even with outside temperatures down to -4 degrees Fahrenheit.
Installation and Maintenance
Every Stealth series condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Emerald Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.
Quality Construction
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
Longer life, longer warranty
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
Extreme Heat Base Pan Heater Technology
Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.
9,000 BTU Stealth Comfort Designer Concealed Duct Multi Zone Air Handler
Stealth Designer Series Concealed Ducted units are flexible air handlers that can be concealed above ceilings, beneath floors, above closets or in hallways. Supply air can be delivered directly into rooms through a grate, or through a field-fabricated duct board plenum and flex ducting. Concealed duct air handlers all come equipped with a factory installed condensate drain pump to move water to a safe discharge location. A wall-mounted thermostat is included.
Please note: This air handler must be connected to an outdoor condenser in order to function.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
21" Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
1/2" x 6' Electrical Whip – SKU: 84136
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
Insulated
Flared Line Ends
Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Stealth Comfort Designer Concealed Duct Multi Zone Air Handler
SKU
SC-09CD-HP230
Weight
60.000000
Manufacturer
Stealth
Additional Information
Drain: 1"
Cooling BTU
8,500
Heating BTU
9,500
Maximum CFM
147-265 CFM
Decibel Level (dBA)
Indoor Unit: 31-37 dB(A)
Electric Heat
Heat Pump
Refrigerant
R410A
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V 1 Phase 60Hz
BTU/Tonnage
9,000 BTU/0.75 Ton
Mini Split Type
Concealed Duct
Zone Compatibility
Multi Zone
Height
6.1"
Width
30.8"
Depth
27.6"
Warranty
14 year compressor, 5 year parts with online registration
