Today's Hours 8am - 11pm est9,000 BTU 38 SEER Stealth Comfort Pinnacle Mini Split Single Zone Condenser w/ Max Heat
Customer reviews
Out of stock
By
Stealth
Out of stock
Model
SC-09ZPL-HP230
ID
106510

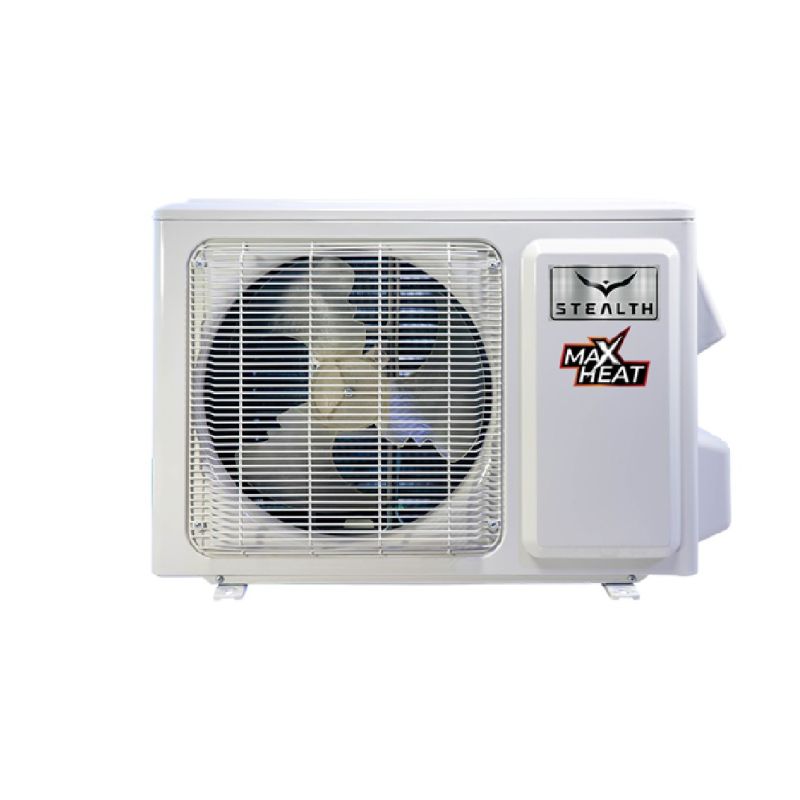

The Stealth Pinnacle Series Single Zone SC-09ZPL-HP230 heat pump condenser is Energy Star rated, with Hyper Heat performance down to an outside temperature of -22. The outdoor unit comes pre-charged with R410a, good for a 25-foot line set and the air handler. Pinnacle Series condensers have the highest efficiency ratings of any mini split, up to 38 SEER and 15 HSPF.
QUICK FACTS
- Energy Star Rated
- Max efficiency up to 38 SEER and 15 HSPF
- Heating temperature range from -22°F to 75°F
- Cooling temperature range from 0°F to 129°F
- 12 + 1 warranty with first-year unit replacement
- 9,000 BTU – 36,000 BTU models available
- Rugged construction with acrylic resin fin coating for durability
9,000 BTU, 38 SEER
A system this size is suitable for rooms up to 250 square feet depending on the climate in your area. The SEER rating of 38 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. Stealth Pinnacle means elite performance at affordable prices.
14 Year Warranty
The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-09ZPL-HP230 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Pinnacle Series model, resulting in powerful performance across a punishing range of conditions. The SC-09ZPL-HP230 provides continuous heat even with an outdoor temperature as low as -22 degrees Fahrenheit.
Installation and Maintenance
Every Stealth Pinnacle Series condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including insulated copper refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. Stealth Pinnacle Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers and wall mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850
Smart Home Compatibility
The Stealth Pinnacle Series has native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the Apple Store or Google Play. You can also sync your system with Google Home or Alexa. See instructions for set-up.
14 Year Warranty
The Stealth Pinnacle Series features a 14 warranty. The standard warranty is a 5-year parts and 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
Quiet Operations
The Stealth Pinnacle Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.
Modern Design
With its modern and sleek appearance, the Stealth Pinnacle Series effortlessly blends into any environment, making it the perfect addition to any décor. In addition, it has state-of-the-art features such as soft LED displays, timer function, sleep mode, and energy save mode. Also, included is the I-Follow remote control location temperature sensing.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Pinnacle provides continuous heat even with outside temperatures down to -22 degrees Fahrenheit.
Installation and Maintenance
Every Stealth series condenser comes pre-charged with refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Pinnacle Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.
