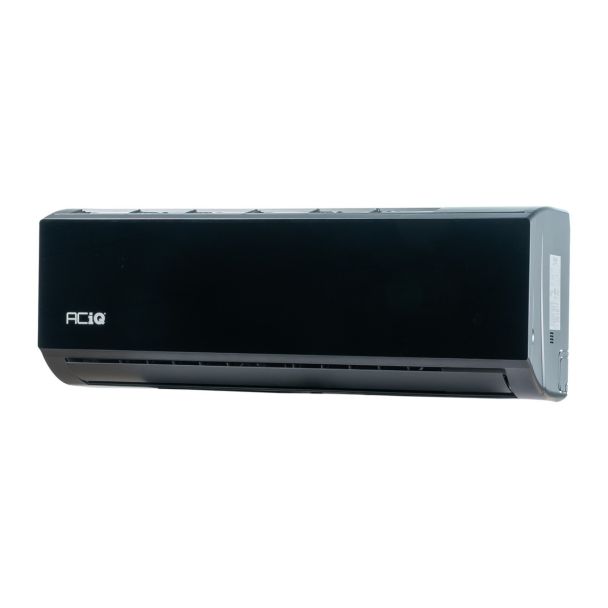

9,000 BTU ACiQ Essentials Single Zone Wall Mount Mini Split Air Handler - R454B | 115V

9,000 BTU ACiQ Essentials Single Zone Wall Mount Mini Split Air Handler - R454B | 115V
SAVE $131.12
9,000 BTU ACiQ Essentials Single Zone Wall Mount Mini Split Air Handler - R454B | 115V
By

ACiQ

In stock
Model

ACIQ-K09W-BL-HP115B

ID

197926

Be the first to review this product
3 Questions Answered
In Stock - 71 Ready to Ship
Was $374.62 Your Low Price Special Price $243.50
  • Intelligent LED Display
  • Heating & Cooling
  • Ductless Solution for a 250-400 sq ft Room/Zone
  • Sleek Wall Mounted Design
  • Wi-Fi Enabled, Google Assistant & Amazon Alexa Compatible
  • Single-Zone/Room Compatible

OVERVIEW

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACiQ-K09W-BL-HP115B single zone air handler can handle smaller spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

  • Able to cover up to a small room in ideal conditions
  • 9,000 BTU wall-mounted air handler with remote
  • Intelligent comfort at an affordable cost

Intelligent Heating and Cooling

The ACiQ-K09W-BL-HP115B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

ACiQ Wall Mount Mini Split

Wall Mounted

Traditional wall-mounted air handlers are the most popular ductless choice  due to low cost and ease of installation.  Wall mounted units are located high on an outside wall, with refrigerant lines and condensation drain hose exiting the back through a 3" wall penetration.  Return air is brought in through vents in the top of the unit, and cooled or heated air exits the lower front through a sweepable louver.  Wall mounted air handlers are WiFi compatible and can be controlled by the free NetHome Plus app or by voice assistants such as Alexa or Google Home.

Smartphone App

In addition to the handheld or wired remote that is already included, wall mounted units are WiFi ready, and can be controlled from anywhere with a free app on your tablet or smartphone.

ACiQ Smartphone App
ACiQ Wall Mount Mini Split

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

More Information
9,000 BTU ACiQ Essentials Single Zone Wall Mount Mini Split Air Handler - R454B | 115V
SKUACIQ-K09W-BL-HP115B
Weight (in lbs)26.500000
AHRI Certificate Number217606037
Brand/ManufacturerACiQ
ReplacesACiQ-K09W-HP115
HSPF2Region IV / V: 9.5 / 8.2
Cooling BTU9000 BTU
Heating BTU10000 BTU
Maximum CFMUp to 342 CFM
Decibel Level (dBA)As low as 28 Decibels
Energy StarYes
RefrigerantR454B
SEER1 (Efficiency)19
SEER2 (Efficiency)19
Liquid Line1/4"
Suction Line3/8"
Electrical115V, 1 Phase, 60Hz
PhaseSingle Phase
Tonnage0.75 Ton
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height11.50"
Width31.93"
Depth7.99"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
