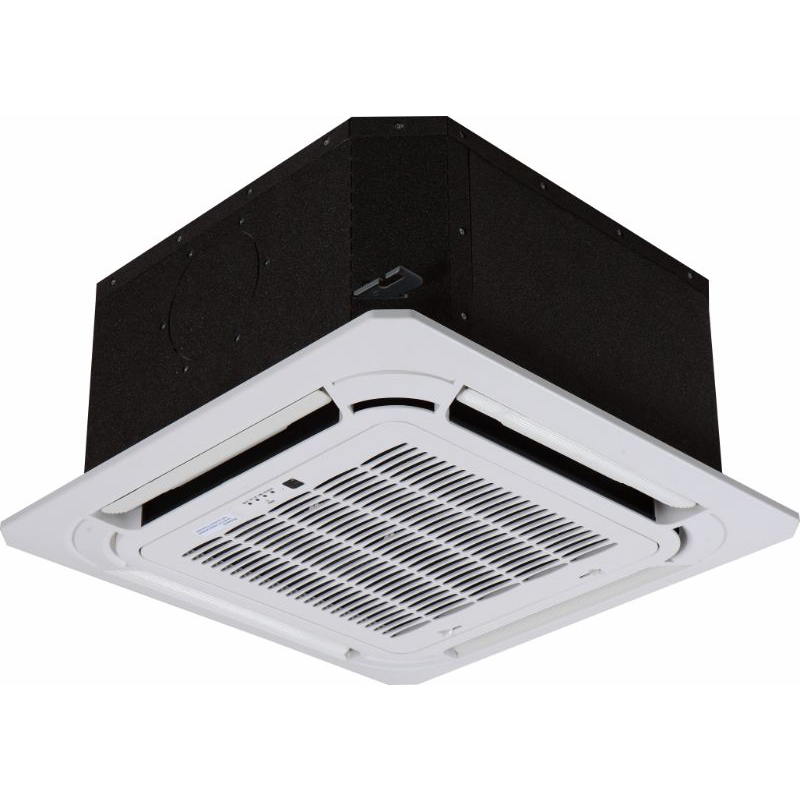

Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
9,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler | |
---|---|
SKU | ACIQ-09CC-HH-MB / ACIQ-CC-GRILLE |
Weight (in lbs) | 38.140000 |
Brand/Manufacturer | ACiQ |
Controller | Wireless Included |
Cooling BTU | 9,000 BTU |
Heating BTU | 9,000 BTU |
Maximum CFM | 352.94 CFM |
Decibel Level (dBA) | As low as 32.5 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
Capacity | Dehumidification Rate: 0.272 gal/hr |
SEER2 (Efficiency) | 22.3 |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Max Breaker Size | 15 |
Min. Breaker Size | 15 |
BTU/Tonnage | 9,000 BTU/0.75 Ton |
Mini-Split Type | Ceiling Cassette |
Zone Compatibility | Multi Zone |
Height | 10.25" |
Width | 22.5" |
Depth | 22.5" |
Warranty | 12 year compressor, 7 year parts with online registration |
