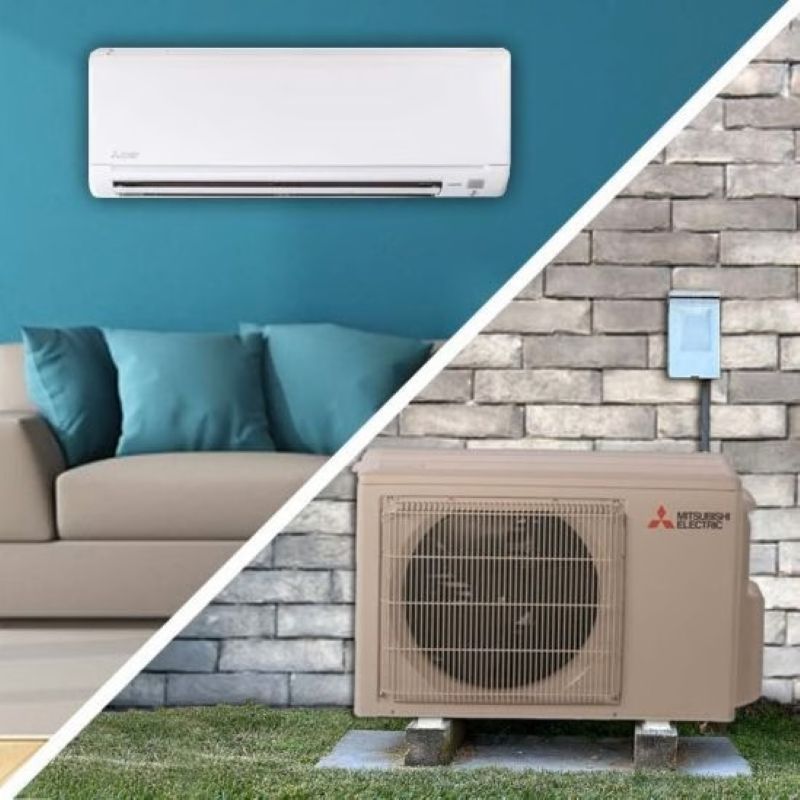

Mitsubishi 9,000 BTU JX-Series 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 115V
Required Fields *
By
Mitsubishi
In stock
Model
MUZ-JX09WL / MSZ-JX09WL
ID
199127
Rating:
100% of 100
In Stock - Ready to Ship
Was $2,100.94
Your Low Price $1,680.75
Free Shipping
- days
- Hours
- Minutes
- Seconds
People that viewed this product purchased this instead:
9,000 BTU ACiQ Standard 21.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R410A | 115V
Rating:
94%
Was $1,199.98
Special Price $639.99
9,000 BTU ACIQ Essentials 19 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V
Rating:
100%
Was $999.98
Special Price $649.99
9,000 BTU ACIQ Essentials 19 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V
Was $1,024.60
Special Price $665.99
9,000 BTU ACIQ Essentials 20 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $1,092.29
Special Price $699.99
9,000 BTU Mitsubishi JX-Series 20 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | MUZ-JX09WL / MSZ-JX09WL
The 9,000 BTU Mitsubishi JX-Series Mini Split Heat Pump System offers a perfect combination of energy efficiency and high performance, ideal for smaller spaces that require reliable heating and cooling. With a 20 SEER2 rating, this system provides exceptional energy savings without sacrificing comfort. It uses R454B refrigerant, which is an eco-friendly option that ensures minimal environmental impact while delivering reliable climate control. The JX-Series is designed to operate efficiently and quietly, making it an excellent choice for bedrooms, offices, or other quiet areas in the home.
Key Features:- Energy Efficiency: The 20 SEER2 rating ensures that the system consumes less energy while maintaining high performance, leading to reduced electricity bills.
- Eco-Friendly R454B Refrigerant: This system uses R454B refrigerant, a more sustainable and environmentally-friendly option compared to traditional refrigerants, offering effective cooling and heating without harming the environment.
- Inverter Technology: Equipped with inverter technology, the system adjusts compressor speed to match the heating or cooling needs of your space, ensuring precise comfort with minimal energy use.
- Quiet Operation: The Mitsubishi JX-Series operates at low noise levels, making it suitable for spaces where a quiet environment is important, such as bedrooms or offices.
- Compact and Modern Design: The sleek, modern design of the indoor unit complements any room's decor, providing a discreet and attractive solution for indoor climate control.
- Indoor Unit: MSZ-JX09WL Wall-Mounted Air Handler
- Outdoor Unit: MUZ-JX09WL Heat Pump Condenser
- Energy-efficient operation helps reduce power consumption, lowering utility bills while maintaining consistent indoor temperatures.
- Built-in filtration system helps to improve indoor air quality by capturing dust, allergens, and other pollutants, ensuring healthier living conditions.
- Ideal for smaller rooms, offices, and spaces where precise temperature control is necessary.
The Mitsubishi JX-Series 9,000 BTU Mini Split Heat Pump System delivers exceptional efficiency and performance, making it a perfect choice for individuals seeking a reliable and eco-friendly heating and cooling solution for smaller spaces.
Mitsubishi 9,000 BTU JX-Series Single Zone Mini Split Heat Pump Condenser – R454B | 115V
MUZ-JX09WL - Inverter Heat Pump Outdoor Unit
The MUZ-JX09WL is an advanced outdoor unit designed for high energy efficiency and reliable performance. Paired with the MSZ-JX09WL indoor unit, this system provides optimal heating and cooling for residential and light commercial spaces. The inverter-driven compressor ensures precise temperature control while maintaining energy savings.
Key Features:
- Blue Fin Coating: The heat exchanger is coated with Blue Fin technology to protect against corrosion from salt, sulfur, and other environmental contaminants, making it ideal for coastal and industrial areas.
- Inverter-Driven Compressor: The inverter-driven compressor adjusts to the required capacity, maintaining consistent temperature control and high energy efficiency.
- Energy Efficient: The unit has a SEER2 of 20, EER21 of 12.5, and HSPF2 of 10, providing excellent energy performance and helping to reduce operational costs.
- Quiet Operation: With sound pressure levels of 46 dB(A) in cooling mode and 50 dB(A) in heating mode, the MUZ-JX09WL operates quietly, making it perfect for residential spaces.
- Base Pan Heater (Optional): Optional base pan heater ensures reliable operation in freezing conditions, preventing ice buildup on the unit's base.
- Reverse Cycle Defrost: The unit utilizes a reverse cycle defrost method to maintain performance in colder climates by preventing frost accumulation on the heat exchanger.
Specifications:
- Cooling Capacity: Rated at 9,000 BTU/h with a maximum capacity of 11,000 BTU/h at 95°F outdoor temperature and a minimum of 3,600 BTU/h.
- Heating Capacity: Rated at 10,900 BTU/h at 47°F, with a maximum heating capacity of 13,000 BTU/h and a minimum of 4,000 BTU/h at 17°F outdoor temperature.
- Power Input: Rated at 720W in cooling mode and 900W in heating mode for high energy efficiency.
- Electrical Requirements: 115V, 1 phase, 60Hz with a recommended fuse size of 15A and wire size of AWG 14.
- Dimensions: The outdoor unit measures 31-1/2 x 11-1/4 x 21-5/8 inches and weighs 20 lbs (9 kg).
- Airflow Rate: 1,305 CFM in cooling mode and 1,196 CFM in heating mode.
- Refrigerant: Uses R454B refrigerant, pre-charged with 1 lb 6 oz for improved environmental performance.
- Sound Pressure Level: 46 dB(A) in cooling mode and 50 dB(A) in heating mode for quieter operation.
The MUZ-JX09WL outdoor unit offers superior energy performance and reliability, making it an ideal choice for residential and light commercial heating and cooling needs. With features like Blue Fin Coating, inverter-driven compressor, and quiet operation, it ensures consistent comfort and energy savings.
Mitsubishi 9,000 BTU JX-Series Single Zone Wall Mounted Mini Split Air Handler – R454B | 115V
MSZ-JX09WL Air Handler Overview
The MSZ-JX09WL is a high-performance indoor air handler designed to work with the MUZ-JX09WL outdoor unit. It provides reliable heating and cooling for small to medium residential or light commercial spaces. With quiet operation, advanced filtration, and a compact design, it ensures consistent comfort and improved indoor air quality.
Key Features
- Energy Efficiency: Advanced inverter technology adjusts the compressor speed in real time, reducing energy consumption while maintaining optimal comfort.
- Quiet Operation: Designed for low noise levels, making it ideal for bedrooms, offices, or any quiet environment.
- Compact Design: Slim and sleek profile allows installation in tight spaces, blending seamlessly with modern interiors.
- High-Performance Filtration: Captures dust, allergens, and airborne particles for cleaner, healthier indoor air.
- Durable and Reliable: Constructed with quality materials for long-term performance, even in humid or fluctuating temperature conditions.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 11,500 BTU/h
- Power Supply: 115V, 60Hz, 1-phase
- Dimensions: 30-5/8" (W) x 11-7/8" (H) x 21-5/8" (D)
- Weight: 19.8 lbs
Advanced Features and Benefits
- Inverter Technology: Optimizes compressor speed to match heating or cooling needs, enhancing efficiency and comfort.
- Hyper Heating: Maintains effective heating performance even at low outdoor temperatures.
- Quiet Mode: Reduces noise levels for a peaceful environment during operation.
- Remote Control: Adjust temperature, fan speed, and modes conveniently from anywhere in the room.
- Auto Restart: Automatically resumes previous settings after a power outage, ensuring uninterrupted comfort.
Installation and Maintenance
- Easy Installation: Compact design and versatile mounting options allow flexible setup in a variety of spaces.
- Low Maintenance: Simple upkeep with easy-to-clean, washable filters for consistent performance.
- Washable Filters: Maintain airflow and air quality while reducing the need for frequent replacements.
Applications
- Residential Use: Ideal for bedrooms, living rooms, and home offices in small to medium-sized homes or apartments.
- Light Commercial Use: Suitable for small offices, retail spaces, or other light commercial applications requiring energy-efficient climate control.
The MSZ-JX09WL air handler provides reliable, quiet, and energy-efficient heating and cooling. Its advanced features, low maintenance requirements, and compact design make it an excellent choice for year-round comfort in both residential and light commercial spaces.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Installation Kit for Condensers - Accessory Set
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
| Mitsubishi 9,000 BTU JX-Series Single Zone Mini Split Heat Pump Condenser – R454B | 115V | |
|---|---|
| SKU | MUZ-JX09WL |
| Weight | 20.000000 |
| Manufacturer | Mitsubishi |
| Replaces | MUZ-JP09WA-U1 |
| Cooling BTU | 11000 |
| Heating BTU | 13000 |
| Decibel Level (dBA) | 50 |
| Refrigerant | R454B |
| SEER2 | 20 |
| Compressor Type | Rotary |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 3/8 |
| Electrical | 115V 1 Phase 60 Hz |
| Max Breaker Size | 26 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Zone Compatibility | Single Zone |
| Height | 21.58" |
| Width | 31.5" |
| Depth | 11.14" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Mitsubishi 9,000 BTU JX-Series Single Zone Wall Mounted Mini Split Air Handler – R454B | 115V | |
| SKU | MSZ-JX09WL |
| Weight | 22.000000 |
| Manufacturer | Mitsubishi |
| Replaces | MSZ-JP09WA-U2 |
| HSPF2 | 10 |
| Decibel Level (dBA) | 22-43 |
| Refrigerant | R454B |
| Electrical | 115V 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 11-5/8" |
| Width | 31-7/16" |
| Depth | 9-1/8" |
| Warranty | 10 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight | 15.000000 |
| Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 18" x 38" x 3" | |
| SKU | EL1838-3 |
| Weight | 16.000000 |
| Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Condenser Risers - 4" x 18" - 2 Pack | |
| SKU | 87762 |
| Weight | 5.000000 |
| Manufacturer | Online Supply |
| E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
| SKU | 87762 / EL1838-3 |
| Weight | 25.000000 |
| Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet | |
| SKU | 201813 |
| Weight | 15.000000 |
| Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet | |
| SKU | 366395 |
| Weight | 35.000000 |
| Manufacturer | Online Supply |
| Length | 35' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet | |
| SKU | 366396 |
| Weight | 45.000000 |
| Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet | |
| SKU | 366390 |
| Weight | 25.000000 |
| Manufacturer | Online Supply |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet | |
| SKU | 216740 |
| Weight | 30.000000 |
| Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Mini Split Systems | |
| SKU | HW-600 |
| Weight | 9.200000 |
| Manufacturer | Online Supply |
| Length | 17" |
| Height | 20" |
| Width | 6" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Mitsubishi MHK2 Wireless Remote Controller | |
| SKU | MHK2 |
| Weight | 2.000000 |
| Manufacturer | Mitsubishi |
| Length | Cable:39-23/64" |
| Height | Thermostat: 4-5/64” | Receiver: 3-3/32” |
| Width | Thermostat: 4-5/64” | Receiver: 1-3/4” |
| Depth | Thermostat: 1-1/16" | Receiver: 39/64” |
| Warranty | 5 Years Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
