Mitsubishi 9,000 BTU WX-Series 18 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
MUZ-WX09NL / MSZ-WX09NL
ID
199129
In Stock - Ready to Ship
Was $1,708.13
Your Low Price $1,366.50
Free Shipping
People that viewed this product purchased this instead:
9,000 BTU ACiQ 21.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V
Was $1,399.98
Special Price $909.99
9,000 BTU ACiQ 21.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $1,430.75
Special Price $929.99
9,000 BTU ACiQ Standard 24.5 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 115V
Was $1,476.90
Special Price $959.99
9,000 BTU ACiQ Standard 24.6 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Was $1,507.67
Special Price $979.99

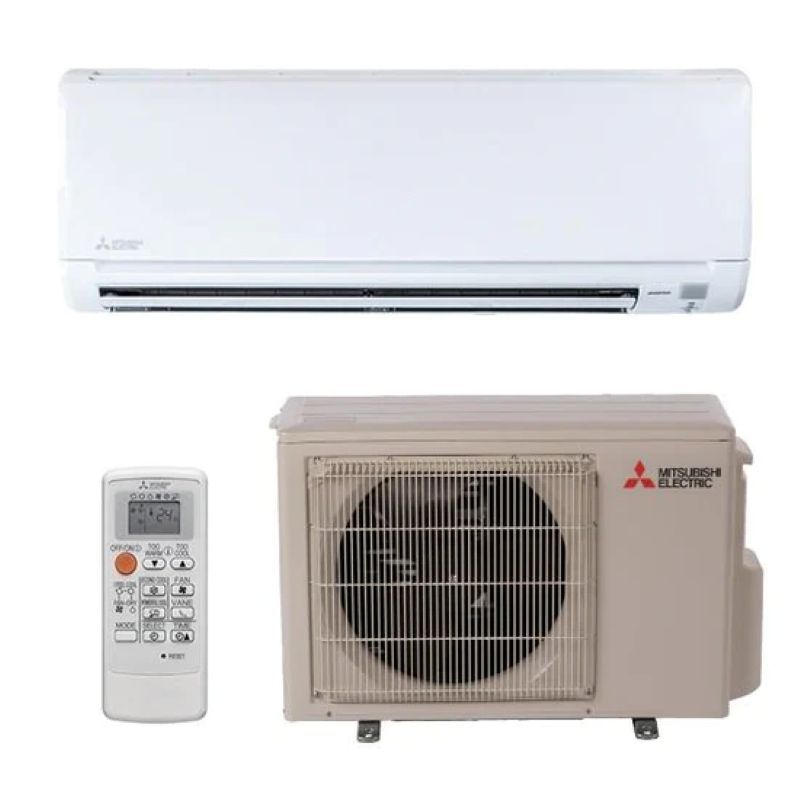

9,000 BTU Mitsubishi WX-Series 18 SEER2 Single Wall Mounted Mini Split Heat Pump System - R454B | MUZ-WX09NL / MSZ-WX09NL

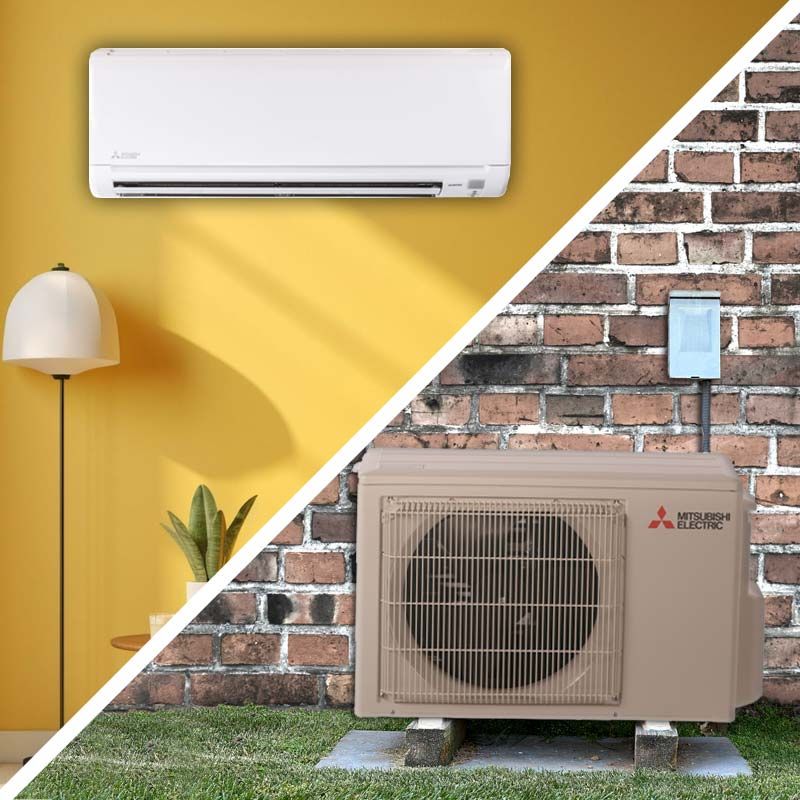

The 9,000 BTU Mitsubishi WX-Series Mini Split Heat Pump System delivers superior comfort and efficiency in a compact and stylish design. With a 18 SEER2 energy rating, this system ensures excellent energy savings while maintaining optimal temperature control throughout your space. The use of R454B refrigerant makes the system environmentally friendly, with a reduced carbon footprint compared to traditional refrigerants. Whether you're looking to heat or cool a smaller room, the Mitsubishi WX-Series system is the perfect solution for your home or office needs.
Key Features:- Energy Efficiency: With an 18 SEER2 rating, the WX-Series ensures maximum efficiency, reducing energy consumption and lowering your electricity bills.
- Eco-Friendly R454B Refrigerant: The system uses R454B refrigerant, which has a lower global warming potential compared to other refrigerants, making it an environmentally responsible choice.
- Inverter Technology: Equipped with an advanced inverter system, this heat pump adjusts the compressor speed automatically to maintain consistent temperature levels and reduce energy waste.
- Quiet Operation: The WX-Series operates quietly, ensuring that your indoor environment remains peaceful while providing optimal comfort.
- Compact and Stylish Design: The sleek and modern design of the indoor unit fits seamlessly into your room's decor, saving space while delivering efficient climate control.
- Indoor Unit: MSZ-WX09NL Wall-Mounted Air Handler
- Outdoor Unit: MUZ-WX09NL Heat Pump Condenser
- Efficient energy use with consistent temperature control, reducing electricity consumption without sacrificing comfort.
- Improves indoor air quality with built-in filters that trap dust and allergens, ensuring healthier air for you and your family.
- The compact design of the unit allows for installation in smaller spaces while providing effective heating and cooling.
The Mitsubishi WX-Series 9,000 BTU Mini Split Heat Pump System offers a perfect balance of energy efficiency, environmental sustainability, and comfort. It's the ideal choice for anyone looking to maintain a consistent and comfortable indoor climate in a compact package.
Mitsubishi 9,000 BTU WX-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V
MUZ-WX09NL - Inverter Heat Pump Outdoor Unit
The MUZ-WX09NL is a high-performance outdoor unit designed for efficient heating and cooling, paired with the MSZ-WX09NL indoor unit. This unit is engineered to provide year-round comfort with its advanced inverter technology, ensuring optimal energy efficiency and reliable operation.
Key Features:
- Blue Fin Coating: The heat exchanger features Blue Fin technology, providing enhanced protection against corrosion caused by salt, sulfur, and other contaminants, making it ideal for coastal and industrial environments.
- Inverter-Driven Compressor: The inverter-driven compressor adjusts capacity according to the required load, ensuring precise temperature control while maximizing energy savings.
- Quiet Operation: With sound pressure levels of 48 dB(A) in cooling mode and 50 dB(A) in heating mode, this unit operates quietly, making it suitable for residential and light commercial applications.
- Base Pan Heater (Optional): The optional base pan heater helps prevent ice buildup during colder weather, ensuring reliable operation in freezing conditions.
- Reverse Cycle Defrost: This feature ensures that frost does not accumulate on the heat exchanger, maintaining efficiency even in colder climates.
Specifications:
- Cooling Capacity: Rated at 9,000 BTU/h, with a maximum cooling capacity of 10,000 BTU/h at 95°F and a minimum of 3,800 BTU/h.
- Heating Capacity: Rated at 10,900 BTU/h at 47°F, with a maximum heating capacity of 11,800 BTU/h and a minimum of 4,500 BTU/h at 17°F outdoor temperature.
- Power Input: Rated at 820W in cooling mode and 900W in heating mode, providing energy-efficient performance.
- SEER2: 18, ensuring superior energy efficiency for reduced operational costs.
- HSPF2: 8.5, making it an excellent choice for energy-efficient heating in colder climates.
- Voltage: 208/230V, 1 phase, 60Hz with a recommended fuse size of 15A and wire size of AWG 14.
- Dimensions: The outdoor unit measures 31-1/2 x 11-1/4 x 21-5/8 inches and weighs 20 lbs (9 kg).
- Airflow Rate: 1,141 CFM in cooling and 1,196 CFM in heating, ensuring effective air distribution.
- Refrigerant: Uses R454B refrigerant, with a pre-charged amount of 1 lb 6 oz and an additional charge rate of 0.22 oz/ft of piping.
The MUZ-WX09NL outdoor unit delivers powerful, efficient performance with quiet operation and advanced features, making it an ideal solution for residential and commercial heating and cooling needs.
Mitsubishi 9,000 BTU WX-Series Single Zone Wall Mounted Mini Split Air Handler R454B | 230V
MSZ-WX09NL Air Handler Overview
The MSZ-WX09NL air handler delivers superior comfort, energy efficiency, and quiet operation. Paired with the MUZ-WX09NL outdoor unit, it provides reliable heating and cooling for residential and light commercial spaces. With advanced Inverter technology, Hyper Heating, and a sleek compact design, it ensures consistent comfort year-round while improving indoor air quality through high-performance filtration.
Key Features
- Energy Efficiency: Inverter technology adjusts compressor speed in real-time to match the exact cooling or heating demand, reducing energy consumption and electricity costs.
- Quiet Operation: Designed for minimal noise, making it perfect for bedrooms, offices, or other quiet spaces.
- Compact Design: Sleek, small footprint that integrates seamlessly into modern interiors, ideal for homes or small commercial spaces.
- High-Efficiency Filtration: Advanced filters capture dust, allergens, and other particles, improving indoor air quality.
- Durability: Built with corrosion-resistant materials for long-lasting performance.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,800 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions: 30-5/8" W x 11-7/8" H x 21-5/8" D
- Weight: 19.8 lbs
Advanced Features
- Inverter Technology: Adjusts speed to match heating or cooling needs, optimizing energy use.
- Hyper Heating: Maintains efficient heating even at low outdoor temperatures.
- Quiet Mode: Reduces operational noise for a peaceful environment.
- Auto Restart: Automatically resumes previous settings after power loss.
- Remote Control: Allows easy adjustment of temperature, fan speed, and modes from anywhere in the room.
Installation and Maintenance
- Flexible Installation: Compact and lightweight for versatile installation in homes or small businesses.
- Low Maintenance: Minimal upkeep required; regular filter cleaning ensures optimal performance.
- Washable Filters: Easy-to-clean filters reduce replacements and maintain air quality.
Applications
- Residential Use: Ideal for small to medium homes, bedrooms, living rooms, or home offices.
- Light Commercial Use: Suitable for small offices, retail spaces, and cafes requiring reliable, energy-efficient climate control.
Overall, the MSZ-WX09NL air handler provides efficient, quiet, and reliable heating and cooling. Its Inverter technology, Hyper Heating, compact design, and advanced filtration make it an excellent choice for residential and light commercial applications, offering optimal comfort with minimal maintenance.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Installation Kit for Condensers - Accessory Set
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
