9,000 BTU MRCOOL Advantage 21.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V

9,000 BTU MRCOOL Advantage 5th Gen 21.2 SEER2 Single Zone Mini Split - R454B | 230V - A-09-HP-230D-O
9,000 BTU MRCOOL Advantage 5th Gen 21.2 SEER2 Single Zone Mini Split - R454B | 230V - A-09-HP-230D-O 9,000 BTU MRCOOL Advantage 5th Gen 21.2 SEER2 Single Zone Mini Split - R454B | 230V - A-09-HP-230D-O A-09-HP-C-230D-O A-09-HP-C-230D-O A-09-HP-WMAH-230D-O A-09-HP-WMAH-230D-O A-09-HP-WMAH-230D-O MSK001 201813 366390 216740 366395 366396 HW-600
SAVE $77.00

Required Fields *

By

MRCOOL

In stock

Model

A-09-HP-230D-O

ID

198420

Be the first to review this product
In Stock - Ready to Ship
Was $843.00
Your Low Price $766.00

Free Shipping
  • Heating & Cooling
  • Ductless Solution
  • Perfect for a 250-400sqft Rooms
  • Wi-Fi & Smartphone App Capabilities
    • Customize 9,000 BTU MRCOOL Advantage 21.2 SEER2 Single Zone Wall Mount Mini Split Heat Pump System – R454B | 230V
    9,000 BTU MRCOOL Single Zone Condenser - R454B
    9,000 BTU MRCOOL Single Zone Condenser - R454B
    9,000 BTU MRCOOL Single Zone Condenser - R454B   + $517.00
    9,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    9,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B
    9,000 BTU MRCOOL Advantage Wall Mount Air Handler – R454B   + $249.00
    15 feet - 1/4" and 3/8" Line Set
    Wall Mount Bracket for Mini Split Systems
    Installation Kit for Condensers
    9,000 BTU MRCOOL Advantage 5th Gen 21.2 SEER2 Single Zone Mini Split - R454B | 230V - A-09-HP-230D-O

    $766.00

    Please note this unit is meant to be installed by a licensed professional. Want a to Do-It-Yourself unit? Check it out here!

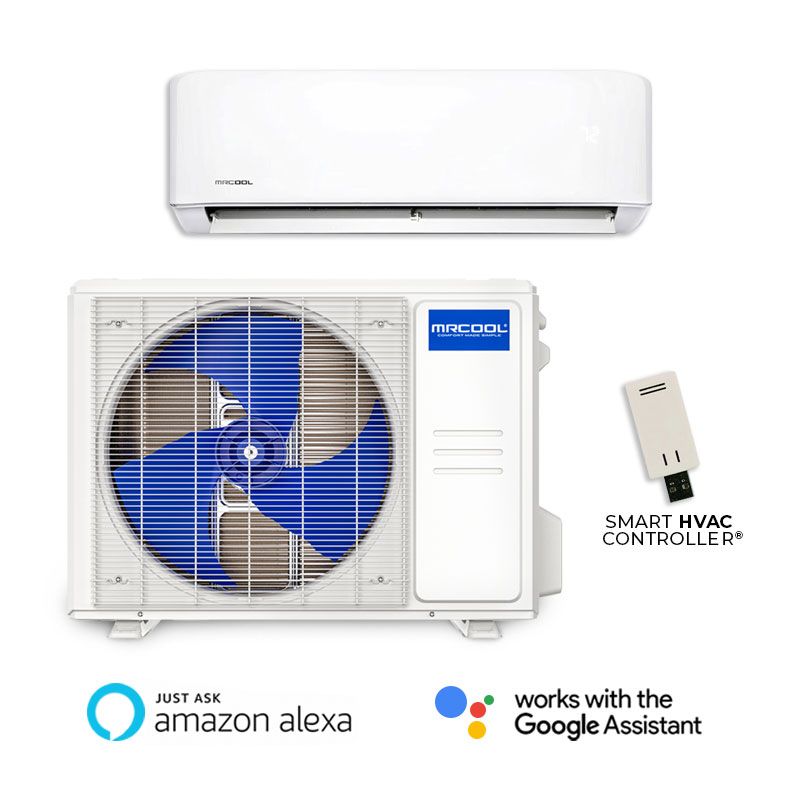

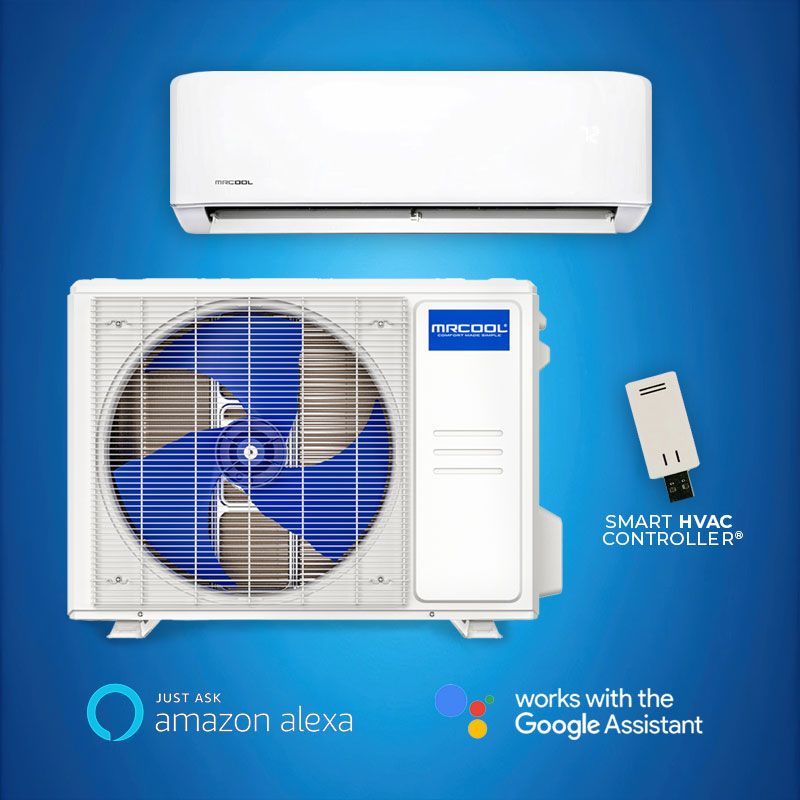

    MRCOOL Advantage 5th Gen 9,000 BTU Mini Split System (A‑09‑HP‑230D‑O)

    The MRCOOL Advantage 5th Gen single-zone mini split delivers efficient heating and cooling with a 9,000 BTU capacity and a high 21.2 SEER2 / 9.1 HSPF2‑4 rating, ideal for rooms up to 400 sq ft. It uses eco-friendly R‑454B refrigerant and features inverter-driven dual units—a quiet indoor air handler and a corrosion-resistant outdoor condenser with Gold Fin coating and built-in Wi‑Fi Smart HVAC Controller .

    Key Features

    • High Efficiency: 21.2 SEER2, 12.6 EER2, 9.1 HSPF2‑4 for significant energy savings
    • Low‑GWP Refrigerant: R‑454B delivers ~80% lower global warming potential
    • Smart Controls: Wi‑Fi Smart HVAC Controller compatible with MRCOOL app, Alexa, and Google Assistant
    • Quiet Performance: Indoor sound levels as low as ~18.5 dBA; outdoor ~53.5 dBA
    • Durable Design: Gold Fin condenser coating resists corrosion
    • Low‑Ambient Cooling: Operates down to 5 F for year-round comfort
    • Professional Installation: 230 V requires licensed HVAC installer
    • Reliable Warranty: 2‑year parts, 1‑year compressor, plus optional extended lifetime warranty

    Benefits & Applications

    • Zone Control: Ideal for single-room or addition applications like bedrooms, offices, or guest suites.
    • Energy Savings: High SEER2/HSPF2 ratings reduce utility bills.
    • Quiet Comfort: Low noise levels support peaceful indoor environments.
    • Smart Home Integration: Remote scheduling and voice control offer convenience and flexibility.
    • Eco-Conscious Choice: R‑454B refrigerant meets current environmental and regulatory standards.

    Package Includes

    • 9,000 BTU inverter-driven outdoor condenser
    • 230 V wall-mounted air handler with Wi‑Fi module
    • Wireless Remote Control, Installation and User Manuals

    This MRCOOL Advantage 5th Gen mini split system offers high-efficiency performance, smart connectivity, and quiet operation—making it a solid choice for comfortable and eco-friendly climate control in single-zone spaces.

    More Information
    9,000 BTU MRCOOL Advantage Single Zone Mini Split Heat Pump Condenser - R454B | 230V
    SKUA-09-HP-C-230D-O
    Weight54.230000
    ManufacturerMRCOOL
    HSPF29.1
    Cooling BTU9000
    Heating BTU10000
    Decibel Level (dBA)53.5
    RefrigerantR454B
    SEER221.2
    Compressor TypeRotary
    Liquid Line1/4
    Suction Line3/8
    Liquid Valve Size 1/4
    Suction Valve Size 3/8
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size15
    Min. Breaker Size12
    BTU/Tonnage9,000 BTU/0.75 Ton
    Zone CompatibilitySingle Zone
    Height21.85"
    Width30.12"
    Depth11.93"
    Warranty4 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    9,000 BTU MRCOOL Advantage Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
    SKUA-09-HP-WMAH-230D-O
    Weight16.980000
    ManufacturerMRCOOL
    Cooling BTU9000
    Heating BTU10000
    Maximum CFM312
    Decibel Level (dBA)31.5
    RefrigerantR454B
    SEER221.2
    Compressor TypeRotary
    Liquid Line1/4
    Suction Line3/8
    Liquid Valve Size 1/4
    Suction Valve Size 3/8
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size15
    Min. Breaker Size3
    BTU/Tonnage9,000 BTU/0.75 Ton
    Zone CompatibilitySingle Zone
    Height11.42"
    Width28.43"
    Depth7.36"
    Warranty2 Years Base Compressor Warranty, 1 Year Base Parts Warranty, Extended Limited Lifetime Registered Warranty
    Resources You will need Adobe Acrobat Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING

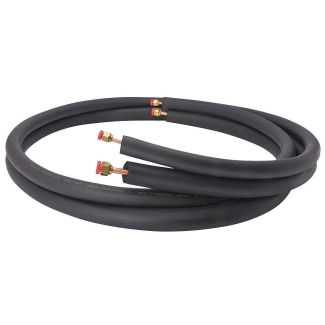

    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
    SKU201813
    Weight15.000000
    ManufacturerOnline Supply
    Length15'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
    SKU366395
    Weight35.000000
    ManufacturerOnline Supply
    Length35'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
    SKU366396
    Weight45.000000
    ManufacturerOnline Supply
    Length50'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
    SKU366390
    Weight25.000000
    ManufacturerOnline Supply
    Length25'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
    SKU216740
    Weight30.000000
    ManufacturerOnline Supply
    Length30'
    Height1/2"
    Width1/2"
    Safety InformationPROPOSITION 65 WARNING
    Wall Mount Bracket for Mini Split Systems
    SKUHW-600
    Weight9.200000
    ManufacturerOnline Supply
    Length17"
    Height20"
    Width6"
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Installation Kit for Condensers - Accessory Set
    SKUMSK001
    Weight15.000000
    ManufacturerOnline Supply
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
