Enhanced Comfort

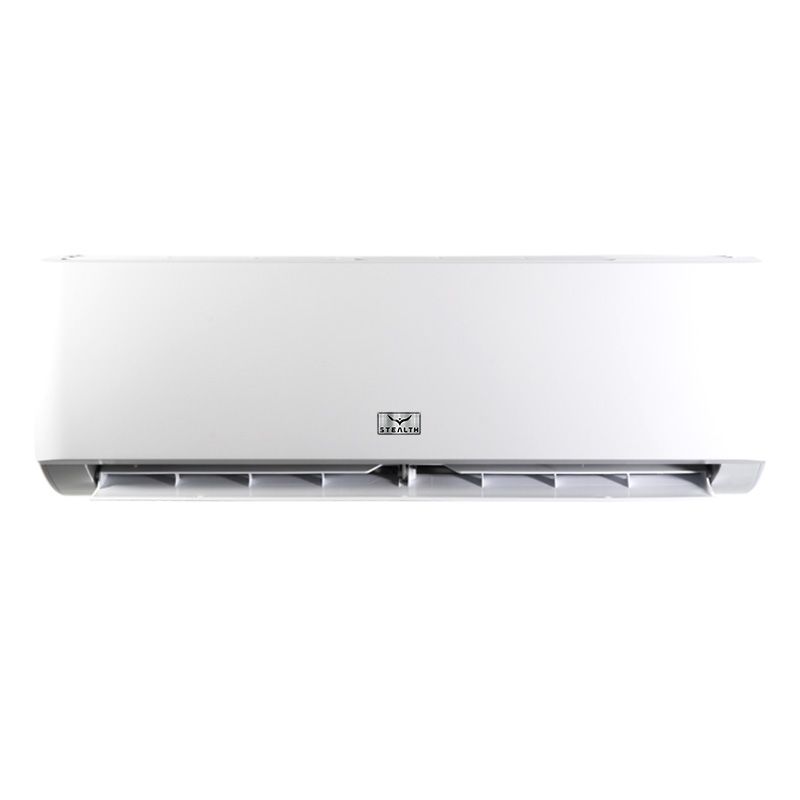

The Stealth Pinnacle Series wall mounted air handlers feature sleek, unobtrusive design to seamlessly blend with your décor. Temperature is constantly monitored to maintain your comfort as weather conditions change throughout the day and night.
Quick Facts
Information at a Glance
Stealth Pinnacle Series air handlers have a soft LED display on the front cover showing temperature, as well as mode changes and diagnostic alert codes.
Wi-Fi Options
The Stealth Pinnacle Series has native Wi-Fi capability. To control via smartphone or tablet, simply download the Gree + app from the app store or Google Play. See instructions for setting it up with Google Home or Alexa.
Please note: This air handler must be connected to an outdoor condenser in order to function.
| 9,000 BTU Stealth Pinnacle Multi Zone Wall Mount Air Handler | |
|---|---|
| SKU | SC-09W-HP230 |
| Weight (in lbs) | 28.000000 |
| Brand/Manufacturer | Stealth |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 11,000 BTU |
| Maximum CFM | 377 |
| Decibel Level (dBA) | 32 |
| Square Footage | 300 sq. ft. |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER1 (Efficiency) | 23-24 |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208 / 230 V. 1 Phase 60 Hz |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Zone Compatibility | Multi Zone |
| Height | 11.4" |
| Width | 33.4" |
| Depth | 8.2" |
| Warranty | 14 year compressor, 5 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
