Mitsubishi 9,000 BTU EX-Series 21.7 SEER2 Single Wall Mounted Mini Split Heat Pump System – R454B | 230V

SUZ-AA09NL - 9,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA09NL is a reliable and high-performance 9,000 BTU outdoor heat pump designed for use with compatible indoor units. It provides both cooling and heating capabilities, ensuring optimal comfort in various environments. This unit incorporates advanced technology for quiet operation, high energy efficiency, and long-lasting durability.

Outdoor Unit Features (SUZ-AA09NL):

• Blue Fin Coating: Protects the outdoor unit's heat exchanger from corrosion caused by salt, sulfur, and airborne contaminants, making it ideal for coastal or industrial areas.
• Hot-Start Technology: Prevents cold air blasts by ensuring the fan only operates once the heat exchanger is warm.
• INVERTER-Driven Compressor: Provides precise capacity control, ensuring the unit only uses the energy necessary to maintain the set temperature, improving overall energy efficiency.
• Pulse Amplitude Modulation Technology: Optimizes compressor performance, reducing energy consumption and improving system efficiency.
• Quiet Operation: Designed for low noise levels, the outdoor unit operates as quietly as a typical conversation.
• High-Performance Grooved Piping: Maximizes heat exchange efficiency for better cooling and heating performance.
• Joint Lap DC Motor: Enhances reliability and efficiency, contributing to the overall long-term performance of the unit.
• Single-Zone Capability: Connects one outdoor unit to one indoor unit, allowing for precise control of comfort in a single space.

Specifications:

• Cooling Capacity: 9,000 BTU/h rated capacity, with a minimum capacity of 2,000 BTU/h.
• Heating Capacity: 12,000 BTU/h at 47°F, down to 5,200 BTU/h at -4°F for reliable heating in cold conditions.
• Energy Efficiency: SEER2 rating of 21.6 and an HSPF2 rating of 12.3, ensuring high energy efficiency for both cooling and heating operations.
• Sound Levels: Operating sound pressure levels are 48 dB(A) during cooling and 50 dB(A) during heating, offering quiet performance.
• Refrigerant: Utilizes R410A refrigerant, providing better heat transfer efficiency and lower environmental impact compared to older refrigerants.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches (W x D x H), with a weight of 77 lbs.

The SUZ-AA09NL is built for durability and efficiency, offering superior comfort for both residential and commercial applications. Its advanced features, such as the hot-start technology and energy-efficient compressor, ensure that it delivers consistent performance year-round.

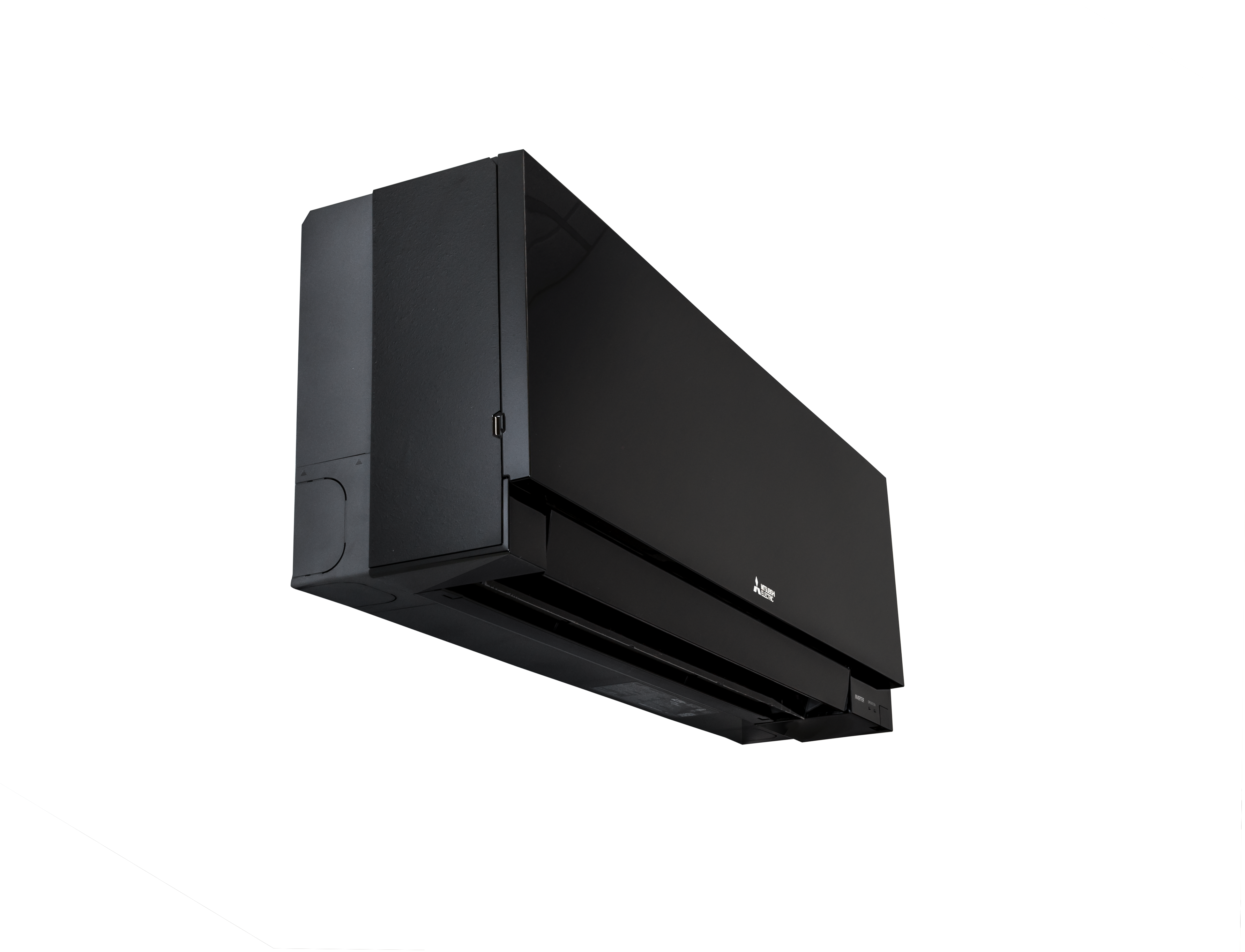

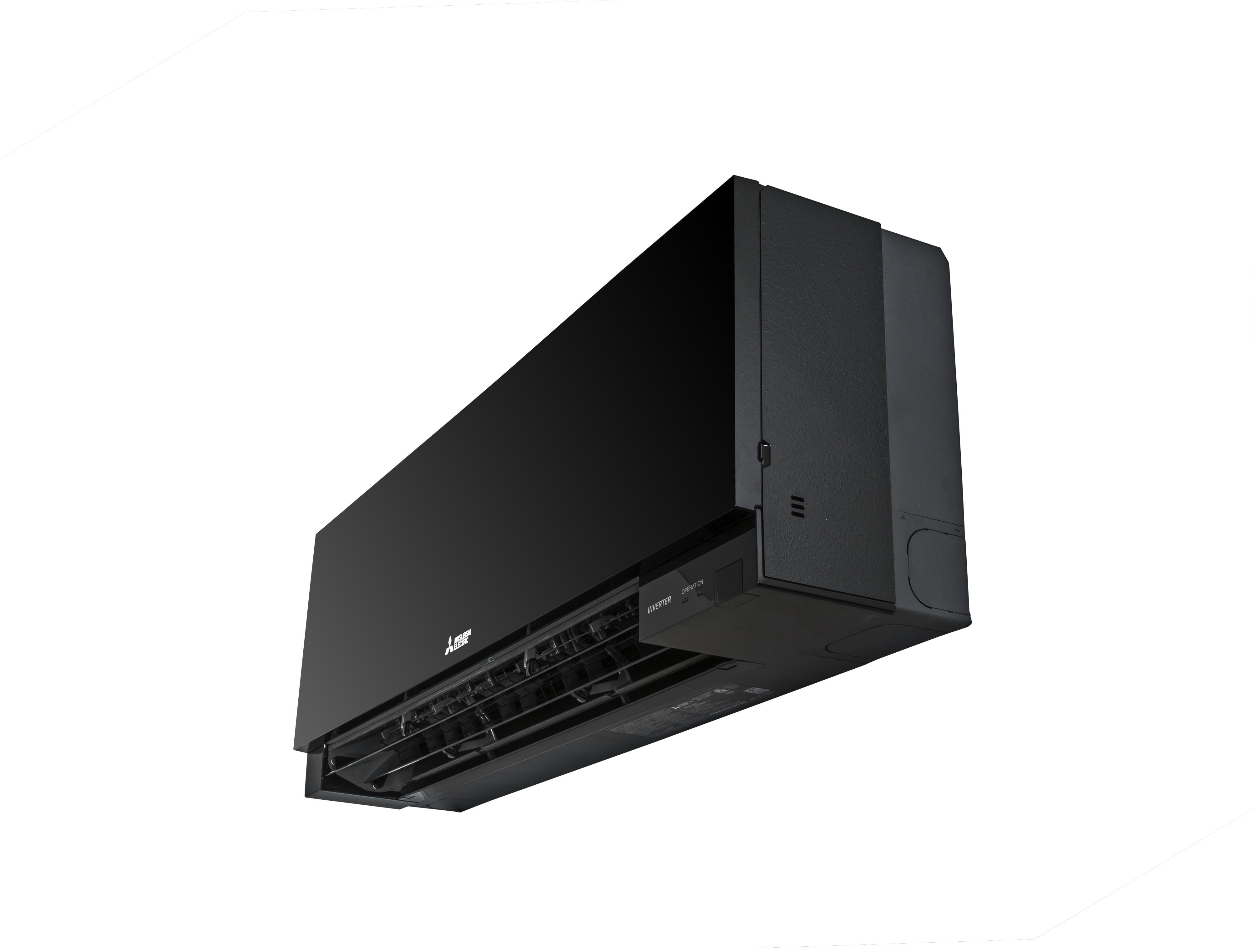

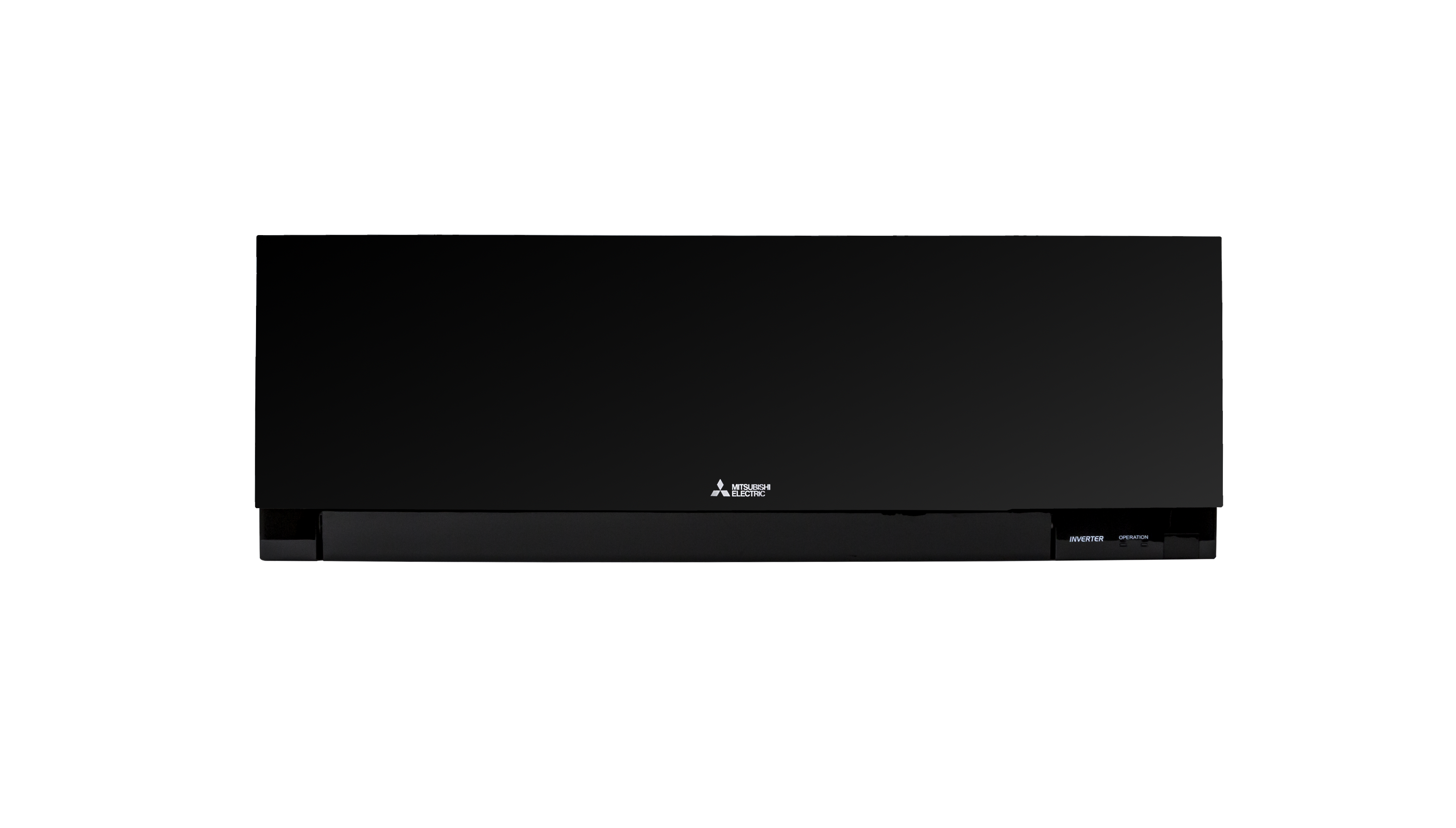

Mitsubishi Electric MSZ-EX09NLB Wall-Mounted Indoor Unit

The Mitsubishi Electric MSZ-EX09NLB is a 9,000 BTU/h wall-mounted indoor unit designed to deliver efficient and reliable cooling and heating for residential and commercial spaces. Its sleek, modern design complements various interior styles, while advanced features enhance comfort and energy efficiency.

Key Features

• Dual Barrier Coating: This patented coating reduces the accumulation of contaminants such as dust, fibers, smoke, and oil on internal surfaces, ensuring optimal airflow and simplifying maintenance.
• Econo Cool Mode: Automatically adjusts airflow based on the heat exchanger's temperature, slightly increasing the set temperature to conserve energy while maintaining comfort.
• Multiple Control Options: Equipped with a back-lit screen hand-held remote controller and compatible with comfort apps, third-party interfaces, and both wired and wireless controllers for versatile operation.
• Quiet Operation: Engineered for whisper-quiet performance, with sound pressure levels ranging from 21 dB(A) at the lowest fan speed to 42 dB(A) at the highest in cooling mode.
• Advanced Filtration: Incorporates a hybrid catechin deodorizing filter and an enzyme-based anti-allergy filter to effectively reduce airborne contaminants and improve indoor air quality.
• Compact Design: With dimensions of 34-13/16" (W) x 7-11/16" (D) x 11-3/4" (H) and a weight of 26 lbs, its slim profile allows for unobtrusive wall mounting.

Performance Specifications

• Cooling Capacity: Rated at 9,000 BTU/h, with a maximum capacity of 9,000 BTU/h and a minimum of 2,300 BTU/h.
• Heating Capacity: Rated at 12,000 BTU/h, with a maximum capacity of 13,000 BTU/h and a minimum of 5,300 BTU/h.
• Moisture Removal: Capable of removing up to 0.2 pints per hour, aiding in effective humidity control.
• Airflow Rates (Cooling, Dry): Offers multiple fan speed settings with airflow rates of 143, 164, 228, 305, and 391 CFM to cater to diverse comfort preferences.
• Energy Efficiency Ratings: Achieves a Seasonal Energy Efficiency Ratio (SEER2) of 21.7 and an Energy Efficiency Ratio (EER2) of 12.8, reflecting high energy efficiency.
• ENERGY STAR® Certification: Yes, signifying compliance with energy efficiency guidelines set by the U.S. Environmental Protection Agency.

Electrical Specifications

• Power Supply: Operates on a voltage range of 208/230 V AC, single-phase, 60 Hz.
• Guaranteed Voltage Range: Functional within a voltage range of 198 - 253 V AC.
• Fan Motor Output: 30 W, contributing to the unit's energy-efficient performance.

The Mitsubishi Electric MSZ-EX09NLB indoor unit combines advanced technology with user-friendly features to provide a comfortable and energy-efficient environment. Its innovative design and high-performance capabilities make it an excellent choice for those seeking reliable climate control solutions.

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

• Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
• Backlit display
• Can sense temperature at indoor unit (default) or at controller
• Fahrenheit °F / Celsius °C
• No batteries required
• Single zone compatible
• Multi zone compatible
• English, French, Spanish

Compatible Indoor Units:

Wall Mounted

• GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
• FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
• EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
• JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
• WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
• D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
• P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

• KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
• P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

• KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
• P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

• MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

• KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
• P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

• P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends
