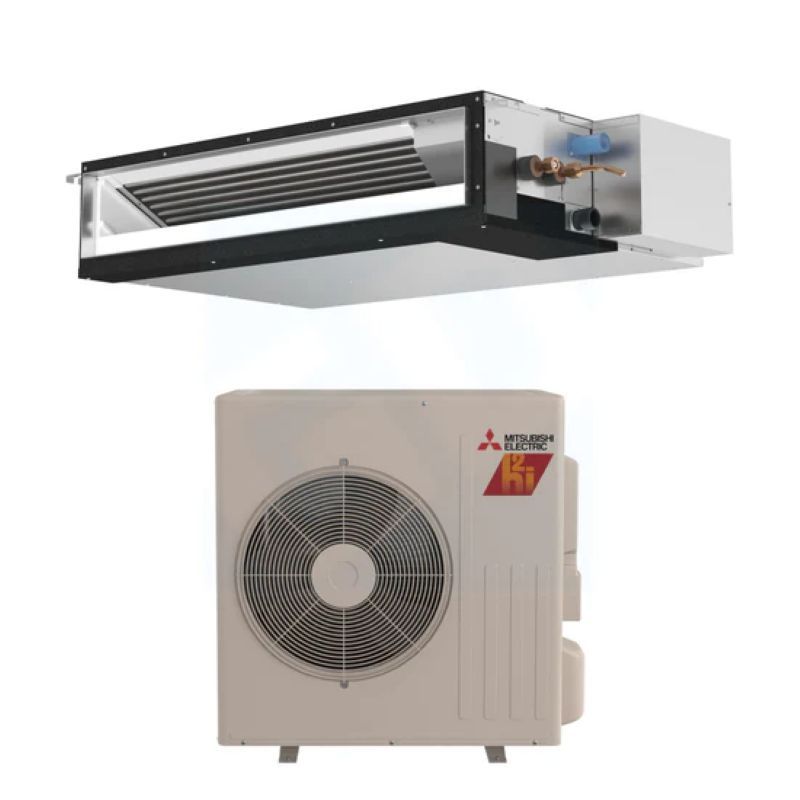

Mitsubishi 9,000 BTU SEZ-AD-Series 15.8 SEER2 Single Zone Horizontal-Ducted Mini Split Hyper Heat Pump System – R454B | 230V
Required Fields *
By
Mitsubishi
In stock
Model
SUZ-AA09NLHZ / PEAD-AA09NL
ID
199146
Was $4,429.69
Your Low Price $3,543.75
Free Shipping
In Stock - Ready to Ship
People that viewed this product purchased this instead:
9,000 BTU 25.5 SEER Stealth Comfort Emerald Single Zone Concealed Duct Mini Split System
Was $1,488.99
Special Price $802.54
9,000 BTU 23 SEER Stealth Comfort Emerald Single Zone Concealed Duct Mobile Home Mini Split System
Was $1,488.99
Special Price $802.54
9,000 BTU ACiQ Extreme 20.5 SEER2 Single Zone Concealed Duct Mini Split System - R454B | 230V
Was $3,076.91
Special Price $1,999.99
Mitsubishi 9,000 BTU 21.6 SEER2 Single Zone Concealed Duct Mini Split Heat Pump System - R454B | 208/230V
Was $3,393.76
Special Price $2,715.00
9,000 BTU Mitsubishi P-Series 15.8 SEER2 Single Horizontal-Ducted Mini Split Hyper Heat Pump System - R454B | SUZ-AA09NLHZ / PEAD-AA09NL
The 9,000 BTU Mitsubishi P-Series Horizontal-Ducted Mini Split Hyper Heat Pump System with SUZ-AA09NLHZ and PEAD-AA09NL is designed for versatile, concealed comfort with high efficiency and quiet performance. Operating at up to 15.8 SEER2, this system is ideal for both residential and light commercial applications that require a streamlined appearance and effective temperature control.
Key Features:- High Efficiency: Delivers 15.8 SEER2 energy performance for year-round comfort and reduced operating costs.
- Environmentally Friendly: Uses R454B refrigerant with a low global warming potential, aligning with modern environmental standards.
- Discreet Comfort: The horizontal-ducted indoor unit is designed for concealed installations in ceiling spaces or soffits, offering a clean aesthetic.
- Inverter-Driven Compressor: Adapts to varying load conditions to ensure precise temperature control and quieter operation.
- Enhanced Heating Performance: The H2i (Hyper-Heating INVERTER®) outdoor unit ensures reliable heating in colder climates.
- Indoor Unit: PEAD-AA09NL Horizontal-Ducted Air Handler
- Outdoor Unit: SUZ-AA09NLHZ Heat Pump Condenser
- Ideal for zones where wall-mounted units are not preferred or possible.
- Compact design makes it easy to install in tight spaces such as attic crawlspaces or dropped ceilings.
- Backed by Mitsubishi Electric's reliable performance and durability.
With its blend of hidden installation, efficient performance, and eco-conscious refrigerant, the Mitsubishi 9,000 BTU P-Series H2i Horizontal-Ducted Mini Split System is a powerful and flexible solution for quiet, year-round indoor comfort.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately. The MHK2 Thermostat can be used in place of a remote controller.

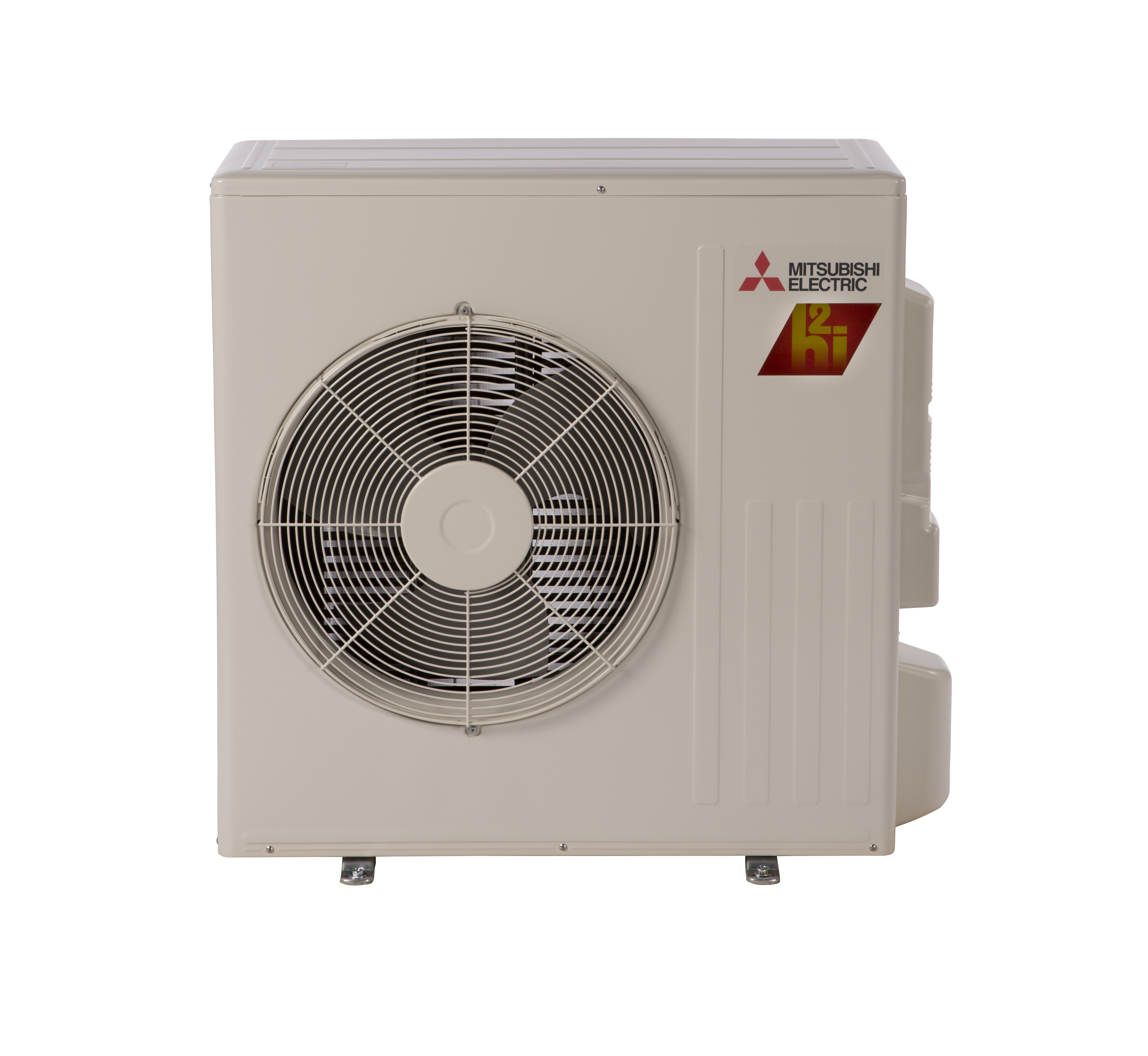

9,000 BTU Mitsubishi Single Zone Condenser - R454B
SUZ-AA09NLHZ - 9,000 BTU/H Hyper Heat Pump Outdoor Unit
The SUZ-AA09NLHZ is a high-efficiency 9,000 BTU heat pump designed for both cooling and heating, ideal for a variety of residential and commercial applications. Its advanced features ensure reliable performance even in low temperatures, providing year-round comfort.
Outdoor Unit Features (SUZ-AA09NLHZ):
- Blue Fin Coating: An anti-corrosion treatment applied to the aluminum fins of the heat exchanger to protect against corrosion from salt, sulfur, and other airborne contaminants, especially in coastal areas.
- Built-in Base Pan Heater: Prevents ice buildup, ensuring consistent operation during colder months.
- Hot-Start Technology: Ensures the fan only activates once the heat exchanger has warmed up, preventing cold air blasts during start-up.
- Hyper-Heating INVERTER® (H2i®): Maintains 100% heating capacity down to 5°F and ensures guaranteed heating down to -13°F.
- Joint Lap DC Motor: Provides high efficiency and reliability for long-term operation.
- Pulse Amplitude Modulation Technology: Optimizes compressor performance by adjusting power supply to improve energy efficiency and reduce consumption.
- Quiet Operation: Designed for low noise, with the outdoor unit as quiet as a typical conversation and most indoor units operating at whisper-quiet levels.
Specifications:
- Cooling Capacity: Rated at 9,000 BTU/h, with a minimum capacity of 5,000 BTU/h.
- Heating Capacity: 12,000 BTU/h at 47°F, with a reduced capacity of 7,300 BTU/h at -13°F.
- SEER2 Rating: 17, ensuring excellent energy efficiency.
- Maximum Power Input: 1,200 W for heating and 720 W for cooling.
- Sound Levels: As low as 54 dB(A) during cooling and 55 dB(A) during heating, providing quiet operation.
- Refrigerant: R410A for efficient heat transfer and lower environmental impact.
- Unit Dimensions: 33-1/16 x 13 x 34-5/8 inches with a weight of 96 lbs.
The SUZ-AA09NLHZ is a reliable and efficient outdoor unit designed for maximum comfort in both cooling and heating applications, providing consistent performance even in extreme weather conditions.
9,000 BTU Mitsubishi P-Series Concealed Duct Mini Split Air Handler - R454B
PEAD-AA09NL Air Handler Overview
The PEAD-AA09NL air handler is a high-efficiency, compact unit designed to deliver outstanding comfort and performance in both residential and light commercial applications. When paired with the SUZ-AA09NL outdoor unit, it offers seamless, energy-efficient cooling and heating capabilities. This system is engineered to meet the demands of modern living and business spaces while ensuring quiet, reliable operation and easy installation.
Key Features
- Inverter Technology: The PEAD-AA09NL air handler incorporates advanced inverter technology, which adjusts compressor speed to match the cooling and heating load, ensuring energy-efficient performance and maintaining a stable indoor environment.
- Quiet Operation: The PEAD-AA09NL operates quietly, making it an excellent choice for noise-sensitive environments like bedrooms, offices, or living rooms. This unit ensures minimal sound during operation, allowing occupants to enjoy comfort without distractions.
- Compact and Lightweight Design: The PEAD-AA09NL is designed with a compact form factor that makes it easy to install in a variety of spaces. Its lightweight construction ensures that it fits into tight spaces, such as ceilings or compact mechanical rooms, without compromising on performance.
- Energy Efficient: The inverter technology of the PEAD-AA09NL helps minimize energy consumption by continuously adjusting to the cooling or heating demand. This results in a reduction in energy bills and an environmentally friendly solution.
- Flexible Installation Options: The unit offers flexible installation options, including both horizontal and vertical orientations, which provide greater versatility when designing systems for unique spaces.
Specifications
- Cooling Capacity: 9,000 BTU/h
- Heating Capacity: 10,000 BTU/h
- Power Supply: 208-230V, 60Hz, 1-phase
- Dimensions (W x H x D): 28-3/8" x 10-1/8" x 23-3/4â€Â
- Weight: 24.2 lbs
- Refrigerant: R410A
- Airflow: 540 CFM
Benefits
- Energy Efficiency: The PEAD-AA09NL, with its inverter-driven compressor, automatically adjusts to the necessary load, resulting in substantial energy savings and a reduction in utility costs over time.
- Quiet Comfort: Designed for residential and light commercial applications, the air handler operates quietly, providing a comfortable indoor environment with minimal disruption, making it suitable for bedrooms, offices, or commercial spaces where noise is a concern.
- Compact and Versatile: The PEAD-AA09NL features a compact design, which makes it easy to install in both residential and commercial spaces, even in tight or restricted areas. Its flexibility allows for various installation configurations.
- Durable and Reliable: Built with high-quality materials, the PEAD-AA09NL is designed for long-lasting durability. Its robust construction ensures reliability, even in demanding environments, with minimal need for maintenance.
- Comfort and Performance: With advanced temperature control and consistent airflow, the PEAD-AA09NL provides superior comfort, ensuring that your indoor space remains at the desired temperature year-round.
Maintenance
- Low Maintenance Design: The PEAD-AA09NL is designed to minimize maintenance needs. Regular cleaning of the filters and periodic checks of the system will help maintain its peak performance.
- Easy Serviceability: The air handler's design ensures easy access to key components, making maintenance and service tasks more efficient. This simplifies any necessary repairs and minimizes system downtime.
- Washable Filters: The air handler comes with washable filters, which help reduce ongoing costs for filter replacements. Regularly cleaning the filters ensures that the system continues to operate efficiently and effectively.
Applications
- Residential Use: The PEAD-AA09NL is perfect for residential applications where space is limited, and quiet, efficient climate control is needed. Its compact design allows it to be installed in ceilings, compact mechanical rooms, or other confined spaces.
- Light Commercial Use: This unit is also suitable for light commercial applications, such as offices, retail stores, and restaurants. It provides effective temperature control while ensuring a quiet and comfortable environment for employees and customers alike.
In summary, the PEAD-AA09NL air handler offers a combination of advanced technology, quiet operation, and energy efficiency, making it a superior choice for both residential and light commercial spaces. With its compact design, flexibility in installation, and durable construction, this unit is ideal for providing reliable and consistent comfort year-round. Whether you're looking to optimize energy use in a home or create a comfortable environment in a business, the PEAD-AA09NL is a solution that delivers long-lasting performance and efficiency.
* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 3/4" x 6' Electrical Whip – SKU: 84138
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Mitsubishi MHK2 Wireless Remote Controller
The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.
The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!
The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.
Features:
- Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
- Backlit display
- Can sense temperature at indoor unit (default) or at controller
- Fahrenheit °F / Celsius °C
- No batteries required
- Single zone compatible
- Multi zone compatible
- English, French, Spanish
Compatible Indoor Units:
Wall Mounted
- GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
- FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
- EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
- JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
- WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
- D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
- P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7
Ducted
- KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
- P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7
Ceiling Cassette
- KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
- KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
- P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7
Floor Mounted
- MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1
Multi Position Air Handler
- KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
- P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7
Ceiling Suspended
- P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
Condenser Risers - 4" x 18" - 2 Pack
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
Features
- Ideal for piping, duct runs, cable trays and condensers
- Weather resistant PVC
- Linear track holds 3/8" hex head bolts
- Two 7/8" long bolts included
- Weighs up to 397 Ib
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
- Insulated
- Flared Line Ends
- Heavy Duty Refrigerant Lines
Equipment Pad and Risers Kit
E Lite Condenser Pad and Risers
E Lite Condenser Pad
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
Key Features:
- Reliable Support: Abundance of ridges for stable ground support.
- Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
- Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
- Simple Appearance: Gray color with size labels.
- Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.
E Lite Risers
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
Key Features:
- Weather Resistance: Made from tough PVC for long-lasting performance.
- Secure Setup: The track securely holds bolts in place.
- Bolts Included: Each set comes with two bolts.
- Strong Support: Capable of handling loads of up to 397 pounds.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
No Return Policy
All sales of this product are final and are non-refundable.
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
17" Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Write Your Own Review
Customer Questions
Why Choose Mitsubishi Mini Splits?
Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
