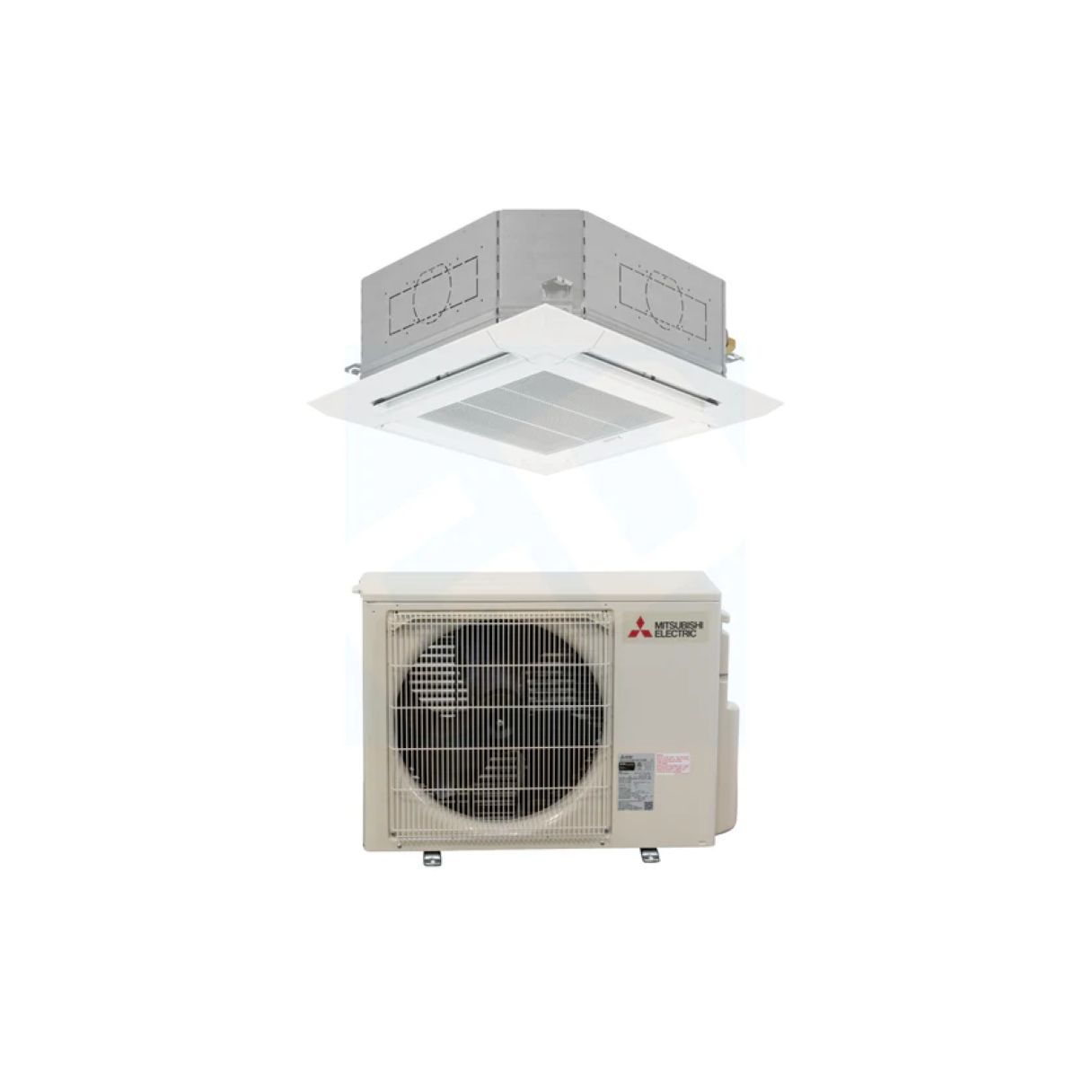

Mitsubishi 9,000 BTU P-Series 21 SEER2 Single Ceiling Cassette Mini Split Heat Pump System – R454B | 230V

SUZ-AA09NL - 9,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA09NL is a reliable and high-performance 9,000 BTU outdoor heat pump designed for use with compatible indoor units. It provides both cooling and heating capabilities, ensuring optimal comfort in various environments. This unit incorporates advanced technology for quiet operation, high energy efficiency, and long-lasting durability.

Outdoor Unit Features (SUZ-AA09NL):

• Blue Fin Coating: Protects the outdoor unit's heat exchanger from corrosion caused by salt, sulfur, and airborne contaminants, making it ideal for coastal or industrial areas.
• Hot-Start Technology: Prevents cold air blasts by ensuring the fan only operates once the heat exchanger is warm.
• INVERTER-Driven Compressor: Provides precise capacity control, ensuring the unit only uses the energy necessary to maintain the set temperature, improving overall energy efficiency.
• Pulse Amplitude Modulation Technology: Optimizes compressor performance, reducing energy consumption and improving system efficiency.
• Quiet Operation: Designed for low noise levels, the outdoor unit operates as quietly as a typical conversation.
• High-Performance Grooved Piping: Maximizes heat exchange efficiency for better cooling and heating performance.
• Joint Lap DC Motor: Enhances reliability and efficiency, contributing to the overall long-term performance of the unit.
• Single-Zone Capability: Connects one outdoor unit to one indoor unit, allowing for precise control of comfort in a single space.

Specifications:

• Cooling Capacity: 9,000 BTU/h rated capacity, with a minimum capacity of 2,000 BTU/h.
• Heating Capacity: 12,000 BTU/h at 47°F, down to 5,200 BTU/h at -4°F for reliable heating in cold conditions.
• Energy Efficiency: SEER2 rating of 21.6 and an HSPF2 rating of 12.3, ensuring high energy efficiency for both cooling and heating operations.
• Sound Levels: Operating sound pressure levels are 48 dB(A) during cooling and 50 dB(A) during heating, offering quiet performance.
• Refrigerant: Utilizes R410A refrigerant, providing better heat transfer efficiency and lower environmental impact compared to older refrigerants.
• Unit Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches (W x D x H), with a weight of 77 lbs.

The SUZ-AA09NL is built for durability and efficiency, offering superior comfort for both residential and commercial applications. Its advanced features, such as the hot-start technology and energy-efficient compressor, ensure that it delivers consistent performance year-round.

SLZ-AF09NL Air Handler Overview

The SLZ-AF09NL is a high-performance air handler designed for residential and light commercial use. Paired with the SUZ-AA09NL outdoor unit, this air handler offers reliable and efficient heating and cooling solutions. It features a compact, low-profile design that allows for easy installation in tight spaces, making it ideal for applications where space is limited.

Key Features

• Compact and Low-Profile Design: The SLZ-AF09NL is designed to fit into tight spaces such as ceilings or recessed areas, offering flexibility in installation while maintaining high performance.
• High Energy Efficiency: The air handler is engineered with energy-saving features that reduce electricity consumption, making it a cost-effective option for both residential and commercial applications.
• Quiet Operation: With its advanced noise-reduction technology, the SLZ-AF09NL operates quietly, ensuring a comfortable and peaceful indoor environment.
• Advanced Filtration: The unit is equipped with a high-efficiency filter that improves indoor air quality by capturing dust, allergens, and other airborne particles.
• Flexible Drain Options: The air handler provides flexibility in installation, with options for both horizontal and vertical drainage to suit different building layouts.

Specifications

• Cooling Capacity: 9,000 BTU/h
• Heating Capacity: 9,000 BTU/h
• Power Supply: 208-230V, 60Hz, 1-phase
• Dimensions (W x H x D): 26-3/8" x 10-1/8" x 27-1/4”
• Weight: 39.7 lbs
• Refrigerant: R410A
• Airflow: 490 CFM

Benefits

• Space-Saving Design: The compact size of the SLZ-AF09NL allows it to fit into small or confined spaces, making it ideal for installations in apartments, small offices, or commercial settings.
• Energy Efficiency: By optimizing cooling and heating output, the SLZ-AF09NL helps reduce energy costs while maintaining high comfort levels.
• Quiet and Comfortable: The quiet operation makes it suitable for environments where noise levels need to be minimized, such as bedrooms, living rooms, or offices.
• Improved Air Quality: With its advanced filtration system, the SLZ-AF09NL enhances indoor air quality by trapping harmful particles, providing a healthier indoor environment.

Applications

• Residential Applications: Perfect for homes where space is limited, the SLZ-AF09NL provides efficient heating and cooling without taking up valuable room space.
• Light Commercial Applications: Ideal for small commercial spaces, such as small offices, retail stores, and other commercial environments requiring compact and efficient climate control.

Maintenance

• Low Maintenance: The SLZ-AF09NL air handler is designed for easy maintenance. Regular filter cleaning and occasional professional servicing ensure long-lasting performance.
• Durable Components: Built with high-quality materials, this air handler is designed to withstand regular use and provide reliable performance for many years.

The SLZ-AF09NL is an efficient, compact air handler suitable for both residential and light commercial applications. Paired with the SUZ-AA09NL outdoor unit, it provides a reliable and cost-effective solution for year-round comfort. With its advanced features, such as quiet operation, high energy efficiency, and flexible installation options, it is an excellent choice for anyone looking to enhance indoor comfort while minimizing energy consumption.

* Please Note * This product does NOT include a remote controller and one would need to be purchased separately.

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.

Features:

• One pair, heavy duty refrigerant lines
• Flared line ends

The Mitsubishi MHK2 is the second revision of Mitsubishi's most popular wireless controller set, now available for M & P Series residential and light commercial units. This controller offers in-depth 7-day scheduling and an easy to read, backlit display.

The updated MHK2 can now be used in tandem with the Kumo Cloud wi-fi adapter, sold separately. No longer do you have to choose between internet and wireless control: you can use both!

The MRCH2 is the main body of the thermostat. This can be placed anywhere within 200 feet of the indoor unit and does not require line of sight. The ;MRC2 cable will connect to the CN105 connector on the indoor unit's control board. The other end of this cable will connect to the MIFH2 receiver. The MIFH2 should be placed on the right side of a wall mounted unit, in the pocket of a MLZ-KP cassette, or anywhere near the control side of a ducted or square cassette unit.

Features:

• Includes MRCH2 thermostat, MIFH2 wireless receiver, and MRC2 cable
• Backlit display
• Can sense temperature at indoor unit (default) or at controller
• Fahrenheit °F / Celsius °C
• No batteries required
• Single zone compatible
• Multi zone compatible
• English, French, Spanish

Compatible Indoor Units:

Wall Mounted

• GL Series: MSZ-GL06NA-U1, MSZ-GL09NA-U1, MSZ-GL12NA-U1, MSZ-GL15NA-U1, MSZ-GL18NA-U1, MSZ-GL24NA-U1, MSY-GL09NA-U1, MSY-GL12NA-U1, MSY-GL15NA-U1, MSY-GL18NA-U1, MSY-GL24NA-U1
• FH Series: MSZ-FH06NA, MSZ-FH09NA, MSZ-FH12NA, MSZ-FH15NA, MSZ-FH18NA2
• EF Series: MSZ-EF09NAB-U1, MSZ-EF09NAS-U1, MSZ-EF09NAW-U1, MSZ-EF12NAB-U1, MSZ-EF12NAS-U1, MSZ-EF12NAW-U1, MSZ-EF15NAB-U1, MSZ-EF15NAS-U1, MSZ-EF15NAW-U1, MSZ-EF18NAB-U1, MSZ-EF18NAS-U1, MSZ-EF18NAW-U1
• JP Series: MSZ-JP09WA-U1, MSZ-JP12WA-U1
• WR Series: MSZ-WR09NA-U1, MSZ-WR12NA-U1, MSZ-WR18NA-U1, MSZ-WR24NA-U1
• D Series: MSZ-D30NA-8, MSZ-D36NA-8, MSY-D30NA-8, MSY-D36NA-8
• P Series: PKA-A12HA7, PKA-A18HA7,PKA-A24KA7, PKA-A30KA7, PKA-A36KA7

Ducted

• KD Series: SEZ-KD09NA4R1.TH, SEZ-KD12NA4R1.TH, SEZ-KD15NA4R1.TH, SEZ-KD18NA4R1.TH
• P Series: PEAD-A09AA7, PEAD-A12AA7, PEAD-A15AA7, PEAD-A18AA7, PEAD-A24AA7, PEAD-A30AA7, PEAD-A36AA7, PEAD-A42AA7

Ceiling Cassette

• KF Series: SLZ-KF09NA, SLZ-KF12NA, SLZ-KF15NA, SLZ-KF18NA
• KP Series: MLZ-KP09NA, MLZ-KP12NA, MLZ-KP18NA
• P Series: PLA-A12EA7, PLA-A18EA7, PLA-A24EA7, PLA-A30EA7, PLA-A36EA7, PLA-A42EA7

Floor Mounted

• MFZ-KJ09NA-U1, MFZ-KJ12NA-U1, MFZ-KJ15NA-U1, MFZ-KJ18NA-U1

Multi Position Air Handler

• KP: SVZ-KP12NA, SVZ-KP18NA, SVZ-KP24NA, SVZ-KP30NA, SVZ-KP36NA
• P Series: PVA-A12AA7, PVA-A18AA7, PVA-A24AA7, PVA-A30AA7, PVA-A36AA7, PVA-A42AA7

Ceiling Suspended

• P Series: PCA-A24KA7, PCA-A30KA7, PCA-A36KA7, PCA-A42KA7
