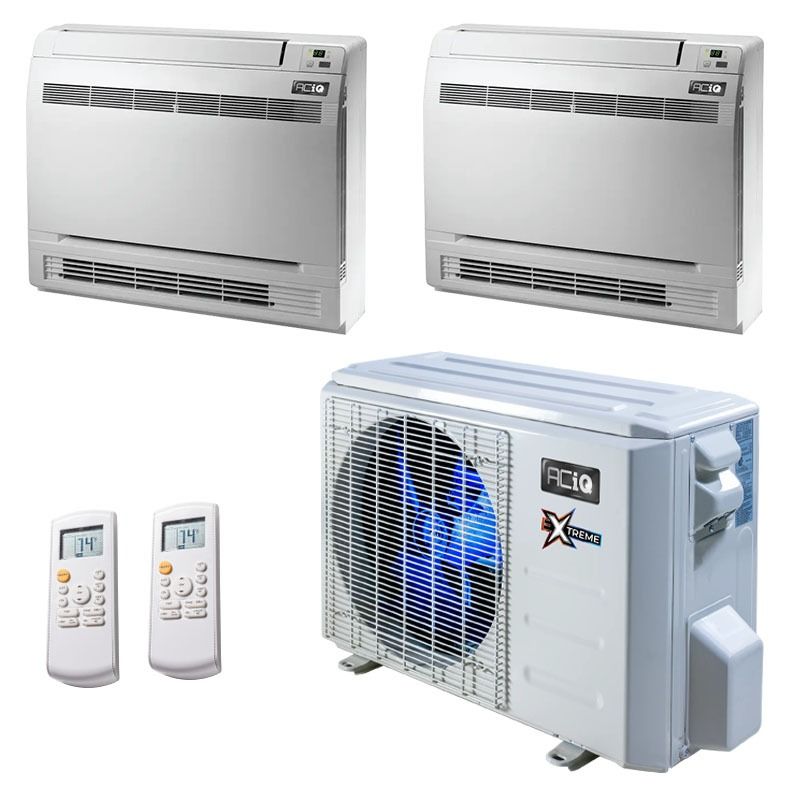

18,000 BTU 21.5 SEER ACiQ IntelliHeat 2-Zone Floor Mounted Mini Split System - 12+12

By

ACiQ

In Stock - Ready to Ship
Model

ACIQ-18Z-HH-M2B / 2-ACIQ-12FM-HH-MB

ID

104885

Rating:
100 % of 100
Availability: In Stock - Ready to Ship

Authorized ACiQ Dealer

Suggested Retail $4,030.00
Your Low Price $2,620.00
Bread Checkout

Free Shipping

Required Fields *

Customize 18,000 BTU 21.5 SEER ACiQ IntelliHeat 2-Zone Floor Mounted Mini Split System - 12+12
18,000 BTU ACiQ Multi Zone Condenser (In Stock - Ready to Ship)   + $1,590.00 View Item
18,000 BTU ACiQ Multi Zone Condenser (In Stock - Ready to Ship)   + $1,590.00
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler - ACIQ-12FM-HH-MB (In Stock - Ready to Ship)   + $515.00 View Item
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler - ACIQ-12FM-HH-MB (In Stock - Ready to Ship)   + $515.00
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler - ACIQ-12FM-HH-MB (In Stock - Ready to Ship)   + $515.00 View Item
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler - ACIQ-12FM-HH-MB (In Stock - Ready to Ship)   + $515.00
View Item
18,000 BTU 21.5 SEER ACiQ IntelliHeat 2-Zone Floor Mounted Mini Split System - 12+12

$2,620.00

Accessories for this product

Description

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ IntelliHeat multi zone series ACIQ-18Z-HH-M2B / 2-ACIQ-12FM-HH-MB system, you get higher SEER and better low ambient (hyper heat) performance than the competition.

18,000 BTU ACiQ Multi Zone Condenser

OVERVIEW

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACIQ-18Z-HH-M2B, you can have up to 2 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

QUICK FACTS

  • 18,000 BTU, 21.5 SEER multi zone heat pump condenser
  • Designed to function with up to 2 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 57°F outdoor temperatures
  • Integrated IntelliHeat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads
18,000 BTU, 21.5 SEER

The 18,000 BTU, ACiQ-18Z-HH-M2 is designed to easily support up to 2 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.5 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.


IntelliHeat Base Pan Heater Technology

Each ACiQ condenser has integrated IntelliHeat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22. Plus, every ACiQ multizone condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation. The best news of all? ACiQ includes these technologies with every multizone condenser – the competition makes you pay for it.

ACIQ IntelliHeat Base Pan Heater TechnologyACIQ IntelliHeat Base Pan Heater Technology

ACIQ Quality ConstructionACIQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling. Base pan heaters come standard on every multi-zone condenser.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter scroll compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACIQ Highest Efficiency CompressorACIQ Highest Efficiency Compressor

ACIQ Longer life, longer warrantyACIQ Longer life, longer warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter scroll compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.


Installation and Maintenance

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.

ACIQ Installation and MaintenanceACIQ Installation and Maintenance
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler - ACIQ-12FM-HH-MB

ACiQ Floor Mounted air handlers are ideal for sun porches and attic rooms where space to mount a standard high wall unit is not available. Sometimes called a ‘heat console’ type air handler, these units surface mount low on the wall, near or on the floor. The shape is wider, taller and slightly shallower than the high wall unit. These are ideal for sun porches where the only wall space is below windows, or attic remodels with knee-walls, where vertical high walls may not be available.

Optimized for Heat

Like a high wall mount, these units take in return air at the top edge and deliver it at the bottom.  This is ideal for heating.  By delivering warm air at floor level, stratification due to heat rise is eliminated.  When you put the unit into cooling mode, the airflow direction is reversed for better air mixing in the room.

FEATURES

  • btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a small room in most climates
  • Remote control thermostat included

Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.

Wall Mount Bracket for Mini Split Systems

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 18 1/4" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

Features:
  • 18 1/4" Arm Length
  • Weight capacity of 220 lbs per arm
  • Bolts and anti-vibration washers included
Diversitech E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged

Product Specifications

More Information
18,000 BTU ACiQ Multi Zone Condenser
Refrigerant Charge 50'
Weight (in lbs) 160.940000
AHRI Certificate Number 206315653
Manufacturer ACiQ
HSPF 9.8
Cooling BTU 19000 BTU
Heating BTU 20000 BTU
Decibel Level (dBA) 63.4
Electric Heat Heat Pump
Energy Star No
Refrigerant R410A
SEER 21-22
EER 12.5
Compressor Type Rotary
Liquid Line 1/4" (2)
Suction Line 3/8" (2)
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 35 Amps
Min. Breaker Size 25 Amps
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Ambient Temperature Range -5 ~ 122
Height 31-9/10"
Width 37-1/4"
Depth 16-1/5"
Warranty 5 year parts and 12 year compressor warranty with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
12,000 BTU Floor Mounted ACiQ Mini-Split Air Handler - ACIQ-12FM-HH-MB
Weight (in lbs) 31.000000
Manufacturer ACiQ
Controller Wireless Included
Cooling BTU 12,000 BTU
Heating BTU 12,000 BTU
Maximum CFM 220-280 CFM
Decibel Level (dBA) As low as 34
Electric Heat Heat Pump
Energy Star No
Refrigerant R410A
SEER 23-25
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230V 1 Phase 60Hz
Phase Single Phase
Amperage Requirement 0.29 Amps
Mini-Split Type Floor Mounted
Zone Compatibility Multi Zone
Height 8.27"
Width 27.58"
Depth 23.62"
Resources
Safety Information PROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
Weight (in lbs) 9.200000
Manufacturer Online Supply
Length 19 3/4"
Height 20"
Width 6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
Diversitech E Lite Equipment Pad 18" x 38" x 3"
Weight (in lbs) 16.000000
Manufacturer Online Supply
Height 3"
Width 18"
Depth 38"
Safety Information PROPOSITION 65 WARNING

Reviews 1

Write Your Own Review
You're reviewing:18,000 BTU 21.5 SEER ACiQ IntelliHeat 2-Zone Floor Mounted Mini Split System - 12+12
Your Rating

Questions and Answers

Customer Questions
Who makes ACiQ?
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
