AHRI Number:210857383

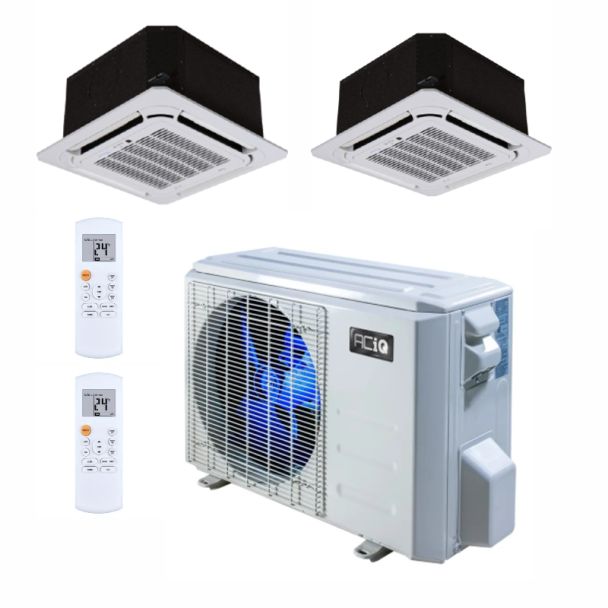

ACiQ's Energy Star multi zone mini split systems are designed to give you maximum efficiency at a lower cost than the Max Heat models. The ES-18Z-M2/ACIQ-12CC-HH-M-2 Energy Star system provides heat down to -13 degrees and cooling as high as 122 degrees outside temperatures, all at a very competitive price.
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-12CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-18Z-M2B, you can have up to 2 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
The 18,000 BTU, ES-18Z-M2B is designed to easily support up to 2 air handlers at up to 1.25 times the condenser BTU rating, or 22,500 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 22.9 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.
ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.
Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.
ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.
Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.
E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.
E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 23" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:| 12,000 BTU Ceiling Cassette ACiQ Mini-Split Air Handler | |
|---|---|
| SKU | ACIQ-12CC-HH-MB / ACIQ-CC-GRILLE |
| Weight (in lbs) | 41.010000 |
| Brand/Manufacturer | ACiQ |
| Controller | Wireless Included |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Maximum CFM | 335.29 |
| Decibel Level (dBA) | As low as 31.5 |
| Electric Heat | Heat Pump |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 0.45 gal/hr |
| SEER2 (Efficiency) | 22.3 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60Hz |
| Phase | Single Phase |
| Max Breaker Size | 15 |
| Min. Breaker Size | 15 |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini-Split Type | Ceiling Cassette |
| Zone Compatibility | Multi Zone |
| Height | 10.25" |
| Width | 22.5" |
| Depth | 22.5" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING |
| 18,000 BTU ACiQ Multi Zone Condenser | |
| SKU | ES-18Z-M2B |
| Refrigerant Charge | 50' |
| Weight (in lbs) | 108.690000 |
| AHRI Certificate Number | 210857383 |
| Brand/Manufacturer | ACiQ |
| HSPF2 | 10.5 |
| Cooling BTU | 18000 BTU |
| Heating BTU | 19000 BTU |
| Maximum CFM | 1764.71 |
| Decibel Level (dBA) | 58.50 |
| Electric Heat | Heat Pump |
| Energy Star | Yes |
| Refrigerant | R410A |
| SEER2 (Efficiency) | 22.9 |
| Compressor Type | Rotary |
| Liquid Line | 1/4" (2) |
| Suction Line | 3/8" (2) |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 25 A |
| Min. Breaker Size | 18 A |
| Tonnage | 1.5 Ton |
| Mini-Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Ambient Temperature Range | -15 ~ 122 |
| Height | 26.50" |
| Width | 35.04" |
| Depth | 13.46" |
| Warranty | 12 year compressor, 7 year parts with online registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
| Condenser Risers - 4" x 18" - 2 Pack | |
| SKU | 87762 |
| Weight (in lbs) | 397.000000 |
| Brand/Manufacturer | Online Supply |
| Diversitech E Lite Equipment Pad 18" x 38" x 3" | |
| SKU | EL1838-3 |
| Weight (in lbs) | 16.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING |
| Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3" | |
| SKU | 87762 / EL1838-3 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 18" |
| Depth | 38" |
| Safety Information | PROPOSITION 65 WARNING |
| Wall Mount Bracket for Mini Split Systems | |
| SKU | HW-600 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 23" |
| Height | 20" |
| Width | 6" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING |
