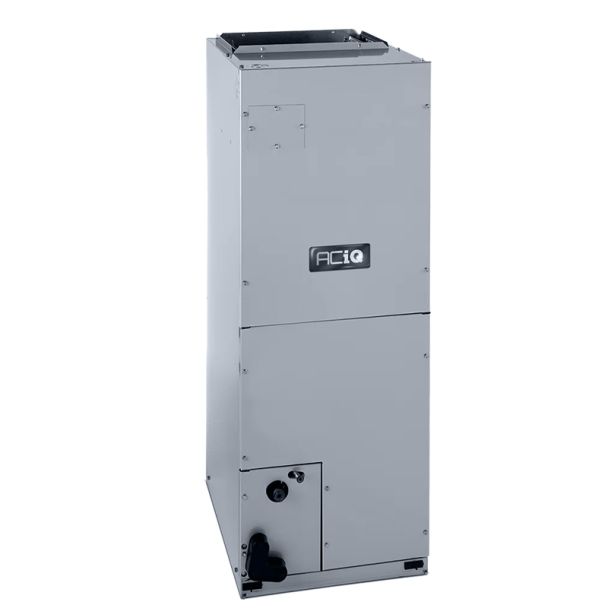

24,000 BTU ACiQ Multi Zone Ducted Air Handler-R410A

24,000 BTU ACiQ Multi Zone Ducted Air Handler - ACIQ-24AHB-HH-M
24,000 BTU ACiQ Multi Zone Ducted Air Handler-R410A
24,000 BTU ACiQ Multi Zone Ducted Air Handler-R410A
SAVE $372.00
By

ACiQ

In stock
Model

ACIQ-24AHB-HH-M

ID

122429

Be the first to review this product
In Stock - 11 Ready to Ship
Was $992.00 Your Low Price Special Price $620.00

Free Shipping

Description

Ductless Multi Zone air handlers seamlessly connect to your existing ductwork, allowing you to combine ducted heating and cooling with traditional mini split air handlers. This comprehensive system, powered by a single outside condenser, ensures maximum comfort, energy efficiency, and zoned control for independent temperature regulation in different areas of your home. The indoor units draw power from the outdoor condenser, eliminating the need for additional circuits unless you choose to install optional electric backup heat. These air handlers are particularly suitable for homes that have existing ductwork in some areas but lack it in others, such as finished basements, attics, or additions.

Features

  • 24,000 BTU, 2 Ton central ducted air handler
  • Can be used as part of a Multi Zone system with other air handlers
  • Variable DC blower
  • Upflow, downflow, horizontal left or right
  • Manufactured home and mobile home approved
  • Wired controller included, with remote control for setup
  • Can be wired to 24V thermostats - see Quick Start Guide below
  • Wifi compatible with optional KJR-120N controller
More Information
24,000 BTU ACiQ Multi Zone Ducted Air Handler-R410A
SKUACIQ-24AHB-HH-M
Refrigerant Charge25'
Weight (in lbs)57.700000
Brand/ManufacturerACiQ
HSPF29.3
Cooling BTU24000 BTU
Heating BTU24000 BTU
Maximum CFM823.53
Decibel Level (dBA)41
Electric HeatHeat Pump
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 10 Kilowatts
Energy StarYes
RefrigerantR410A
SEER2 (Efficiency)18
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size35
Min. Breaker Size25
Tonnage2 Ton
System Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeMulti-Positional
Zone CompatibilitySingle Zone
Height45"
Width21.02"
Depth17.52"
Warranty12 year compressor, 7 year parts with online registration
