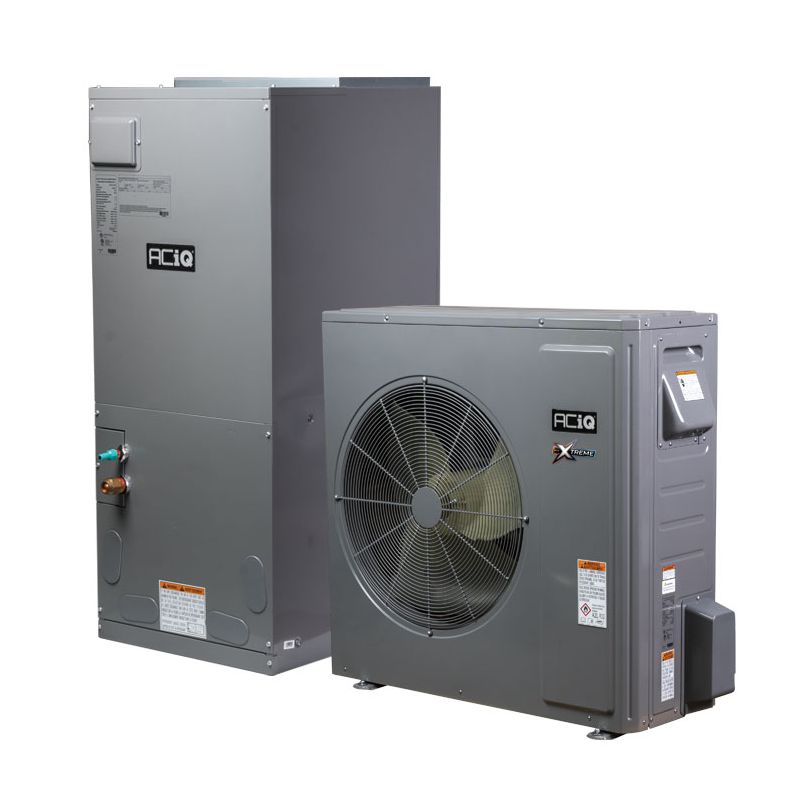

ACIQ 3 Ton 18 SEER2 High Efficiency Heat Pump Split System - R32 Inverter - Multi-Positional

Enhanced Comfort at Maximum Efficiency

The ACIQ-36-AH32 air handler features a variable DC blower and advanced inverter technology to deliver unparalleled comfort and efficiency. Compatible with any 24v thermostat, the air handler operates harmoniously with an ACIQ inverter condenser. The inverter technology allows for self-adjusting BTU output, ensuring ideal comfort while maximizing energy efficiency. The air handler is designed to work with your existing ductwork, efficiently distributing conditioned air throughout your home.

• 36,000 BTU, 3-ton central ducted air handler
• Compatible with 24v thermostats
• Variable DC blower
• Upflow, downflow, horizontal left or right
• Manufactured home and mobile home approved

Installation and Maintenance

Installing the ACIQ-36-AH32 is straightforward and similar to replacing any air handler. Your technician will connect the electrical, refrigerant, and thermostat components, as well as attach the unit to your return and supply ductwork. The multi-positional design (upflow, downflow, or horizontal) makes it versatile for various setups, and it is also approved for mobile homes. For added flexibility, you can integrate electric strip heat for backup heating during extremely cold weather. Additionally, the air handler’s intelligent control board displays fault codes, simplifying maintenance if needed.

Please note - to function as a heat pump, this air handler must be paired with a condenser and other installation equipment, available at an additional cost if not included in a product bundle. For straight electric heating, an optional electric heater coil is required and sold separately.

Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.

What’s Included:

• 3/4" x 6' Electrical Whip – SKU: 84138
• 60A Non-Fused Disconnect – SKU: 83335
• Surge Protector – SKU: ICM517
• CPS Charging Adapter – SKU: 87-AD87
• Telescoping Wall Sleeve – SKU: NFP-75

Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!

The EAH-06-32 is a 6kW electric heat kit designed for use in ACiQ R32 air handlers.

Compatible Air Handlers

• ACIQ-24-AH32
• ACIQ-36-AH32
• ACIQ-48-AH32
• ACIQ-60-AH32

OVERVIEW

The Santa Fe Ultra70 was the first compact whole house ventilating dehumidifier built for tight, low-clearance installs. It removes up to 70 pints of moisture per day and covers homes up to 1,800 square feet, which makes it a strong match for smaller houses, condos, and apartments.

Ducted into your HVAC system, the Ultra70 controls humidity everywhere at once instead of one room at a time. That means no musty basement smell, no clammy upstairs bedrooms, and no conditions that let mold and wood rot get started.

The cabinet measures 12" W x 12" H x 28" L and converts between horizontal and vertical airflow discharge, so it works in mechanical rooms, closets, attics, basements, and crawl spaces alike. Now running R454B refrigerant, it exceeds Department of Energy efficiency standards and is built at Santa Fe's headquarters in Madison, Wisconsin.

Key Features:

• 70 Pints Per Day – Whole-home moisture control for spaces up to 1,800 sq. ft.
• Optional Fresh Air Ventilation – Duct outdoor air in to dilute indoor pollutants
• MERV-13 Filtration – Standard filter captures fine airborne particles
• Convertible Discharge – Rotate the panel for horizontal or vertical airflow
• Compact 12" x 12" x 28" Cabinet – Fits where standard units can't
• R454B Refrigerant – Exceeds DOE efficiency standards
• 115V / 5.4 Amps – Plugs into a standard grounded outlet
• Made in Madison, Wisconsin – Heavy-duty steel construction

Customized Installation and Operation

The Ultra70 gives you three ways to install it. Tie it into your existing HVAC system with a dedicated 8" return and a supply connection with backdraft damper. Run it on its own separate ductwork. Or set it freestanding in a basement or crawl space when ducting isn't practical.

Both the return air inlet and supply air outlet use 8" duct collars. The back panel comes configured for horizontal flow through and rotates for vertical flow through with a T20 torx bit, which is what lets the same unit work in an attic, a closet, or under a floor.

Fresh air ventilation is optional and simple to add. A "T" into the inlet duct brings outdoor air into the system to dilute pollutants and maintain normal oxygen levels indoors, and the volume is adjustable with a range of dampers and controls.

• HVAC Integration – Dedicated return plus ducted supply to the air handler
• Dedicated Ducting – Runs on its own duct system independent of HVAC
• Freestanding Operation – Works standalone in basements and crawl spaces
• Optional Outdoor Air – Ventilation duct T's into the inlet, regulated by dampers and controls
• Continuous Drain – Gravity drainage, no manual emptying

Warranty Information

Santa Fe warrants the Ultra70 Dehumidifier to be free from defects in materials and workmanship. The unit includes a 5-year limited warranty, with extended coverage on select components. Warranty coverage may vary based on installation, application, and registration requirements. Refer to the manufacturer’s documentation for complete warranty details.

The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.

With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.

Features

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

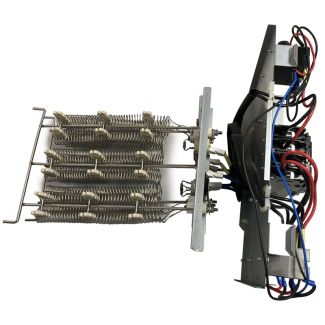

The EAH-08-32 is a 8kW electric heat kit designed for use in ACiQ R32 air handlers.

Compatible Air Handlers

• ACIQ-24-AH32
• ACIQ-36-AH32
• ACIQ-48-AH32
• ACIQ-60-AH32

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

No Return Policy

All sales of this product are final and are non-refundable.

The EAH-12-32 is a 12kW electric heat kit designed for use in ACiQ R32 air handlers.

Compatible Air Handlers

• ACIQ-24-AH32
• ACIQ-36-AH32
• ACIQ-48-AH32
• ACIQ-60-AH32

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

• Steel: 10 GA
• Powder-coated grey Finish
• Load rating: 600 lbs per pair
• Holes will accommodate anchors for installation
• Warranty: 1 year
• ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

No Return Policy

All sales of this product are final and are non-refundable.

One Smart Thermostat for ACiQ Communicating & Traditional HVAC Systems

The ACiQ TL04-1 Smart Thermostat gives you the flexibility to control your HVAC system in two different ways. Use it as an advanced communicating thermostat with compatible ACiQ equipment or set it up as a traditional 24V thermostat for most conventional heating and cooling systems. Built-in Wi-Fi, an easy-to-use touchscreen, and smart-device control through the ACiQ Home app make it simple to manage your comfort at home or away.

Key Benefits

• Communicating & 24V Control - Use with compatible ACiQ communicating equipment or as a traditional 24V thermostat.
• Ideal for ACiQ Inverter Systems - HA/HB communication lets compatible ACiQ equipment communicate directly with the thermostat.
• ACiQ Home App Control - Adjust temperatures and manage your comfort from a compatible smartphone or tablet.
• Broad HVAC Compatibility - Works with most traditional 24V heating, cooling, and heat pump systems.
• Easy Touchscreen Control - A modern touchscreen makes everyday temperature and system adjustments simple.

One Thermostat, Two Ways to Control Your HVAC System

What makes the TL04-1 different is its ability to work as either a communicating or traditional thermostat. Pair it with compatible ACiQ equipment using HA/HB communication for direct communication between the thermostat and HVAC system, or configure it for traditional 24V control with most conventional HVAC equipment. This flexibility makes the TL04-1 a smart choice whether you're building a new ACiQ system or upgrading the thermostat in an existing home.

Get More from Compatible ACiQ Inverter Equipment

When connected to compatible ACiQ equipment through HA/HB wiring, the TL04-1 becomes a communicating thermostat that allows the thermostat and HVAC equipment to share information directly. This makes it an ideal control option for compatible ACiQ inverter systems and helps the equipment take advantage of its advanced operating capabilities.

Control Your Comfort with the ACiQ Home App

Connect the TL04-1 to the ACiQ Home app for convenient control from a compatible smartphone or tablet. Adjust temperatures and manage comfort settings remotely, giving you easy access to your HVAC system whether you're at home or away. The TL04-1 is also compatible with the NetHome Plus app for smart-device control.

Also Works with Traditional 24V HVAC Systems

You don't need a communicating ACiQ system to use the TL04-1. It can also be configured as a traditional thermostat for most 24V HVAC systems, including compatible one- and two-stage heating and cooling equipment and heat pumps with auxiliary and emergency heat.

What's Included

• ACiQ TL04-1 Smart Thermostat
• M-Base
• Trim Plate
• Wire Labels
• Screws & Anchors
• Installation Guide
