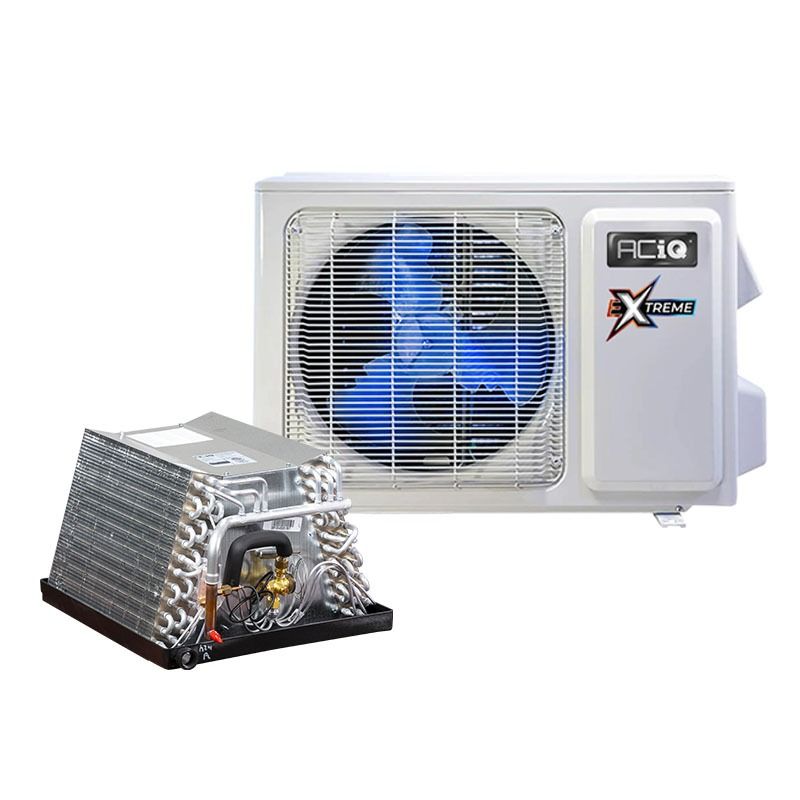

ACiQ 3 Ton High Efficiency Heat Pump with High Efficiency Mobile Home Coil with TXV | Inverter | Extreme Series

SAVE -$326.00
ACiQ 3 Ton High Efficiency Heat Pump with High Efficiency Mobile Home Coil with TXV | Inverter | Extreme Series

Required Fields *

Customer reviews
Rating:
4.9 out of 5
Out of stock
By

ACiQ

Out of stock

Model

ACiQ-36-HPC / ACiQ-3617UDXBDA

ID

176951

Our mobile home heat pump system features an ACiQ high efficiency heat pump and mobile home coil with TXV. Plus you can add either a 30ft or 50ft copper line set.

30 Feet of 3/8" x 3/4"

Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

50 Feet of 3/8" x 3/4"

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.

More Information

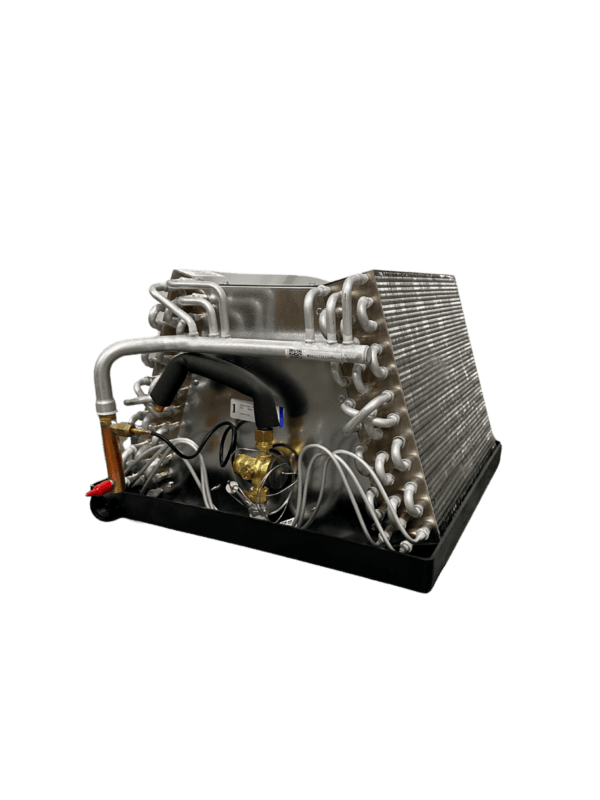

ACiQ 3 Ton Uncased Downflow Mobile Home Coil with TXV | Aluminum
FeatureSpec
SKUACiQ-3617UDXBDA
Weight (in lbs)25
Brand/ManufacturerACiQ
ConfigurationDownflow
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Tonnage3 Ton
Height17 1/2"
Width17 3/4"
Depth19 5/8"
Warranty10 Year Limited Warranty
Resources
  • Specification Sheet
  • Installation Guide
  • Warranty Information
  • You will need Adobe® Acrobat® Reader to view PDF documents
    Safety InformationPROPOSITION 65 WARNING
    ACiQ 3 Ton 16 SEER2 High Efficiency Heat Pump Condenser - R410A Inverter
    FeatureSpec
    SKUACiQ-36-HPC
    Refrigerant Charge25'
    Weight (in lbs)234.57
    Brand/ManufacturerACiQ
    UPC0850038750077
    Cooling BTU35,000 BTU
    Heating BTU39,000 BTU
    Maximum CFM3035.29
    Decibel Level (dBA)65
    Electric HeatHeat Pump
    RefrigerantR410A
    HSPF9.5
    HSPF28
    SEER2 (Efficiency)16
    EER211.7
    Condenser StagesVariable Speed
    Compressor TypeRotary
    Liquid Line3/8"
    Suction Line3/4"
    Electrical208/230V 1 Phase 60 Hz
    Max Breaker Size35 Amps
    Min. Breaker Size30 Amps
    Tonnage3 Ton
    Min/Max Outdoor Temp for Heating -22~75
    Min/Max Outdoor Temp for Cooling 5~122
    Zone CompatibilitySingle Zone
    Ambient Temperature Range -22~122
    Length38.58"
    Height38.39"
    Depth14.76"
    Warranty12 year compressor, 7 year parts with online registration
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
    FeatureSpec
    SKULS38343830
    Weight (in lbs)35
    Brand/ManufacturerOnline Supply
    UPCna
    Liquid Line3/8"
    Suction Line3/4"
    Suction Line Insulation Thickness3/4"
    ColorBlack
    Length30 feet
    50 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
    FeatureSpec
    SKULS38343850
    Weight (in lbs)22
    Brand/ManufacturerOnline Supply
    UPC094913016456
    Liquid Line3/8"
    Suction Line3/4"
    Suction Line Insulation Thickness3/4"
    ColorBlack
    Length50 feet
    Safety InformationPROPOSITION 65 WARNING
    Top reviews
    1. Good buy
      Quality
      100%
      Service
      100%
      Price
      100%
      It works good and the delivery was very fast

      Review by

      Posted on

    2. Good quality, very efficient. Extreme Heat is pretty neat!
      Quality
      100%
      Service
      100%
      Price
      100%
      I have had my system for two summers and two winters now, and have been very impressed with the heating and cooling costs, the quiet operation and how well it seems to be holding up. The condensing unit outside still looks like new, with no fading or rust spots. I installed the entire system myself and the installation instructions were easy enough to understand, especially since I bought a matched system. I've been really impressed with heat this thing can still produce even at 10 degrees outside. I've not had auxiliary heat come on at all.
      The ONE thing I hate is that you can not have the air handler fan run in automatic on cooling when using the two wire thermostat. That causes me a bad humidity problem in the summer and I've had to try to control it by shutting off the system or turning it to dehumidify only, until it freezes me and I have to shut if off. I've heard you can install a regular 24 volt thermostat and have the ability to only run the fan when it's cooling, but you'll loose some efficiency, and that kinda defeats the point of having a high efficiency system!

      Review by

      Posted on

    3. Best business I have ever worked with!!!
      Quality
      100%
      Service
      100%
      Price
      100%
      It all started when my furnace wanted to start and stop regardless of the thermostat. I tested everything sure enough my e0 yr old furnace was slowly dying. I ordered a new system. I took a week to plan and choose. We decided on a heat pump system. We'll I ordered a regular A/C with electric heat... then I provided the wrong email by accident during the order process so I didn't get any alerts or updates. I called and we got that fixed. Then later that day the email came. As I reviewed the details I realized at 6pm Friday night roughly 7 hours after placing the order it was the wrong systrm!! Some how it populated in the heat pump category. Any how they were quick to cancel the order. The process was pretty quick compared to other places even though it felt like it was taking forever. But they managed to contact the shipping vendor and hold the shipment. We got it canceled and their awesomely awesome sales team navigated through all the options I wanted and they put it all together for me. I ordered it officially about a week and half after the wrong one was canceled. It arrived very well packed and clean. The setup was easy and everything I needed for parts were there. Nothing missing!!! That's an amazing thing these days. If I ever need anything they have I'm ordering it from.them. they are fantastic!!! R&L is a great shipping company too! Attention to detail. Thanks

      Review by

      Posted on

    4. ACIQ-36-HPC, ACIQ-36-ACL and N96MSN0802120A
      Quality
      100%
      Service
      100%
      Price
      100%
      Replaced my heating and cooling equipment due to the age of existing equipment. I had excess solar power so I wanted to use a cold climate heat pump to heat the house to keep my energy bill the same. The heat pump has performed well keeping your 2500 sq ft house at 68F in upstate NY. The system run time varies depending on outside temp and uses about 3.5kw to 4.5 kw per hour when heating. Its going to be cold next week which will be a good test to see it can keep up will with below zero temps outside. Have not tested the cooling side since it was installed in December. No issues with the furnace its worked great heating the house using the natural gas side of the hybrid system. Tech support was very helpful because the installer had not installed a ACIQ heat pump brand and assisted in configuring the dip switches in the Heat Pump for use with a non communicating thermostat. Hoping it last as long as old stuff removed.

      Review by

      Posted on

    5. Great kit, with one nit - Will buy again or similar when my second unit dies.
      Quality
      100%
      Service
      80%
      Price
      100%
      This thing came stupidly fast and I was able to install it at a reasonable pace. My only small complaint is that the unit shipped with one set of braze to flare adapters, not 2. They obviously provided the adapters for replacement applications, which mine was, but to reuse existing lines you need one set of adapters inside and a second outside. I bought the Mr Cool set for 50 bucks from Lowes. Again it is not a big deal, but when you get half of the adapter solution with it, you have to wonder why not the full deal.

      The unit seems to work well so far. It cools and heats but we have yet to have any weather that stresses it. The instructions were so so. It wasn't blatantly obvious what unit I needed to look at in the instructions as they applied to many variants.

      Review by

      Posted on

    6. IMPRESSED
      Price
      100%
      Service
      100%
      Quality
      100%
      Before ordering, I had questions, all were answered and put my mind at ease. Unit arrived in December; took until June to get the install. Install was easy per installer. Worked fantastic, then after a week, the old thermostat as blank. Replaced t stat with a newer model, and again works great. This week is the first over 90 degree days this summer, I am sure it will have no problems. I am very impressed at how quite this unit runs and how quickly the humidity level in my home dropped. Now I need to replace my blower with one that is quiet...I never knew how loud it is until now. My condo unit is a 'garden' unit, and the two hvac's for units above me are outside my unit. They now sound very loud now. I will be recommending the ACIQ to the Property Manager for future Owner upgrades.

      Review by

      Posted on

    7. Extreme Heat Pump 36H
      Quality
      100%
      Price
      100%
      Service
      100%
      Really Quiete! Nice Quality the installers were impressed, I have not had a really hot day yet so hoping it keeps up.

      Review by

      Posted on

    8. Purchase ACIQ 3 ton 18 seer heat pump and a horizontal evaporator coil EAM4X37L7A
      Price
      100%
      Service
      100%
      Quality
      100%
      I have 40 years experience in HVAC and installed 3 weeks ago , the Equipment is working excellent. temperature at night fell to 22 degrees and the heat pump worked effortlessly and quite. looking forward to running the AC in the summer, Will up date review later . Thank you HVAC Direct

      Review by

      Posted on
