2.5 Ton 16.9 SEER2 ACiQ High Efficiency Wall-Mount Heat Pump Split System | Inverter

OVERVIEW

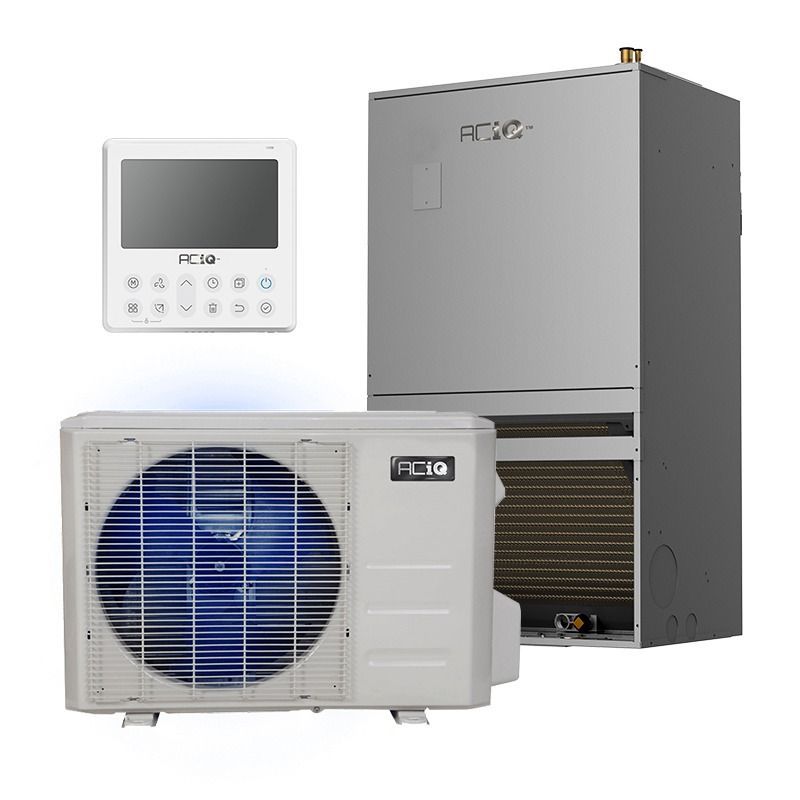

Inverter Heat Pump - The ACiQ-30-EHPB 2.5-ton central inverter heat pump utilizes inverter technology to convert AC power to DC, allowing the compressor to adjust its speed. This enables the system to modify its BTU output based on the current demand, providing efficient and adaptable performance throughout varying weather conditions.

Intelligent System - Equipped with advanced sensors, this system monitors indoor and outdoor air temperature, duct pressure, refrigerant temperature, and overall system performance. During the initial startup, it enters a learning mode, optimizing future operations for maximum efficiency by collecting and storing data.

Adaptive Sizing - With its self-adjusting inverter design, the ACiQ-30-EHPB can be sized based on your heating needs. Standard heat pumps may cause discomfort during summer when sized for heat, but this unit automatically adjusts to function like a smaller unit, ensuring ideal cooling performance without excess humidity.

QUICK FACTS

• Variable output based on demand
• Inverter heat pump system for ducted applications
• Efficient cooling from 5°F to 122°F outdoor temperatures
• Reliable heating from 5°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating for longevity
• Quiet operation, even under high workloads

30,000 BTU, 16.9 SEER2

Boasting an efficiency rating of 16.9 SEER2, the ACiQ-30-EHPB provides versatile comfort across a range of climates. Reliable comfort with variable output that eliminates short cycling for lasting efficiency. Use our size calculator Here to determine the demand for your home.

The ACiQ Wall Mounted Central Air Handler is ideal for multi-tenant buildings with its compact design, perfect for closets. It features a digital EEV for precise refrigerant flow control and is designed for vertical wall mounting with an up-flow-only configuration. The included smart thermostat, equipped with Wi-Fi, communicates with both the inverter condenser outside and the variable air handler inside, allowing the system to self-adjust BTU output for maximum efficiency and comfort. It efficiently distributes heated and cooled air throughout your home by attaching to your existing ductwork.

Features:

• Digital EEV
• Wired smart thermostat with WiFi included
• Or – use your preferred 24v thermostat
• Variable DC blower
• Upflow-only configuration
• Manufactured Home and mobile home approved
• Designed to optimize performance from ACIQ inverter heat pumps and air conditioners

Installing the ACiQ Wall Mounted Central Air Handler is similar to installing any replacement air handler. Your technician will handle electrical, refrigerant, thermostat, and communication connections, as well as connecting to your return and supply ductwork. This air handler is designed for vertical wall mounting with an up-flow-only configuration. Any 24V thermostat with 2 stages of heating can control the system, but the supplied thermostat is recommended. You can add electric strip heat for backup on the coldest days. The intelligent control board displays fault codes if maintenance is needed.

NOTE: to function as a heat pump, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use straight electric heating, an electric heater coil is necessary and is also available at an additional cost.

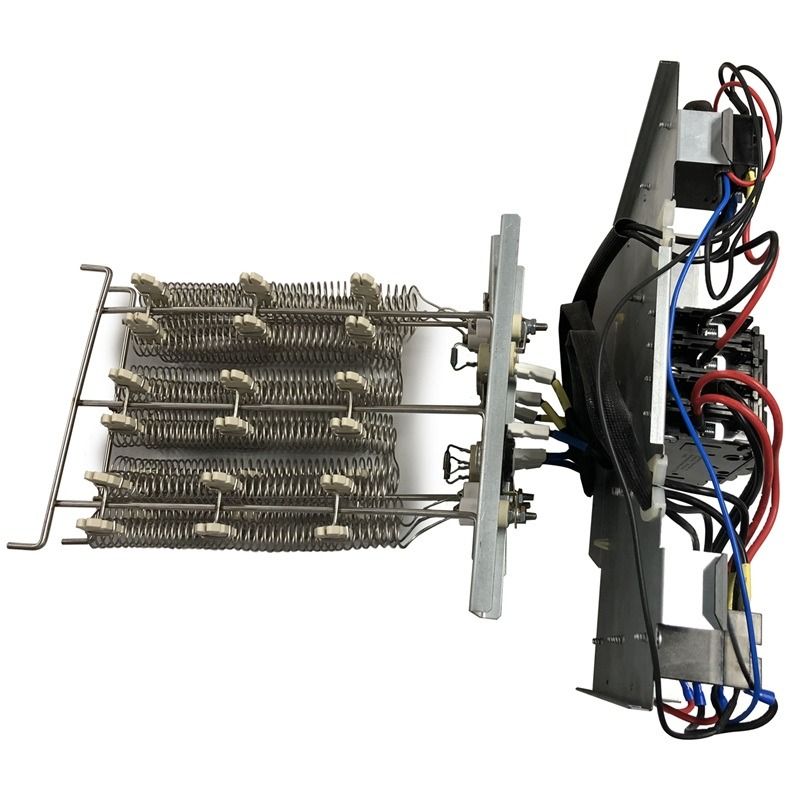

The EAH-03-WM is a 3kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM

The EAH-05-WM is a 5kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM

The EAH-08-WM is a 8kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM

The EAH-10-WM is a 10kw heater coil designed for use in ACiQ unitary air handlers, allowing you to add straight electric heating to ACiQ multi tentant style wall mount air handlers. Compatible Air Handlers ACiQ-18W-WM, ACIQ-24W-WM, ACiQ-30W-WM, ACiQ-36W-WM

Ensure efficient refrigerant flow and optimal HVAC performance with this 50-foot insulated line set. Designed for seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set offers durability, flexibility, and superior thermal protection for long-lasting operation.

Key Features:

✔ Premium Copper Tubing: 3/8" liquid line (LL) and 3/4" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Compatible with heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and connection.
✔ Extended 50-Foot Length: Ideal for larger residential and light commercial HVAC installations.

Upgrade your HVAC system with this high-quality insulated line set, engineered for reliability, efficiency, and ease of installation.
