COMPETITIVE PRICING
We sell products at wholesale pricing. No markups, no hidden fees. Our average customer saves BETWEEN THREE TO SIX THOUSAND DOLLARS
-That's the Direct Advantage!
In stock
AHRI Number:207825582

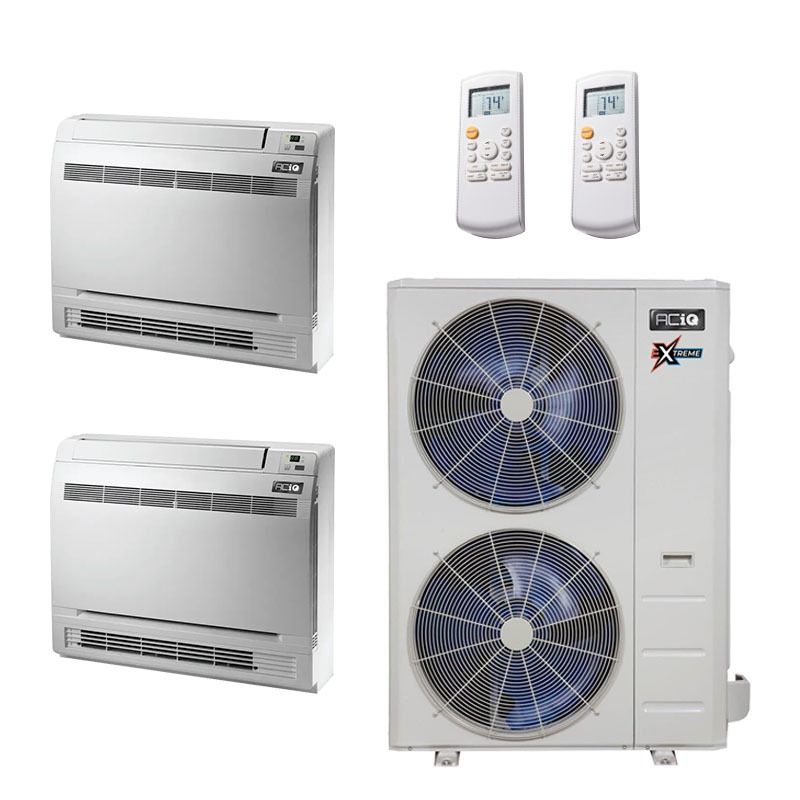

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series ACiQ-36Z-HH-M4 / 2-ACIQ-18FM-HH-MB system, you get higher SEER and better low ambient (hyper heat) performance than the competition.
The ACiQ-18FM-HH-MB and ACiQ-24FM-HH-MB creatively solve various installation issues.
Unlevel Surfaces: The pitch of the roof is often reflected indoors as well, providing angled surfaces that make mounting traditional air hanlders impossible. This system uses threaded rod to allow the air handler to be level, even when the walls are not. The threaded rod can be adjusted to accommidate all geometry angles, allowing the system to touch the ceiling or hang several feet below it
Uninsulated Roofs: The cassette and concealed duct air handler systems want at least a foot of space between the ceiling and the roof, this unit can work with a gap as small as one inch, which is what you often see with metal buildings and 3 season rooms. The air handler will be located near the edge of the room, blowing towards the opposte edge of the room, which is different than a cassette system, that blows air in all directions and is located in the center of a room. Sun Rooms: The air handler is actually mounted directly to the wall, fitting perfectly under the windowsill, elevated about 2 inches from the floor, even thou this is referred to as a floor mounted air handler, there is no need to drill or modify the floor as all connections can go thru the wall. Perfect for rooms that are mostly windows, these units pull air from the bottom and blow the air upwards, allowing heating the room in winter and automatically shutting off when the large windows are opened during the summer with the optional door-open sensor.
Floor Installation: The unit can be mounted to the floor when drilling holes into the wall is highly undesirable, as it common with brick/marble surfaces. The refrigerant/electrical/drain line can be run thru the floor and entirely hidden from view. The system is pre-wired for a 240vac condensate pump with over-flow shutoff connections.
Note: The 18k and 24k are slightly different in appearance from the 12k, and can be surface mounted on the floor or ceiling. Please see the appropriate manual for your model.
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACiQ-36Z-HH-M4, you can have up to 4 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
The 36,000 BTU, ACiQ-36Z-HH-M4 is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 45,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.5 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:

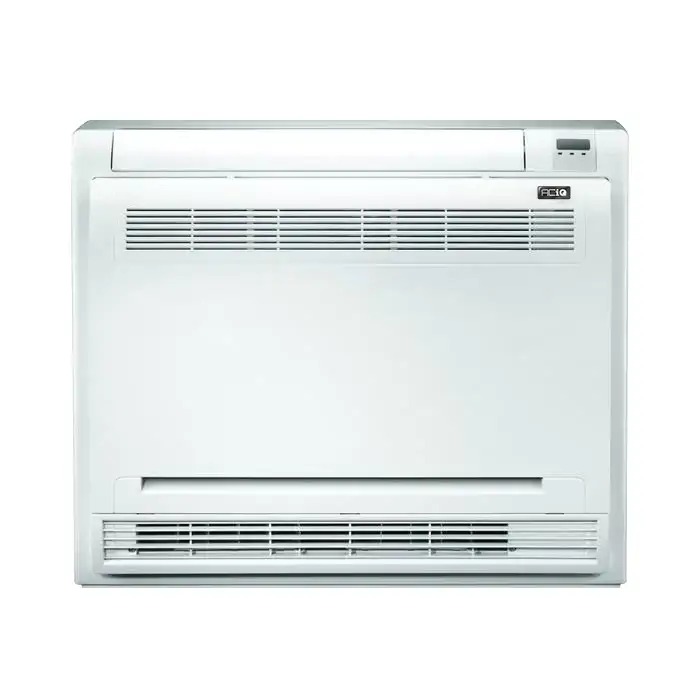

18,000 BTU Floor Mounted ACiQ Mini-Split Air Handler | |
---|---|
SKU | ACIQ-18FM-HH-MB |
Weight (in lbs) | 68.340000 |
Brand/Manufacturer | ACiQ |
Controller | Wireless Included |
Cooling BTU | 18,000 BTU |
Heating BTU | 18,000 BTU |
Maximum CFM | 548 |
Decibel Level (dBA) | As low as 39 |
Energy Star | Yes |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
Max Breaker Size | 25 |
Min. Breaker Size | 20 |
BTU/Tonnage | 18,000 BTU/1.5 Ton |
Mini-Split Type | Low Wall/Ceiling |
Zone Compatibility | Multi Zone |
Height | 9.25" |
Width | 42.05" |
Depth | 26.57" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources | |
Safety Information | PROPOSITION 65 WARNING |
36,000 BTU ACiQ Multi Zone Condenser w/ Extreme Heat | |
SKU | ACiQ-36Z-HH-M4B |
Refrigerant Charge | 100' |
Weight (in lbs) | 255.070000 |
AHRI Certificate Number | 207825582 |
Brand/Manufacturer | ACiQ |
HSPF | 10.5 |
Cooling BTU | 36000 BTU |
Heating BTU | 36000 BTU |
Decibel Level (dBA) | 64 |
Electric Heat | Heat Pump |
Energy Star | Yes |
Refrigerant | R410A |
SEER1 (Efficiency) | 21-22 |
SEER2 (Efficiency) | 22.2 |
EER | 13.5 |
Compressor Type | Rotary |
Liquid Line | 1/4" (4) |
Suction Line | 3/8" (3); 1/2" (1) |
Electrical | 208/230V 1 Phase 60 Hz |
Max Breaker Size | 60 Amps |
Min. Breaker Size | 40 Amps |
Tonnage | 3 Ton |
BTU/Tonnage | 36,000 BTU/3 Ton |
Mini-Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Ambient Temperature Range | -22 ~ 122 |
Height | 52-1/2" |
Width | 37-1/2" |
Depth | 16-2/5" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
Diversitech E Lite Equipment Pad 18" x 38" x 3" | |
SKU | EL1838-3 |
Weight (in lbs) | 16.000000 |
Brand/Manufacturer | Online Supply |
Height | 3" |
Width | 18" |
Depth | 38" |
Safety Information | PROPOSITION 65 WARNING |
Wall Mount Bracket for Condensers 30" | |
SKU | ACB-30 |
Weight (in lbs) | 9.200000 |
Brand/Manufacturer | Online Supply |
Length | 30" |
Height | 16" |
Width | 2" |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
