Delivers Maximum Performance at an Affordable Price
Heating & Cooling
Ductless Solution for two 250-400 & one 1,000-1,500 sq ft Rooms/Zones
Efficient Cooling from 5°F - 122°F Outdoor Temperatures
Efficient Heating from -22°F - 75°F Outdoor Temperatures
Tri-Zone/Room Compatible
Please Note: All sales of R410A products are final and non-refundable. As of January 1, 2026 you will not be able to install or replace a complete R410A system.
ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series ACiQ-36Z-HH-M4 / 2-ACIQ-09CC-HH-MB / ACIQ-24CC-HH-MB system, you get higher SEER and better low ambient (hyper heat) performance than the competition.
9k BTU Ceiling Cassette (up to 400 sq ft)
No Return Policy: All sales of this product are final and are non-refundable.
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
FEATURES
9,000 btu of Heating or Cooling
Dry and Fan modes also available
Good for a small room in most climates
4 Way Air Supply for consistent room coverage
Handheld remote included
Decorative Grille included
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

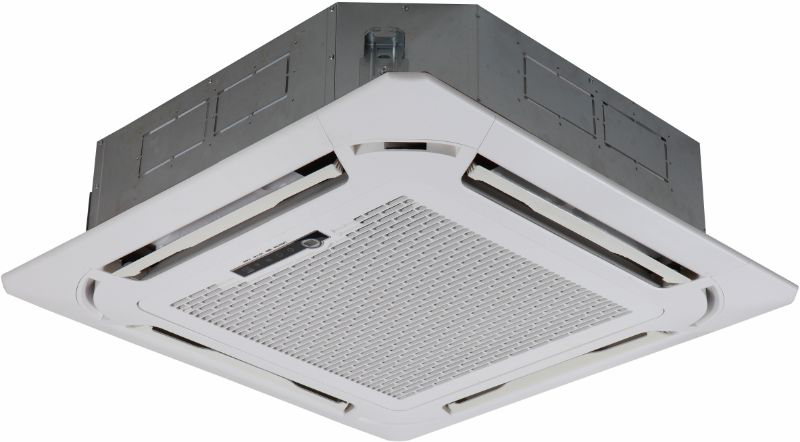

24k BTU Ceiling Cassette (1,000 - 1,500 sq ft)
No Return Policy: All sales of this product are final and are non-refundable.
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-24CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The 24k Ceiling cassette is large format (see specs below) and will require modifications to ceiling framing in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
FEATURES
24,000 btu of Heating or Cooling
Dry and Fan modes also available
Good for a medium room in most climates
4 Way Air Supply for consistent room coverage
Handheld remote included
Decorative Grille included
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
Equipment Pad
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
15 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
35 feet - 1/4" and 3/8" Line Set
This insulated refrigerant line set for mini split systems comes as a pair, including both the liquid line and suction line. It is used to connect the indoor air handler to the outdoor condenser. The line set is 35’ feet long. The liquid line has 1/4 inch outside diameter flared ends. The suction line has 3/8 inch outside diameter flared ends.
Features:
Insulated
Flared Line Ends
Heavy Duty Refrigerant Lines
50 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
25 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
30 feet - 1/4" and 3/8" Line Set
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 3/8 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 3/8 inch O.D. flared ends, suction line size 5/8 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Installation Kit for Condensers
4Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
3/4" x 6' Electrical Whip – SKU: 84138
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

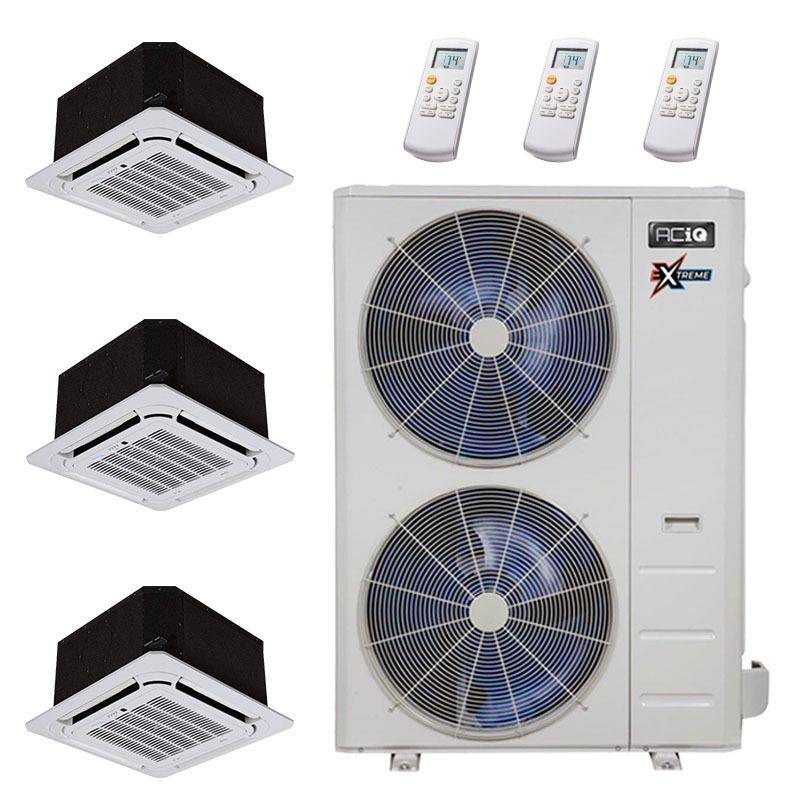

36,000 BTU ACiQ Multi Zone Condenser Extreme Series-R410A
Feature
Spec
SKU
ACiQ-36Z-HH-M4B
Refrigerant Charge
100'
Weight
255.070000
AHRI Certificate Number
207825582
Manufacturer
ACiQ
Product Features
Low Ambient Heating
HSPF
10.3
HSPF2
8.3
Cooling BTU
36,000 BTU
Heating BTU
37,000 BTU
Maximum CFM
4500
Decibel Level (dBA)
64
Electric Heat
Heat Pump
Energy Star
Yes
Refrigerant
R410A
SEER2
22.2
Compressor Type
Rotary
Liquid Line
1/4" (4)
Suction Line
3/8" (3); 1/2" (1)
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
60 Amps
Min. Breaker Size
40 Amps
Tonnage
3 Ton
BTU/Tonnage
36,000 BTU/3 Ton
Mini Split Type
Wall Mounted
Zone Compatibility
Multi Zone
Ambient Temperature Range
-22 ~ 122
Height
58.27"
Width
43.11"
Depth
19.49"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler - R410A
Feature
Spec
SKU
ACIQ-09CC-HH-MB
Weight
38.140000
Manufacturer
ACiQ
Controller
Wireless Included
Product Features
Low Ambient Heating
Cooling BTU
9,000 BTU
Heating BTU
9,800 BTU
Maximum CFM
352.94 CFM
Decibel Level (dBA)
As low as 32.5
Electric Heat
Heat Pump
Refrigerant
R410A
Capacity
Dehumidification Rate: 0.272 gal/hr
SEER2
20.5
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V 1 Phase 60Hz
Electric Phase Filter
Single Phase
Max Breaker Size
15
Min. Breaker Size
15
BTU/Tonnage
9,000 BTU/0.75 Ton
Mini Split Type
Ceiling Cassette
Zone Compatibility
Multi Zone
Length
22.44"
Height
10.24"
Width
22.44"
Depth
22.44"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 3/8" and 5/8" Line Ends - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 30 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 25 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 50 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 35 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
Refrigerant Line Set with 1/4" and 3/8" Line Ends - 15 feet
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
I got 2 wall units up and running last week and so far so good. They are keeping the main level at the desired temp in 20 degree outdoor weather. This week is supposed to get much colder so we'll see. I still have 2 more ceiling cassettes to put on this condenser, but they are going to be a lot more work.
Review bySteven P
Posted on
Amazing
Quality
100%
Service
100%
Price
100%
Doing great and just went through temperatures at -10. Heating was great and far better than the base board heat I had. My electric bills are down over 30% too!
Review byPaul
Posted on
Great service
Quality
100%
Service
100%
Price
100%
Prompt shipping, well protected from damage. Lowest price. Good customer support.
Review byCDA
Posted on
Great product
Quality
100%
Service
100%
Price
100%
I really like this brand for mini split systems. they have a wide range of BTU's and how many units you can put on them.
Review byS&M Heating & Cooling
Posted on
3rd system
Quality
100%
Service
100%
Price
100%
Having a very large ranch house, I choose to install 3 separate outdoor units, and 10 indoor wall units.
Install went smoothly, all units performed as expected, looking forward to savings in utility bills, only time will tell.
Review byBrian
Posted on
ACIQ Units
Quality
100%
Price
100%
Service
100%
Very helpful sales Rep. Davis. Good company to purchase from, great prices.
Review byJames
Posted on
great so far
Price
100%
Service
100%
Quality
100%
aciq nice and quit easy to install. good warranty just installed it couple weeks ago so far works great.
Review byronald
Posted on
No complaints
Quality
100%
Price
100%
Service
100%
No complaints from me. The process of identifying the type of system that I needed as well as the additional components that I wanted was very smooth and painless. I have used your site several times for finding and ordering mini split systems and each time has proven to be a simple process with quick delivery. Thanks!
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
