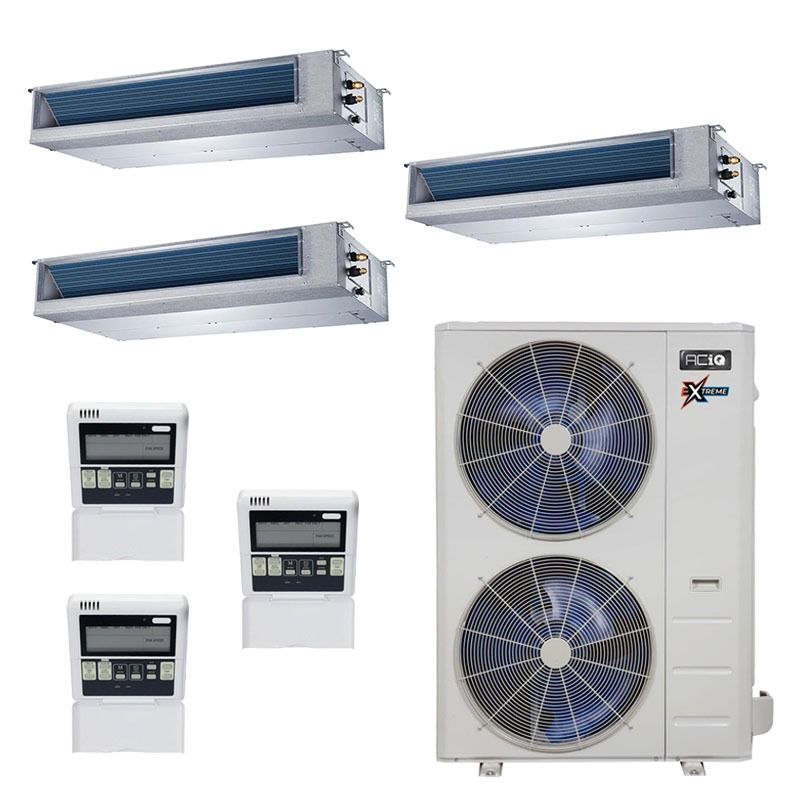

36,000 BTU 22.2 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+12+12

By

ACiQ

In stock

Model

ACiQ-36Z-HH-M4 / ACIQ-09CD-HH-MB / 2-ACIQ-12CD-HH-MB

ID

105254

Rating:
100% of 100
Availability: In Stock - Ready to Ship

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:207825582

Suggested Retail $8,241.09
Your Low Price $5,357.00


Please enter your room sizes to narrow your results

Room #1

Room #2

Room #3

Free Shipping

Required Fields *

Customize 36,000 BTU 22.2 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+12+12
36,000 BTU Multi Zone Condenser w/ Extreme Heat
36,000 BTU Multi Zone Condenser w/ Extreme Heat   + $3,132.00
9k BTU Concealed Duct (up to 400 sq ft)
9k BTU Concealed Duct (up to 400 sq ft)   + $725.00
12k BTU Concealed Duct (400 - 550 sq ft)
12k BTU Concealed Duct (400 - 550 sq ft)   + $750.00
12k BTU Concealed Duct (400 - 550 sq ft)
12k BTU Concealed Duct (400 - 550 sq ft)   + $750.00
Equipment Pad
36,000 BTU 22.2 SEER2 ACiQ  3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+12+12

$5,357.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing
Other Popular Systems
27,000 BTU 21 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System - 9+12+12
27,000 BTU 21 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System - 9+12+12
Rating:
100%
Suggested Retail $6,052.09
Special Price $3,904.00
36,000 BTU 20 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System - 9+12+12
36,000 BTU 20 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System - 9+12+12
Rating:
99%
Suggested Retail $6,912.09
Special Price $4,421.00
SAVE $2,897.55
36,000 BTU 22.2 SEER2 ACiQ  3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 12+12+12
SAVE $3,525.09
55,000 BTU 18.8 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+12+12
SAVE $2,148.09
27,000 BTU 21 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System - 9+12+12
SAVE $2,491.09
36,000 BTU 20 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System - 9+12+12

Description

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series ACiQ-36Z-HH-M4 / ACIQ-09CD-HH-MB / 2-ACIQ-12CD-HH-MB system, you get higher SEER and better low ambient (hyper heat) performance than the competition.

36,000 BTU ACiQ Multi Zone Condenser w/ Extreme Heat

OVERVIEW

ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ACiQ-36Z-HH-M4, you can have up to 4 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.

QUICK FACTS

  • 36,000 BTU, 21.5 SEER multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from 5°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Integrated Extreme Heat technology with base pan heater
  • Gold Fin full-protection coating on condenser coil
  • Quiet operation at even the highest workloads

36,000 BTU, 21.5 SEER

The 36,000 BTU, ACiQ-36Z-HH-M4 is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 45,000 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.5 SEER, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.

Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.


Extreme Heat Base Pan Heater Technology

Each ACiQ condenser has integrated Extreme Heat technology to maximize heat performance in extreme cold weather. Extended heat pump performance (HyperHeat) harnesses the power of inverter condenser with outdoor temp sensing, variable refrigerant flow and variable condenser fan speed to maximize heat extraction all the way down to -22°F. Plus, every Extreme Heat ACiQ condenser includes a base pan heater to keep ice from collecting on the condenser coil during heat pump operation.

ACIQ IntelliHeat Base Pan Heater TechnologyACIQ IntelliHeat Base Pan Heater Technology

ACIQ Quality ConstructionACIQ Quality Construction

Quality Construction

State-of-the-Art manufacturing is behind every ACiQ product, resulting in quiet, effective operation over a long service life. Most models have low ambient heating and cooling.


Highest Efficiency

ACiQ saves you money up front, but also over time by reducing energy bills. Every ACiQ condenser features a variable inverter twin rotary compressor, lowering wear and increasing performance. Compare specs against other brands in the same price category, and you will agree, ACiQ is the best value.

ACIQ Highest Efficiency CompressorACIQ Highest Efficiency Compressor

ACIQ Longer life, longer warrantyACIQ Longer life, longer warranty

Longer life, longer warranty

Intelligent design goes into every element of ACiQ’s manufacturing ensuring flawless performance for years. Low friction, variable inverter twin rotary compressors give bulletproof reliability. Register equipment at ACiQ.com to extend warranty protection to 7 years parts, 12 years compressor.


Installation and Maintenance

ACiQ multi zone condensers are pre-charged with R410-A refrigerant for 25' per air handler connection. In many cases, no additional refrigerant is needed. All units are run-tested at the factory for years of trouble-free performance. Troubleshooting is easy thanks to unit's self diagnosing control board with alerts that are sent to each connected air handler.

ACIQ Installation and MaintenanceACIQ Installation and Maintenance
9,000 BTU Concealed Duct ACiQ Mini-Split Air Handler

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.

The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.

Installation Considerations

Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.

FEATURES

  • 9,000 btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a smaller room in most climates
  • Wall mounted thermostat included

ACIQ Concealed DuctACIQ Concealed Duct

Concealed Duct

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings.  These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit.  Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location.  Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.




ACIQ Quiet Comfort Concealed DuctACIQ Quiet Comfort Concealed Duct

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

12,000 BTU Concealed Duct ACiQ Mini-Split Air Handler

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings. These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit. You run flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location. Depending on the capacity of the unit, up to 4 flex duct runs can be connected, perfect for a pair of small bedrooms or a master suite.

The design is extremely simple return air is brought in at the rear of the unit and supply (cooled or heated) air is pushed out the front by an almost-silent squirrel cage fan. You attach a pre-made manifold takeoff or field-fabricate plenums using ductboard. Using readily available supplies, the customization possibilities are endless.

Installation Considerations

Concealed duct system installations require a certain amount of pre-planning, and are similar in scope to a standard home HVAC installation. They are best used in new construction projects or additions. Installation will require flex ducting, register vents, plenums and installation supplies in addition to the equipment components. The Concealed Duct units have a factory-installed pump to lift the condensation. From there you will use PVC to construct a drain system to a safe wastewater location.

FEATURES

  • 12,000 btu of Heating or Cooling
  • Dry and Fan modes also available
  • Good for a smaller room in most climates
  • Wall mounted thermostat included

ACIQ Concealed DuctACIQ Concealed Duct

Concealed Duct

Concealed Duct air handlers give you all the advantages of a multi zone mini split, without any visible air handlers on your walls or ceilings.  These flexible units are designed to be concealed above the ceiling, below the floor, above a closet ceiling, above a hallway ceiling or behind a soffit.  Air distribution is achieved by using flex ducting from the concealed duct air handler to ceiling or wall registers in your desired location.  Using readily available supplies such as ductboard, duct takeoffs and flex ducting, you can create a flexible, economical solution for a wide variety of applications.




ACIQ Quiet Comfort Concealed DuctACIQ Quiet Comfort Concealed Duct

Quiet Comfort

Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.

Diversitech E Lite Equipment Pad 18" x 38" x 3"

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

  • High recycled plastic content
  • Subtle texture resists unit slide
  • Unaffected by UV or weather
  • Uniform ribbing transfers load evenly
  • Drillable for securing unit
  • Lightweight, yet rugged
Wall Mount Bracket for Condensers 30"

This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).

Features:

  • Steel: 10 GA
  • Powder-coated grey Finish
  • Load rating: 600 lbs per pair
  • Holes will accommodate anchors for installation
  • Warranty: 1 year
  • ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)

Product Specifications

More Information
36,000 BTU ACiQ Multi Zone Condenser w/ Extreme Heat
SKUACiQ-36Z-HH-M4B
Refrigerant Charge100'
Weight (in lbs)255.070000
AHRI Certificate Number207825582
Brand/ManufacturerACiQ
HSPF10.5
Cooling BTU36000 BTU
Heating BTU36000 BTU
Decibel Level (dBA)64
Electric HeatHeat Pump
Energy StarYes
RefrigerantR410A
SEER1 (Efficiency)21-22
SEER2 (Efficiency)22.2
EER13.5
Compressor TypeRotary
Liquid Line1/4" (4)
Suction Line3/8" (3); 1/2" (1)
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size60 Amps
Min. Breaker Size40 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Mini-Split TypeWall Mounted
Zone CompatibilityMulti Zone
Ambient Temperature Range-22 ~ 122
Height52-1/2"
Width37-1/2"
Depth16-2/5"
Warranty12 year compressor, 7 year parts with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
9,000 BTU Concealed Duct ACiQ Mini-Split Air Handler
SKUACIQ-09CD-HH-MB
Weight (in lbs)21.900000
Brand/ManufacturerACiQ
Cooling BTU9,000 BTU
Heating BTU9,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 27
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage9,000 BTU/0.75 Ton
Mini-Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height7.87"
Width27.56"
Depth19.92"
Warranty12 year compressor, 7 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
12,000 BTU Concealed Duct ACiQ Mini-Split Air Handler
SKUACIQ-12CD-HH-MB
Weight (in lbs)48.500000
Brand/ManufacturerACiQ
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Maximum CFM352.94
Decibel Level (dBA)As low as 26.5
Electric HeatHeat Pump
RefrigerantR410A
Liquid Line1/4"
Suction Line1/2"
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size15
Min. Breaker Size15
BTU/Tonnage12,000 BTU/1 Ton
Mini-Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height7.87"
Width27.56"
Depth19.92"
Warranty12 year compressor, 7 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
Diversitech E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight (in lbs)16.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

Reviews 9

Write Your Own Review
You're reviewing:36,000 BTU 22.2 SEER2 ACiQ 3-Zone Concealed Duct Mini Split System w/ Extreme Heat - 9+12+12
Your Rating

Questions and Answers

Customer Questions
Who makes ACiQ?
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
