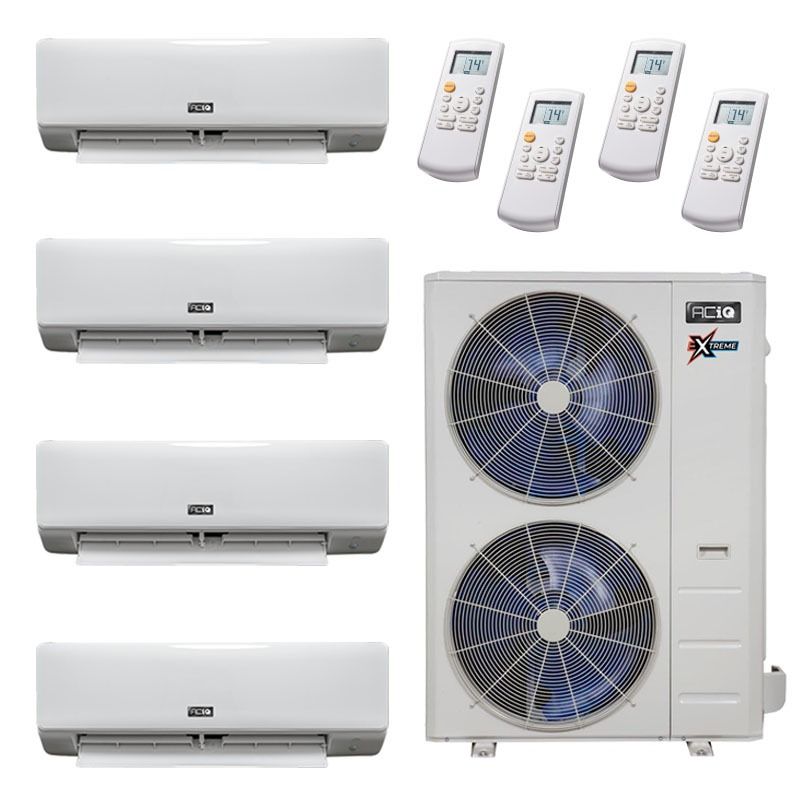

36,000 BTU 21.5 SEER ACiQ Stealth IntelliHeat 4-Zone Wall Mounted Mini Split System - 9+9+18+24

We Price Match!

Give our sales team a call at

123.123.1233 (Toll Free) or

123.111.2222 (International) and we'll

match any competitor's price.

Chat With Us!

By
ACiQ
Model
ACiQ-36Z-HH-M4 / 2-ACiQ-09W-HH-M / ACiQ-18W-HH-M / ACiQ-24W-HH-M
ID
84693
Availability: Ships in 2-4 Business Days

Authorized ACiQ Dealer

AHRI Certified

AHRI Number:206315651

Suggested Retail $5,638.00
As Low As $4,698.00
Bread Checkout

Free Shipping

Required Fields *

Customize 36,000 BTU 21.5 SEER ACiQ Stealth IntelliHeat 4-Zone Wall Mounted Mini Split System - 9+9+18+24
36,000 BTU ACiQ Stealth Multi Zone Condenser   + $2,854.00 View Item
36,000 BTU ACiQ Stealth Multi Zone Condenser   + $2,854.00
9,000 BTU ACiQ Stealth Multi Zone Air Handler   + $309.00 View Item
9,000 BTU ACiQ Stealth Multi Zone Air Handler   + $309.00
9,000 BTU ACiQ Stealth Multi Zone Air Handler   + $309.00 View Item
9,000 BTU ACiQ Stealth Multi Zone Air Handler   + $309.00
18,000 BTU ACiQ Stealth Multi Zone Air Handler   + $549.00 View Item
18,000 BTU ACiQ Stealth Multi Zone Air Handler   + $549.00
24,000 BTU ACiQ Stealth Multi Zone Air Handler   + $677.00 View Item
24,000 BTU ACiQ Stealth Multi Zone Air Handler   + $677.00
36,000 BTU 21.5 SEER ACiQ Stealth IntelliHeat 4-Zone Wall Mounted Mini Split System 9+9+18+24 - ACiQ-36Z-HH-M4 / 2-ACiQ-09W-HH-M / ACiQ-18W-HH-M / ACiQ-24W-HH-M

$4,698.00

Accessories for this product
Description

ACiQ's multi zone mini split systems are designed to bring intelligent technology to superior comfort, all at a reasonable cost. With the Stealth IntlliHeat multi zone series ACiQ-36Z-HH-M4 / 2-ACiQ-09W-HH-M / ACiQ-18W-HH-M / ACiQ-24W-HH-M system, you can rest assured that you are getting a state of the art system designed with you in mind.

36,000 BTU ACiQ Stealth Multi Zone Condenser

OVERVIEW

ACiQ is a brand that is designed to provide intuitive heating and cooling in almost any space and climate at an affordable cost. With the ACiQ-36Z-HH-M4, you can save outside space by having up to 4 air handlers run off a single condenser, and its intelligent technology will keep you supremely comfortable in your home.

QUICK FACTS

  • Intelligent comfort at an affordable cost
  • 36,000 BTU, 21.5 SEER multi zone heat pump condenser
  • Designed to function with up to 4 attached air handlers
  • Efficient cooling from -22°F to 122°F outdoor temperatures
  • Efficient heating from -22°F to 57°F outdoor temperatures
  • Integrated IntelliHeat basepan heater technology
  • Golden Fin full-protection coating
  • Quiet operation at even the highest workloads for a truly Stealth experience
36,000 BTU, 21.5 SEER

With a rated capacity of 36,000 BTU, the ACiQ-36Z-HH-M4 is designed to easily support up to 4 air handlers up to 1.25 times this rated easily, or 45,000 BTU across all air handlers. With a high efficiency rating of 21.5 SEER, this system is designed to intelligently save you money both up front and over the lifetime of the unit.

IntelliHeat Basepan Heater Technology

The ACiQ-36Z-HH-M4 has integrated IntelliHeat basepan heater technology, allowing the condenser to heat and cool down to -22°F, ensuring that any rated space in almost any climate will stay intuitively comfortable no matter how cold it gets. With traditional central split systems only heating down to around 35°F and at a much lower SEER rating, the ACiQ-36Z-HH-M4 will make sure that your comfort doesn't cost you a fortune to maintain.

Durability and Reliability

ACiQ condensers have heat exchangers that are covered in a durable Golden Fin full-protection coating, providing enhanced resistance to corrosion and general wear-and-tear, as well as preventing the buildup of rust and other undesirable particles. Paired with the integrated IntelliHeat basepan heater to make you’re your system runs throughout the year, the ACiQ-36Z-HH-M4 provides the reliability that gives you peace of mind in every season.

Installation and Maintenance

ACiQ multi zone condensers are precharged with enough R410-A refrigerant for up to a total of 98' of line set across all air handlers connected to the condenser, meaning that your condenser has been tested for leaks before it leaves the factory and that you won't need to add quite as much refrigerant as you would for a system that does not have a charge from the factory, saving you time and money during the installation process. Though the system is designed to be reliable, should your unit needs servicing, your contractor can easily help you diagnose the unit and assist you with any issues that may arise during or after the initial installation thanks to the unit's self-diagnosing control board with alerts that are sent to each connected air handler.
Although the condenser itself is precharged, please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. You will need a professional to add more refrigerant and vacuum the lines as needed to proceed with the installation and the unit does not include installation materials or air handlers, available in system bundles or available as an add-on item at an additional cost. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.

Warranty

The warranty on the ACiQ-36Z-HH-M4 is a 5 year parts and 7 year limited compressor warranty. With online registration and an installation following your state and local installation codes, the limited compressor warranty will increase to 10 years, giving you the peace of mind that you need to make sure your ACiQ system stays intelligent throughout its long life.

9,000 BTU ACiQ Stealth Multi Zone Air Handler

Enhanced Comfort

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home’s comfort. With the ACiQ-09W-HH-M multi zone air handler, the spaces you want to heat and cool will stay intuitively comfortable through the unit’s intelligent adjustments and features that customize your HVAC experience, all on one condenser.

  • Able to cover up to a small room in ideal conditions
  • 9,000 BTU wall mounted multi zone air handler with remote
  • Intelligent comfort at an affordable cost
  • Compatible with multi zone condensers to allow for heating and cooling multiple rooms on one condenser

Intelligent Heating and Cooling

The ACiQ-09W-HH-M air handler is designed with an LED display on the front of the unit to show you details about your unit, from temperature outputs to mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board should the need arise. This functionality can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well. Though the unit does not have integrated WiFi compatibility, you can use the Cielo Breeze WiFi thermostat found here to make your system compatible with any compatible smart home technology, allowing you to control your unit from anywhere in the world as longa as you have an Internet connection.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use the Cielo Breeze thermostat, you will need one per air handler that you wish to control wirelessly.

18,000 BTU ACiQ Stealth Multi Zone Air Handler

Enhanced Comfort

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home’s comfort. With the ACiQ-18W-HH-M multi zone air handler, the spaces you want to heat and cool will stay intuitively comfortable through the unit’s intelligent adjustments and features that customize your HVAC experience, all on one condenser.

  • Able to cover up to an average sized room in ideal conditions
  • 18,000 BTU wall mounted multi zone air handler with remote
  • Intelligent comfort at an affordable cost
  • Compatible with multi zone condensers to allow for heating and cooling multiple rooms on one condenser

Intelligent Heating and Cooling

The ACiQ-18W-HH-M air handler is designed with an LED display on the front of the unit to show you details about your unit, from temperature outputs to mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board should the need arise. This functionality can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well. Though the unit does not have integrated WiFi compatibility, you can use the Cielo Breeze WiFi thermostat found here to make your system compatible with any compatible smart home technology, allowing you to control your unit from anywhere in the world as longa as you have an Internet connection.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use the Cielo Breeze thermostat, you will need one per air handler that you wish to control wirelessly.

24,000 BTU ACiQ Stealth Multi Zone Air Handler

Enhanced Comfort

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home’s comfort. With the ACiQ-24W-HH-M multi zone air handler, the spaces you want to heat and cool will stay intuitively comfortable through the unit’s intelligent adjustments and features that customize your HVAC experience, all on one condenser.

  • Able to cover up to an average sized room in ideal conditions
  • 24,000 BTU wall mounted multi zone air handler with remote
  • Intelligent comfort at an affordable cost
  • Compatible with multi zone condensers to allow for heating and cooling multiple rooms on one condenser

Intelligent Heating and Cooling

The ACiQ-24W-HH-M air handler is designed with an LED display on the front of the unit to show you details about your unit, from temperature outputs to mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board should the need arise. This functionality can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well. Though the unit does not have integrated WiFi compatibility, you can use the Cielo Breeze WiFi thermostat found here to make your system compatible with any compatible smart home technology, allowing you to control your unit from anywhere in the world as longa as you have an Internet connection.
Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle. To use the Cielo Breeze thermostat, you will need one per air handler that you wish to control wirelessly.

Product Specifications
More Information
36,000 BTU ACiQ Stealth Multi Zone Condenser
Weight (in lbs) 255.070000
Manufacturer ACiQ
HSPF 10.5
Cooling BTU 36000 BTU
Heating BTU 36000 BTU
Decibel Level (dBA) 64
Electric Heat Heat Pump
Refrigerant R410A
SEER 21
EER 13.5
Compressor Type Rotary
Liquid Line 1/4" (4)
Suction Line 3/8" (3); 1/2" (1)
Electrical 208/230V 1 Phase 60 Hz
Max Breaker Size 50 Amps
Min. Breaker Size 35 Amps
Tonnage 3 Ton
System Tonnage 3 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Height 52-1/2"
Width 37-1/2"
Depth 16-2/5"
Warranty 5 year parts and 12 year compressor warranty with online registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety Information PROPOSITION 65 WARNING
9,000 BTU ACiQ Stealth Multi Zone Air Handler
Weight (in lbs) 22.700000
Manufacturer ACiQ
Cooling BTU 9000 BTU
Heating BTU 10000 BTU
Maximum CFM 247
Decibel Level (dBA) 38
Electric Heat Heat Pump
Refrigerant R410A
SEER 25
Liquid Line 1/4"
Suction Line 3/8"
Electrical 208/230V 1 Phase 60 Hz
Tonnage 0.75 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Height 11-1/2"
Width 28-1/2"
Depth 7-2/5"
Warranty 5 year parts and 12 year compressor warranty with online registration
Safety Information PROPOSITION 65 WARNING
18,000 BTU ACiQ Stealth Multi Zone Air Handler
Weight (in lbs) 32.190000
Manufacturer ACiQ
Cooling BTU 18000 BTU
Heating BTU 18000 BTU
Maximum CFM 449
Decibel Level (dBA) 43
Electric Heat Heat Pump
Refrigerant R410A
SEER 20
Liquid Line 1/4"
Suction Line 1/2"
Electrical 208/230V 1 Phase 60 Hz
Tonnage 1.5 Ton
System Tonnage 1.5 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Height 12-3/5"
Width 38"
Depth 8-1/2"
Warranty 5 year parts and 12 year compressor warranty with online registration
Safety Information PROPOSITION 65 WARNING
24,000 BTU ACiQ Stealth Multi Zone Air Handler
Weight (in lbs) 39.680000
Manufacturer ACiQ
Cooling BTU 24000 BTU
Heating BTU 24000 BTU
Maximum CFM 706
Decibel Level (dBA) 48
Electric Heat Heat Pump
Refrigerant R410A
SEER 20
Liquid Line 3/8"
Suction Line 5/8"
Electrical 208/230V 1 Phase 60 Hz
Tonnage 2 Ton
System Tonnage 2 Ton
Mini-Split Type Wall Mounted
Zone Compatibility Multi Zone
Height 13-1/5"
Width 42-1/2"
Depth 8-9/10"
Warranty 5 year parts and 12 year compressor warranty with online registration
Safety Information PROPOSITION 65 WARNING
