COMPETITIVE PRICING
We sell products at wholesale pricing. No markups, no hidden fees. Our average customer saves BETWEEN THREE TO SIX THOUSAND DOLLARS
-That's the Direct Advantage!
In stock
Save up to 70% off Local HVAC Prices
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.

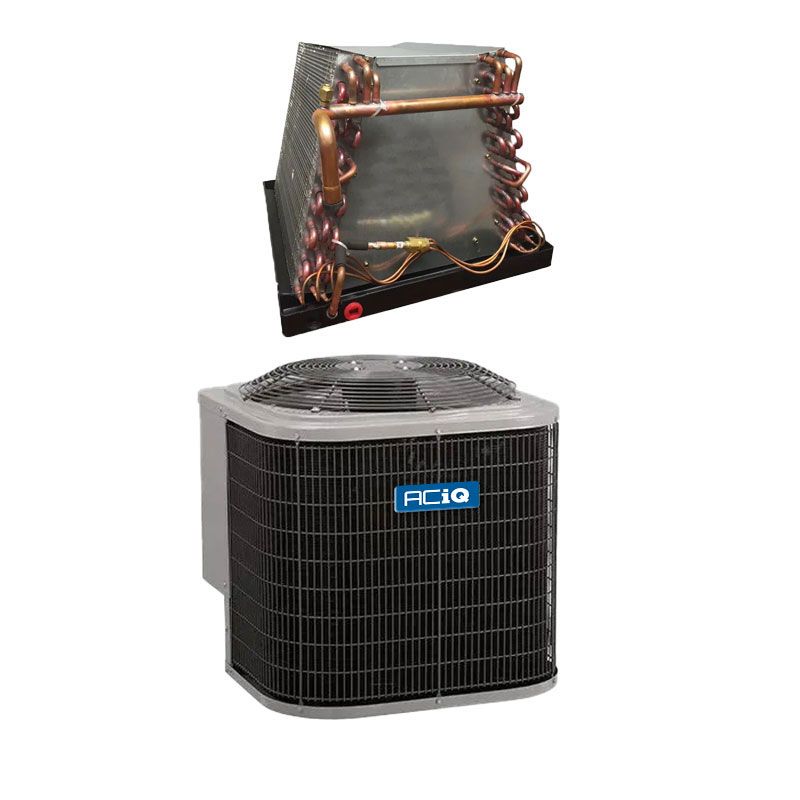

The ACiQ R4A5S48AKAWA is a standard AC-only condenser. Designed with comfort in mind and an inexpensive but higher-than-standard efficiency option for nearly any application, this condenser is considered a good all-around option for almost any application.
The ACiQ R4A5S48AKAWA air conditioner condenser has an output of 4 tons, generally enough to cool up to a medium-sized house in ideal climates. In many system configurations, the tonnage of the unit's paired coil or air handler will be larger in tonnage than this condenser, which maintains the efficiency of the unit. Please note that this condenser cannot function or provide any sort of heating on its own, and it needs an indoor coil or air handler to work. If you have any questions, please contact us.
The ACiQ R4A5S48AKAWA air conditioner condenser is rated at 13.8 SEER2, making it between 5-7% more efficient than standard 13.4 SEER2 units, saving you money in electric bills over the entire lifetime of your unit.
ACiQ offers a 10 year parts warranty on this condenser. For these warranties to be upheld, the unit must be installed following your state and local codes, a new and certified coil must be installed at the same time, and the entire system must be registered online through the manufacturer.
The cabinet of ACiQ units are extremely durable. On the R4A5S48AKAWA, there are reinforced corner posts and the internals of the unit are protected by an additional inlet grille, all to provide enhanced protection to the unit.
M-Series coils are designed to be a perfect fit for many mobile and manufactured home HVAC split system applications. Designed with a sweat fit/braze for a sturdy, compact design, the 1048A-MH evaporator coil allows for a quick and easy installation process with compatible equipment.
The 1048A-MH evaporator coil is rated to be compatible with condensers with up to 4 tons of heating and cooling. With its ability to be installed with either an AC-only condenser or a heat pump condenser, this unit is ideal for many applications. In some packages, this coil will be larger than its paired condenser, which will increase the overall efficiency of the entire unit, but the coil should never be smaller than its paired condenser.
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
30 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
---|---|
SKU | LS38783830 |
Weight (in lbs) | 30.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Suction Line Insulation Thickness | 3/8" |
Length | 30 feet |
Safety Information | PROPOSITION 65 WARNING |
4 Ton 13.8 SEER2 ACiQ Air Conditioner Condenser | |
SKU | R4A5S48AKAWA |
Weight (in lbs) | 198.000000 |
Brand/Manufacturer | ACiQ |
Replaces | R4A448GK, R4A548GK |
Equivalent | Carrier Equivalent: 24ACC448A003 |
Cooling BTU | 48,000 |
Maximum CFM | 1435 |
Decibel Level (dBA) | 76 |
Motor RPM | 1100 |
Horsepower | .25 |
Energy Star | Yes |
Refrigerant | R410A |
SEER2 (Efficiency) | 13.8 |
Condenser Stages | Single Stage |
Compressor Type | Scroll |
Liquid Valve Size | 3/8" |
Suction Valve Size | 7/8" |
Electrical | 208 / 230 V. 1 Phase 60 Hz |
Max Breaker Size | 50 Amps |
Min. Breaker Size | 32.8 Amps |
Amperage Requirement | 50 Amps |
Tonnage | 4 Ton |
Height | 31 11/16" |
Width | 31 3/16" |
Depth | 32 3/16" |
Warranty | 10 Year Parts with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
4 Ton M-Series Mobile Home Evaporator Coil - 1048A-MH | |
SKU | 1048A-MH |
Weight (in lbs) | 35.000000 |
Replaces | M48E341 |
Equivalent | ADP Equivalent: M48E341 |
Configuration | Upflow / Downflow |
Refrigerant | R410A or R22 |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Tonnage | 4 Ton |
Style | A-Coil |
Height | 19" |
Width | 18" |
Depth | 19.5" |
Warranty | 5 Year Manufacturer Warranty |
Safety Information | PROPOSITION 65 WARNING |
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
SKU | LS38783850 |
Weight (in lbs) | 30.000000 |
Brand/Manufacturer | Online Supply |
Liquid Line | 3/8" |
Suction Line | 7/8" |
Suction Line Insulation Thickness | 3/4" |
Length | 50 feet |
Safety Information | PROPOSITION 65 WARNING |
