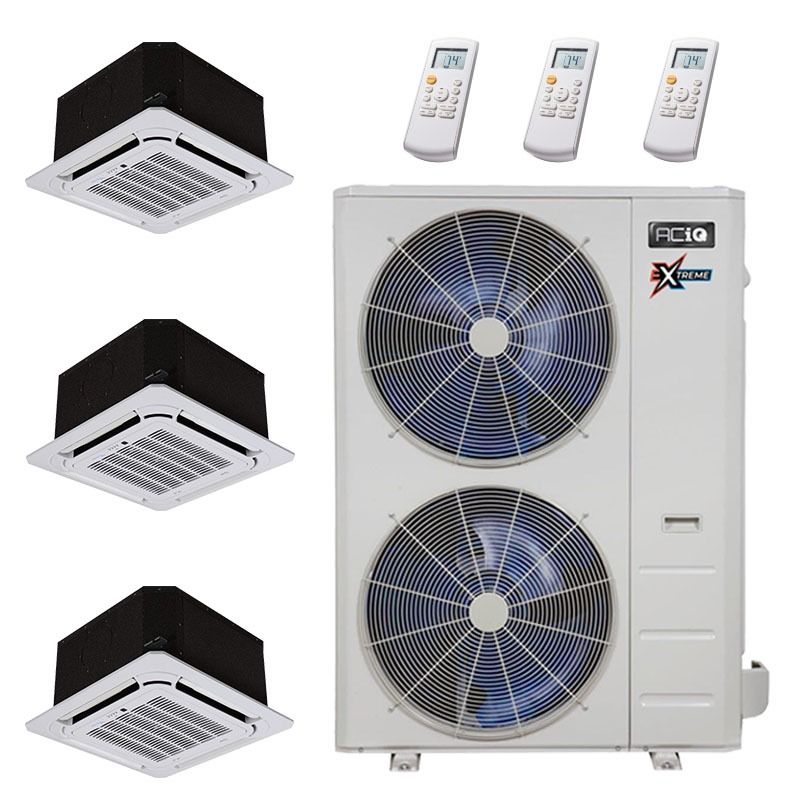

ACiQ's multi zone mini split systems are designed to give you intelligent technology and superior comfort, all at a reasonable cost. With the ACiQ Extreme Heat multi zone series ACiQ-48Z-HH-M5B / 2-ACIQ-09CC-HH-MB / ACIQ-18CC-HH-MB system, you get higher SEER and better low ambient (hyper heat) performance than the competition.
9,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler
Mini Split systems are great, but what if you don't want the air handler on your wall? ACiQ offers the ACIQ-09CC-HH-MB ceiling cassette air handler for customers who want a more hidden appearance and more centralized air distribution. Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit, and come with an included hand-held remote control. Once the ceiling cassette is mounted in the ceiling, only the grille is visible for the most understated appearance.
Installation Considerations
Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. These units will fit between 24 on-center joists, but are too large to fit between 16 on-center joists without modifying the structure of your framing. Additionally, Ceiling Cassettes have factory-installed, onboard pumps to lift the condensation produced by the unit during cooling. The pump can lift the condensation up to 14. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
FEATURES
9,000 btu of Heating or Cooling
Dry and Fan modes also available
Good for a small room in most climates
4 Way Air Supply for consistent room coverage
Handheld remote included
Decorative Grille included
Ceiling Cassette
Flush-mounted Ceiling Cassettes offer the most understated appearance of any ductless air handler type. They can be centrally located in the room, and deliver conditioned air in all four directions, with return air being brought in through the center. Ceiling Cassettes include a factory installed condensation pump.
Quiet Comfort
Every ACiQ system is precision engineered to quickly achieve set temperature and hold it there, no matter what the weather is outside. With whisper quiet indoor and outdoor units, ACiQ never intrudes on your peace and quiet.
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Condensers 30"
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
Steel: 10 GA
Powder-coated grey Finish
Load rating: 600 lbs per pair
Holes will accommodate anchors for installation
Warranty: 1 year
ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
Product Specifications
More Information
48,000 BTU ACiQ Multi Zone Condenser Extreme Series
SKU
ACIQ-48Z-HH-M5B
Refrigerant Charge
125'
Weight
269.840000
AHRI Certificate Number
207825585
Manufacturer
ACiQ
Product Features
Low Ambient Heating
HSPF
9.8
HSPF2
7.6
Cooling BTU
48,000 BTU
Heating BTU
49,000 BTU
Maximum CFM
450
Decibel Level (dBA)
65
Electric Heat
Heat Pump
Energy Star
Yes
Refrigerant
R410A
SEER2
21.8
Compressor Type
Rotary
Liquid Line
1/4" (5)
Suction Line
3/8" (3); 1/2" (2)
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
50 Amps
Min. Breaker Size
42 Amps
Tonnage
4 Ton
BTU/Tonnage
48,000 BTU/4 Ton
Mini Split Type
Wall Mounted
Zone Compatibility
Multi Zone
Height
58.27"
Width
43.11"
Depth
19.49"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
9,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler
SKU
ACIQ-09CC-HH-MB / ACIQ-CC-GRILLE
Weight
38.140000
Manufacturer
ACiQ
Controller
Wireless Included
Product Features
Low Ambient Heating
Cooling BTU
9,000 BTU
Heating BTU
9,800 BTU
Maximum CFM
352.94 CFM
Decibel Level (dBA)
As low as 32.5
Electric Heat
Heat Pump
Refrigerant
R410A
Capacity
Dehumidification Rate: 0.272 gal/hr
SEER2
20.5
Liquid Line
1/4"
Suction Line
3/8"
Electrical
208/230V 1 Phase 60Hz
Electric Phase Filter
Single Phase
Max Breaker Size
15
Min. Breaker Size
15
BTU/Tonnage
9,000 BTU/0.75 Ton
Mini Split Type
Ceiling Cassette
Zone Compatibility
Multi Zone
Length
22.44"
Height
10.24"
Width
22.44"
Depth
22.44"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Ceiling Cassette ACiQ Mini Split Air Handler
SKU
ACIQ-18CC-HH-MB / ACIQ-CC-GRILLE
Weight
46.960000
Manufacturer
ACiQ
Controller
Wireless Included
Product Features
Low Ambient Heating
Cooling BTU
18,000 BTU
Heating BTU
18,000 BTU
Maximum CFM
562.35
Decibel Level (dBA)
As low as 35.5
Electric Heat
Heat Pump
Refrigerant
R410A
Capacity
Dehumidification Rate: 0.586 gal/hr
Liquid Line
1/4"
Suction Line
1/2"
Electrical
208/230V 1 Phase 60Hz
Electric Phase Filter
Single Phase
Max Breaker Size
25
Min. Breaker Size
20
BTU/Tonnage
18,000 BTU/1.5 Ton
Mini Split Type
Ceiling Cassette
Zone Compatibility
Multi Zone
Height
10.25"
Width
22.5"
Depth
22.5"
Warranty
12 year compressor, 7 year parts with online registration
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
ACiQ is made by one of the largest HVAC manufacturers in the world. With 150,000 employees in over 195 countries, their products improve the lives of millions of people around the globe. Their manufacturing is state of the art, with robotic assembly and computer assisted quality control. ACiQ has an extremely low rate of warranty return. With the features, performance and price it's the best value you can get on a mini split.
Is ACiQ better than Mitsubishi?
Mitsubishi makes great equipment, certainly. They were first to sell mini splits in the US, and they have a solid reputation. Yet ACiQ has higher SEER ratings, longer warranty, and extreme weather performance all the way down to -22! You can spend more on a mini split, but you can't get better value.
Who owns ACiQ?
1HVAC Energy is part of a family of companies with 80 years in the industry and a long reputation of putting customers first. They own ACiQ as well as a number of other quality brands.
Who will service it if something goes wrong?
You get lifetime phone support with every ACiQ mini split. Many problems can be handled by our experts without having to call in a serviceperson. If you need a serviceperson, ACiQ shares a manufacturer with Carrier mini splits. This means that highly trained technicians across the country are very familiar with these units.
