In stock
AHRI Number:210857395

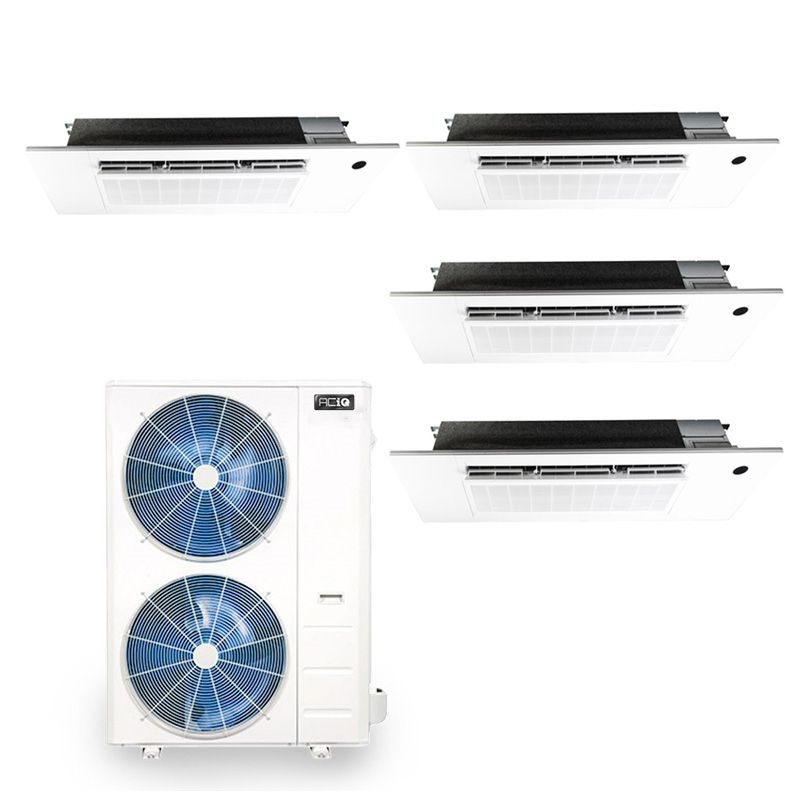

ACiQ's Energy Star multi zone mini split systems are designed to give you maximum efficiency at a lower cost than the Max Heat models. The ES-55Z-M5/SCC-0609-HH-M-3/SCC-1218-HH-M Energy Star system provides heat down to -13 degrees and cooling as high as 122 degrees outside temperatures, all at a very competitive price.
Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.
Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.
Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.
Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling cassette is designed to fit between 16” on center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
ACiQ is the smart solution to adaptive heating and cooling in almost any space and climate -all at an affordable cost. With the ES-55Z-M5B, you can have up to 5 air handlers run off a single condenser, saving space outside and keeping you perfectly comfortable in your home.
The 55,000 BTU, ES-55Z-M5 is designed to easily support up to 4 air handlers at up to 1.25 times the condenser BTU rating, or 68,750 BTU across all air handlers. This adaptive, inverter condenser is constantly self-adjusting to provide the precise amount of heating or cooling needed to maintain your desired temperature in each room or zone. You can set different temperatures room by room, even turn off heating and cooling in unused areas. This, combined with a high efficiency rating of 21.3 SEER2, means you are buying a system designed to intelligently save you money both up front and over the lifetime of the unit.
Although the condenser is pre-charged, please note that this model of equipment does not have quick connect line set connectors and is not a self-install unit. You will need a professional to add more refrigerant and vacuum the lines as needed. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section to the right of this text. For all multi zone ACiQ condensers, a minimum of two air handlers is needed for the unit to function.
Slim Ceiling Cassettes give you the advantages of a traditional cassette, but in a slimmer profile designed to fit between 16”-on-center joists. This means an easier installation in many cases.
Slim Ceiling Cassettes have a one-way air delivery, taking in return air along one edge and delivering conditioned air out the other. Traditional ceiling cassettes send conditioned air out in 4 directions and take return air in at the center.
Slim Ceiling Cassette air handlers provide the same high-efficiency heating and cooling of a regular wall-mounted unit and come with a hand-held remote control. Once mounted in the ceiling, only the grille is visible for the most understated appearance.
Slim Ceiling Cassettes are flush-mounted, which requires removal of enough ceiling material to create a cavity for the unit. The Slim Ceiling cassette is designed to fit between 16” on center joists, and the narrow profile means no changes to your framing will be required in most cases. Additionally, Ceiling Cassettes have factory-installed, onboard condensate pumps to lift the condensation up to 14 inches. From there, it will be necessary to construct a PVC drain system to route the condensation to a safe wastewater location. Refrigerant and wiring connections are the same as the wall mounted units.
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
This wall mount bracket is perfect for outdoor condensers. The length of the wall bracket arms are 30" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
12,000/18,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler | |
---|---|
SKU | SCC-1218-HH-M / SCC-GRILLE-0618 |
Weight (in lbs) | 43.870000 |
Brand/Manufacturer | ACiQ |
Controller | Wireless Included |
Cooling BTU | 16700 BTU |
Heating BTU | 20000 BTU |
Maximum CFM | 400 |
Decibel Level (dBA) | 35 |
Electric Heat | Heat Pump |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
BTU/Tonnage | 18,000 BTU/1.5 Ton |
Mini-Split Type | Ceiling Cassette |
Zone Compatibility | Multi Zone |
Height | 8.98" |
Width | 50.31" |
Depth | 13.19" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources | |
Safety Information | PROPOSITION 65 WARNING |
55,000 BTU ACiQ Multi Zone Condenser | |
SKU | ES-55Z-M5B |
Refrigerant Charge | 125' |
Weight (in lbs) | 257.280000 |
AHRI Certificate Number | 210857395 |
Brand/Manufacturer | ACiQ |
HSPF2 | 9.1 |
Cooling BTU | 55000 BTU |
Heating BTU | 55000 BTU |
Maximum CFM | 4500 |
Decibel Level (dBA) | 62 |
Electric Heat | Heat Pump |
Energy Star | Yes |
Refrigerant | R410A |
SEER2 (Efficiency) | 21.3 |
Compressor Type | Rotary |
Liquid Line | 1/4" (5) |
Suction Line | 3/8" (3); 1/2" (2) |
Electrical | 208/230V 1 Phase 60 Hz |
Phase | Single Phase |
Max Breaker Size | 60 Amps |
Min. Breaker Size | 40 Amps |
BTU/Tonnage | 55,000 BTU/4.5 Ton |
Zone Compatibility | Multi Zone |
Operating Mode | Cooling, Heating |
Height | 52.48" |
Width | 37.48" |
Depth | 16.34" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
6,000/9,000 BTU Slim Ceiling Cassette ACiQ Mini Split Air Handler | |
SKU | SCC-0609-HH-M / SCC-GRILLE-0618 |
Weight (in lbs) | 43.870000 |
Brand/Manufacturer | ACiQ |
Controller | Wireless Included |
Cooling BTU | 9000 BTU |
Heating BTU | 10900 BTU |
Maximum CFM | 341.18 |
Decibel Level (dBA) | As low as 31 |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 3/8" |
Electrical | 208/230V 1 Phase 60Hz |
Phase | Single Phase |
BTU/Tonnage | 9,000 BTU/0.75 Ton |
Mini-Split Type | Ceiling Cassette |
Zone Compatibility | Multi Zone |
Height | 8.98" |
Width | 50.31" |
Depth | 13.19" |
Warranty | 12 year compressor, 7 year parts with online registration |
Resources | |
Safety Information | PROPOSITION 65 WARNING |
Diversitech E Lite Equipment Pad 18" x 38" x 3" | |
SKU | EL1838-3 |
Weight (in lbs) | 16.000000 |
Brand/Manufacturer | Online Supply |
Height | 3" |
Width | 18" |
Depth | 38" |
Safety Information | PROPOSITION 65 WARNING |
Wall Mount Bracket for Condensers 30" | |
SKU | ACB-30 |
Weight (in lbs) | 9.200000 |
Brand/Manufacturer | Online Supply |
Length | 30" |
Height | 16" |
Width | 2" |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
