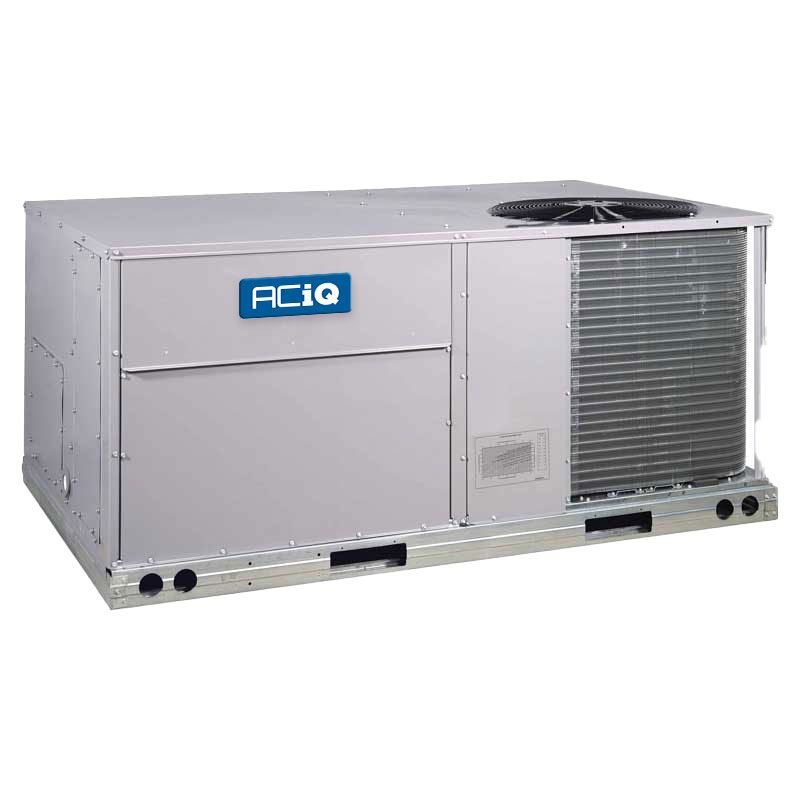

ACiQ 6 Ton 150,000 BTU Commercial Gas/Electric Packaged Unit - 208/230V 3 Phase

Features

• 6 Ton, 12.7 IEER, 11.0 EER
• Up to 150,000 heating BTUs with 80-82% efficiency
• Single stage cooling capacity control
• Redundant gas valve with single heating stage
• Induced draft combustion
• R-410A refrigerant
• Solid-state electronic direct spark ignition system
• Field-convertible from vertical to horizontal airflow
• Pre-painted exterior panels and tested to 500 hours salt spray protection
• Fixed refrigerant metering system
• Fully insulated cabinet
• Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
• Cooling operating range from 40°F up to 115°F
• Access panels with easy grip handles and no-strip screw feature
• Two-inch disposable return air filters
• Tool-less filter access door
• Standard belt drive, constant torque motor
• Advanced terminal board for simple safety circuit troubleshooting and control box arrangement
• Provisions for thru-the-bottom power entry capability
• Single point gas and electric connections
• Full perimeter base rail with built-in rigging adapters and fork truck slots
• Scroll compressors with internal line-break overload protection
• Copper tube, aluminum fin coils
• 24v control circuit protected with resettable circuit breaker
• Permanently lubricated evaporator-fan motor
• Permanently lubricated, totally enclosed, shaft-down condenser motors
• Low pressure, freeze protection, and high pressure switches
• Exclusive IGC anti-cycle protection for gas heat operation
• Flame roll-out safety protector
• Liquid line filter drier
