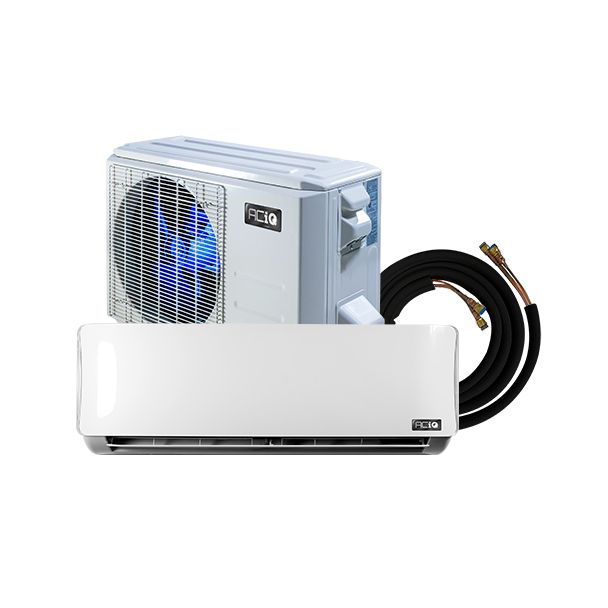

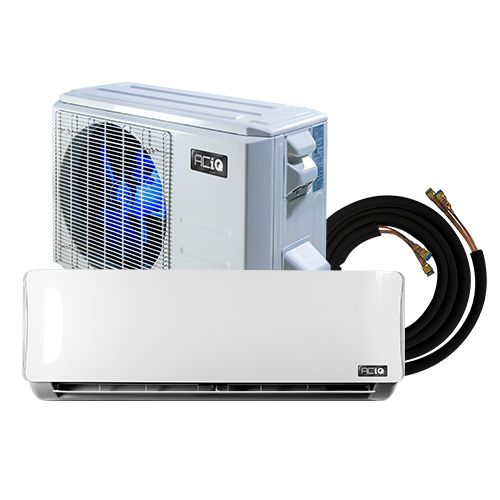

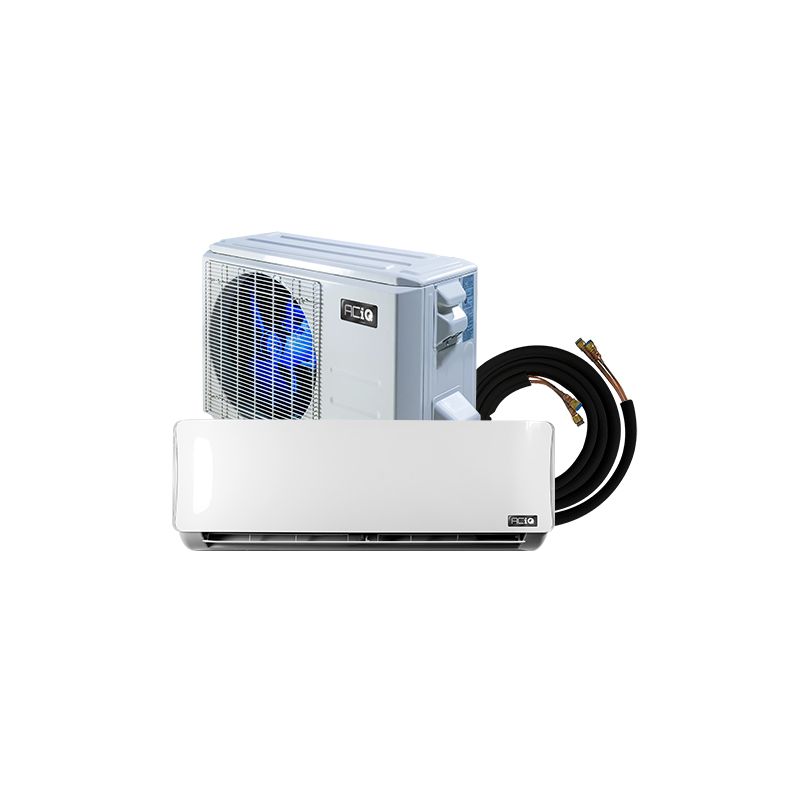

9,000 BTU 19 SEER ACiQ Single Zone Mini Split Wall Mounted System w/ Line Set - 115V

OVERVIEW

The ACiQ Single Zone series ACiQ-09Z-HP115 heat pump condenser features inverter technology allowing for superior, adaptive performance. Whether you are in cooling or heat mode, the ACiQ-09Z-HP115B uses as little power as possible without sacrificing comfort. That's why we say that ACiQ brings intelligence to your heating and cooling needs.

QUICK FACTS

• Intelligent comfort at an affordable cost
• Ideal for up to a small room (depending on climate)
• 9,000 BTU, 21.5 SEER2 wall mounted mini split
• Efficient cooling from 5 F to 122 F outdoor temperatures
• Efficient heating from 5 F to 86 F outdoor temperatures
• Gold Fin full-protection coating
• Quiet operation at even the highest workloads

9,000 BTU, 21.5 SEER2

At a rated capacity of 9,000 BTU, the output of the ACiQ-09Z-HP115B when paired with a matching air handler can easily cover a small to medium room in ideal climates. Thanks to the unit's high-efficiency rotary compressor and an inverter-integrated motor, the ACiQ-09Z-HP115B has an efficiency of 21.5 SEER2. With such a high system 21.5 SEER2 rating, the system can heat and cool almost any space suitable for its output much more efficiently than most standard central split systems.

Please note that this model of equipment does not have quick connect line set connectors and is not a DIY unit. Installation materials such as line sets, control wire, drain hose, whip and disconnect are not included, but are available at additional cost in the Accessories section on this page. You will need a professional to add more refrigerant and vacuum the lines as needed. The automated cleaning function will clean your system, but it is recommended to periodically clean the unit's filters manually.

OVERVIEW

ACiQ is a brand designed to bring intelligence to purchasing, installing, and maintaining your home's comfort. The ACiQ-09W-HP115B single zone air handler can handle smaller spaces using adaptive technology to constantly monitor and maintain your setpoint temperature as weather conditions change through day and night.

• Able to cover up to a small room in ideal conditions
• 9,000 BTU wall-mounted air handler with remote
• Intelligent comfort at an affordable cost

Intelligent Heating and Cooling

The ACiQ-09W-HP115B air handler is designed with a soft LED display on the front of the unit giving you information at a glance. The display shows room temperature by default but can also show temperature setpoint changes and mode changes. To ensure your unit runs properly throughout its lifetime, this display will also show any error codes from its self-diagnosing control board. The display can be switched off if desired, and the included smart remote has a built-in LCD display to show these notifications as well.

WiFi Options

ACiQ is WiFi ready! The wall mounted air handlers come with everything you need to control your home's heating and cooling via smart device (iOS or Android) from anywhere in the world. ACiQ is also compatible with Amazon Alexa and Google Assistant.

Please note that in order to function, this air handler must be installed with a condenser and other installation equipment, available at an additional cost if not already included in this product bundle.

E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.

• High recycled plastic content
• Subtle texture resists unit slide
• Unaffected by UV or weather
• Uniform ribbing transfers load evenly
• Drillable for securing unit
• Lightweight, yet rugged

No Return Policy

All sales of this product are final and are non-refundable.

This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.

• 17” Arm Length
• Weight capacity of 220 lbs per arm
• Bolts and anti-vibration washers included

No Return Policy

All sales of this product are final and are non-refundable.
