Amana 15,000 BTU PTAC Heat Pump with 2.5KW Electric Heater 230V - R410A

Amana 15,000 BTU PTAC Heat Pump with 2.5KW Electric Heater 230V - R410A
Customer reviews
Rating:
5 out of 5
Out of stock
By

Amana

Out of stock
Model

PTH153K25AXXX

ID

5646

OVERVIEW

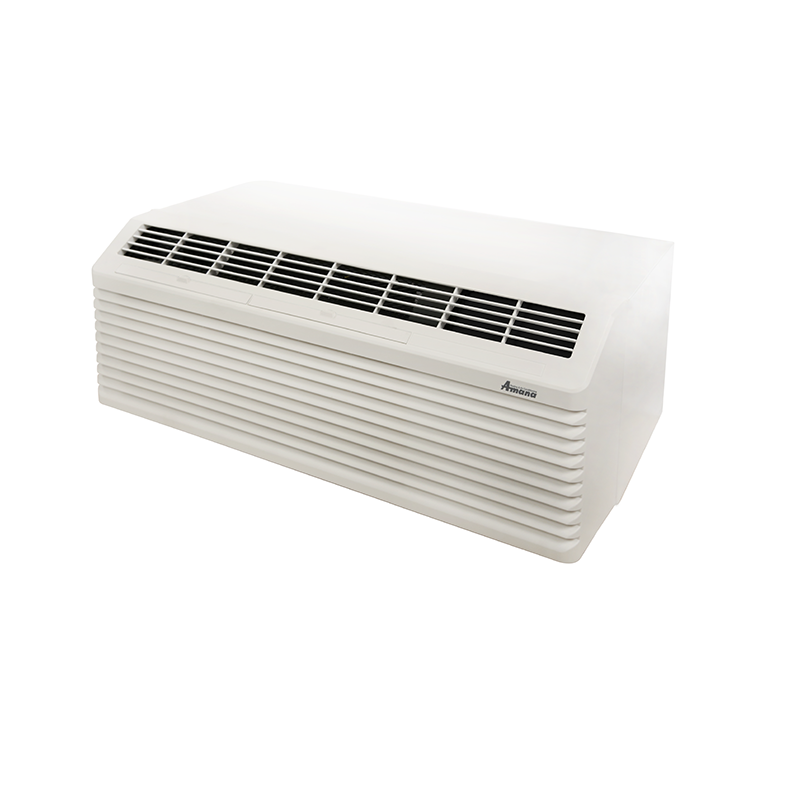

The Amana K Series Model PTAC air conditioner comes equipped with an electric heater, allowing you to stay warm all year round. Its compact size makes it perfect for small living areas, and it features Bluetooth and RF connectivity that can be accessed via the Amana brand mobile app, enabling you to use the Eden Energy Management System to modify settings and timing. This unit provides 14,200 BTUs of heating and cooling, requires 208-230V of power at 15 amps, and needs a NEMA 6-15P receptacle to power the unit and the included 2.5kw electric heater. Amana's PTACs use the environmentally friendly R-410a refrigerant. You can find the Wall Sleeve and exterior grille under the Accessories section. With a 9.9 EER rating, Amana's unit is an excellent choice for new construction or as a replacement for an existing unit.

QUICK FACTS

  • Cooling and Heating: The PTAC air conditioner is capable of both cooling and heating the room, providing year-round comfort to occupants.
  • High Efficiency: The K Series PTAC air conditioner is designed to be highly efficient, with an energy efficiency ratio (EER) of up to 13.0. This can help to reduce energy costs and save money on utility bills.
  • Quiet Operation: The unit is designed to operate quietly, with noise levels as low as 51 decibels (dB). This can help to ensure a peaceful and comfortable environment for occupants.
  • Easy to Use Controls: The PTAC air conditioner is equipped with an easy-to-use control panel, allowing users to adjust the temperature and fan speed settings as desired.
  • Durable Construction: The unit is built to withstand heavy use, with a robust construction that can withstand the demands of commercial applications.
  • Digital Display: The PTAC air conditioner features a digital display that shows the current temperature and other settings, making it easy to monitor and adjust the unit as needed.
  • Multiple Operating Modes: The unit offers multiple operating modes, including fan-only, cool, heat, and auto. This allows users to select the mode that best suits their needs.
  • Remote Control: The PTAC air conditioner comes with a remote control, allowing users to adjust the settings from across the room.
  • Optional Features: The unit can be equipped with optional features, such as a built-in heater or a fresh air vent, depending on the needs of the application.
  • Warranty

    1 Year Unit Replacement / 5 Years Parts Warranty

More Information
Amana 15,000 BTU PTAC Heat Pump with 2.5KW Electric Heater 230V - R410A
FeatureSpec
SKUPTH153K25AXXX
Weight (in lbs)125
Brand/ManufacturerAmana
UPC663051673304
Cooling BTU14,200
Maximum CFM360
Electric Heat2.5 Kilowatts
Energy StarNo
RefrigerantR410A
Electrical230 V. 1 Phase 60 Hz
Max Breaker Size15 amps
BTU/Tonnage15,000 BTU/1.25 Ton
Height16"
Width42"
Depth21.5"
Warranty1 Year Unit Replacement / 5 Years Parts Warranty
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Very happy
    Price
    100%
    Service
    100%
    Quality
    100%
    We're very happy with our purchase of a ptac heating/cooling unit for our new sunroom. Everything we ordered arrived together & in great condition. It was installed with no problems, & even though we've only had it on for a few days, it's been working great. It was a weight off our shoulders during this build!



    Your customer assistance people were very helpful when I needed them, and I'd like to give them some extra recognition. We’re happy we chose HVAC Direct to do business with.

    Review by

    Posted on

  2. Great
    Quality
    100%
    Price
    100%
    Service
    100%
    Great piece of equipment, got the sleeve in and wired up ready to test it, tech help was great helping get the right equipment for my application, product was boxed well for shipping and I’m a happy camper, thanks again for the assistance

    Review by

    Posted on

Customer Questions
I got 2 units and the heating stopped working. What part do I need to buy and replace?
Your problem sounds like it could be an issue with how it was installed rather than a part issue. If it truly is a part issue, you can submit a Part Quote Request through our site. A member of our parts department will reach out to you after you submit the form. If this isn't a part issue, we recommend calling in and ask for Tech Support. They can help diagnose the issue and provide solutions.
What's the price of the unit after checkout?
Hello, please ensure that the PTAC unit is the only thing in your cart and if you're only looking to purchase one, then the quantity is one as well. If you continue to have issues, please feel free to give us a call! Thank you.
Are PTAC unit sizes from 2012 the same as the new ones, do these units come with a warranty, and are this units new or refurbished?
Regarding size, most likely yes. The PTAC should be the same size as older models. PTAC manufacturers have been standardizing their dimensions for a long time now. Most should be the same size, but there are a few oddball units that are a different one. If you have an existing one, I would measure the dimensions of where its installed and see how it compares to the PTH153G25AXXX. The wall sleeve used with the PTH153G25AXXX (model number: WS900E;) has all of the required dimensions outlined in its installation manual (found in the Resources section on the wall sleeve's page). If yours matches it, then the PTH153G25AXXX can easily replace it. Amana PTACs have a 1 year full unit replacement and 5 year parts warranty. It can be registered through Amana's website. The unit we sell are brand new, straight from the manufacturer. If you have more PTAC questions, feel free to give us a call. Our team is more than happy to assist you.
what does the fp code mean? no heat is coming out.
div itemscope itemprop="acceptedAnswer" itemtype="https://schema.org/Answer" > According to the Service Manual Document, Code FP means the Freeze Protection is engaged. The room temperature measured by the wireless remote thermostat or indoor ambient thermistor active sensor falls below 40-deg F. No action is required. This setting will disengage when the room temperature rises above 430 deg F. If you have any further questions please feel free to give us a call! Thanks.
What square footage does at 15,000 BTU PTAC unit cover?
Hello, thank you for reaching out with your question. A 15,000 BTU PTAC is able to cover ~600-1,000 sq ft room/zone. This square footage could change depending on the height of the ceilings, windows in the room, insulation, and other factors that could shorten or extend the footage coverage; for specifics, please feel free to give our customer sales line a call.
