Amana Distinction 12,000 BTU PTAC Heat Pump with 5.0 KW Electric Heat Backup 208/230V - R410A

Amana Distinction 12,000 BTU PTAC Heat Pump with 5.0 KW Electric Heat Backup 208/230V - R410A
By

Amana

Out of stock
Model

DHP123A50AA

ID

128106

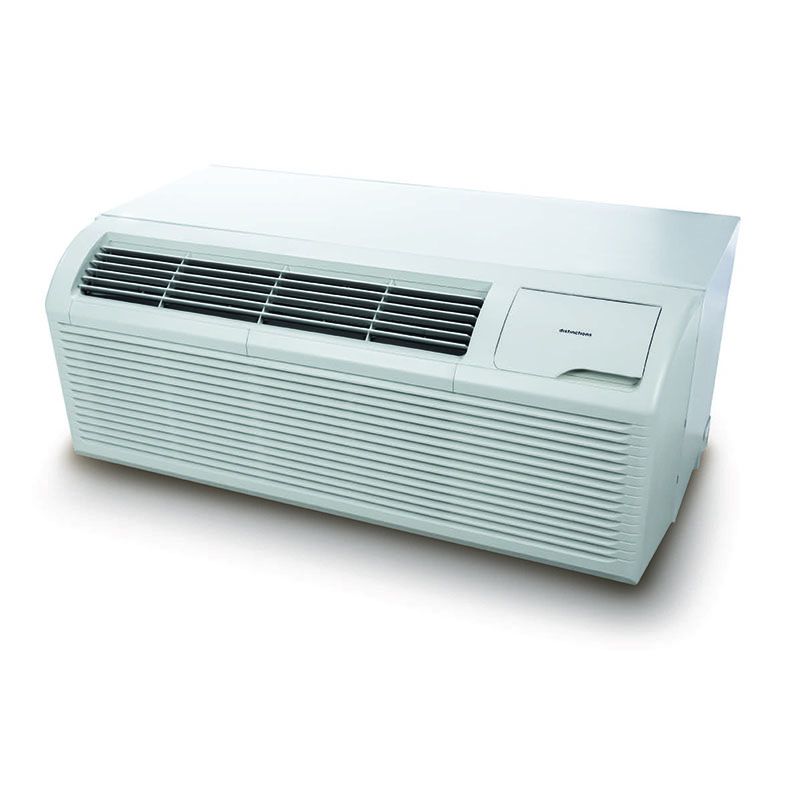

The Amana Distinction PTAC air conditioner is a compact and efficient option for cooling and heating small living spaces. With 12,000 BTUs of cooling power and a 5.0 kW electric heater, it can keep you comfortable all year round. It features Bluetooth and RF connectivity that can be accessed via the Amana brand mobile app, enabling you to use the Eden Energy Management System to modify settings and timing. This unit requires 208-230V of power at 30 amps and a NEMA 6-30R receptacle to power the unit and the electric heater. It uses the environmentally friendly R-410a refrigerant. With a 10.5 EER rating, it's an excellent choice for new construction or as a replacement for an existing unit.

QUICK FACTS

  • Designed for hotel and motel operations, residential additions, sunrooms, and small living spaces.
  • Dual Fan Motors: Allows precise independent fan speed operation while providing quiet operation.
  • LCDI Power Cord Included: No need to match power cord type to unit size.
  • 3-Speed Fan: Provide precise comfort control to your guests.
  • Constant Fan: Take advantage of each unit’s dual options—select continuous fan operation or cycle the fan ON and OFF with the thermostat. Our 7-button design allows guests to select fan.
  • Wired Thermostat Compatible: Wire your PTAC with any standard thermostat for better temperature control.

Warranty

  • 1 Year Unit Replacement / 5 Years Parts Warranty
  • More Information
    Amana Distinction 12,000 BTU PTAC Heat Pump with 5.0 KW Electric Heat Backup 208/230V - R410A
    FeatureSpec
    SKUDHP123A50AA
    Weight (in lbs)125.44
    Brand/ManufacturerAmana
    UPC663051683488
    Cooling BTU12,000 / 11,800 BTU
    Maximum CFM387
    Electric Heat5 Kilowatts
    Energy StarNo
    RefrigerantR410A
    EER10.5
    Electrical208 / 230V | 1 Phase | 60 Hz
    PhaseSingle Phase
    Max Breaker Size30 amps
    BTU/Tonnage12,000 BTU/1 Ton
    Height16"
    Width42"
    Depth21"
    Warranty1 Year Unit Replacement / 5 Years Parts Warranty
    Resources You will need Adobe® Acrobat® Reader to view PDF documents.
    Safety InformationPROPOSITION 65 WARNING
    Write Your Own Review
    You're reviewing:Amana Distinction 12,000 BTU PTAC Heat Pump with 5.0 KW Electric Heat Backup 208/230V - R410A
    Your Rating
    Customer Questions
    How many square feet will this 12,000 BTU PTAC accommodate?
    Hello, thank you for reaching out with your question. This 12,000 BTU PTAC unit will accommodate a 400-600 square foot room/zone. Maximum capacity for this space and system could also be impacted by how many windows are in the room, how tall the ceilings are, and even by how well the room is insulated. If you have any additional questions, please feel free to reach out.
