Today's Hours 8am - 11pm estCanarm 10" 3 Speed Shutter-Mounted Fan, 600 CFM, 1520 RPM, 120V
By
Canarm
In stock
Model
GSF3-10A
ID
131975
Was $193.00 Your Low Price Special Price $123.96
Ships in 3-4 Weeks
Product Features
- Airflow: 600 CFM
- Electrical: 120V 1 Phase
- Propeller Diameter: 10 Inch
- Material: Galvanized frame with Aluminum shutters
- Type: Shutter Exhaust
- Application: Workshops, Garage, Automotive Shop, Commercial Kitchens, Utility rooms

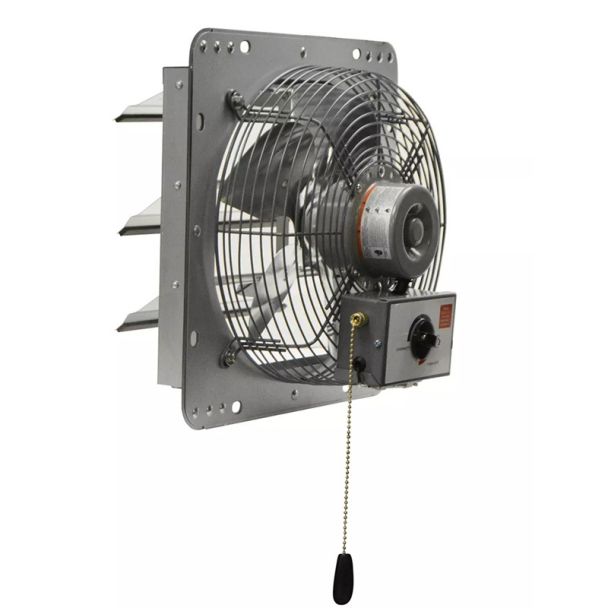

Shutter-Mounted Exhaust Fan for Light Commercial Ventilation
The Canarm GSF Series Shutter-Mounted Exhaust Fan is designed for light commercial ventilation applications, providing smooth, reliable, and maintenance-free operation. Available in sizes ranging from 10 to 30 inches. The series offers airflow capacities from 600 to 5,088 CFM across its listed models. Its galvanized frame and aluminum shutters provide a durable construction for dependable exhaust ventilation.
The GSF Series offers convenient airflow control with three-speed pull-chain operation on models ranging from 10 to 24 inches. The 30-inch model features two-speed operation. Each fan is equipped with a totally enclosed 120V motor with Class B insulation and thermal protection to support safe, reliable operation.
For added convenience, each unit includes a 25-inch pull chain, a 6-foot power cord with plug, and an adjustable thermostat with bypass. The thermostat supports temperature control within a range of 32°F to 130°F (0°C to 54°C), making the series suitable for light commercial spaces requiring dependable exhaust ventilation.
Canarm GSF Series Exhaust Fan Features & Benefits
- Light Commercial Ventilation: Designed for light commercial applications with smooth, reliable, and maintenance-free operation.
- Multiple Size Options: Available in 10-inch to 30-inch models to accommodate different ventilation requirements.
- Dependable Airflow: Listed models provide airflow capacities ranging from 600 to 5,088 CFM, depending on model.
- Durable Construction: Features a galvanized frame and aluminum shutters for dependable service.
- Enclosed, Thermally Protected Motor: Equipped with a totally enclosed 120V motor featuring Class B insulation and thermal protection.
- Convenient Speed Control: Models from 10 to 24 inches feature three-speed pull-chain control, while the 30-inch model features two-speed control.
- Adjustable Thermostat: Includes an adjustable thermostat with bypass and a temperature range of 32°F to 130°F (0°C to 54°C).
- Included Pull Chain: Supplied with a 25-inch pull chain for convenient speed adjustment.
- Power Cord and Plug: Includes a 6-foot power cord with plug for electrical connection.
- Safety Certification: cULus Listed.
What's Included
Each Canarm GSF Series exhaust fan is shipped fully assembled and factory tested for proper operation. The unit includes the shutter-mounted exhaust fan assembly, complete with the motor, propeller, galvanized frame, aluminum shutters, power cord and plug, pull chain switch, and adjustable thermostat. A user manual is also included.
Safety Features
- Secure Mounting: Install the fan securely according to the manufacturer's instructions using suitable supports and fasteners.
- Qualified Electrical Installation: Ensure proper wiring and grounding in accordance with applicable electrical codes.
- Power-Off Servicing: Disconnect and lock out power before installation, cleaning, or maintenance.
- Thermal Overload Protection: The motor features automatic thermal protection and may restart without warning after cooling.
- Proper Mounting Height and Guarding: Mount moving parts at least 8.2 feet (2.5 meters) above floor or grade level, or provide appropriate exterior guarding.
- Routine Maintenance: Keep the motor, propeller, and louvers clean; check fasteners and ensure the louvers operate freely. Do not pressure-wash the fan.
- Indoor Use: Protect the fan from water and rain. Do not use it to exhaust hazardous or explosive materials or vapors.
Warranty Information
CANARM Ltd. provides a 1-year standard warranty against defects in materials and workmanship. During the warranty period, CANARM Ltd. may, at its option, repair or replace any product or part found to be defective, subject to the applicable warranty terms and conditions.
The warranty applies only to the original purchaser-user. It does not cover labor or transportation costs associated with removing or reinstalling the unit. Warranty coverage is void in cases of alteration, accident, abuse, neglect, or operation not in accordance with the instructions. Repaired or replaced components are covered only for the remainder of the original warranty period.
For complete warranty details, terms, conditions, and limitations, please refer to the Canarm Terms & Conditions of Sale.

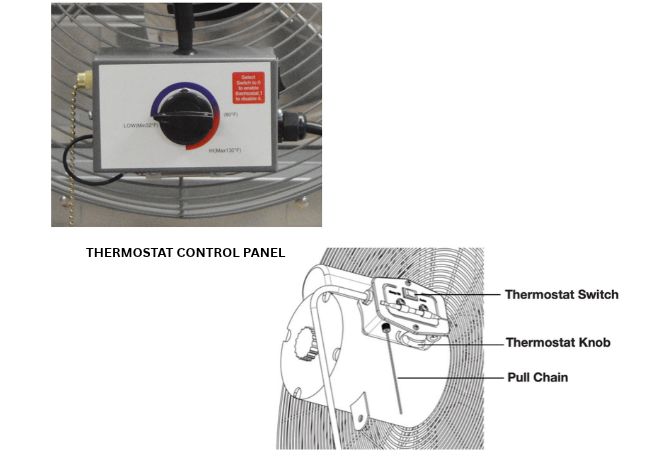

Fan Controller Options
The Canarm GSF Series features built-in fan speed and temperature controls. No separate fan controller is required for normal operation.
- Pull Chain Speed Control: Included. Models from 10" to 24" offer three speeds, while the 30" model offers two speeds.
- Adjustable Thermostat: Included. Features an on/off switch and adjustable temperature control from 32°F to 130°F (0°C to 54°C).
High-Quality Materials & Design

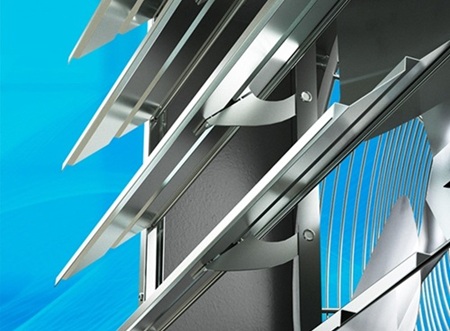

The Canarm GSF Series Fans are built to provide powerful and dependable ventilation in demanding environments where air circulation is critical. Featuring a rugged galvanized steel frame and housing, these fans are engineered to resist rust, corrosion, and heavy wear, ensuring a long service life even in challenging industrial, agricultural, or commercial settings. The lightweight yet durable aluminum shutters are designed to open automatically when the fan is running and close securely when idle, preventing the intrusion of rain, dust, debris, and unwanted backdrafts. Each fan is equipped with a totally enclosed, thermally protected motor featuring Class B insulation, providing superior safety and extended performance by protecting against overheating and contamination from dirt and moisture. The precision-balanced blades are engineered to maximize airflow efficiency while minimizing noise and vibration, making the fans effective yet quiet in operation.

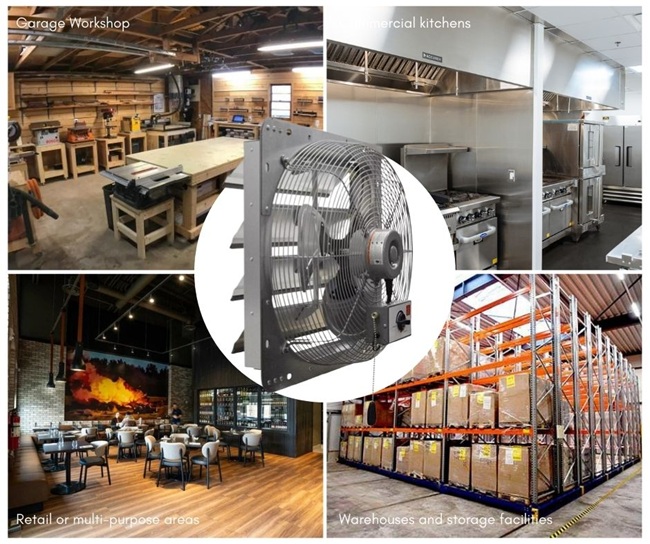

Suitable Applications for Canarm GSF Series Exhaust Fans
The Canarm Shutter-Mounted Exhaust Fans are a perfect choice for:
- Workshops, garages, and light manufacturing spaces where steady air circulation reduces fumes, dust, and heat buildup
- Warehouses and storage facilities needing fresh airflow to protect goods and maintain a more consistent environment
- Greenhouses and agricultural buildings requiring climate control to regulate temperature and humidity for healthy growth
- Commercial kitchens and prep areas that manage heat and odors while supporting a safer, more comfortable workspace
- Retail, fitness, or multi-purpose areas needing effective air exchange to improve comfort for both customers and occupants
- Equipment and utility rooms to prevent overheating of machinery and electronics with steady air exchange
- Paint shops and hobby areas safely vent fumes and improve air circulation in smaller industrial or residential settings
