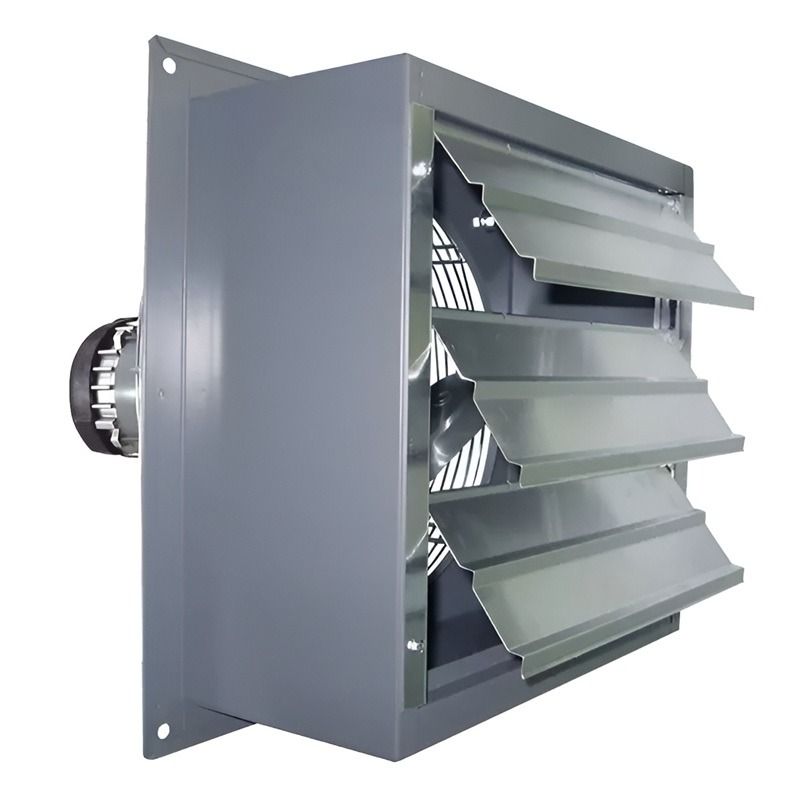

Canarm 24" Explosion Proof Standard Fan 5,500 CFM, 1/3 HP, 115/230V

SAVE $709.70
By

Canarm

In stock
Model

SD24-XPF

ID

2226

Was $1,740.00 Your Low Price Special Price $1,030.30

Free Shipping
Product Features
  • Made from rugged steel welded box housing
  • With tie bar shutters and magnets for quiet operation
  • High-Efficiency Motor
  • Suitable for garages, warehouses and other industrial/commercial buildings.

Canarm 24 Inch Explosion Proof Standard Fan 5,500 CFM 115/230V

Canarm LFI’s explosion proof fans follow a tradition of quality in design, materials and construction. Using our quality “Standard Fan” housing and motor mount as the basis for design, we have developed an efficient, economically priced Explosion Proof Fan. All Explosion Proof Fans have a single speed, dual voltage explosion proof motor that meets and conforms to all the standards that are listed below.

Class I, Group C - Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard.
Class I, Group D - Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gasses or vapors of equivalent hazard.
Class II Group F - Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard.
Class II Group G - Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals.

  • Totally enclosed, ball bearing motor with thermal overload protection.
  • The fan blades are well-balanced, heavy gauge aluminum.
  • The rugged steel welded box housing has a durable powder coated finish.
  • Aluminum louver shutters are supported by long life nylon bushings.
  • Heavy wire chrome plated OSHA guards on intake side of fan.
  • All fans are shipped completely assembled.
More Information
Canarm 24" Explosion Proof Standard Fan 5,500 CFM, 1/3 HP, 115/230V
SKUSD24-XPF
Weight (in lbs)72.000000
Brand/ManufacturerCanarm
Maximum CFM5,500 at 0 in Static Pressure
Propeller Diameter24 inches
Motor RPM1625
Horsepower1/3
Electrical115/230V 1 Phase
PhaseSingle Phase
Height29.25"
Width29.25"
Depth20.50"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
