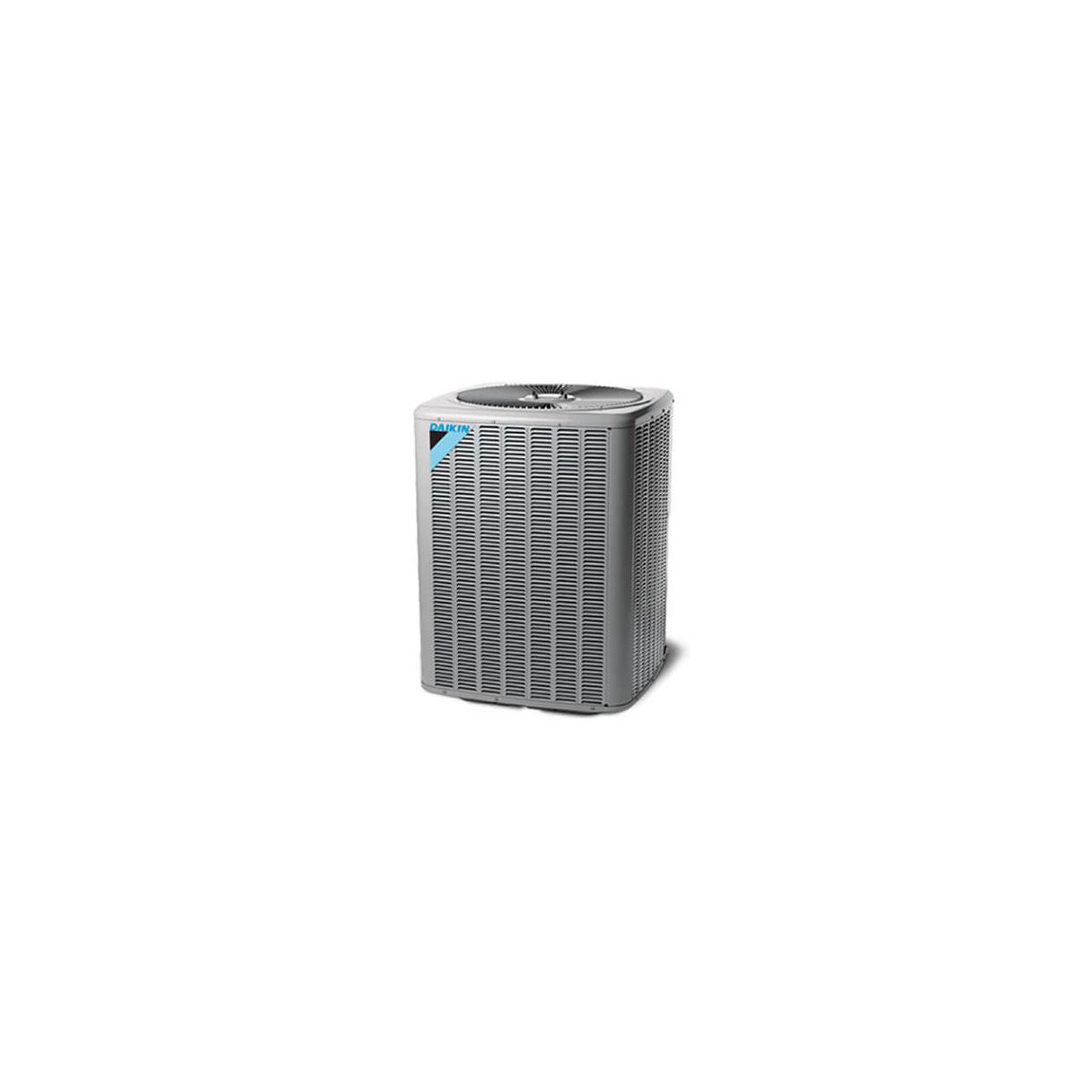

Daikin 10 Ton 11.2 EER / 16 IEER Commercial Heat Pump Condenser | 208/230V 3 Phase - R32 - Two Stage

Reliable 10-Ton Commercial Split Heat Pump for Light Commercial Applications with Two-Stage R-32 Performance

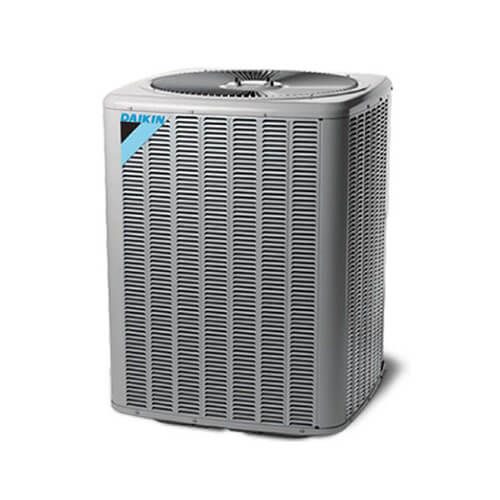

The Daikin DH6TE12030 is a 10-ton commercial split heat pump system designed to provide reliable year-round heating and cooling for light commercial applications. Combining the 115,000 BTU/h DH6TE12030 outdoor heat pump unit with a compatible 10-ton indoor air handler, this split system helps deliver dependable comfort while providing flexible equipment placement and ducted installation options.

Key Benefits

• 16.0 IEER Efficiency – Provides efficient commercial cooling performance to help manage energy use during warm-weather operation.
• Two-Stage Heating Operation – The two-stage tandem compressor design provides staged heat pump operation for dependable heating performance across a range of outdoor conditions.
• 115,000 BTU/h Cooling Capacity – Provides substantial cooling capacity for 10-ton commercial split system applications.
• Compatible Commercial Air Handler – Pairs with a compatible indoor air handler to provide ducted air distribution for light commercial applications.
• Flexible Split System Installation – Separating the outdoor heat pump from the indoor air handler provides flexibility for equipment placement and ducted installation.
• Ground-Level or Rooftop Mounting – Bottom pan rails elevate the outdoor unit above the slab to promote water drainage and help keep the coil away from debris.
• Durable Cabinet Construction – Heavy-gauge galvanized steel, a Nickel Gray powder-paint finish, and a steel louvered coil guard provide durability and protection for outdoor components.
• Conventional Low-Voltage Controls – Low-voltage control connections support two-stage compressor operation, reversing-valve control, and auxiliary heat control when applicable.
• Service-Friendly Refrigeration Design – Brass liquid and suction service valves with service ports, high- and low-pressure switches, a bi-flow heat pump filter drier, and liquid refrigerant return protection support service and system protection.

Two-Stage Heat Pump Heating Performance

The DH6TE12030 provides a rated heating capacity of 97,000 BTU/h at 47°F outdoor ambient temperature with a heating COP of 3.4. The published heating operating range extends from -5°F to 70°F outdoor ambient temperature. The two-stage tandem compressor design incorporates an internal pressure release valve, while time-initiated, temperature-terminated defrost control helps manage frost accumulation during heat pump operation.

115,000 BTU/h Cooling Performance

The DH6TE12030 provides a rated cooling capacity of 115,000 BTU/h with an EER of 11.20 and an IEER of 16.0. The outdoor unit is designed for a cooling operating range of 55°F to 120°F outdoor ambient temperature, supporting dependable cooling performance across a broad range of commercial conditions.

16.0 IEER Efficiency with Two-Stage Operation

With a 16.0 IEER rating and two-stage tandem compressor operation, the DH6TE12030 is designed to provide efficient commercial cooling performance while supporting staged compressor operation. The system uses R-32 refrigerant, a high-efficiency copper tube/aluminum fin coil, a high-capacity steel-cased bi-flow heat pump filter drier, liquid refrigerant return protection, a check flowrater heating-mode expansion device, and a discharge line muffler. The unit complies with ASHRAE 90.1-2016 and is AHRI Certified and ETL Listed.

Split System Installation Design

The split system configuration separates the DH6TE12030 outdoor heat pump unit from the compatible indoor air handler, providing flexibility for equipment placement and ducted commercial installation. The outdoor unit operates on 208/230V, 60 Hz, three-phase power with a minimum circuit ampacity of 41.6 amps and maximum overcurrent protection of 50 amps. It uses a 5/8-inch liquid line and 1-1/8-inch suction line, is factory charged for 15 feet of piping, and supports a maximum total piping length of 150 feet with a maximum vertical piping length of 25 feet. The outdoor unit measures 41-1/2 inches high by 35-1/2 inches wide by 35-1/2 inches deep and weighs 386 pounds net.

Controls & Comfort

The DH6TE12030 uses conventional low-voltage controls for heat pump operation. Its two-stage compressor configuration supports staged operation, while the reversing valve provides heat pump changeover between heating and cooling modes. The system also provides provisions for auxiliary heat control when installed with the appropriate indoor equipment and controls. The compatible indoor air handler uses a room thermostat for system control.

Commercial Applications

The Daikin DH6TE12030 is designed for 10-ton light commercial split system applications requiring 208/230V three-phase power and ducted indoor air distribution. Its ground-level or rooftop mounting capability, elevated bottom pan rails, heavy-gauge galvanized-steel cabinet, sound control top design, and steel louvered coil guard make it suited for commercial installations where durable equipment construction and dependable year-round heating and cooling are required.

Service & Maintenance

The DH6TE12030 includes brass liquid and suction line service valves mounted at a 90-degree angle with sweat connections and service ports for refrigeration-system service. High- and low-pressure switches provide system protection, while the factory-installed bi-flow heat pump filter drier, liquid refrigerant return protection, discharge line muffler, and time-initiated, temperature-terminated defrost control are integrated into the outdoor unit. The heavy-gauge galvanized-steel cabinet and steel louvered coil guard provide additional protection for outdoor components.

Warranty

The Daikin DH6TE12030 includes a 5-Year Parts Limited Warranty. Complete warranty details are available from the Daikin distributor or manufacturer's representative and are subject to applicable warranty terms, conditions, and limitations.

Recommended Accessories

• Anchor Bracket Kit – Provides anchoring brackets for securing the outdoor unit to a mounting pad; the kit contains 20 brackets, with four brackets required to anchor the unit.
• Solenoid Kit – Provides a compatible solenoid accessory option for the DH6TE12030.
• Low Ambient Kit – Provides a compatible low-ambient accessory option for the DH6TE12030.
• Outdoor Thermostat – Provides a compatible outdoor thermostat accessory for the DH6TE12030.
• Crankcase Heater – Compatible crankcase heater accessory for the DH6TE12030.
• Crankcase Heater – Compatible crankcase heater accessory for the DH6TE12030.

Reliable Commercial Heating & Cooling with the Daikin DH6TE12030

Experience dependable year-round commercial comfort with the Daikin DH6TE12030. Combining two-stage heat pump heating, 115,000 BTU/h cooling capacity, 16.0 IEER efficiency, and durable R-32 outdoor unit construction in one 10-ton commercial split heat pump system.
