Daikin 10 Ton 11.2 EER / 16 IEER Commercial Heat Pump Condenser | 460V 3 Phase - R32 - Two Stage

Reliable 10-Ton Commercial Split Heat Pump for Light Commercial Applications with Two-Stage R-32 Performance

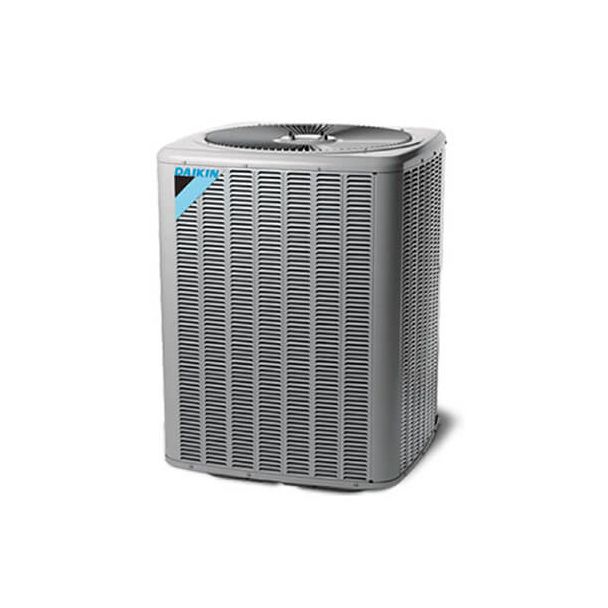

The Daikin DH6TE12040 is a 10-ton commercial split heat pump system designed to provide reliable year-round heating and cooling for light commercial applications. Combining the 115,000 BTU/h DH6TE12040 outdoor heat pump unit with the compatible DAQ1203 indoor air handler, this split system helps deliver dependable comfort while providing flexible equipment placement and ducted installation options.

Key Benefits

• 16.0 IEER Efficiency – Provides efficient commercial cooling performance to help manage energy use during warm-weather operation.
• Two-Stage Heating Operation – The two-stage tandem compressor design provides staged heat pump operation for dependable heating performance across a range of outdoor conditions.
• 115,000 BTU/h Cooling Capacity – Provides substantial cooling capacity for 10-ton commercial split system applications.
• DAQ1203 Indoor Air Handler Compatibility – The compatible DAQ1203 air handler features two direct-drive blower motors, two adjustable factory-installed thermal expansion valves, and a copper tube/aluminum fin evaporator coil.
• Flexible Split System Installation – Separating the outdoor heat pump unit from the indoor air handler provides flexibility for equipment placement and ducted commercial installations.
• Ground-Level or Rooftop Mounting – The outdoor unit is designed for ground-level or rooftop mounting, while its elevated base pan helps provide water drainage and keeps the coil away from debris.
• Durable Cabinet Construction – Heavy-gauge galvanized steel, a Nickel Gray powder-paint finish, a 500-hour salt-spray-tested finish, and a steel louvered coil guard help protect the outdoor unit in commercial environments.
• Conventional Low-Voltage Controls – Low-voltage connections support two-stage compressor operation, reversing-valve control, and auxiliary heat control when installed.
• Service-Friendly Refrigeration Design – Brass liquid and suction service valves with service ports, high- and low-pressure switches, and a factory-installed bi-flow filter drier support refrigeration-system service and maintenance.

Two-Stage Heat Pump Heating Performance

The DH6TE12040 provides a rated heating capacity of 97,000 BTU/h at 47°F outdoor ambient temperature and maintains heating operation within an outdoor ambient range of -5°F to 70°F. At 17°F, the expanded heating data shows 60,000 BTU/h of heating capacity with a COP of 2.25. The two-stage tandem compressor design incorporates an internal pressure release valve, while time-initiated, temperature-terminated defrost control helps manage frost accumulation during heat pump operation.

115,000 BTU/h Cooling Performance

The DH6TE12040 provides a rated cooling capacity of 115,000 BTU/h with an EER of 11.2 and an IEER of 16.0. The outdoor unit is designed for a cooling operating range of 55°F to 120°F outdoor ambient temperature, helping support dependable cooling performance across a broad range of commercial conditions.

16.0 IEER Efficiency with Two-Stage Operation

With a 16.0 IEER rating and two-stage tandem compressor operation, the DH6TE12040 is designed to provide efficient commercial cooling performance while supporting staged operation. The system uses R-32 refrigerant, a high-efficiency copper tube/aluminum fin coil, a high-capacity steel-cased bi-flow heat pump filter drier, liquid refrigerant return protection, and a discharge line muffler. The system complies with ASHRAE 90.1-2016 and is AHRI Certified and ETL Listed.

Split System Installation Design

The split system configuration separates the DH6TE12040 outdoor heat pump unit from the compatible DAQ1203 indoor air handler, providing flexibility for equipment placement and ducted commercial installation. The outdoor unit operates on 460V, 60 Hz, three-phase power and uses 5/8-inch liquid and 1-1/8-inch suction service valve connections. The outdoor unit is factory charged for 15 feet of piping, supports a maximum total piping length of 150 feet, and allows a maximum vertical piping length of 25 feet. The published outdoor unit dimensions are 35-1/2 inches wide by 35-1/2 inches deep by 41-1/2 inches high.

Controls & Comfort

The DH6TE12040 uses conventional low-voltage controls with connections for Y1, Y2, W1, O, R, and C functions. Y1 and Y2 provide staged compressor control, while the O connection controls the heat pump reversing valve. The W1 connection is used to command auxiliary heat when installed. The compatible DAQ1203 air handler is designed for use with a room thermostat and requires 24 VAC control circuitry.

Commercial Applications

The Daikin DH6TE12040 is designed for 10-ton light commercial split system applications requiring three-phase power and ducted indoor air distribution. Its ground-level or rooftop mounting capability, durable galvanized-steel cabinet, elevated base pan, sound control top design, and steel louvered coil guard make it suited for commercial installations where equipment durability, flexible placement, and dependable year-round heating and cooling are important considerations.

Service & Maintenance

The DH6TE12040 includes brass liquid and suction line service valves mounted at a 90-degree angle with sweat connections and service ports for refrigeration-system service. High- and low-pressure switches provide system protection, while the factory-installed bi-flow heat pump filter drier, liquid refrigerant return protection, discharge line muffler, and time-initiated, temperature-terminated defrost control are integrated into the outdoor unit. The heavy-gauge galvanized-steel cabinet, powder-paint finish, and steel louvered coil guard provide additional protection for outdoor components.

Warranty

The Daikin DH6TE12040 includes a 5-Year Parts Limited Warranty for qualifying commercial installations. Online registration must be completed within 60 days of installation to receive the 5-Year Parts Limited Warranty, subject to applicable state or provincial requirements. Other limitations and exclusions apply; refer to the complete Daikin commercial warranty documentation for applicable terms and conditions.

Recommended Accessories

• Anchor Bracket Kit – Provides anchoring hardware for securing the outdoor unit to its mounting pad; the kit contains 20 brackets, with four brackets required to anchor the unit to the pad.
• Solenoid Kit – Daikin-listed accessory compatible with the DH6TE12040 outdoor unit.
• Low Ambient Kit – Daikin-listed accessory compatible with the DH6TE12040 outdoor unit.
• Outdoor Thermostat – Daikin-listed outdoor thermostat accessory compatible with the DH6TE12040.
• Crankcase Heater – Daikin offers model-specific crankcase heater accessories for the DH6TE series; consult the applicable Daikin accessory documentation for the correct heater selection.

Reliable Commercial Heating & Cooling with the Daikin DH6TE12040

Experience dependable year-round commercial comfort with the Daikin DH6TE12040. Combining two-stage heat pump heating, 115,000 BTU/h cooling capacity, 16.0 IEER efficiency, and durable R-32 outdoor unit construction in one 10-ton commercial split heat pump system.
