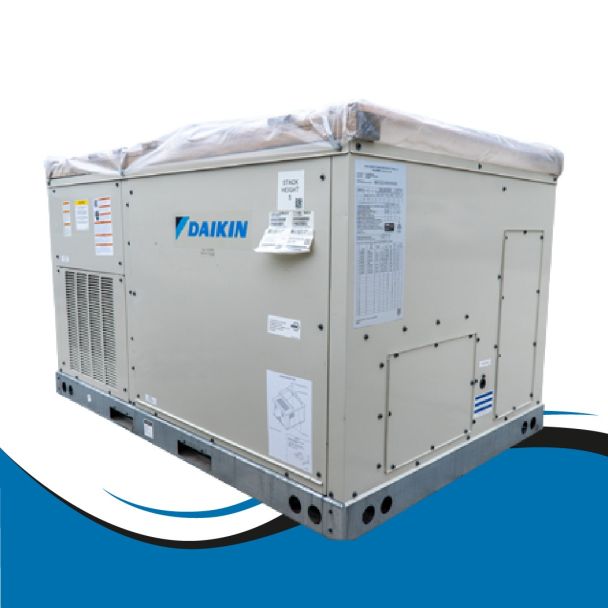

Daikin 10 Ton 14 EER Commercial Packaged Air Conditioner | 208/230V 3 Phase - R410A - Single Stage

Efficient 10-Ton Air Conditioner Rooftop Unit for Light Commercial Applications with Direct-Drive Airflow

The Daikin DFC1203D000001S is a 10-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for light commercial applications. Combining 116,000 BTU/h of cooling capacity with a direct-drive supply fan, two individually circuited scroll compressors, and convertible airflow capability, this all-in-one rooftop system helps deliver dependable cooling while simplifying installation and preserving valuable indoor space.

Key Benefits

• 15 IEER / 11.2 EER Efficiency – Provides efficient cooling performance to help manage energy use during full-load and part-load commercial operation.
• 116,000 BTU/h Cooling Capacity – Delivers substantial cooling capacity for larger light commercial spaces and applications.
• Two Individually Circuited Scroll Compressors – Provides reliable cooling operation with separate refrigeration circuits designed to match the required total load.
• Direct-Drive Supply Fan – Provides easy airflow control while eliminating belt-driven components.
• Packaged Rooftop Configuration – Combines major air conditioning components in one outdoor unit to simplify equipment placement and preserve valuable indoor space.
• Convertible Airflow Orientation – Supports downflow or horizontal applications for greater installation flexibility.
• Durable Galvanized-Steel Cabinet – Heavy-gauge galvanized-steel construction with a powder-paint finish helps provide corrosion resistance and long-term durability.
• Tool-Less Filter Access – Provides convenient access to the filter section to simplify routine maintenance.

Two-Stage Scroll Compressor System – Primary Cooling Benefit

The integrated air conditioning system uses two single-stage scroll compressors that are individually circuited to provide 116,000 BTU/h of nominal cooling capacity. The dual-circuit design provides two stages of cooling and allows the compressors to operate as needed to match the required total load. The system uses R-410A chlorine-free refrigerant.

116,000 BTU/h Cooling Performance

The DFC1203D000001S provides 116,000 BTU/h of nominal cooling capacity with an 11.2 EER and 15 IEER rating. This combination helps provide dependable commercial cooling performance while supporting efficient operation across full-load and part-load conditions.

Efficient Direct-Drive Operation

With an 11.2 EER and 15 IEER rating and a direct-drive supply fan, this system is designed to provide efficient air movement and reliable cooling performance. The indoor forward-curved fan is paired with a direct-drive motor to provide easy airflow control. The DFC1203D000001S provides a nominal indoor airflow of 3,380 CFM.

Packaged Rooftop Installation Design

The packaged rooftop configuration combines the compressors, condenser, evaporator coil, supply fan, controls, and other air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. Daikin packaged rooftop units are designed for fast and easy installation in new construction and retrofit projects and are built to be a direct replacement for most rooftop units without the need for a curb adapter. The DFC1203D000001S also provides convertible airflow orientation for downflow or horizontal applications.

Controls & Comfort

The DFC1203D000001S is equipped with a 24-volt electromechanical controls package for commercial system operation. Two individually circuited scroll compressors provide two-stage cooling operation, while the direct-drive supply fan provides airflow control for the connected duct system. The unit is configured for 208/230-volt, three-phase electrical service.

Commercial Applications

The Daikin DFC1203D000001S is designed for comfort cooling applications in light commercial buildings and other commercial environments requiring packaged rooftop air conditioning. Its 116,000 BTU/h cooling capacity, dual refrigeration circuits, direct-drive supply fan, and convertible airflow orientation make it well suited for larger light commercial applications where reliable cooling, efficiency, and installation flexibility are important.

Service & Maintenance

The DFC1203D000001S is designed for convenient service access, including tool-less filter access for routine filter maintenance. Screw-on style pressure switches are provided for ease of replacement, while the weatherproof internal control box provides organized access to controls and wiring. The unit uses copper tube/aluminum fin evaporator coils and Micro Channel condensers, and the electrical system is factory wired and tested to help support faster commissioning and start-up.

Warranty

The Daikin DFC1203D000001S includes a 5-Year Parts Limited Warranty. Complete warranty details are available from the local Daikin distributor or manufacturer's representative and are subject to applicable warranty terms and conditions.

Recommended Accessories

• Roof Curb – Compatible Daikin roof curb selected according to the required installation configuration
• Compatible 24-Volt Thermostat or Commercial Control – Selected according to the application's control requirements
• Equipment Disconnect – Properly sized disconnect for the unit's 208/230-volt, three-phase electrical service
• Duct/Transition Accessories – Compatible downflow or horizontal duct connections as required by the installation

Reliable Commercial Cooling with the Daikin DFC1203D000001S

Experience reliable, efficient commercial cooling with the Daikin DFC1203D000001S. Combining two individually circuited scroll compressors, 15 IEER / 11.2 EER efficiency, direct-drive air distribution, and flexible downflow or horizontal airflow configuration in one packaged rooftop air conditioning system.
