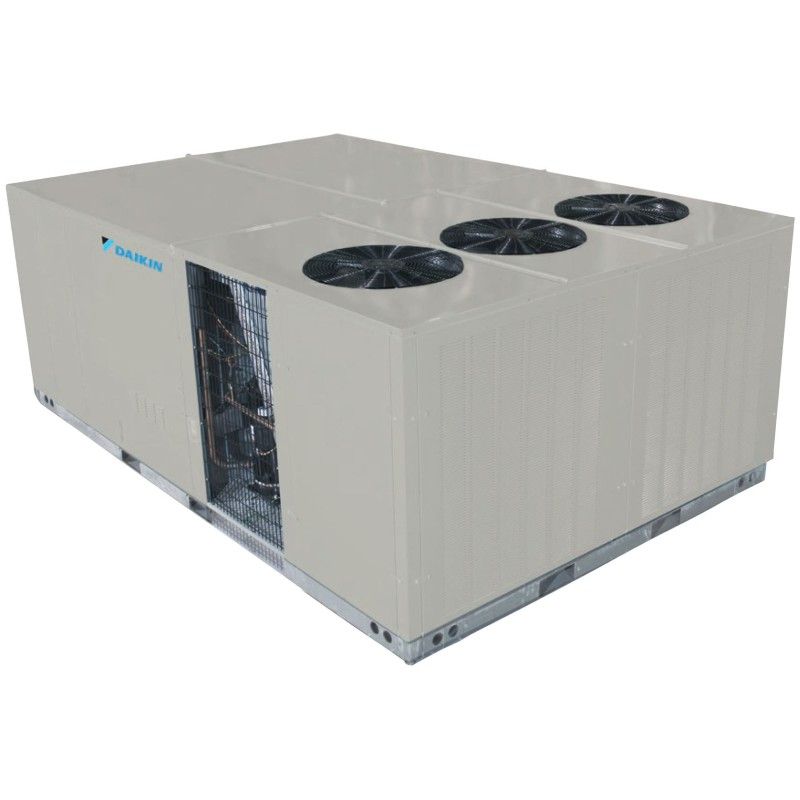

The Daikin DFC2403D000001S is a 20-ton commercial packaged air conditioner designed to provide reliable, efficient cooling for light commercial applications. Combining 230,000 BTU/h of cooling capacity with two individually circuited scroll compressors and two direct-drive supply fans, this all-in-one rooftop system helps deliver dependable cooling while simplifying installation and preserving valuable indoor space.
The integrated air conditioning system uses two single-stage scroll compressors that are individually circuited to provide 230,000 BTU/h of nominal cooling capacity. The two refrigeration circuits provide staged cooling operation to help match system output to the required cooling load. The DFC2403D000001S uses chlorine-free R-410A refrigerant.
The DFC2403D000001S provides 230,000 BTU/h of nominal cooling capacity with an 11.0 EER and 14.2 IEER rating. This helps provide dependable commercial cooling performance while supporting efficient operation across full-load and part-load conditions.
With an 11.0 EER and 14.2 IEER rating and two direct-drive supply fans, this system is designed to provide efficient air distribution and reliable cooling performance. The direct-drive fan arrangement eliminates the need for belts, sheaves, bearings, and lubrication, helping simplify maintenance. The unit provides a nominal indoor airflow of 6,500 CFM.
The packaged rooftop configuration combines the compressors, condenser, evaporator coil, supply fans, controls, and other air distribution components into a single outdoor unit, helping simplify equipment placement and preserve valuable indoor space. The DFC2403D000001S is designed for new construction and retrofit applications. Its installation design allows the unit to be installed on a roof curb, with bottom discharge ductwork attached to the curb before the unit is set in place. The unit measures approximately 133-7/8 inches long by 88-1/2 inches wide and has an operating weight of approximately 1,993 pounds.
The DFC2403D000001S is equipped with a 24-volt electromechanical controls package for commercial system operation. Two individually circuited scroll compressors provide staged cooling, while two direct-drive supply fans provide air distribution. The unit uses a weatherproof internal control box designed for convenient access to controls and wiring.
The Daikin DFC2403D000001S is designed for comfort cooling applications in light commercial buildings and other commercial environments requiring high-capacity packaged rooftop air conditioning. Its 230,000 BTU/h cooling capacity, two-stage compressor configuration, direct-drive supply fans, and durable packaged construction make it well suited for larger commercial applications where reliable cooling, efficiency, and serviceability are important.
The DFC2403D000001S is designed with service accessibility in mind. The weatherproof internal control box provides convenient access to controls and wiring, while the standard draw-through filter section supports routine filter maintenance and long-lasting component operation. Screw-on style pressure switches are provided for ease of replacement. The unit also uses copper tube/aluminum fin indoor coils and Micro Channel condensers for efficient heat transfer.
The Daikin DFC2403D000001S includes a 5-Year Parts Limited Warranty. Complete warranty details are available from the local Daikin distributor or manufacturer's representative and are subject to applicable warranty terms and conditions.
Experience reliable, efficient commercial cooling with the Daikin DFC2403D000001S. Combining two individually circuited scroll compressors, 14.2 IEER / 11.0 EER efficiency, two direct-drive supply fans, and a durable packaged rooftop design in one high-capacity commercial air conditioning system.
